Confined space kit with high-strength tripod SAFETOP

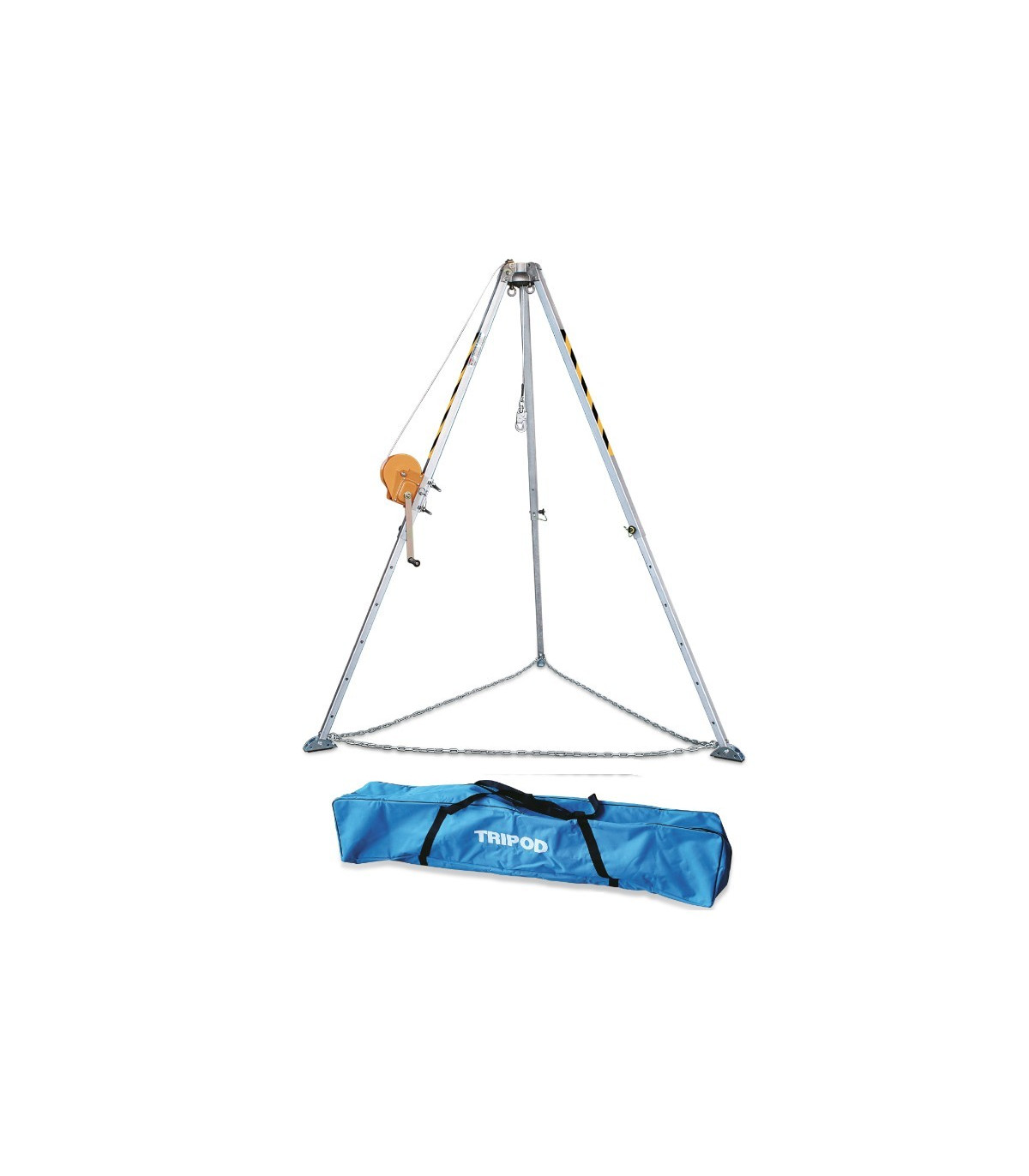

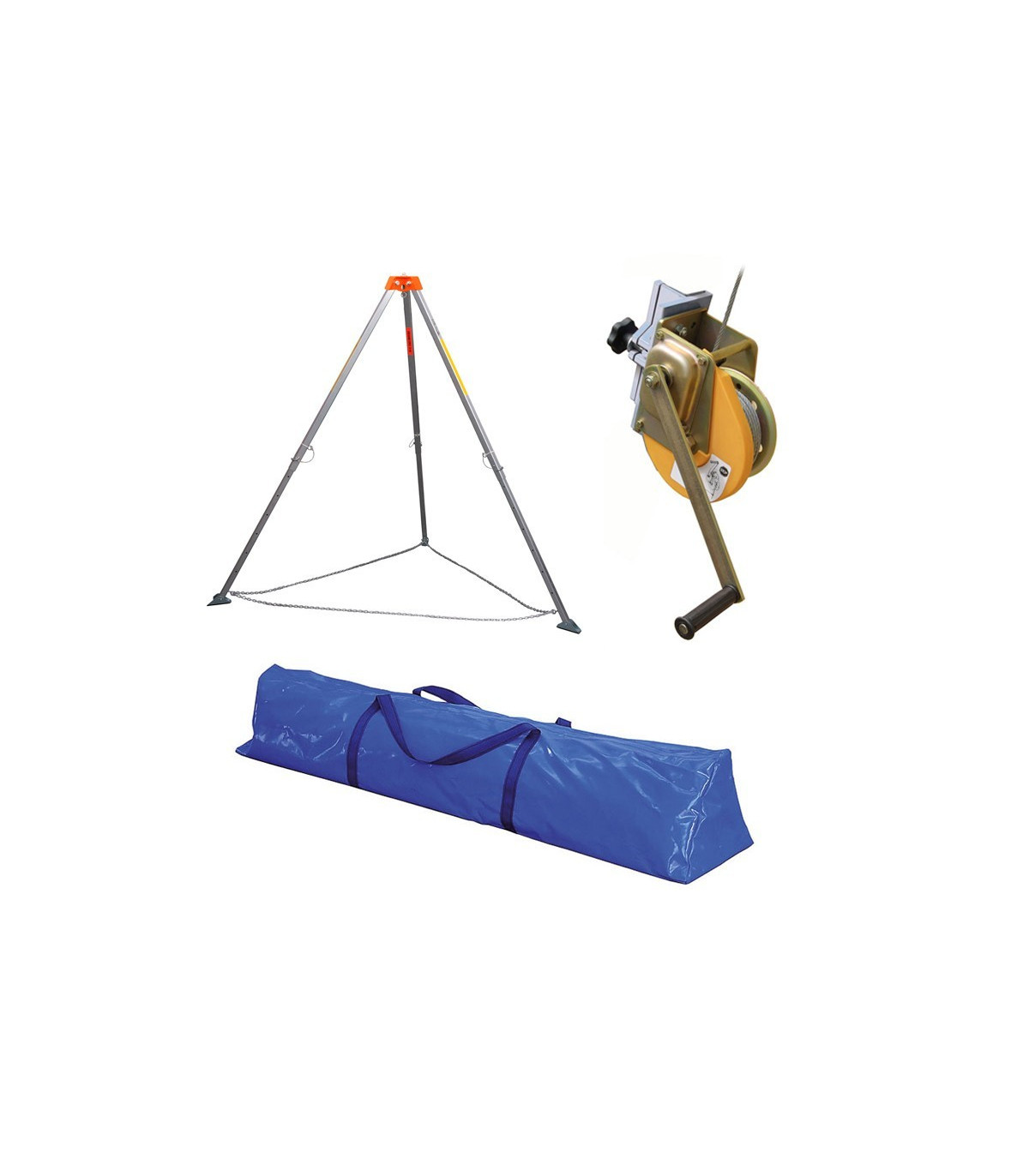

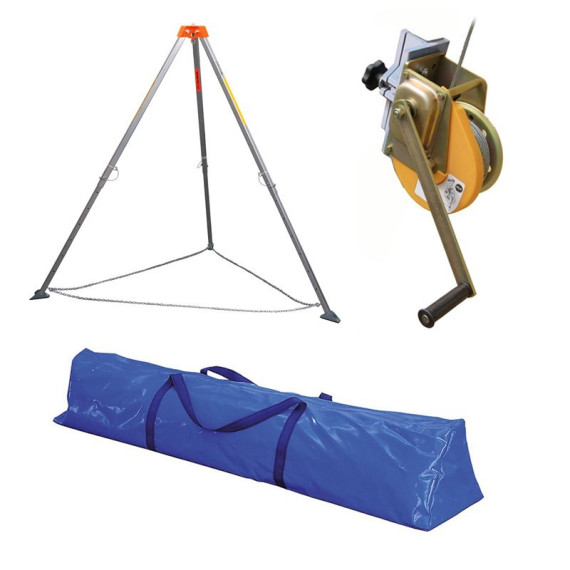

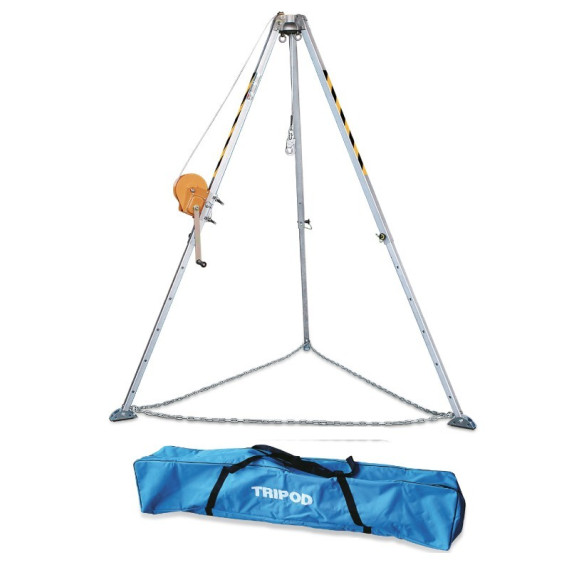

Confined space kit ideal for work in wells, tanks, pits, and other underground tasks where fall protection or rescue is necessary. The kit includes:

• Aluminum tripod, with high-strength head, 1 single pulley, adjustable high-strength aluminum legs (size 45x45 mm), high-strength aluminum feet (size 34x34 mm), base made of rubber with a non-slip bottom.

• 25 m winch, with crank. Gear ratio 5:1. Includes galvanized steel cable with a diameter of 4.8 mm. With anti-slip function.

• Transport backpack.

ALUMINUM TRIPOD FEATURES

PPE category III

Includes a robust duralumin tripod. Ideal for confined spaces, wells, tanks, pits, and other underground tasks where fall protection or rescue is necessary. Maximum working load: 100 Kg. Maximum lifting distance: 25 m. Weight: 35 kg. Suitable for use by one person. The tripod includes reflective stickers on the top. Adjustable legs, with a maximum opening diameter of 150 cm. High-strength head and 1 single pulley.

Adjustable legs at the base. High-strength aluminum legs (size 45x45 mm). High-strength aluminum feet (size 34x34 mm). Base made of rubber with a non-slip bottom.

• Includes 25 m winch.
• Capacity 1800 lbs.
• Gear ratio 5:1.
• Length of the crank: 320mm.
• Galvanized steel cable with a diameter of 4.8 mm.
• Cable length: 25 m (diameter: 5 mm)
• With anti-slip function

• High-strength head
• 1 single pulley
• Adjustable legs at the base
• High-strength aluminum legs. Size 45x45 mm
• High-strength aluminum feet. Size 34x34 mm
• Base made of rubber with
• non-slip bottom
• According to standard EN795 Class B

SPARE PARTS

• Tripod spare part Ref. 80377
• 25 m winch spare part Ref. 80378
• Backpack spare part Ref. 80123

25 M WINCH FEATURES

• Capacity 1800 lbs
• Gear ratio 5:1
• Length of crank: 320 mm
• Bracket: winch crank support and connection to tripod
• Galvanized steel cable with a diameter of 4.8 mm
• Cable length: 25 m
• Cable diameter: 5 mm
• Anti-slip function
• According to standard EN1496:2006
• Class A

TRANSPORT BACKPACK FEATURES

• Includes a durable and waterproof transport backpack
• Designed for transporting fall protection equipment

APPLICATIONS

Ideal for confined spaces, wells, tanks, pits, and other underground tasks where fall protection or rescue is necessary.

CERTIFICATION

EN795 Class B (Transportable provisional anchors)

EN1496 Class A (Rescue devices)

PACKAGING

1 unit

ABOUT SAFETOP

Safetop is an innovative company specializing in personal protective equipment and with commercial activity at an international level. Its focus is to stand out and offer added value that leaves its mark on the products and services it offers, innovating and developing solutions to the new challenges posed by achieving a work environment with levels of protection, comfort, and personal safety that meet current social demands.
