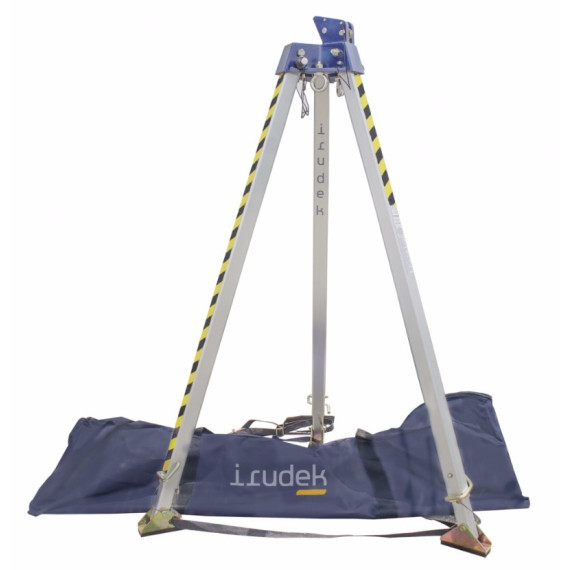

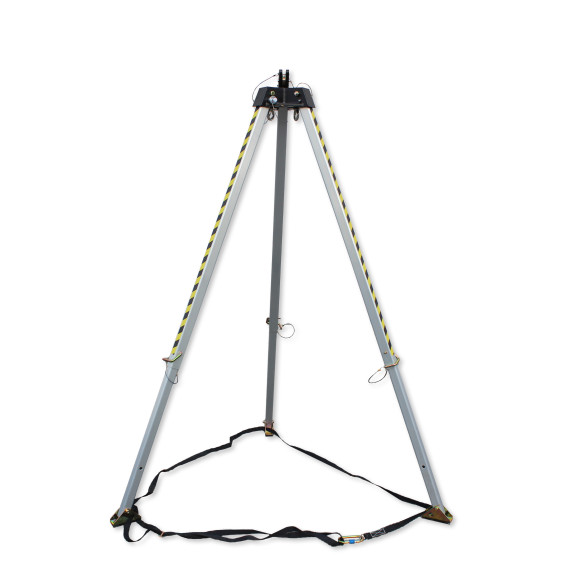

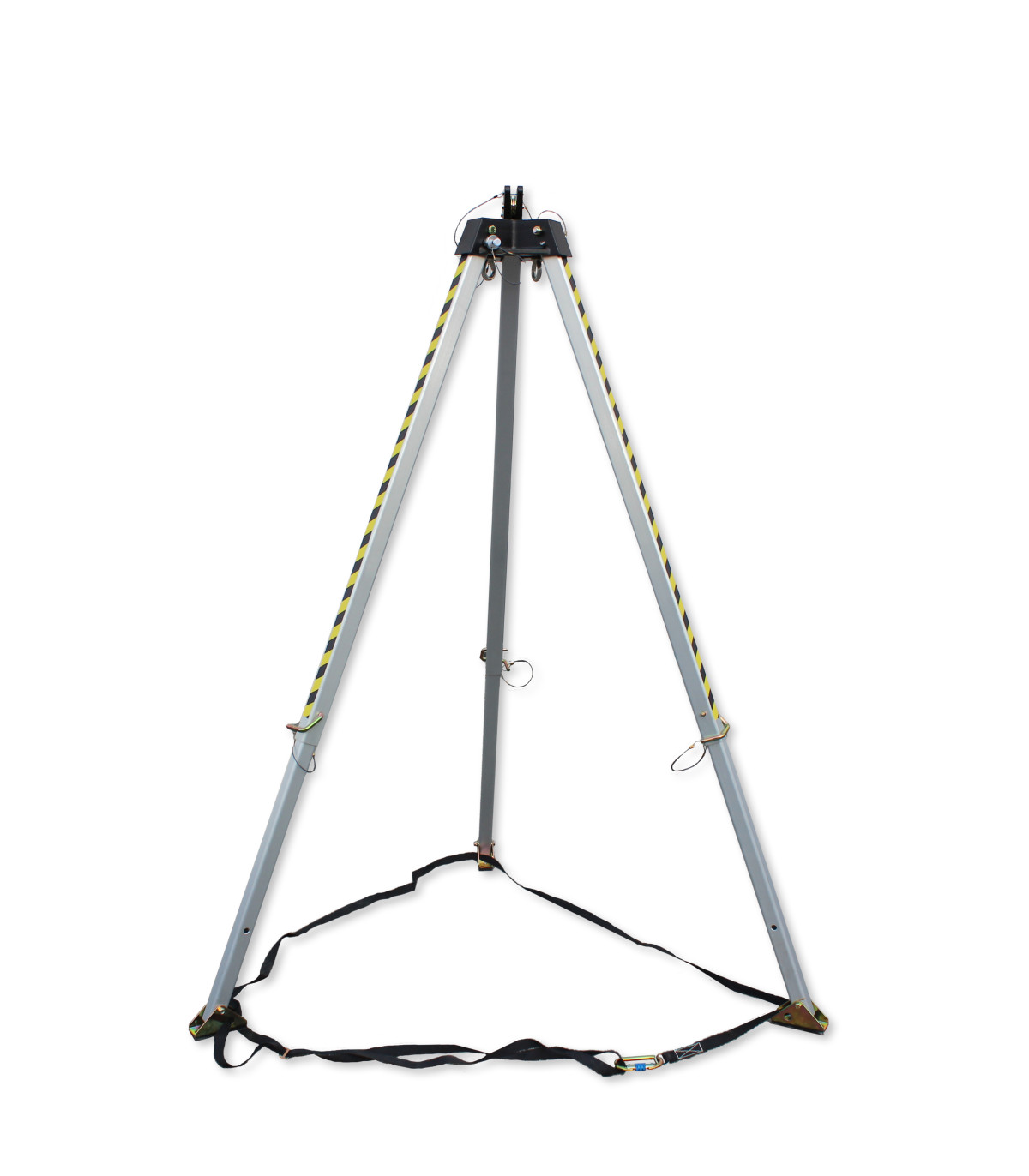

Safety tripod with pulley and anchor rings IRUDEK TRIP 1

Safety tripod with pulley and anchoring rings IRUDEK TRIP 1

The tripod contains:

2 ANCHORING POINTS MADE OF ALUMINUM

8 HEIGHT POSITIONS

MINIMUM LENGTH: 1.15M

MAXIMUM LENGTH: 2.15M

MAXIMUM OPENING FULLY

OPEN Ø1.50M

MAXIMUM WORKING CAPACITY: 500KG.

WEIGHT: 13 KG.

Tripods are anchoring devices designed to provide anchors for work in confined spaces. These jobs require the use of at least one anchoring point that allows for effective and total safety.Los tripods are made of aluminum, allowing them to be easily moved from one place to another with total ease and agility.

FEATURES

• Aluminum alloy head: to provide robustness and durability to the equipment.
• Built-in pulley: for a more rigid operation of the winch (Trip 1).
• and different working variables.
• 2 aluminum anchoring rings: to incorporate up to two devices (at least 1 fall protection).
• Aluminum legs: superior lightness.
• Robust: supports loads of up to 500kg.
• Non-slip rubber: for optimal support.
• Safety strap: prevents involuntary movements of the legs.
• Certified for work in explosive atmospheres ATEX II 2G Ex h II cT6.
• Includes transport bag.

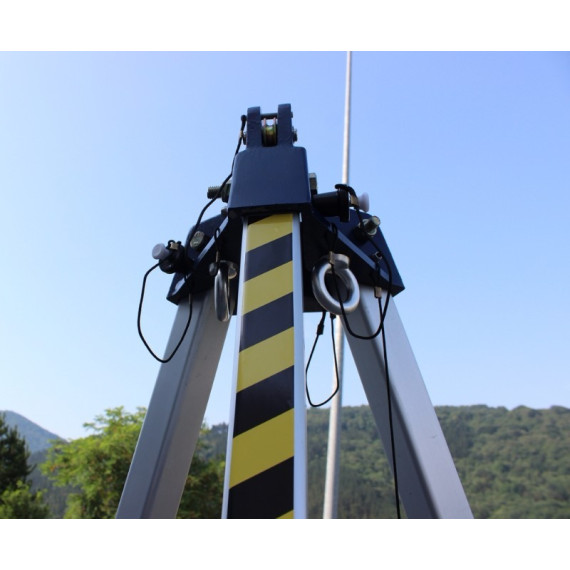

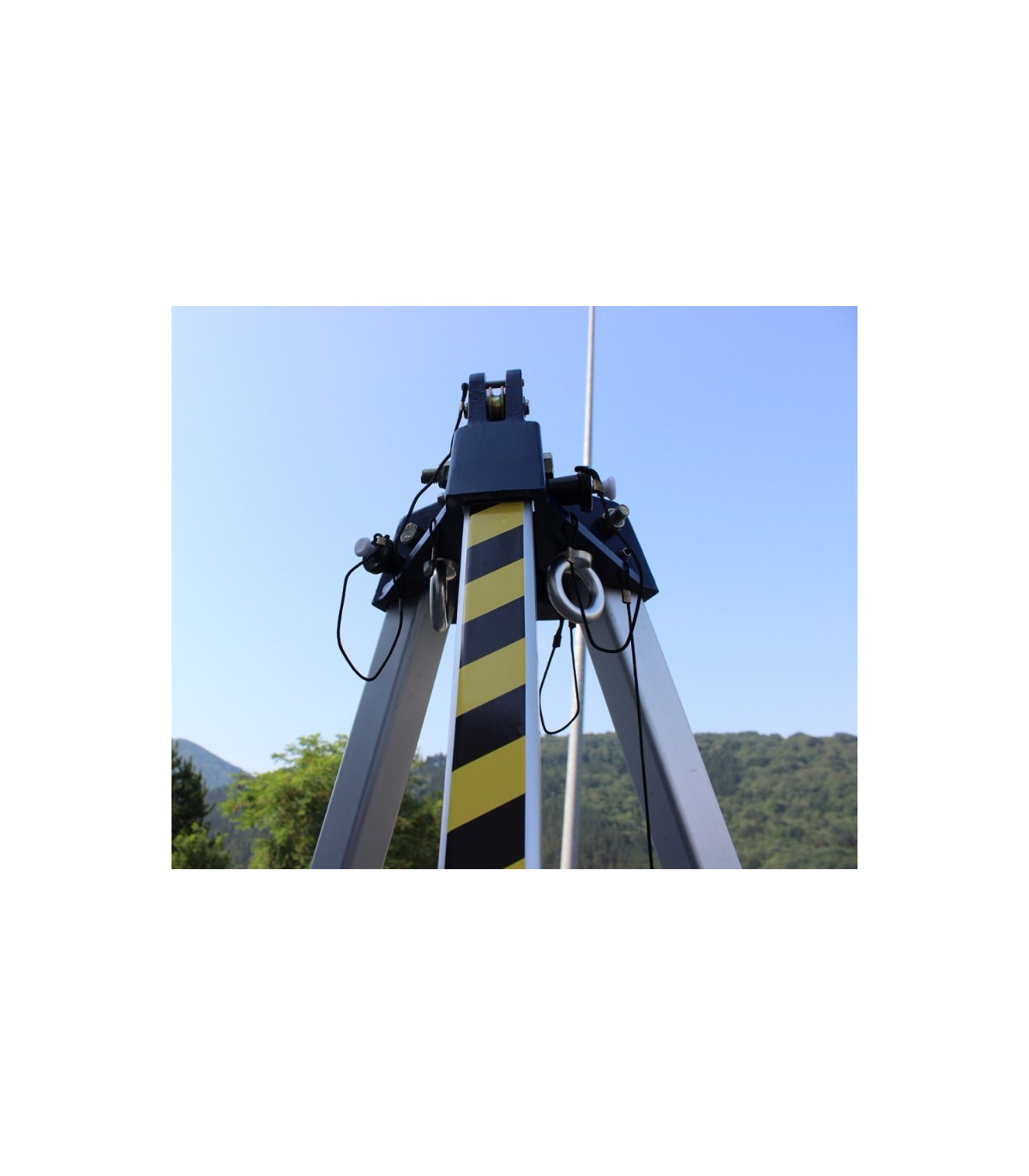

HEAD

It has 1 pulley and 2 anchoring rings for connection to fall protection systems EN 363.

ADJUSTABLE LEGS

The telescopic construction of the legs allows for height adjustment of the tripod in 9 different heights. The legs are adjusted using the pins on each leg.

CHAIN

The base chain is necessary to maintain the position of the tripod legs and distribute the loads applied during the use of the device.

WARNING:

The chain can cause a trip hazard for anyone near the tripod.

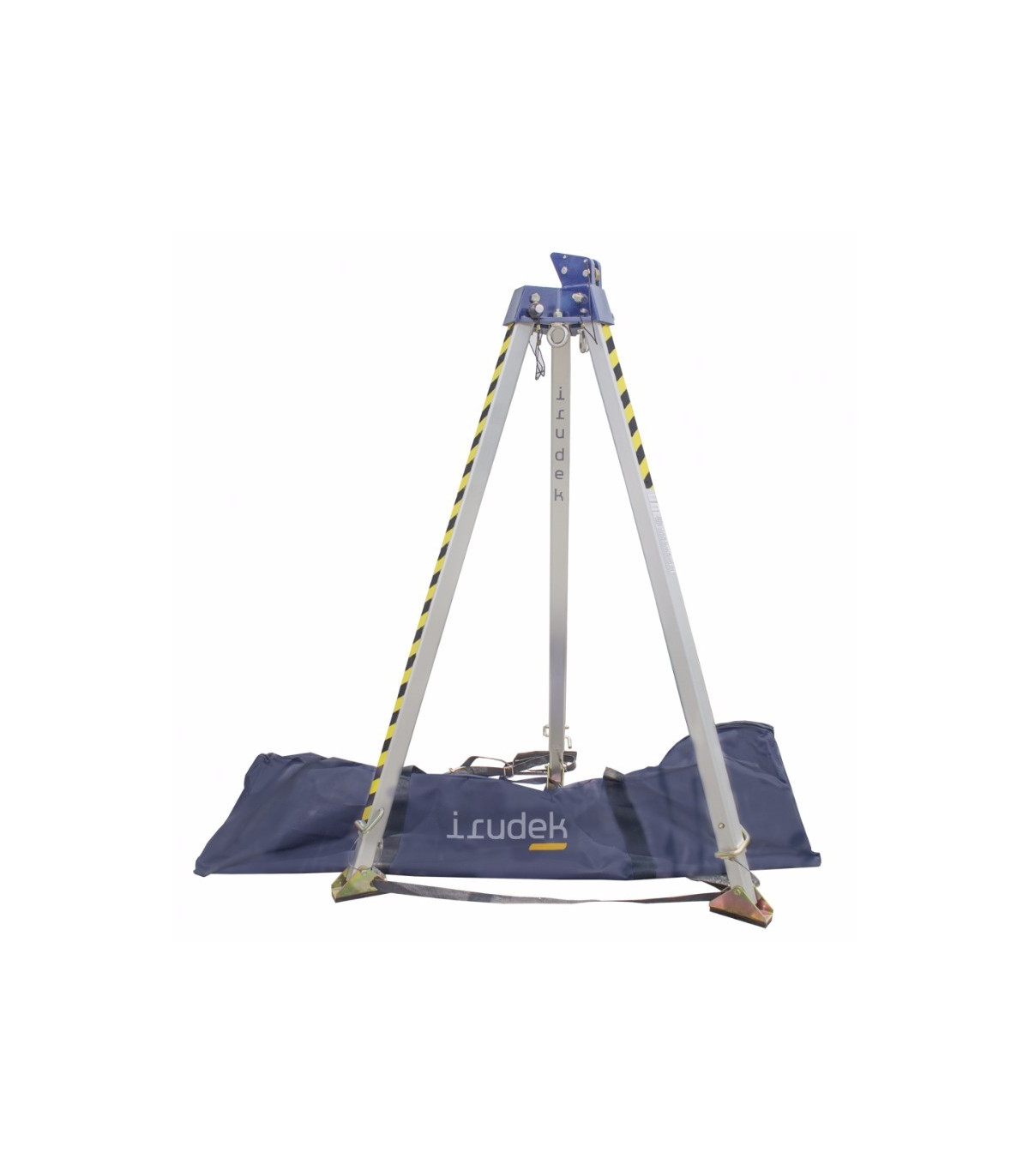

BAG

The transport bag is made of nylon and is designed to protect the tripod during transport and storage.

TECHNICAL DATA

• Diameter (m): 0.8-1.8
• Weight (kg): 12.1
• Height (m): 1.15-2.15
• Load capacity: 500 kg
• Anchoring rings: 2
• No. of pulleys: 1
• Total heights: 7
• Service life: Unlimited

MATERIALS

• Head: Aluminum alloy
• Rings: Aluminum
• Legs: Aluminum
• Non-slip leg: PVC rubber
• Safety strap: Polyester

BENEFITS

• Being made of aluminum, it is easily manageable and portable

APPLICATIONS

• Designed to provide anchors for work in confined spaces

USAGE LIMITATIONS

-The equipment must be assigned individually to a person.

-It is recommended that the anchoring point where the fall protection system will be fixed is above the user. The anchoring point must have a minimum static strength of 12kN and must comply with the requirements of Standard EN 795.

-Personal protective equipment should not be used by individuals whose health status may affect the safety of the user under normal use conditions or in an emergency.

-Personal protective equipment should only be used by a trained and competent person in its safe use.

SERVICE LIFE

The estimated service life of the equipment is ilimitada.Los following factors may reduce the product's lifespan: intensive use, contact with chemicals, especially aggressive environments, exposure to extreme temperatures, exposure to ultraviolet rays, abrasion, cuts, strong impacts, or improper use and maintenance. The mandatory annual inspection will validate the correct functioning of the equipment.

It is mandatory for the equipment to be examined by the manufacturer or an authorized person at least once a year. In case of a fall, the equipment must be removed from use.

STANDARDS/ REGULATIONS

• EN 795 B
• ATEX II 2G
• Ex h II c T6
