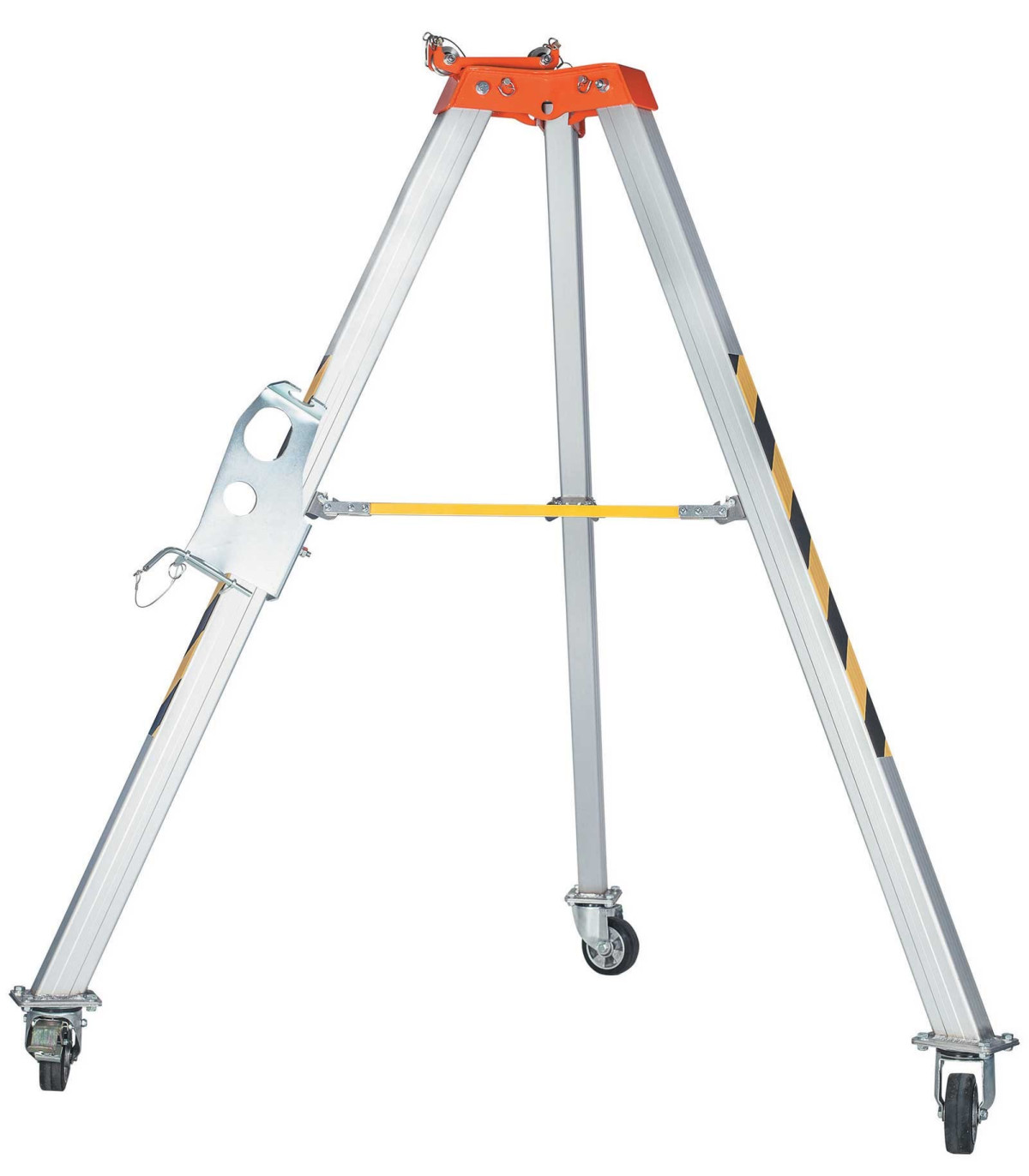

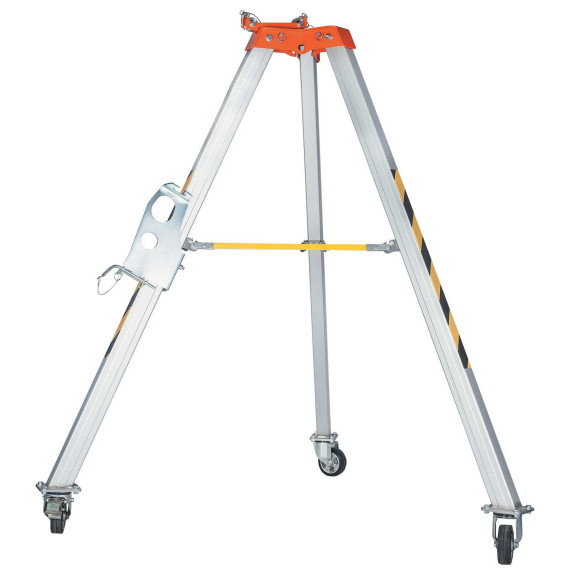

Adjustable mobile tripod SAFETOP for 2 users Alu

Rescue tripod for people in confined spaces used as a mobile support for the simultaneous protection of up to a maximum of 2 users.

FEATURES

• Personal protective equipment (PPE) of category III.
• Mobile tripod with 4 removable and adjustable legs with plastic wheels.
• Material: Aluminum
• Weight: 34.00 kg (without accessories)
• Transport dimensions: 200 x 47 x 47 cm
• Working height: 160 cm
• Max inscribed circle: 157 cm
• Distance between legs: 116 cm
• Anchors at the head: 3
• Simultaneous lifting / lowering of a maximum of 2 people
• Approved for use in potentially explosive atmospheres
• The steel head is equipped with two steel wheels that allow working with rescue equipment, securing the pins. Aluminum legs equipped with wheels with rubber tread.
• The wheels have a brake device to secure it in the workplace.

Protection for up to 2 people simultaneously.

Certified with winches:

RUP502
CRW300 + AT172
CRW300 + AZ017

PRODUCT MADE TO ORDER, NO CANCELLATION OF ORDER OR RETURNS OF MATERIAL ALLOWED. APPROX. DELIVERY TIME: 1 WEEK.

TECHNICAL DATA

• Opening diameter: 157 cm
• Space between feet: 116 cm
• Working height: 160 cm
• Weight: 34 kg
• Load capacity: 1000 kg
• Transport dimensions: 200x47x47 cm

APPLICATIONS

Tripod compatible with Safetop® winches Ref. 81372 and Ref. 80305. Consult necessary parts to couple each of the compatible winches.

STANDARDS/ REGULATIONS

EN795 Class B (Transportable provisional anchors)
