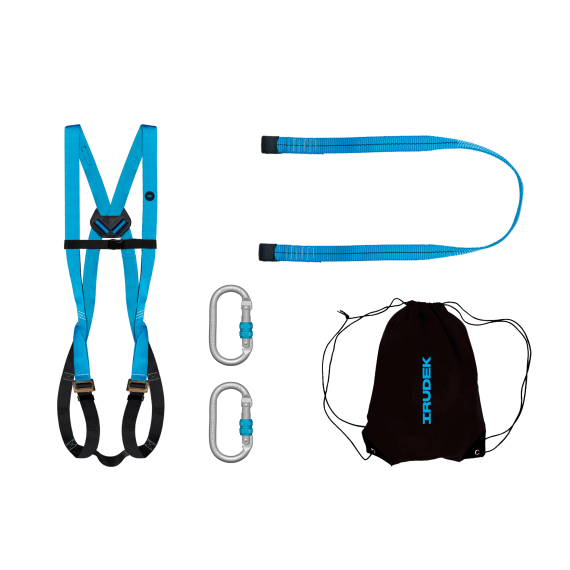

Fall protection kit with light plus 1 harness and connection rope Irudek Himalaya Eco
Fall protection kit with light plus 1 harness and connection rope
COMPONENTS:
Strap: 1mm
Units/box: 20
Packaging length: 28 cm
Packaging width: 19 cm
Packaging height: 12 cm
€36.63 (no TAX)

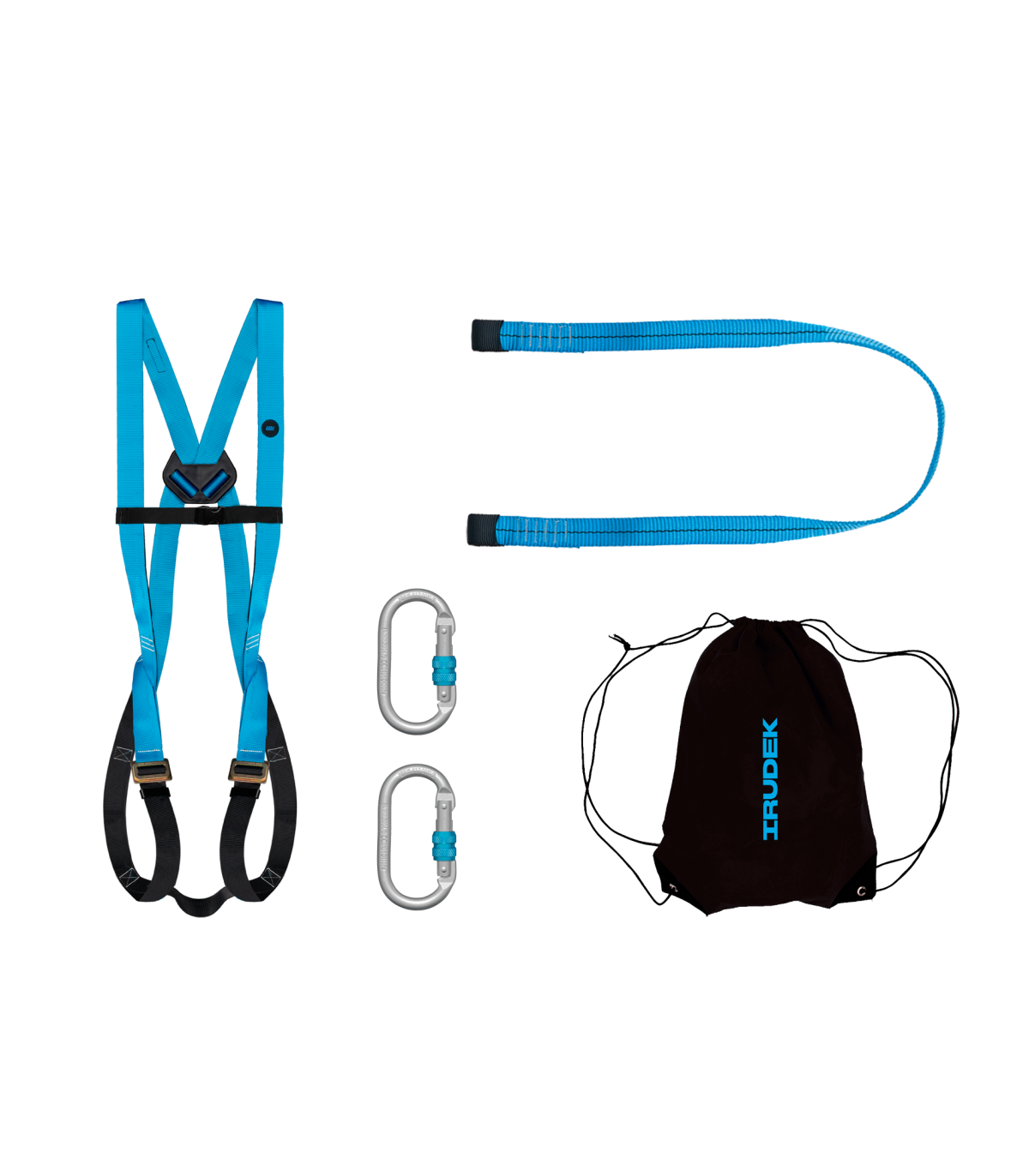

Fall protection system with 1 light harness 1 to 1 color without extension strap + pelvic strap, semi-static connection strap 1M Ref: 30100, 2 Steelsafe carabiners ref. 981: Steel connector with manual screw lock: and 1 net bag for transport.
This kit has been designed for simple, quick, and safe use. They are fall protection systems, therefore they are certified to absorb the impact of a fall.
Fall protection harnesses are personal protective equipment (PPE) against falls from height and comply with standard EN 361: 2002. The fall protection harness is a basic component of the fall protection system according to standard EN 363:2018. Some harnesses are equipped with positioning belts (EN 358: 1999), and may also incorporate a seat harness (EN 813: 2008) for use in restraint, retention, or rope access systems, or may incorporate evacuation anchors for rescue (EN 1497: 2007). IRUDEK harnesses comply with EU Regulation 2016/425 on PPE.
FEATURES
COMPONENTS:
- 1 light harness 1 to 1 color without extension strap + pelvic strap
- Semi-static connection strap 1M Ref: 30100
- Strap for making connections on them or using them as securing elements.
- Since it does not include an energy absorber, it cannot be used as a fall protection system.
- 2 Steelsafe carabiners ref. 981: Steel connector with manual screw lock.
- 1 net bag
TECHNICAL DATA OF LIGHT HARNESS 1
- Size: Universal Weight: 670 gr
- Usage capacity: 140 kg
- Resistance: > 15kN
- Antislip System: No
- Automatic buckles: No
- Padding: No
- Strap width: 44 mm
- Useful life (years): 10 of use + 1 of storage from useful life
MATERIALS OF LIGHT PLUS 1 HARNESS
- Manual adjustment buckles: Steel webbing
- Rings: Steel
- Strap: Polyester
- Thread: Polyamide
TECHNICAL DATA SEMI-STATIC CONNECTION STRAP 30100
- Length: 1 M
- Weight: 142 gr
- Resistance: > 22kN
- Useful life years: 10
MATERIALS SEMI-STATIC CONNECTION STRAP 30100
Strap: Polyester
End guard: Polyester
TECHNICAL DATA STEELSAFE CARABINER
- Weight: 174 kg
- Opening: 18 mm
- Closure: Screw-Lock (Manual screw)
- Useful life: Unlimited
MATERIALS STEELSAFE
Body: Steel
Screw: Steel
PACKAGING KIT
Strap: 1mm
Units/box: 20
Packing length: 28 cm
Packing width: 19 cm
Packing height: 12 cm
APPLICATIONS
The use of the anchoring element with a fall protection subsystem must be compatible with the operating instructions of each component of the system and with the Standards: EN 355, EN 361, EN 362.Indicated for work at height, it is frequently used in work environments such as:
- Civil works
- Construction Industry
- Climbers
- General Industry
STANDARDS/ REGULATIONS
EN361 - Personal protective equipment against falls from height. Fall protection harnesses.
EN354 - Personal protective equipment against falls from height. Straps and connections.
EN362 - Personal protective equipment against falls from height. Carabiners
LIMITATIONS OF USE
- The equipment must be assigned individually to a person. - It is recommended that the anchor point where the fall protection system will be fixed is above the user. The anchor point must have a minimum static resistance of 12 kN and must comply with the requirements of standard EN 795.WARNING
- A fall protection harness is the only acceptable body restraint device that can be used in a fall protection system.- The fall protection system must be connected only to the connection points of the harness that carry an identification with the uppercase letter “A”. The identification “A/2” indicates that it is necessary to connect two connection points with the same identification at the same time. It is prohibited to connect the protection system to a single connection point identified with “A/2”.- In harnesses with built-in belts, the connection to equipment for positioning work must be made only to the lateral anchorage rings of the belt.- The connection to the anchor point and to other equipment must be made through carabiners in accordance with EN 362:2004.- For use with fall protection EN 353-1:2014+A1:2017, EN 353-2:2002 it is recommended to connect the equipment to the front anchor point of the harness. For use with energy absorbers EN 355 or with fall protection EN 360 it is recommended to connect the equipment to the dorsal anchor point of the harness.- Before each use of the personal protective equipment, it must be carefully checked to ensure that it is in usable condition and works correctly.- During the pre-use check, it is necessary to carefully inspect all elements of the equipment to verify that they do not show signs of deterioration, excessive wear, corrosion, abrasions, UV radiation degradation, cuts, and incorrect use. Pay special attention to the straps, seams, anchorage rings, buckles, and adjustment elements.USEFUL LIFE
The estimated useful life of the equipment is 11 years from the date of manufacture (1 year of storage and 10 years of use). The following factors may reduce the useful life of the product: intensive use, contact with chemicals, especially aggressive environments, exposure to extreme temperatures, exposure to ultraviolet rays, abrasion, cuts, strong impacts, or improper use and maintenance. The mandatory annual review will validate the correct functioning of the equipment. It is mandatory that the equipment be examined by the manufacturer or by an authorized person at least once a year. In case of a fall arrest, the equipment must be removed from use.MAINTENANCE INSTRUCTIONS
- CLEANING: The personal protective equipment must be cleaned in a way that does not cause adverse effects on the materials used in the manufacturing of the equipment. For textile and plastic materials (straps, ropes) clean with a cotton cloth or a brush. Do not use any abrasive material. For deep cleaning, wash the equipment at a temperature between 30ºC and 60ºC using a neutral detergent. For metal parts, use a damp cloth. If the equipment gets wet, either from use or due to cleaning, it should be allowed to dry naturally, away from direct heat.
- STORAGE: The personal protective equipment should be stored in loose packaging, in a dry, ventilated place, protected from sunlight, ultraviolet rays, dust, sharp-edged objects, extreme temperatures, and aggressive substances.
ABOUT IRUDEK
Irudek Group is an expanding group of companies headquartered in Spain, with operations in Italy, Brazil, and India, and sells its products in over 50 countries. Irudek Group is safety and guarantee, backed by years of experience and by customers who have placed their trust in its products.
SOBRE IRUDEK
Irudek Group es un grupo de empresas en expansión con central en España, implantaciones en Italia, Brasil e India y vende sus productos en más de 50 países. Irudek Group es seguridad y garantía, avalada por años de experiencia y por clientes que han depositado su confianza en sus productos.
Technical documentation
- Ficha Técnica Ficha Técnica Kit anticaídas con arnés light plus 1 y cuerda de conexión Irudek Himalaya Eco Download
- Declaración de Conformidad Cumple con los requisitos del Reglamento/ Directiva de Equipos de Protección Individual (EPI) Download
- Manual de Usuario Mosquetones Leer atentamente las instrucciones de uso antes de utilizar el conector Download
- Manual de Usuario Arneses Leer atentamente las instrucciones de uso antes de utilizar el arnés Download
