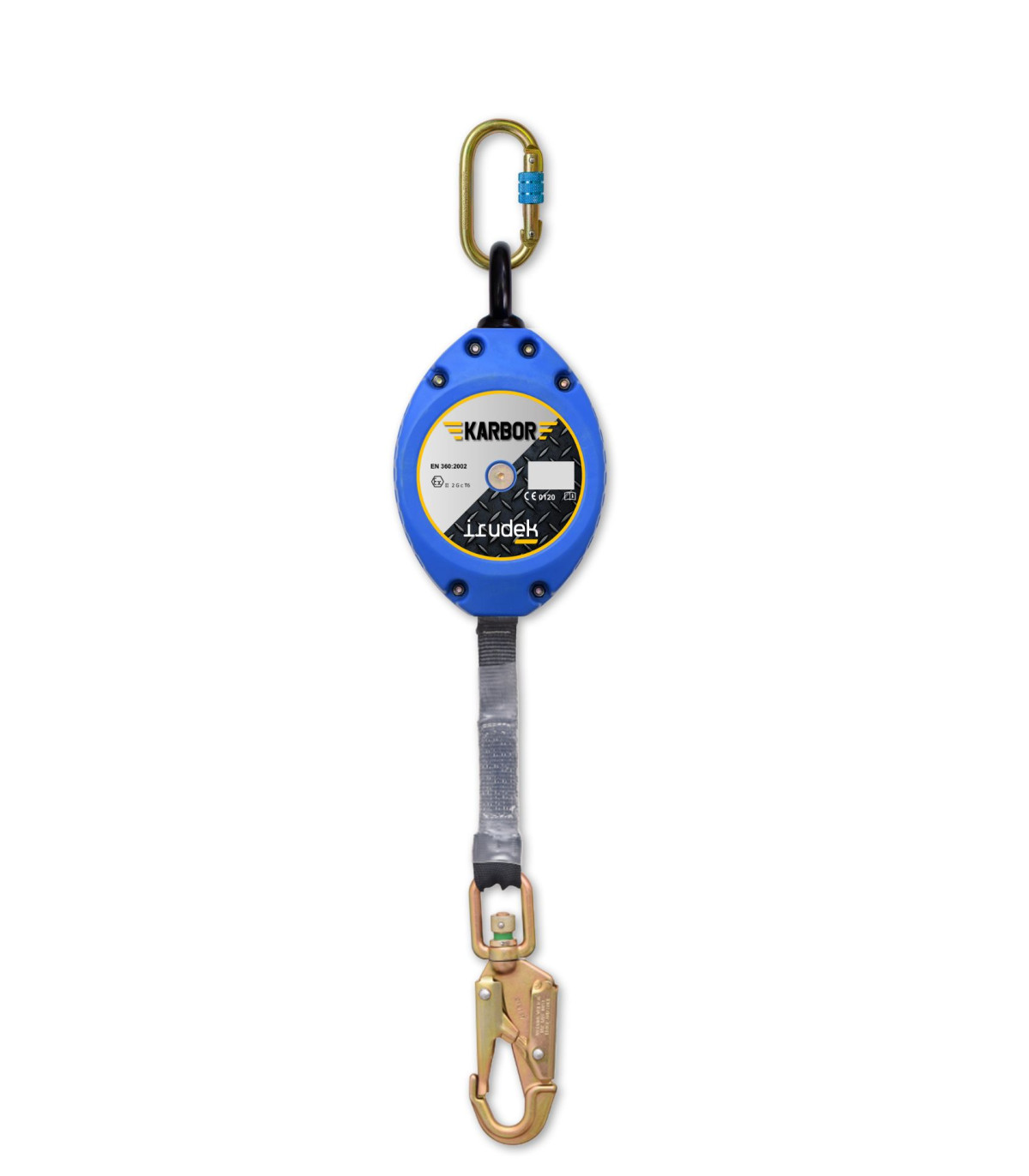

Retractable 6M anti-fall with brake IRUDEK Karbor 6

FEATURES

• Load capacity: 140 kg
• Mechanism with centrifugal brake
• Vertical use
• Impact force 6kN
• Rotating steel lower carabiner with fall indicator
• 6 Meters

TECHNICAL DATA

• Length (m): 6
• Weight (Kg): 2.57
• Stopping distance (m): 1.36
• Height (mm): 437
• Length (mm): 86
• Width (mm): 137
• Load (Kg): 140
• Static resistance: 15 kN
• Impact force: < 6kN
• Service life (years): 10 years of use + 1 year of storage from the date of manufacture

MATERIALS

Tape: Polyester 25 mm

Casing: Synthetic

APPLICATIONS

For vertical use

Improves free fall distance

KARBOR CONNECTORS

Lower connector 976

• Opening: 20 mm
• Material: Steel
• Resistance: 23 kN
• Closure: Automatic
• Rotating: Yes
• Fall indicator: Yes

Upper connector 981

• Opening: 18 mm
• Material: Steel
• Resistance: 25 kN
• Closure: Screw
• Rotating: Yes
• Fall indicator: Yes

STANDARDS

USAGE LIMITATIONS

The equipment must be assigned individually to a person.

- Personal protective equipment should not be used by individuals whose health status may affect the safety of the user under normal usage conditions or in case of emergency.

- Personal protective equipment should only be used by a trained and competent person in its safe use.

SERVICE LIFE

The estimated service life of the equipment is 11 years from the date of manufacture (1 year of storage and 10 years of use).

The following factors may reduce the product's service life: intensive use, contact with chemicals, particularly aggressive environments, exposure to extreme temperatures, exposure to ultraviolet rays, abrasion, cuts, strong impacts, or improper use and maintenance.

The mandatory annual inspection will validate the correct functioning of the equipment.

It is mandatory for the equipment to be examined by the manufacturer or an authorized person at least once a year. In the event of a fall arrest, the equipment must be removed from use.
