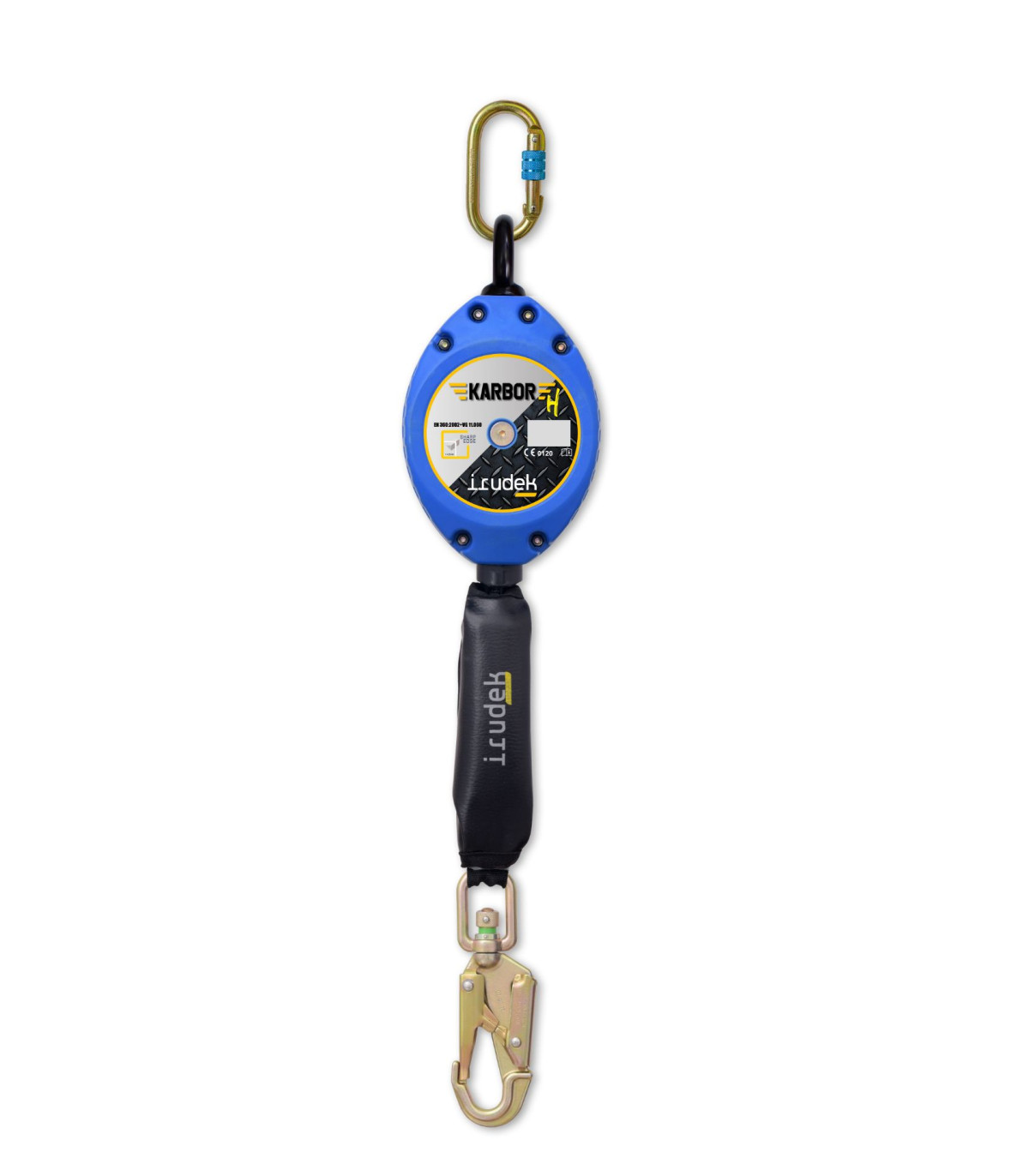

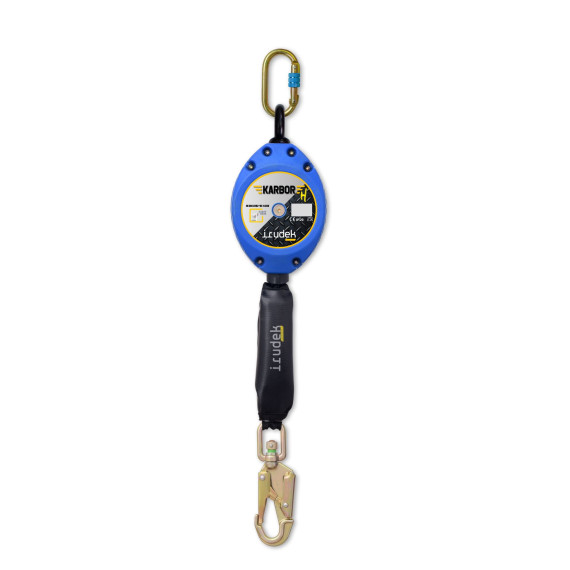

Retractable anti-fall device for work at height IRUDEK Karbor H6

FEATURES

• Centrifugal force brake mechanism
• Vertical and horizontal use in accordance with VG11.060:14 (Type A sharp edge, radius 0.5mm)
• Impact force 6kN
• Ring: rotating steel ring at the top.
• Carabiners: steel carabiner with pink closure ref. 981 at the top + automatic rotating steel carabiner with fall indicator ref. 976 at the bottom.
• Integrated energy absorber
• Robust and durable synthetic housing.

TECHNICAL DATA

• Length (m): 6
• Weight (Kg): 2.72
• Stopping distance (m): 1.36
• Height (mm): 457
• Length (mm): 86
• Width (mm): 137
• Load (Kg): 140
• Static resistance: 15 kN
• Impact force: < 6kN
• Service life (years): 10 years of use + 1 year of storage from the date of manufacture

MATERIALS

Webbing: Polyester 25 mm

Housing: Synthetic

APPLICATIONS

For vertical use

Improves free fall distance

KARBOR CONNECTORS

Lower connector 976

• Opening: 20 mm
• Material: Steel
• Resistance: 23 kN
• Closure: Automatic
• Rotating: Yes
• Fall indicator: Yes

Upper connector 981

• Opening: 18 mm
• Material: Steel
• Resistance: 25 kN
• Closure: Threaded
• Rotating: Yes
• Fall indicator: Yes

STANDARDS/REGULATIONS

EN360, EN13463-1, EN13463-5

USAGE LIMITATIONS

The equipment must be assigned individually to a person.

- Personal protective equipment should not be used by individuals whose health status may affect the safety of the user under normal use conditions or in case of emergency.

- Personal protective equipment should only be used by a trained and competent person in its safe use.

SERVICE LIFE

The estimated service life of the equipment is 11 years from the date of manufacture (1 year of storage and 10 years of use).

The following factors may reduce the product's service life: intensive use, contact with chemicals, especially aggressive environments, exposure to extreme temperatures, exposure to ultraviolet rays, abrasion, cuts, strong impacts, or improper use and maintenance.

The mandatory annual inspection will validate the correct functioning of the equipment.

It is mandatory for the equipment to be examined by the manufacturer or an authorized person at least once a year. In the event of a fall arrest, the equipment must be removed from use.
