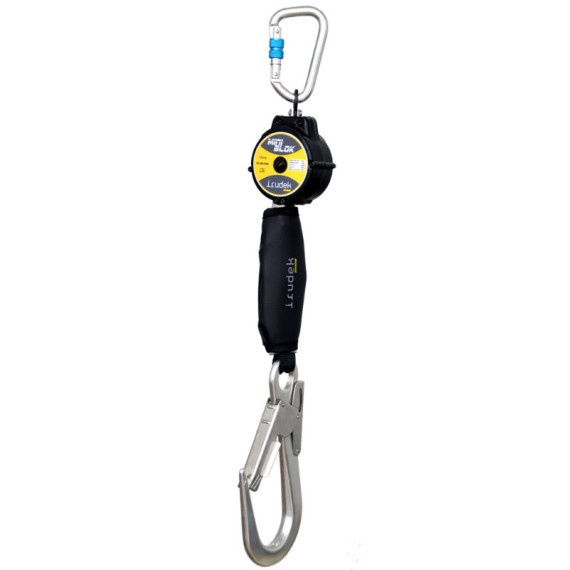

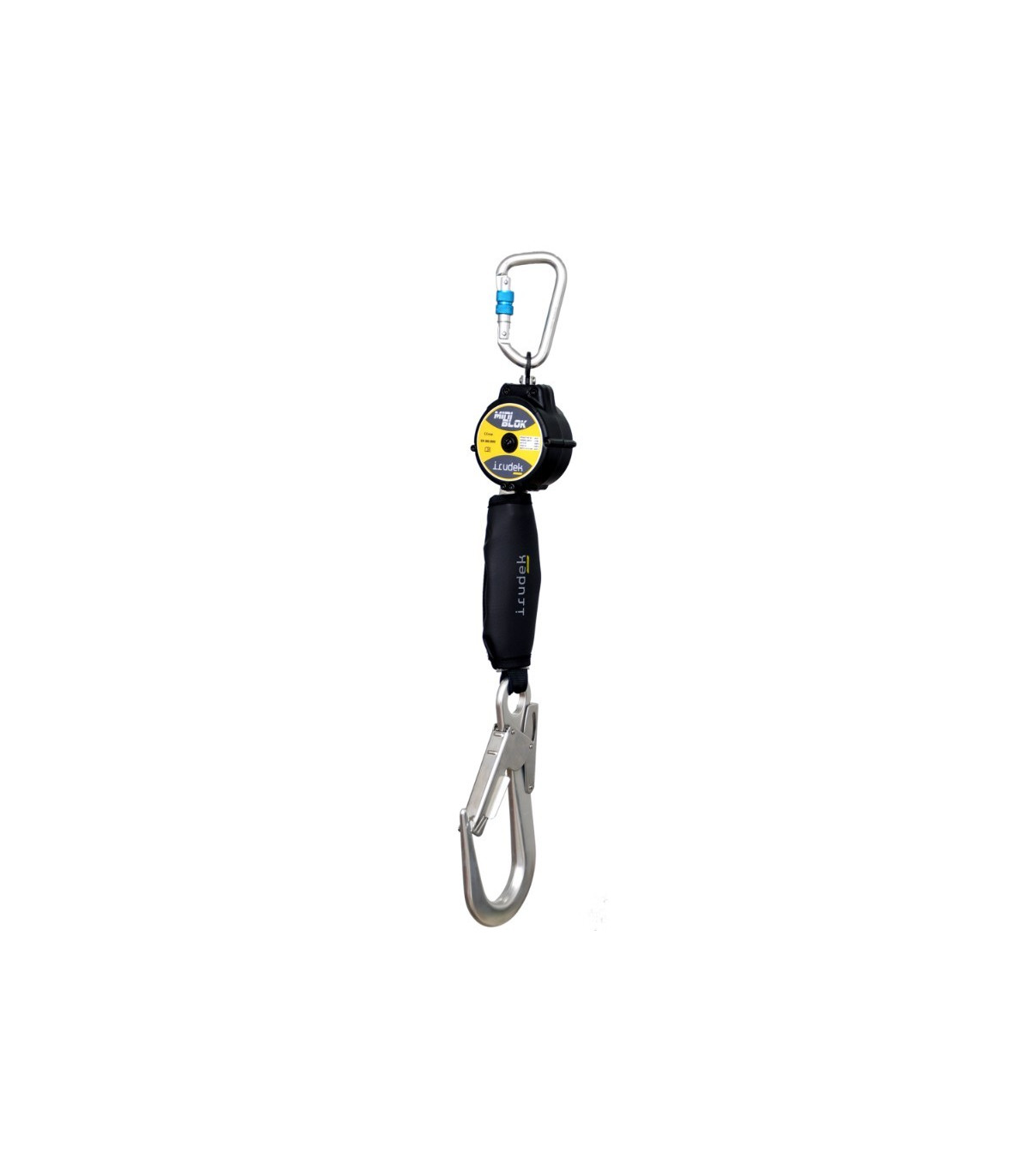

Automatic replacement anti-fall device with Technora® tape 2M IRUDEK Miniblok H

Light and robust automatic retractable fall arrester with Technora® tape, 21mm wide, 2 M long. It features a synthetic housing, energy absorber, and a rotating upper ring. Includes 1 aluminum screw-lock carabiner at the top + 1 automatic aluminum carabiner with a 60mm opening at the bottom.

FEATURES

Certified for use both vertically and horizontally with a vertical fall over a sharp edge.

The Miniblok automatic retractable fall arrester complies with the most demanding requirements for horizontal use of VG11.060:2014 (sharp edge type A, radius 0.5mm).

Due to its new design, with an integrated energy absorber, it guarantees falls over a sharp edge, preventing any breakage during and after impact and limiting the shock force to 6 kN.

IDEAL FOR USE in any application with a risk of falling over a sharp edge.

These devices stand out for their simplicity in use, avoiding the need for specific knowledge.

The operation is very simple; the device provides the user with the necessary meters for their work, always under tension, preventing any fall.

They have mechanical braking, achieving quick and safe stopping.

BENEFITS

• Light: its 2 meters and mini design make it barely noticeable in weight on the back when working with a Twinblok (Burificado).
• Robust: high-resistance synthetic housing, offering long durability.
• Safe: reduces impact force below 6kN.
• Rotating ring: designed to allow Twinconnect unions.
• Energy absorber with protector: for horizontal work with the possibility of vertical fall over a sharp edge, compliant with vg 11.060:2014.
• Certified for anchoring to the ground factor 2.
• Comfortable: offers continuous safety without obstacles, avoiding snags and unnecessary falls.

TECHNICAL DATA

• Length (m): 2
• Weight (Kg): 1.2
• Stopping distance (m): 1.2
• Height (mm): 570
• Length (mm): 55.6
• Width (mm): 87.3 mm
• Load (Kg): 100
• Static resistance: 15 kN
• Impact force: < 6kN
• Service life (years): 10 years of use + 1 year of storage from the date of manufacture.

MATERIALS

• Tape: Technora 21 mm
• Housing: Synthetic
• Connectors: Aluminum

APPLICATIONS

STANDARDS/REGULATIONS

• EN 360
• VG11, 060:2014

USAGE LIMITATIONS

SERVICE LIFE

The estimated service life of the equipment is 11 years from the date of manufacture (1 year of storage and 10 years of use).

The following factors may reduce the product's service life: intensive use, contact with chemicals, particularly aggressive environments, exposure to extreme temperatures, exposure to ultraviolet rays, abrasion, cuts, strong impacts, or improper use and maintenance.

The mandatory annual review will validate the correct functioning of the equipment.

It is mandatory for the equipment to be examined by the manufacturer or by an authorized person at least once a year. In case of a fall, the equipment must be removed from use.
