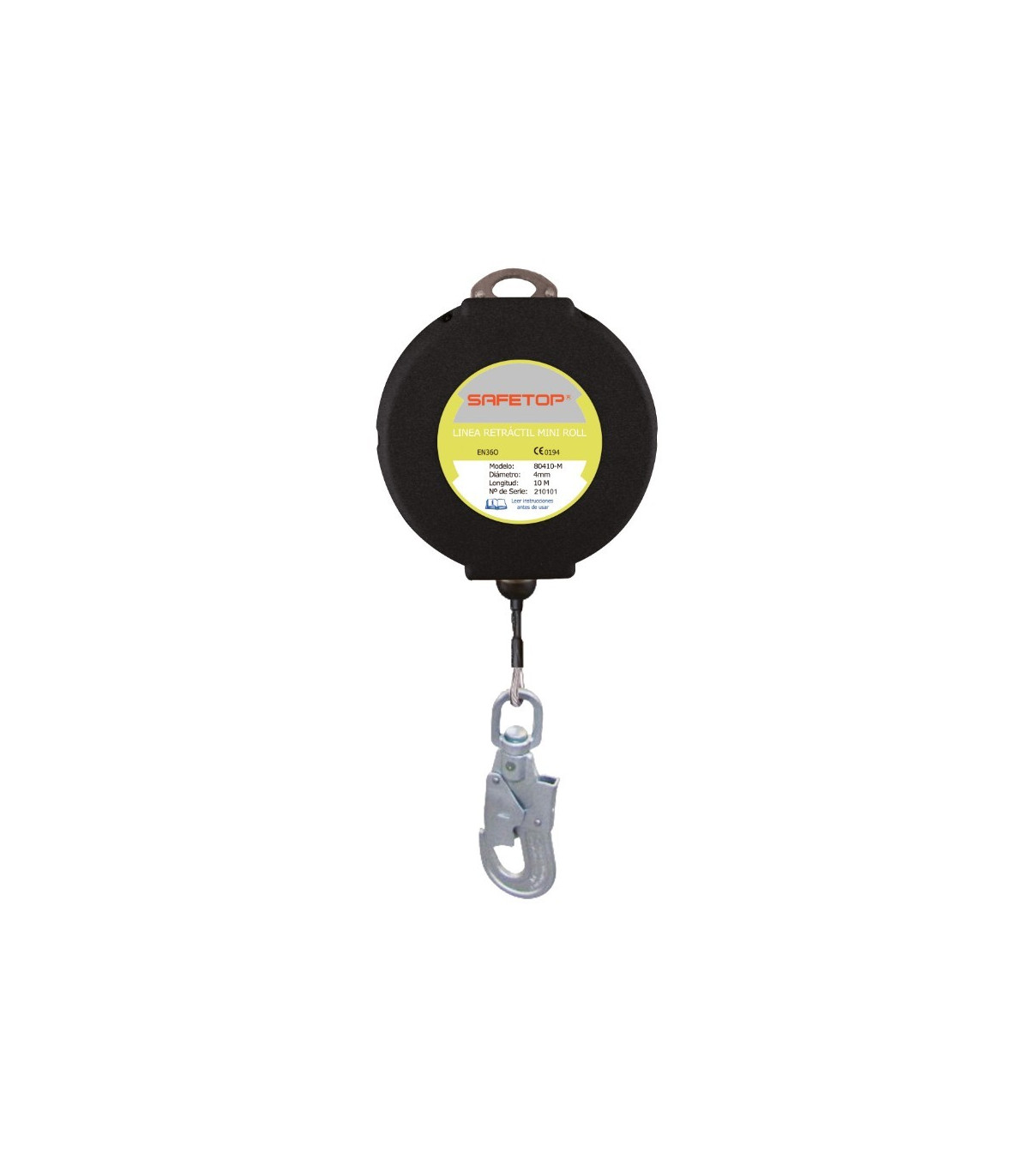

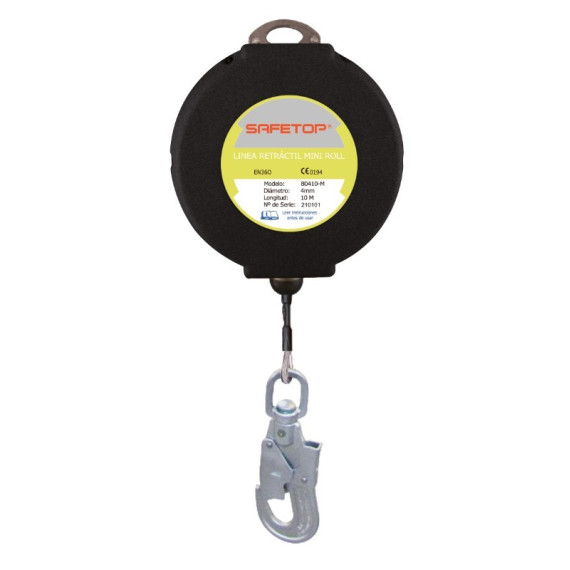

Mini roll of stainless steel cable SAFETOP

Retractable lifeline made of stainless steel cable in lengths of 10, 15, and 20 m. Tested for vertical and horizontal use. Made of 4 mm braided stainless steel cable finished with a loop and connected to a quick-opening carabiner.

FEATURES

• Mini reel of stainless steel cable
• Attachment via a carabiner at the top (not included): oval steel attachment
• Hole size: 30 mm x 18 mm
• Its casing is made of thermoplastic with a diameter of 21 cm
• This allows us to reduce its dimensions and weight by up to 22% compared to conventional reels
• Its small dimensions and weight (only 4.6 kg in the 10 m model) facilitate transport and reduce operator fatigue
• The lower carabiner (Ref. 80115) for harness attachment has a rotating head with a loose ring, preventing the cable from twisting if the operator turns, thus prolonging its lifespan
• Operating temperature: -40ºC to 65ºC.
• Weight Ref. 80410-MX (10 m): 4.6 kg
• Weight Ref. 80415-MX (15 m): 6.5 kg
• Weight Ref. 80420-MX (20 m): 8.4 kg
• SWIVEL LOWER HOOK (included) 1 EN 362 Class T

TECHNICAL DATA

• Cable diameter Ø: 4 mm
• Cable material: Stainless steel
• Dimensions: 230x190x100mm
• Breaking resistance: 12 Kn - 3 min
• Maximum load: 100 kg

APPLICATIONS

Suitable for vertical or horizontal work. Used in general construction, hydrocarbon production, maintenance, telecommunications, and confined spaces where worker mobility and fall protection are necessary. Being made of stainless steel, it is recommended for outdoor work where the reel may be left exposed to the elements.

CERTIFICATION

EN360 (Retractable devices)

EN362 (carabiners)

Tested for horizontal use RU11060

PACKAGING

 1 unit

LIFETIME

Inspections: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. Inspections should be recorded in the inspection sheet attached to the PPE along with the instruction manual. Check the user manual for the lifespan of this equipment.

MATERIALS

• Hardened plastic casing
• Stainless steel cable
• Steel carabiner
