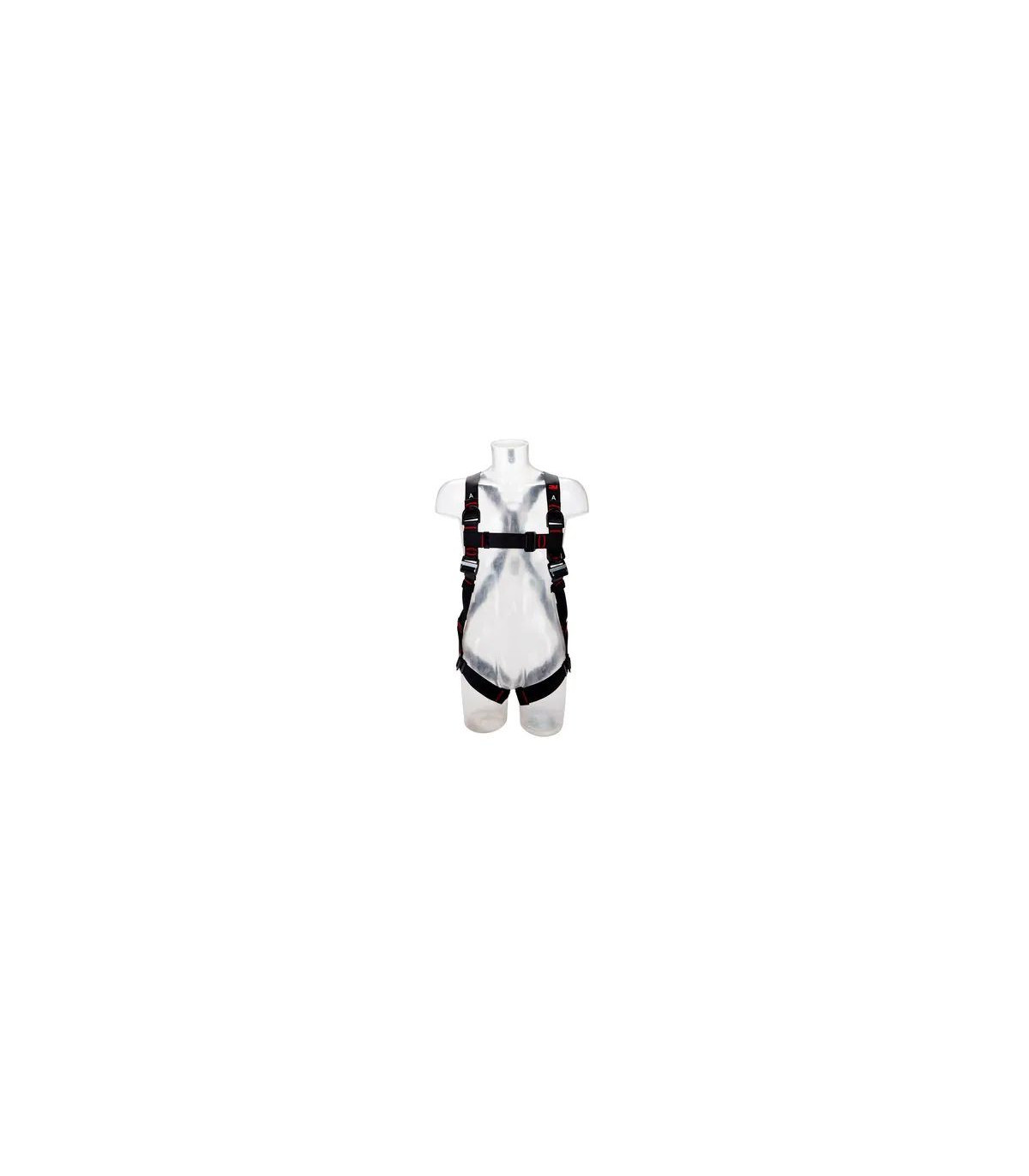

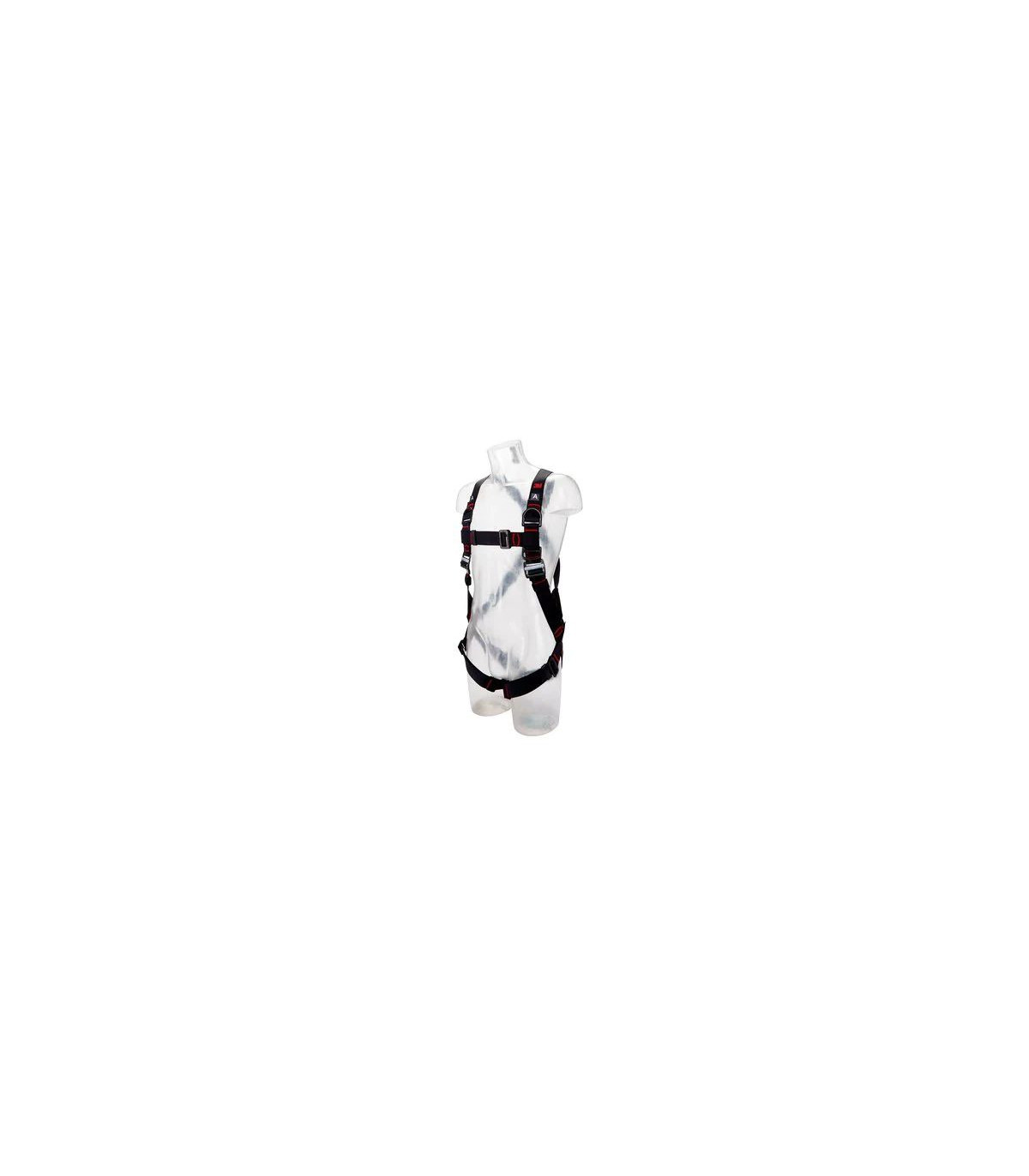

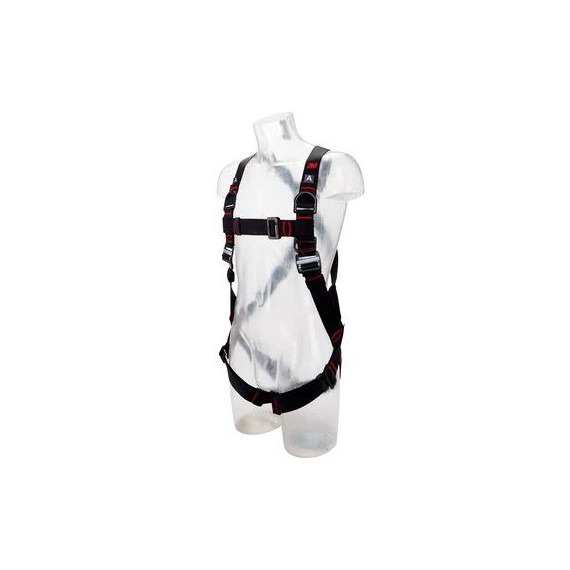

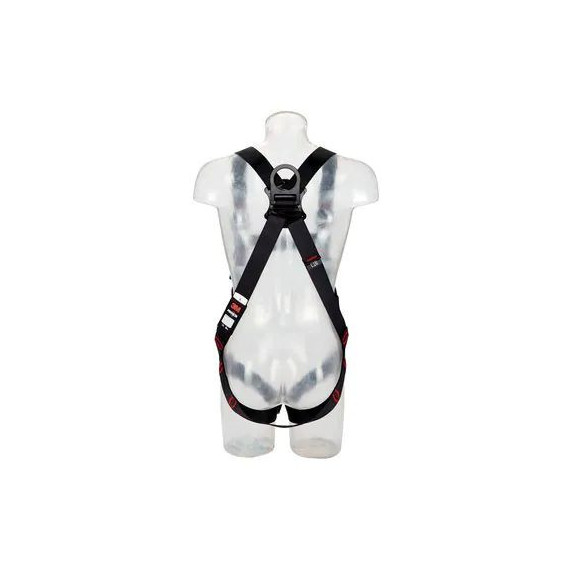

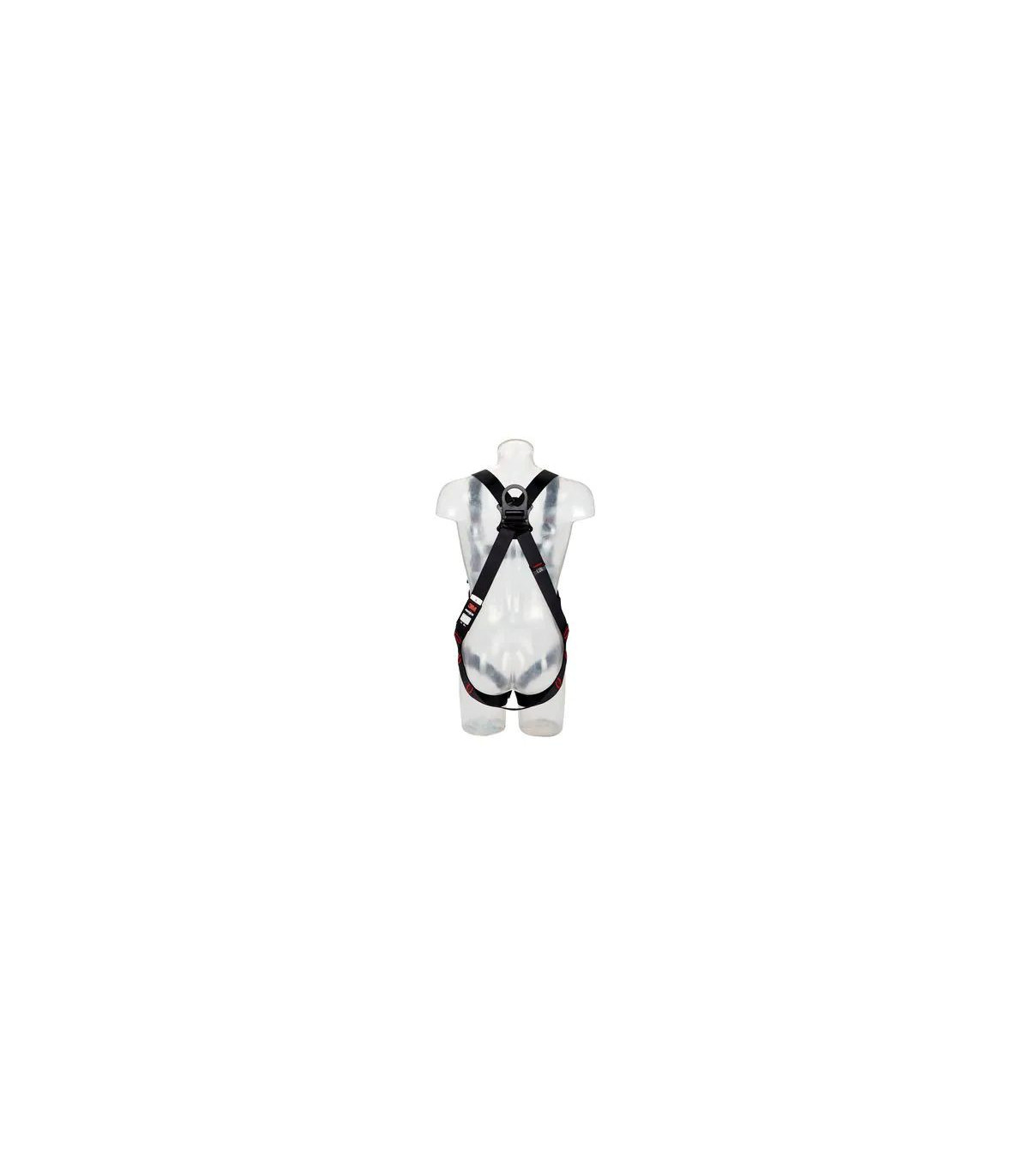

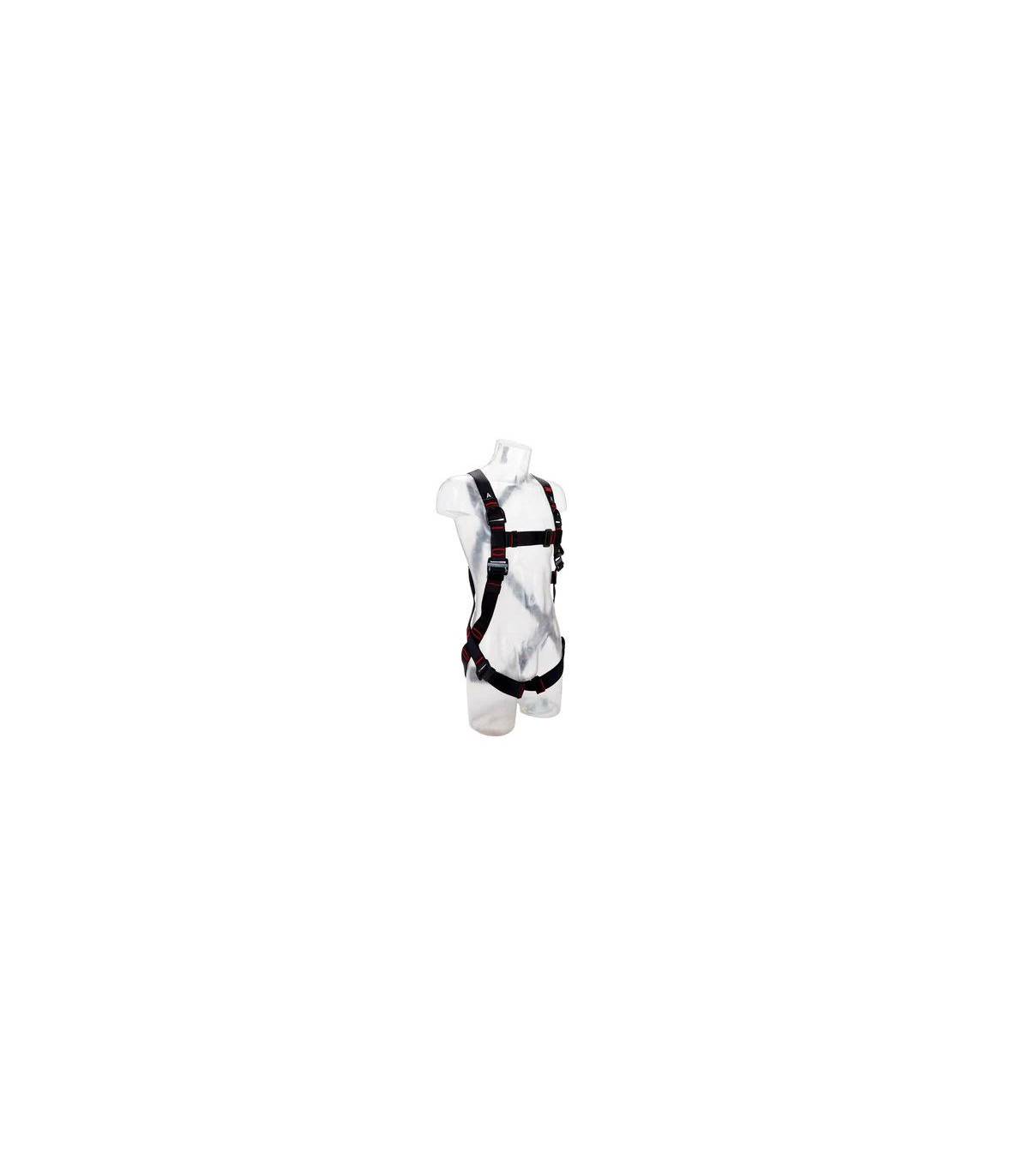

Standard vest-type fall protection harness 3M™ PROTECTA® E200 black

The standard vest-type fall protection harness 3M™ PROTECTA® is an attractive and modern safety harness with enhanced features. It has water- and stain-resistant straps to stay clean and dry, and protected labels that remain legible over time for easy inspection.

FEATURES

• Water- and stain-resistant straps keep the harness cleaner and drier
• The self-repositioning sling hook holder makes it easy to store and release standard and automatic locking carabiners
• Impact indicators facilitate harness inspection to identify potential damage and ensure it is safe to use
• Easy-to-identify fall arrest anchor points
• Without loose straps, it is more comfortable and does not tangle
• Size: small, medium/large, extra-large

BENEFITS

• The fall protection harness 3M™ PROTECTA® offers reliable protection, comfort, and practicality in a variety of styles and configurations.
• This standard vest-type fall protection harness features enhanced characteristics, such as water- and stain-resistant straps and self-repositioning sling hook holders.
• Without loose straps, it is more comfortable and does not tangle.
• Additionally, it stays clean and dry thanks to its water- and stain-resistant straps.
• Impact indicators make it easy to check for damage on the harness and help ensure its use is safe.
• Covered identification labels help protect important information throughout the harness's lifespan.

RECOMMENDED APPLICATIONS

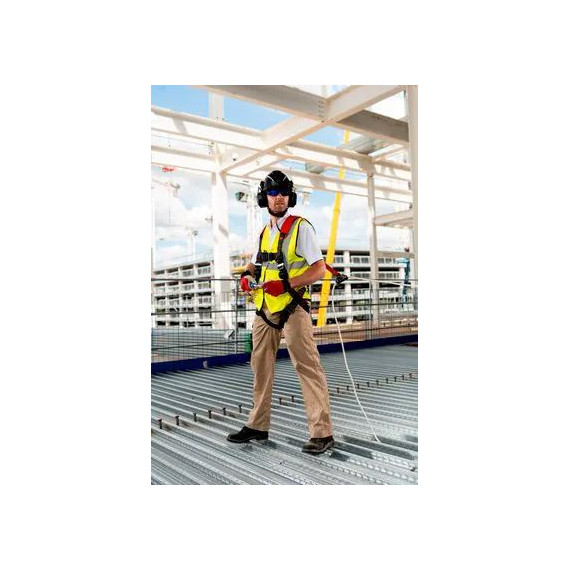

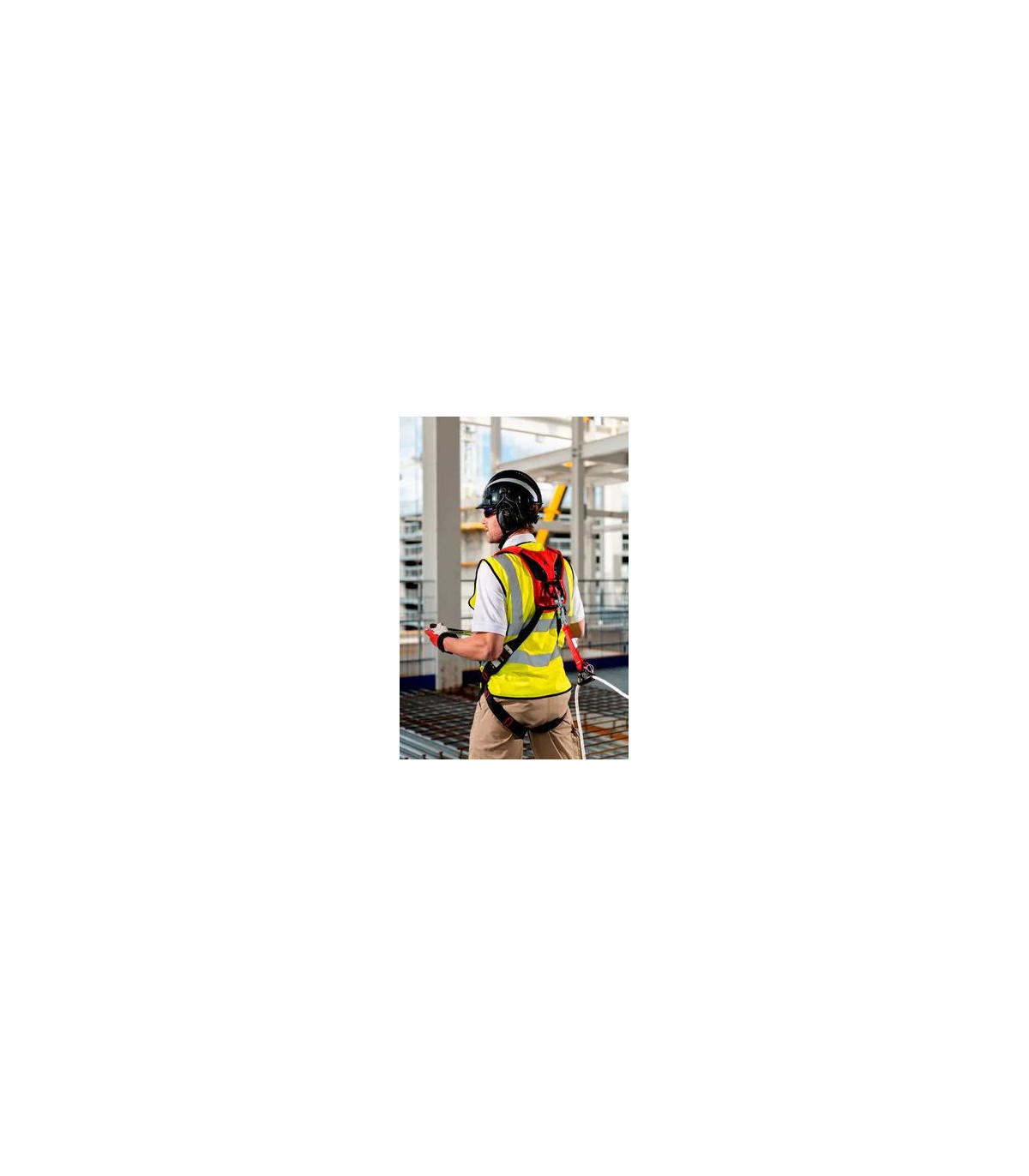

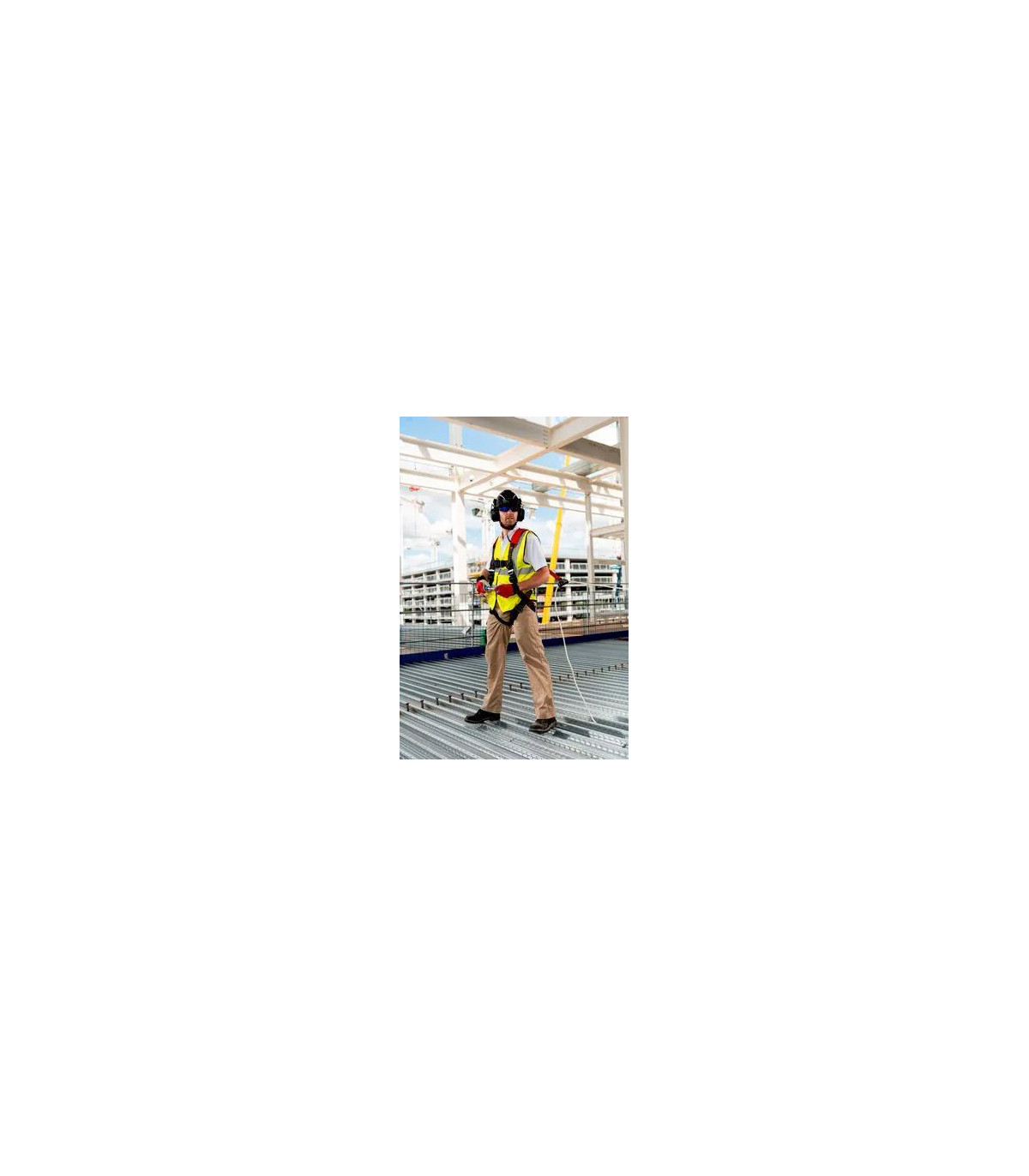

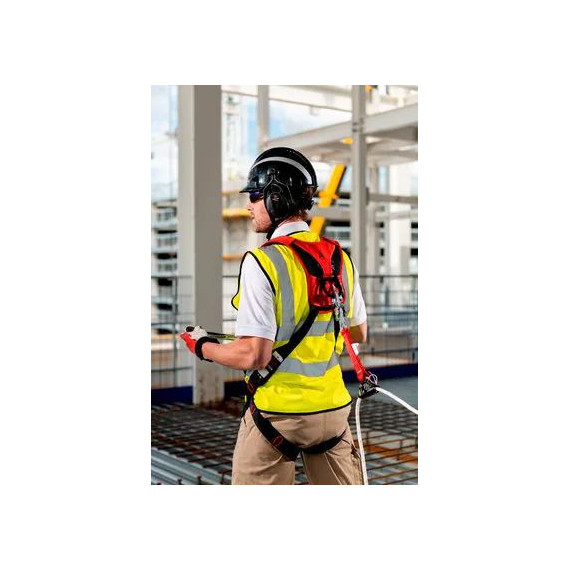

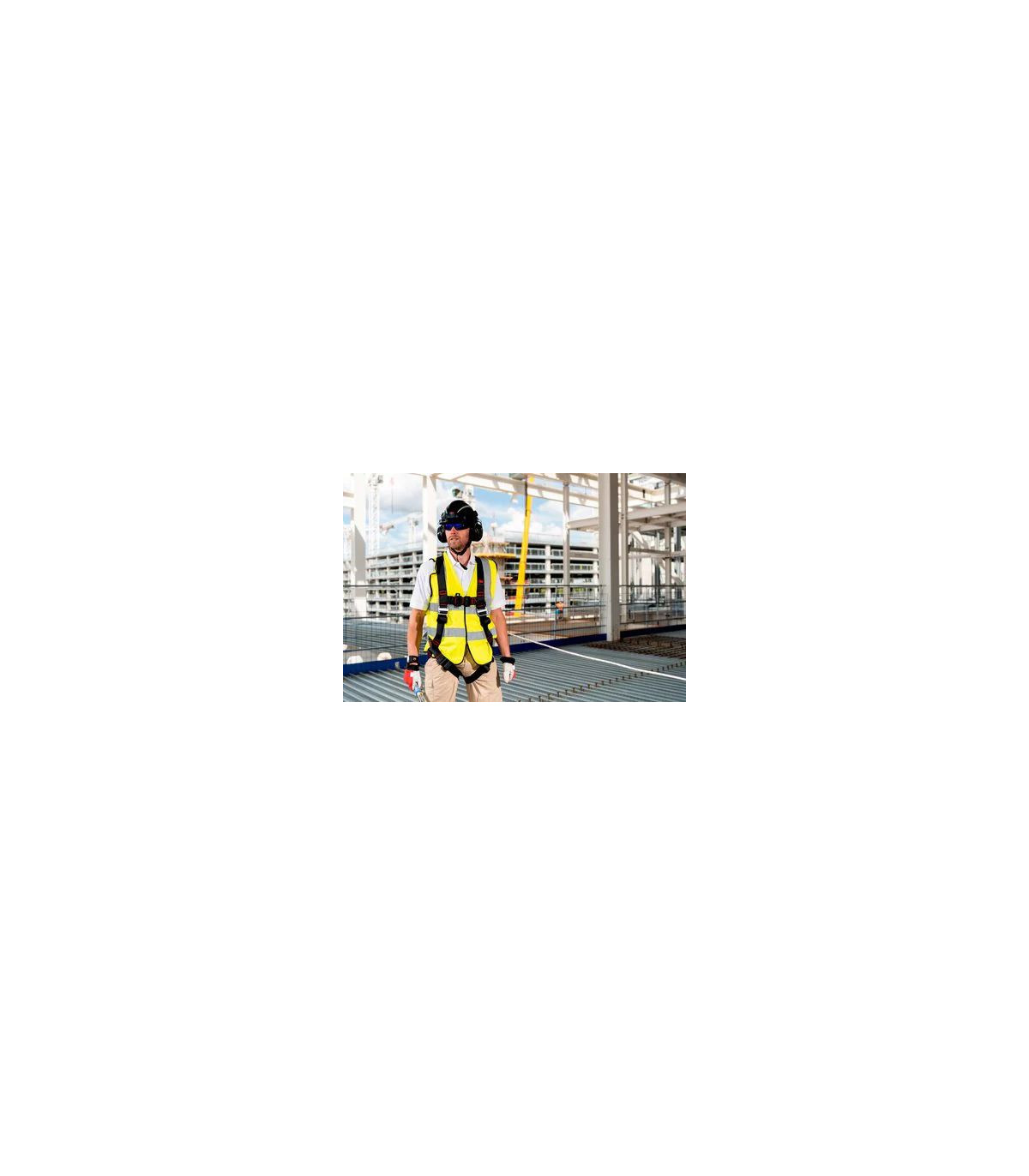

Helps work safely at height. Suitable for Automotive, Manufacturing, General Industry, General Manufacturing, Metal Fabrication, Mining, and Transportation.

TECHNICAL DATA

Enhanced straps: Abrasion-resistant and water-repellent to reduce mold and dirt buildup.

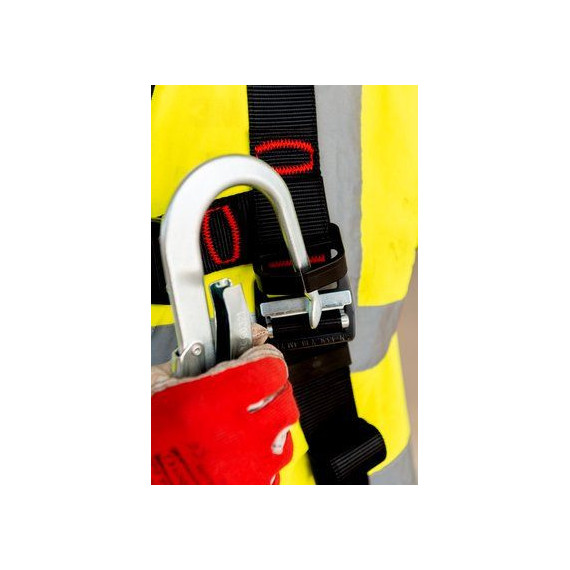

Sling hook holders: Prevents having to carry the sling in hand when not in use.

Comfort pads: On the underside of the shoulder, hip, and leg straps. TM® Harness 3M DBI-SALA

Quick-connect buckles: Lightweight aluminum alloy buckles for quick and easy connections. (There are also models with pass-through buckles).

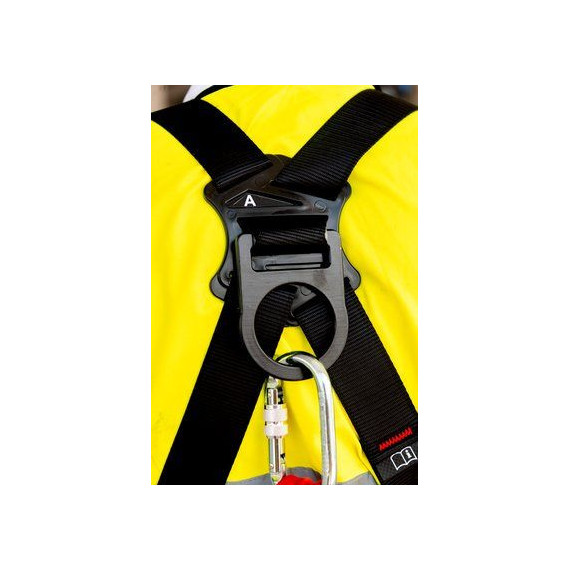

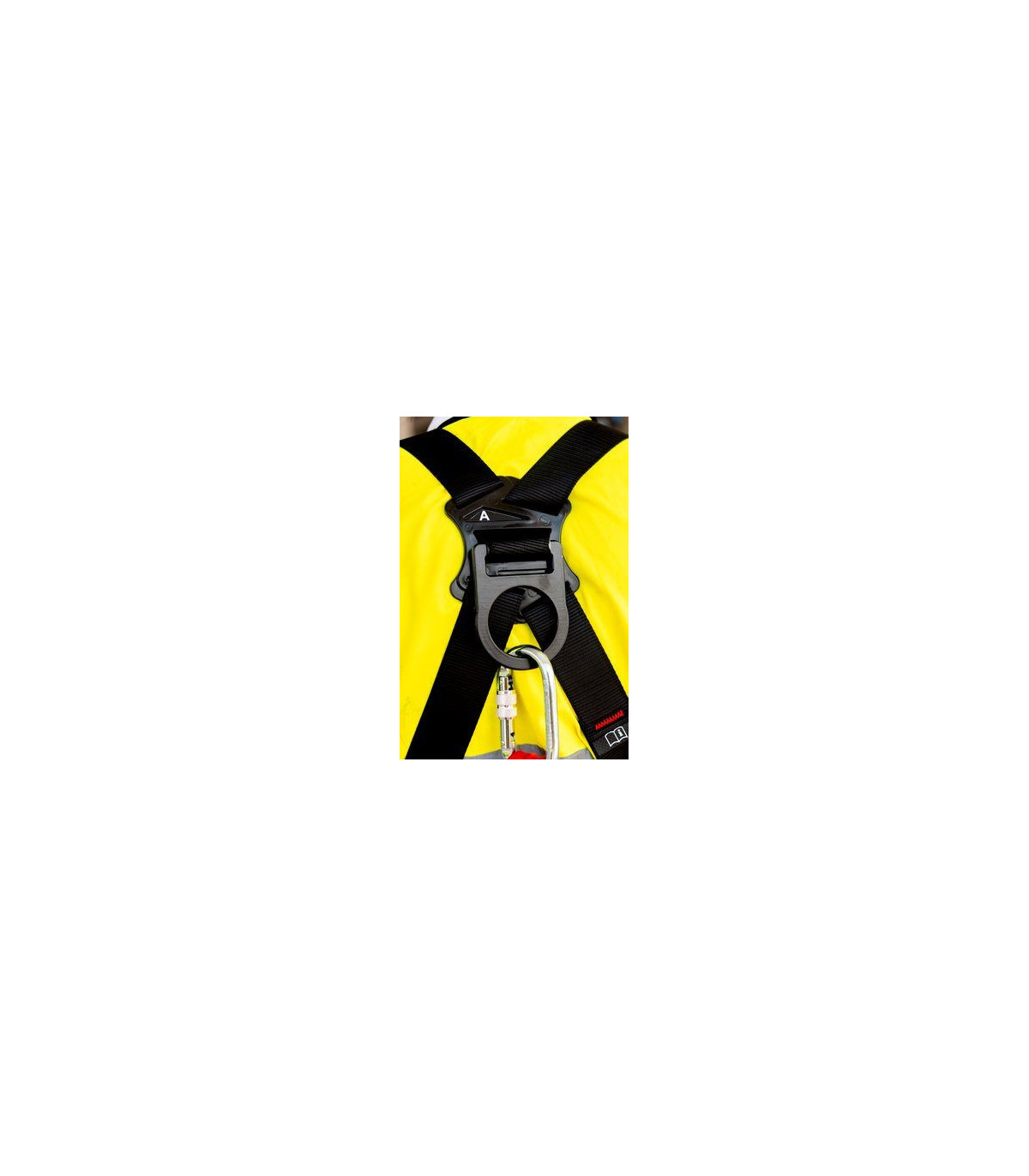

Vertical Dorsal D-ring: The vertical dorsal D-ring ensures quick, easy, and secure connections to your fall arrest system. Rigid belt: Allows carrying 27 kg of tools without breaking. Protected labels: Harness labels protected with hook-and-loop closure.

USAGE INSTRUCTIONS - ADJUSTING THE FALL PROTECTION HARNESS

Before starting. Empty your pockets, as during work or, more importantly, in the event of a fall, objects in your pockets can get caught between the harness straps and the user's body causing injuries. Always refer to the usage instructions provided with the specific harness regarding proper installation and adjustment.

Step 1. Start. Hold the harness by the dorsal D-ring, which is often secured through a D-pad and ensure that the straps are not twisted.

Step 2. Shoulder straps. Slide the harness over your arms and place it on your shoulders. Ensure that no strap is tangled and that they hang freely.

Step 3. Leg straps. Place it between your legs and secure the left leg strap. Raise the strap between your legs and connect it with the left buckle. Connect the right leg strap using the same procedure.

Step 4. Chest straps. Attach the chest strap buckle to the corresponding opposite side buckle.

Step 5. Waist strap (if equipped). Attach the waist strap buckle to the corresponding opposite side buckle.

Step 6. Adjust the harness to fit snugly. Adjust the shoulder straps until they are tight with the adjusters. The left and right sides of the shoulder straps should be adjusted to the same length and the chest strap should be centered at the bottom of the chest, about 15 cm below the shoulder. The chest D-ring of the vest-type harness moves up or down by adjusting the shoulder and leg straps. Center the dorsal D-ring between the shoulder blades. Note: In applicable models, the dorsal D-ring can be raised or lowered on the harness strap as needed for a proper fit. Readjust the leg straps to be snug. There should be at least 8 cm of strap beyond the buckle on the leg straps. Adjust the waist strap (if equipped).

You are ready! A properly fitted and adjusted full body harness will effectively distribute impact forces across the body and provide the proper support during suspension and rescue after a fall.

REGULATIONS

EN 358: 2001 - Personal protective equipment for positioning at work and prevention of falls from height.

EN 361: 2003 - Personal protective equipment against falls from height. Fall protection harnesses

EN 1497: 2008 - Personal protective equipment against falls. Rescue harnesses

EN 365: 2005 - Personal protective equipment against falls from height. General requirements for instructions for use, maintenance, periodic inspection, repair, marking, and packaging.

RECOMMENDATIONS FOR THE SET OF PPE

Do not use this safety equipment unless you have received training from a competent person (this training can be repeated as often as necessary). Contact CAPITAL SAFETY for information about classes or if you have questions about using this equipment. Training should be conducted without exposing the user to a fall hazard and should be repeated periodically. (See the complete guide in the usage instructions).
