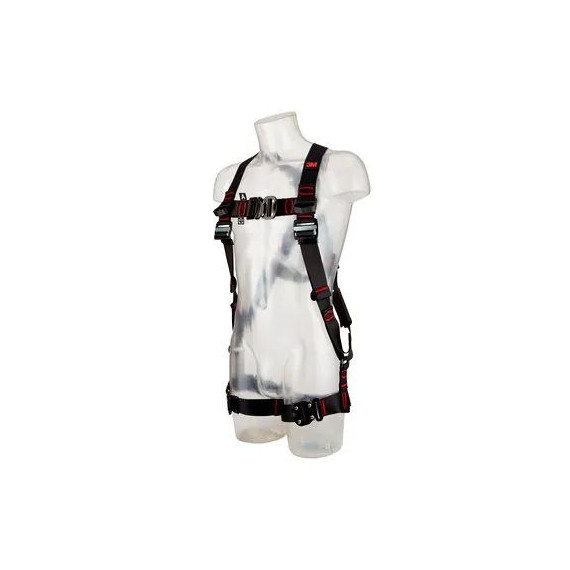

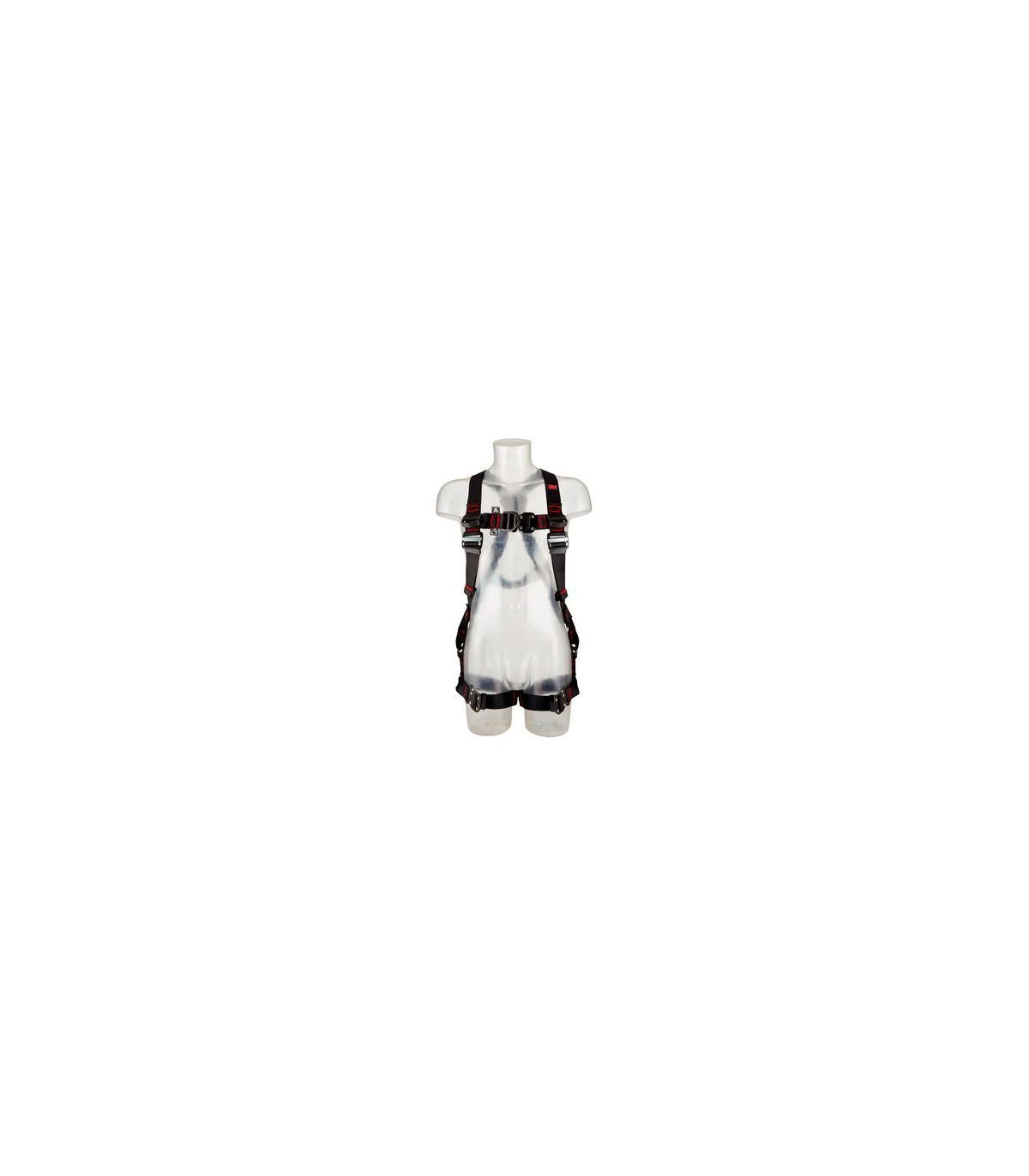

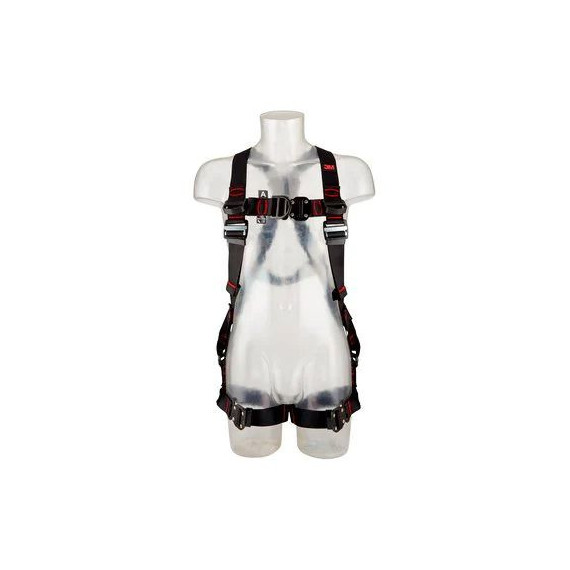

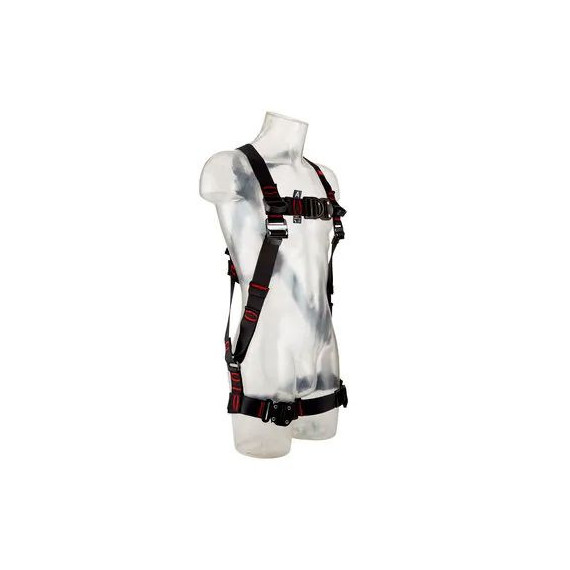

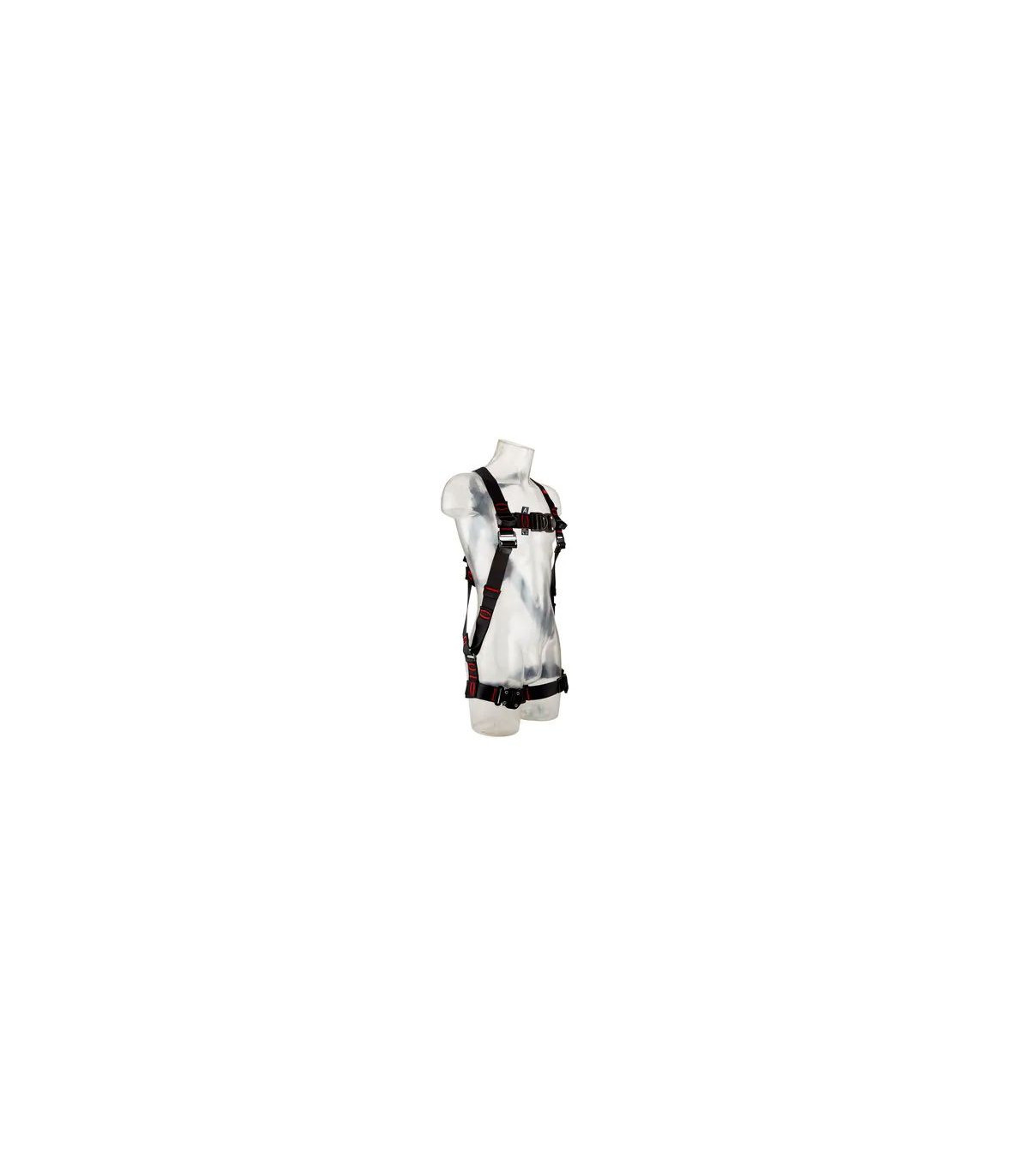

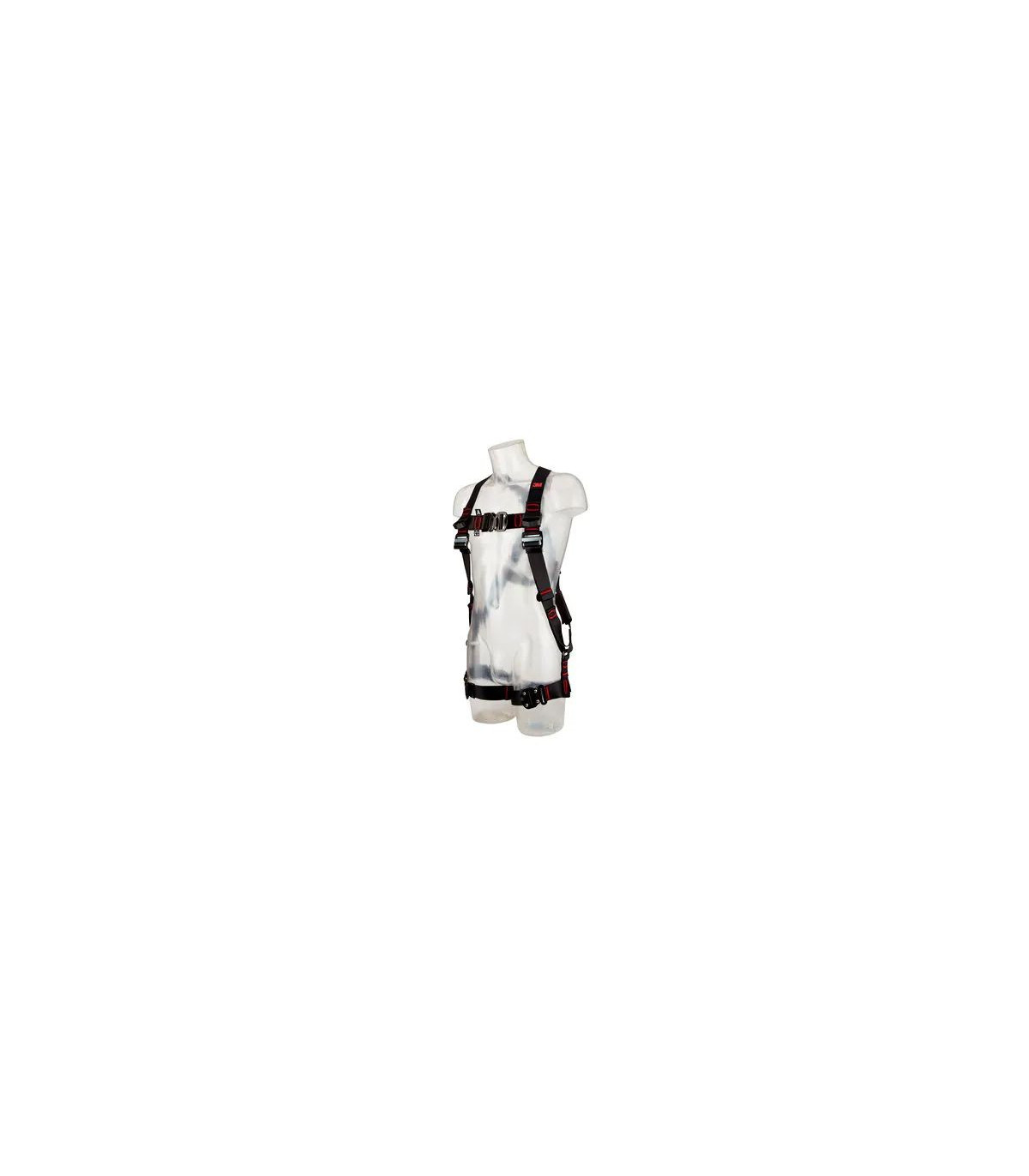

Standard vest-type fall protection harness with leg straps 3M™ PROTECTA® E200 black

Standard vest-type fall protection harness with leg straps 3M™ PROTECTA® E200 black. It offers reliable protection, comfort, and practicality. Additionally, it now features enhanced characteristics and an attractive, modern design.

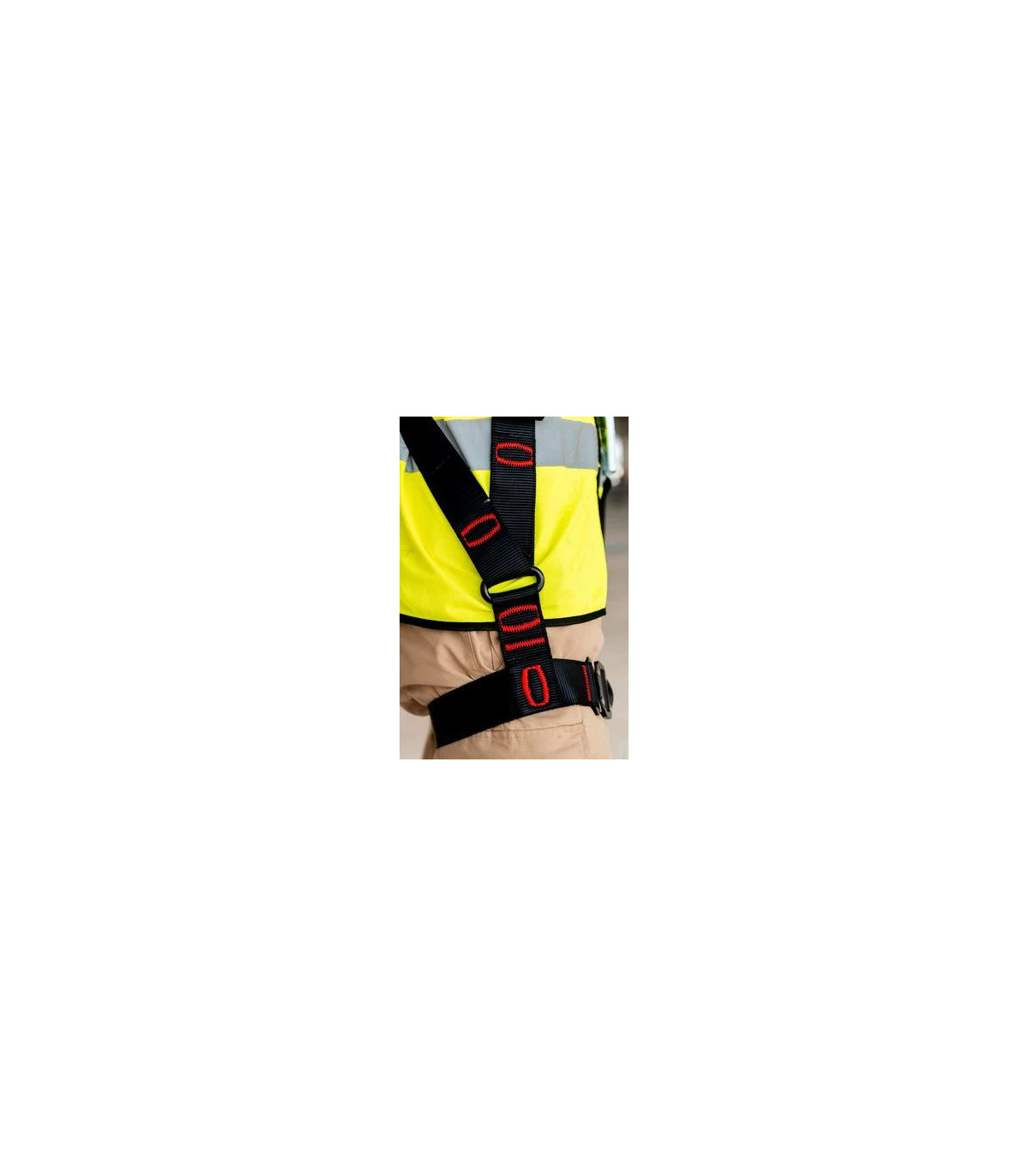

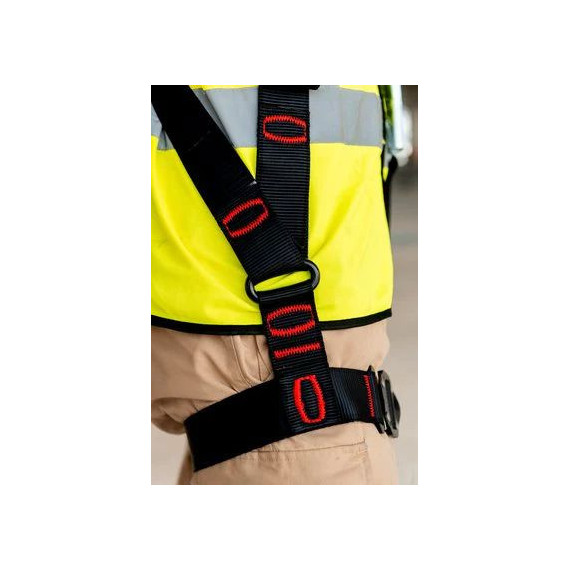

The leg straps include articulated rings that allow the lower and upper body to rotate, giving the user greater freedom of movement.

• Water-resistant and stain-resistant straps keep the harness cleaner and drier
• The leg straps include articulated rings that allow the lower and upper body to rotate, giving the user greater freedom of movement
• D-ring, conveniently located in the chest area, helps maintain balance and centered positioning

FEATURES

• Water-resistant and stain-resistant straps keep the harness cleaner and drier
• The leg straps include articulated rings that allow the lower and upper body to rotate, giving the user greater freedom of movement
• D-ring, conveniently located in the chest area, helps maintain balance and centered positioning

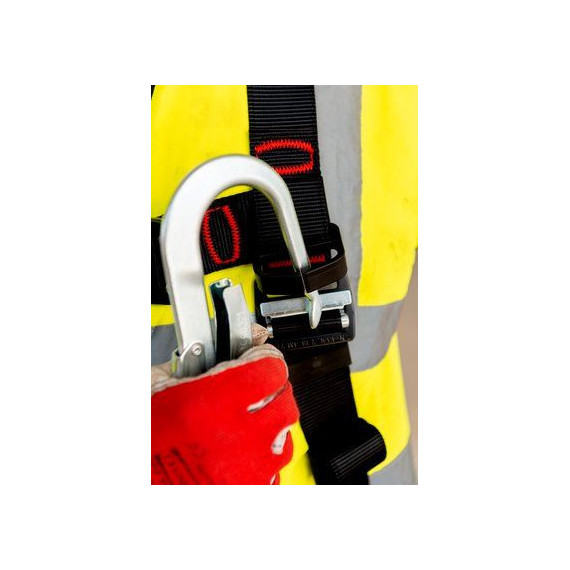

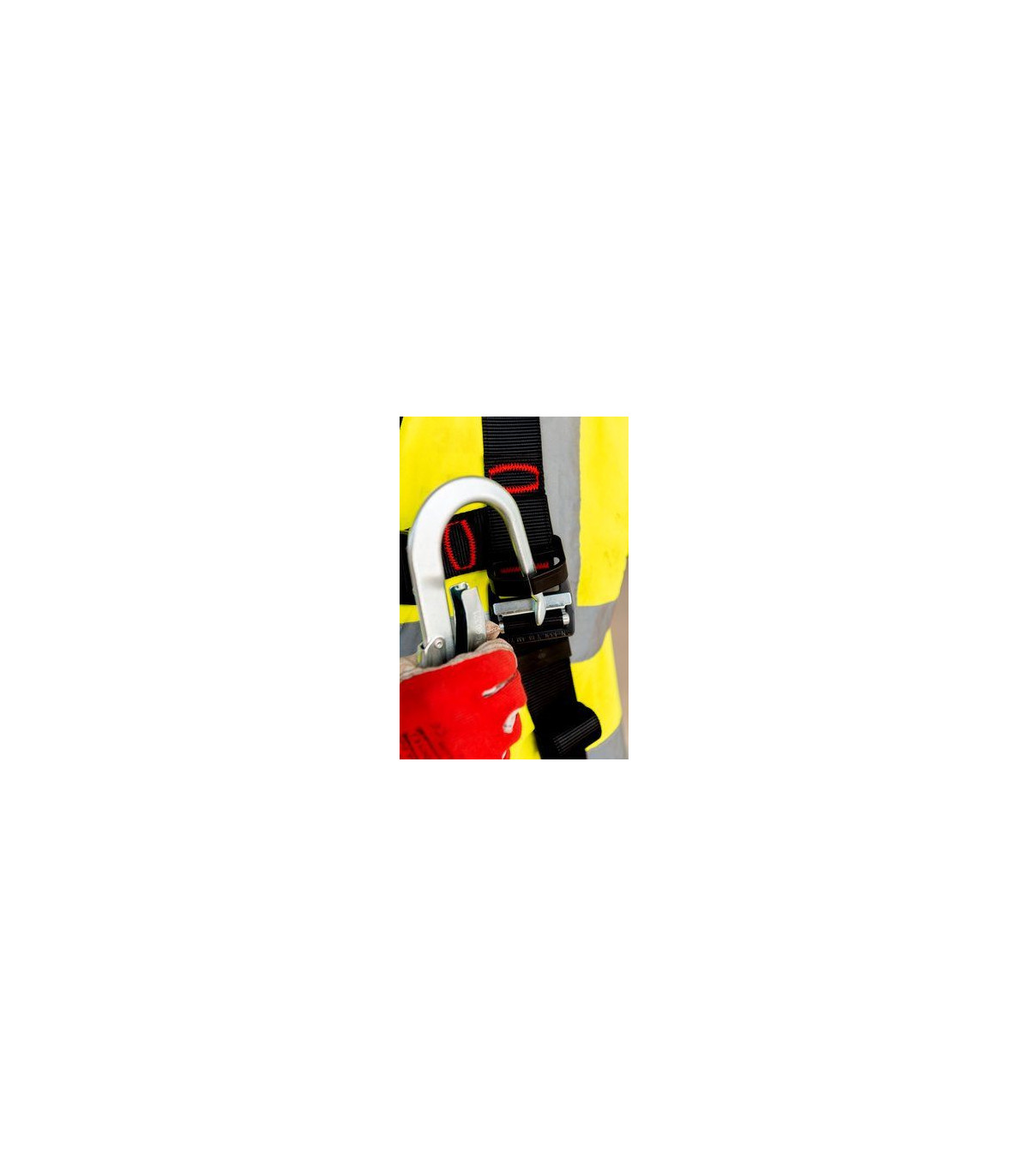

• The housing for the self-repositioning sling hook facilitates the storage and release of standard and automatic locking carabiners
• Impact indicators facilitate harness inspection to identify potential damage and ensure it is safe to use
• Easy-to-identify fall arrest anchor points
• With no loose straps, it is more comfortable and does not tangle
• Size: small, medium/large, extra-large

BENEFITS

• The standard vest-type fall protection harness 3M™ PROTECTA® offers reliable protection, comfort, and practicality in a variety of styles and configurations.
• This standard vest-type fall protection harness with leg straps features enhanced characteristics, such as water-resistant and stain-resistant straps and self-repositioning sling hook housings.
• The articulated rings on the horizontal leg straps allow for greater freedom of movement for the upper and lower body.
• The D-ring, securely and conveniently located in the chest area, helps maintain balance and centered positioning.
• With no loose straps, it is more comfortable and does not tangle.
• Additionally, it stays clean and dry thanks to its water-resistant and stain-resistant straps.
• Impact indicators facilitate checking for damage to the harness and help ensure its safe use.
• Covered identification tags help protect important information throughout the harness's lifespan.

RECOMMENDED APPLICATIONS

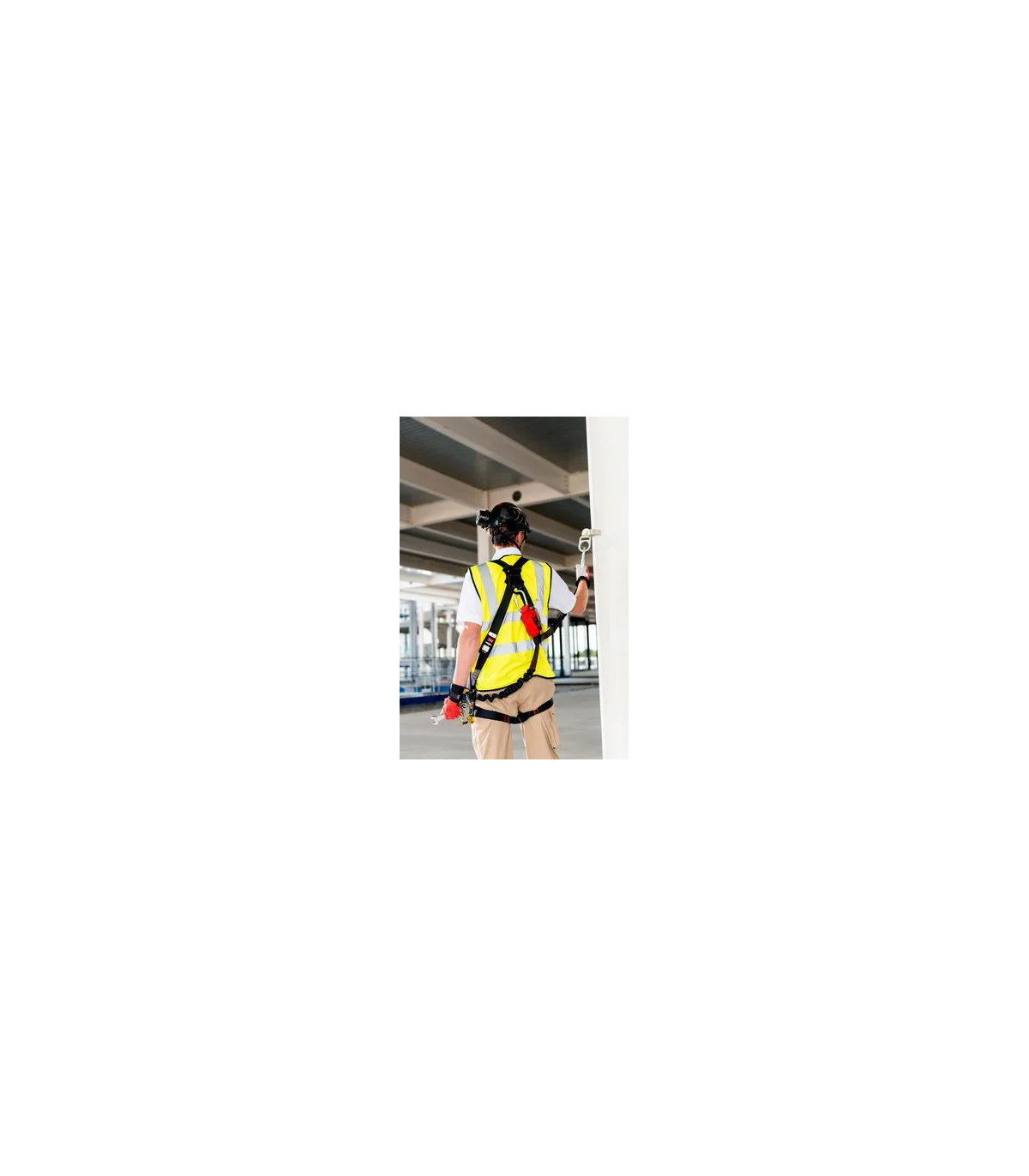

Helps work safely at height. Recommended for use in Automotive, Manufacturing, General Industry, General Manufacturing, Metal Fabrication, Mining, Transportation.

TECHNICAL DATA

Enhanced straps: Abrasion-resistant and water-repellent to reduce mold and dirt buildup.

Sling hook housings: Prevents having to carry the sling in hand when not in use.

Comfort pads: On the underside of the shoulder, hip, and leg straps. TM® Harness 3M DBI-SALA

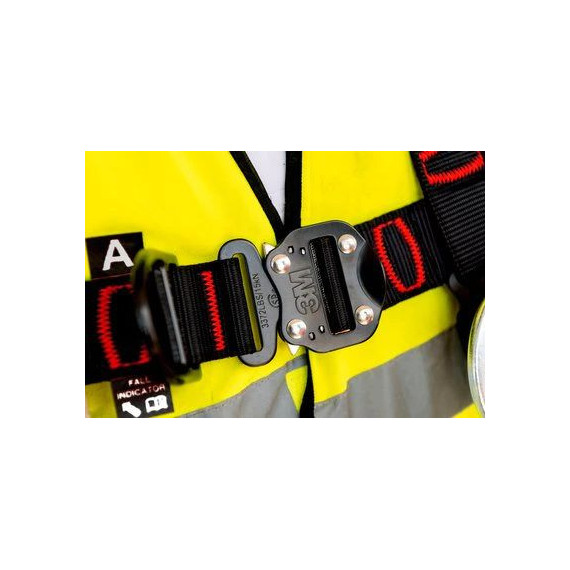

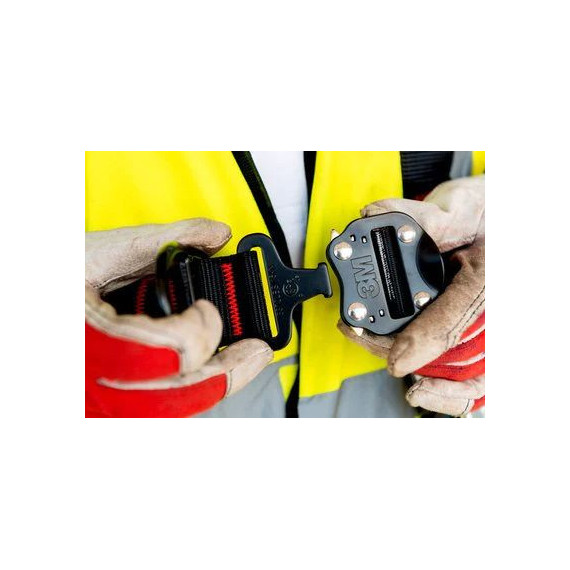

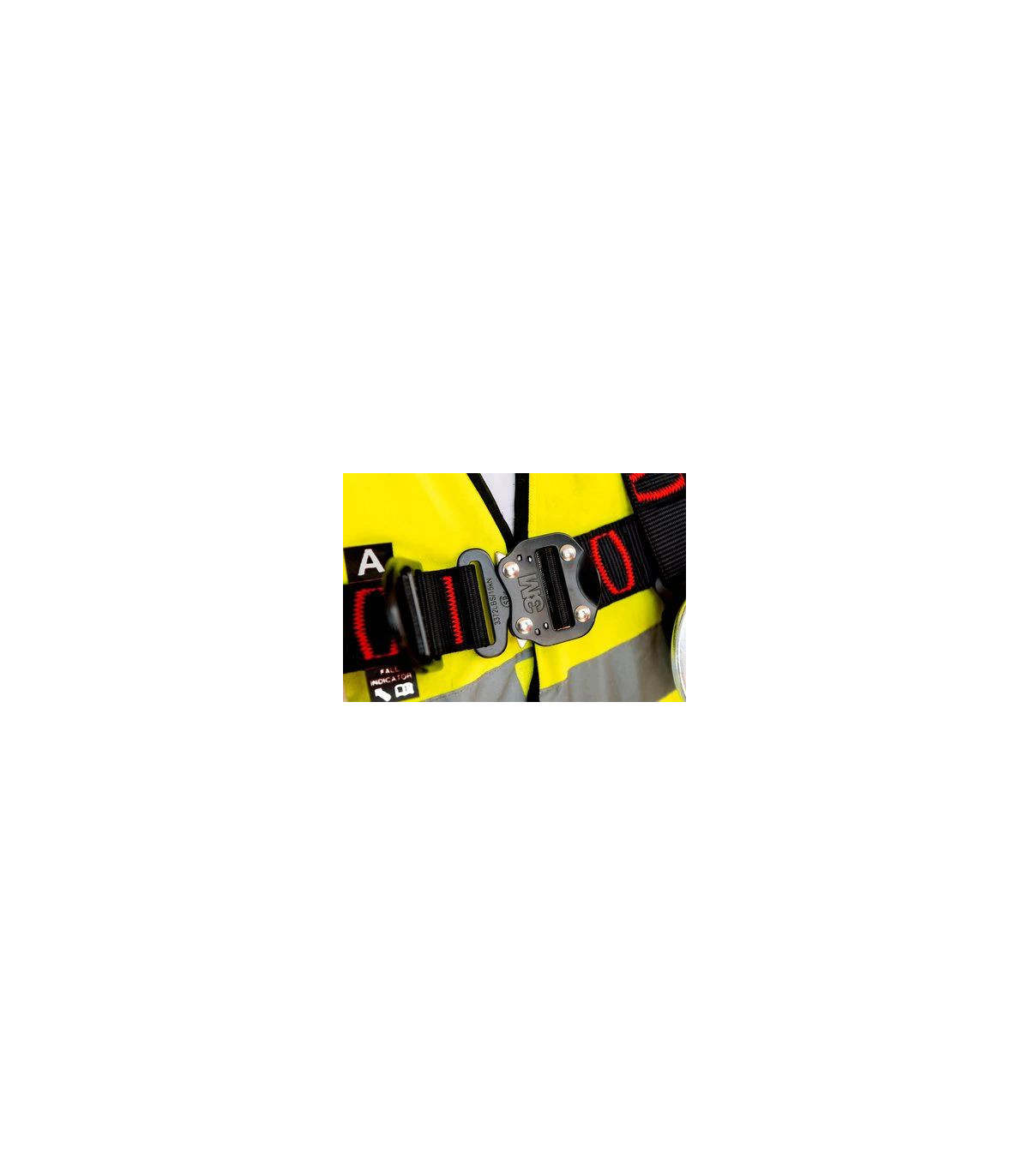

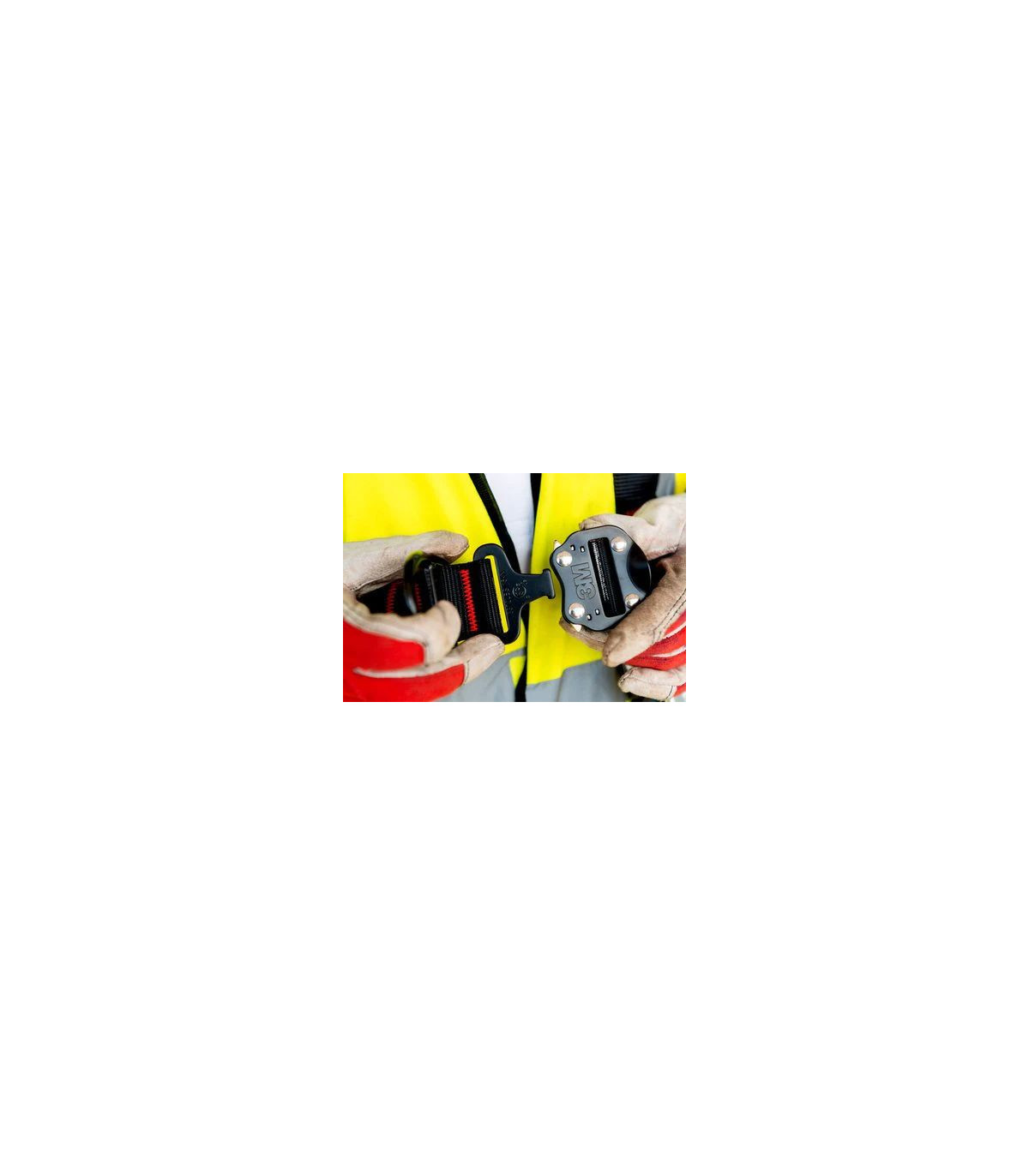

Quick connection buckles: Lightweight aluminum alloy buckles for quick and easy connections. (There are also models with pass-through buckles).

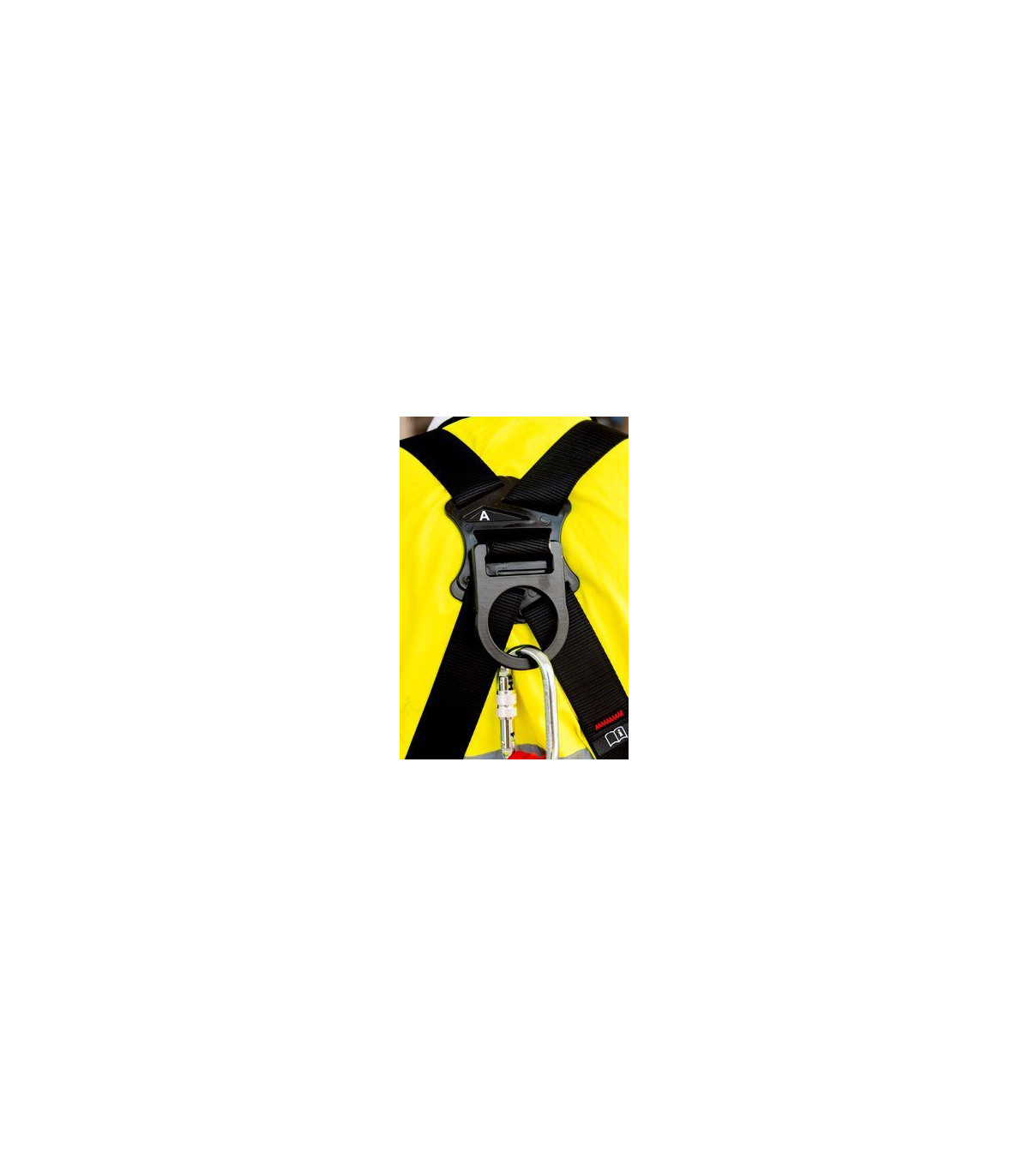

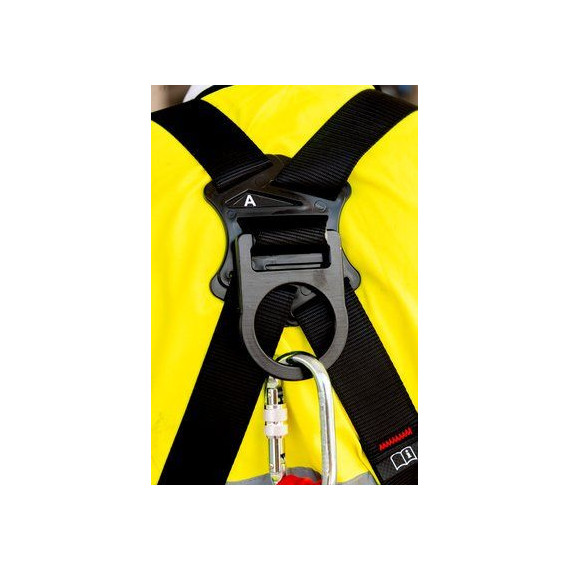

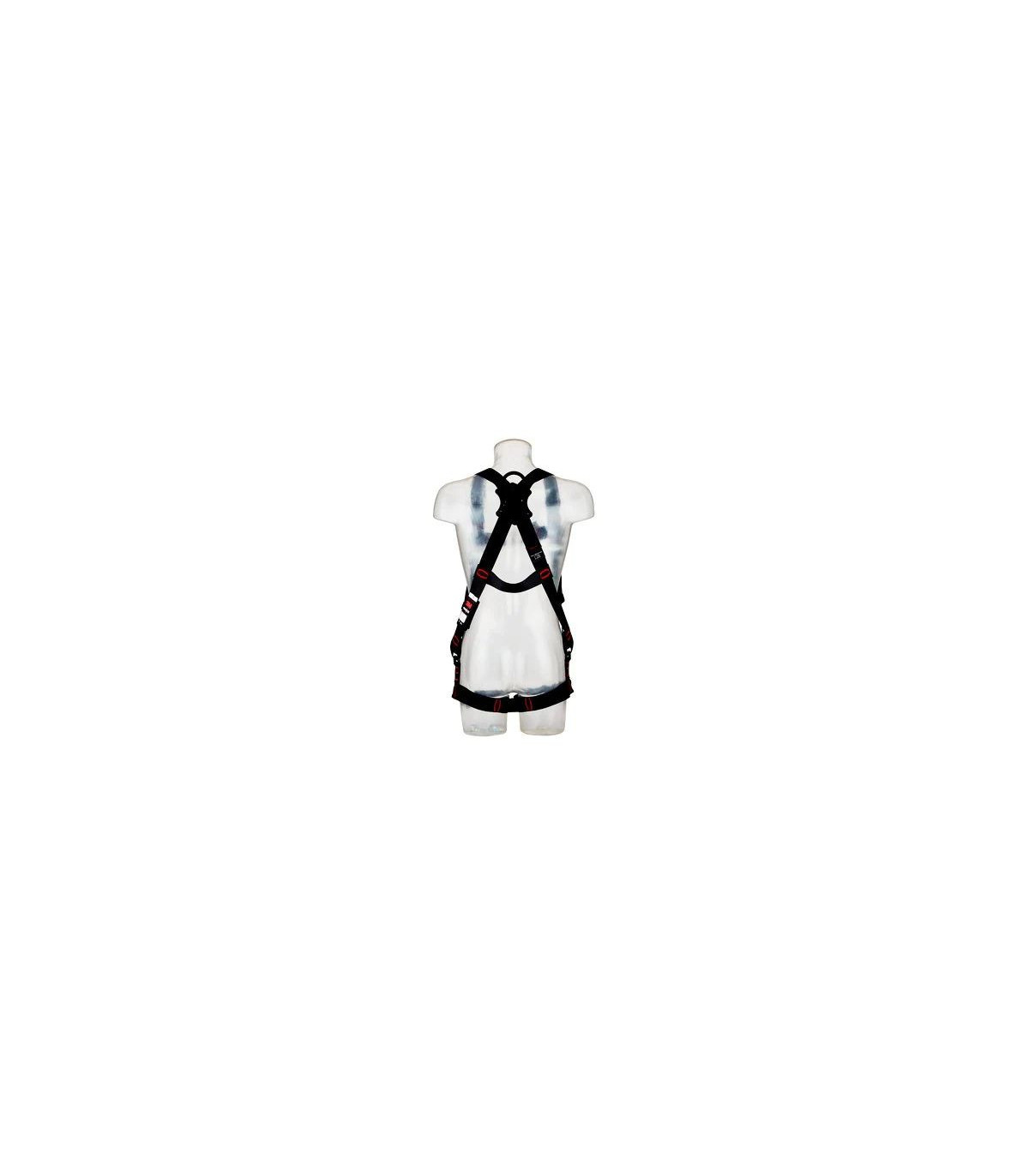

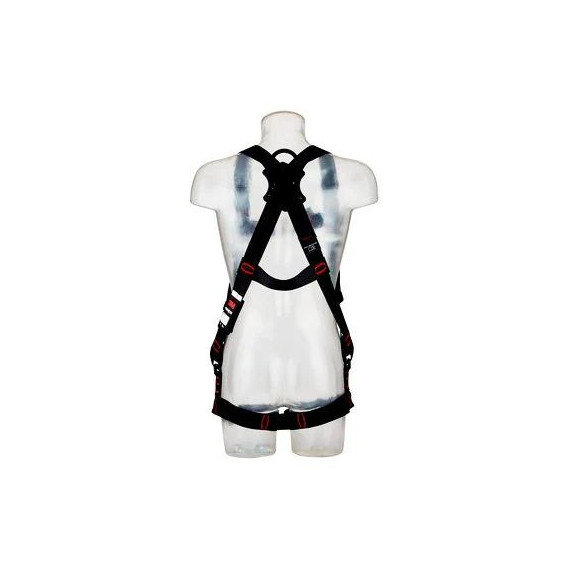

Vertical D-ring on the back: The vertical D-ring on the back ensures quick, easy, and secure connections to your fall arrest system. Rigid belt: Allows carrying 27 kg of tools without breaking. Protected labels: Harness labels protected with hook and loop closure.

USAGE INSTRUCTIONS - ADJUSTING THE FALL PROTECTION HARNESS

Before starting. Empty your pockets, as during work or, more importantly, in the event of a fall, objects in your pockets can become trapped between the harness straps and the user's body, causing injury. Always refer to the usage instructions provided with the specific harness regarding proper installation and adjustment.

Step 1. Start. Hold the harness by the D-ring on the back, which is often attached through a D-pad, and ensure that the straps are not twisted.

Step 2. Shoulder straps. Slide the harness over your arms and place it on your shoulders. Ensure that no strap is tangled and that they hang freely.

Step 3. Leg straps. Place it between your legs and secure the left leg strap. Pull the strap up between your legs and connect it to the left buckle. Connect the right leg strap using the same procedure.

Step 4. Chest straps. Attach the chest strap buckle to the corresponding opposite side buckle.

Step 5. Waist strap (if equipped). Attach the waist strap buckle to the corresponding opposite side buckle.

Step 6. Adjust the harness to fit snugly. Tighten the shoulder straps until they are snug with the adjusters. The left and right sides of the shoulder straps should be adjusted to the same length, and the chest strap should be centered on the lower chest, about 15 cm below the shoulder. The D-ring on the vest-type harness moves up or down by adjusting the shoulder and leg straps. Center the D-ring on the back between the shoulder blades. Note: In applicable models, the D-ring on the back can be raised or lowered on the harness strap as needed for a proper fit. Readjust the leg straps to ensure they are snug. There should be at least 8 cm of strap beyond the buckle on the leg straps. Adjust the waist strap (if equipped).

You are all set! A properly fitted and adjusted full body harness will effectively distribute impact forces across the body and provide the proper support during suspension and rescue after a fall.

REGULATIONS

EN 358: 2001 - Personal protective equipment for positioning at work and prevention of falls from height.

EN 361: 2003 - Personal protective equipment against falls from height. Fall arrest harnesses

EN 1497: 2008 - Personal protective equipment against falls. Rescue harnesses

EN 365: 2005 - Personal protective equipment against falls from height. General requirements for instructions for use, maintenance, periodic inspection, repair, marking, and packaging.

RECOMMENDATIONS FOR THE COMPLETE PPE SET

Do not use this safety equipment unless you have received training from a competent person (this training may be repeated as often as necessary). Contact CAPITAL SAFETY for information on classes or if you have questions about using this equipment. Training should be conducted without exposing the user to a fall hazard and should be repeated periodically. (See the complete guide in the usage instructions).
