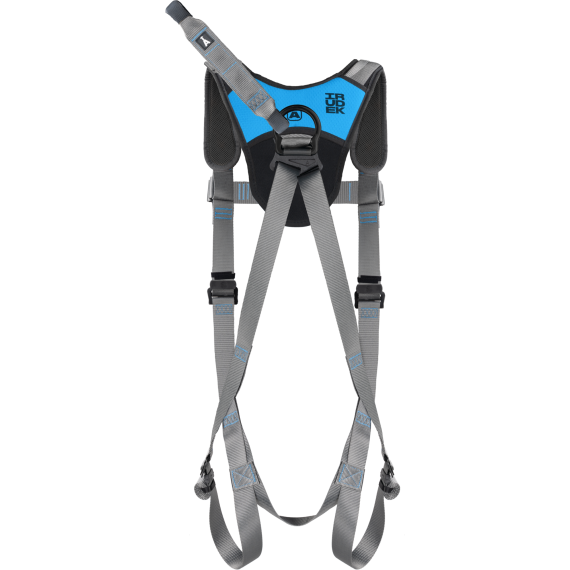

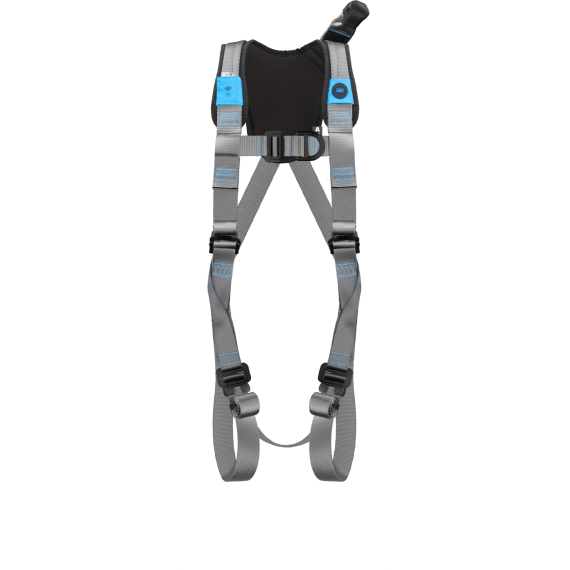

Harness with dorsal anchor and automatic rings Expert Pro 50 IRUDEK

The Irudek Expert Pro 55 harness is adjustable at the shoulders and thighs. It features a chest strap, elastic straps at the shoulders, and a pelvic strap. Forged aluminum rings. Supplied with a nylon bag.

With intelligent adjustment adjustable at the shoulders and legs. Made in two colors for better differentiation between the upper and lower parts. It has plastic protections at the ends of the straps.

Sizes: S-M #100403400015

Sizes: L-XXL #100403400016

FEATURES

• Dorsal anchor for fall protection
• Adjustable at legs and chest
• Steel buckles with salt spray resistance of 120 hours, against the 72 hours required by standard.
• Includes extension strap
• Anchor ring for vertical rescue

TECHNICAL DATA

• Weight: 1435 gr
• Usage capacity: 140 Kg
• Harness resistance: 15 > kN
• Antislip System: Yes
• Automatic buckles: Yes
• Belt width: 44 mm
• Size: S-M. L-XXL
• Service life (years): 10 of use + 1 of storage

PACKAGING DATA

• Weight: 1435 gr
• Units/box: 5

MATERIALS

• Strap: Polyester
• Thread: Polyamide
• Rings: Aluminum
• Automatic buckles: Steel

SIZE GUIDE

*Measurements expressed in centimeters

*Approximate measurements

STANDARDS/REGULATIONS

Meets the requirements of the Regulation/Directive on Personal Protective Equipment (PPE)

- EN 361

APPLICATIONS

For work at height

Securing and positioning

LIMITATIONS OF USE

The equipment must be assigned individually to a person.

- It is recommended that the anchor point where the fall protection system will be fixed is above the user. The anchor point must have a minimum static resistance of 12 kN (metal) or 18 kN (textile) and must comply with the requirements of Standard EN 795:1996 / EN 795:2012.

- Personal protective equipment should not be used by individuals whose health status may affect the safety of the user under normal use conditions or in case of emergency.

- Personal protective equipment should only be used by a trained and competent person in its safe use.

WARNING

- A fall arrest harness is the only acceptable body restraint device that can be used in a fall protection system.

- The fall protection system must only be connected to the connection points of the harness that carry an identification with the uppercase letter “A”. The identification “A/2” indicates that it is necessary to connect two connection points with the same identification at the same time. It is prohibited to connect the protection system to a single connection point identified with “A/2”.

- In harnesses with an integrated belt, the connection to equipment for positioning work must only be made to the lateral anchor rings of the belt.

- The connection to the anchor point and to other equipment must be made through carabiners in accordance with EN362:2004.

- For use with fall protection EN 353-1:2014+A1:2017, EN 353-2:2002 it is recommended to connect the equipment to the front anchor point of the harness. For use with energy absorbers EN 355 or with fall protection EN 360 it is recommended to connect the equipment to the dorsal anchor point of the harness. - Before each use of the personal protective equipment, it must be carefully checked to ensure that it is in usable condition and functions correctly.

- During the pre-use check, it is necessary to carefully inspect all elements of the equipment to verify that they do not show signs of deterioration, excessive wear, corrosion, abrasions, UV radiation degradation, cuts, and incorrect use. Pay special attention to the straps, seams, anchor rings, buckles, and adjustment elements.
