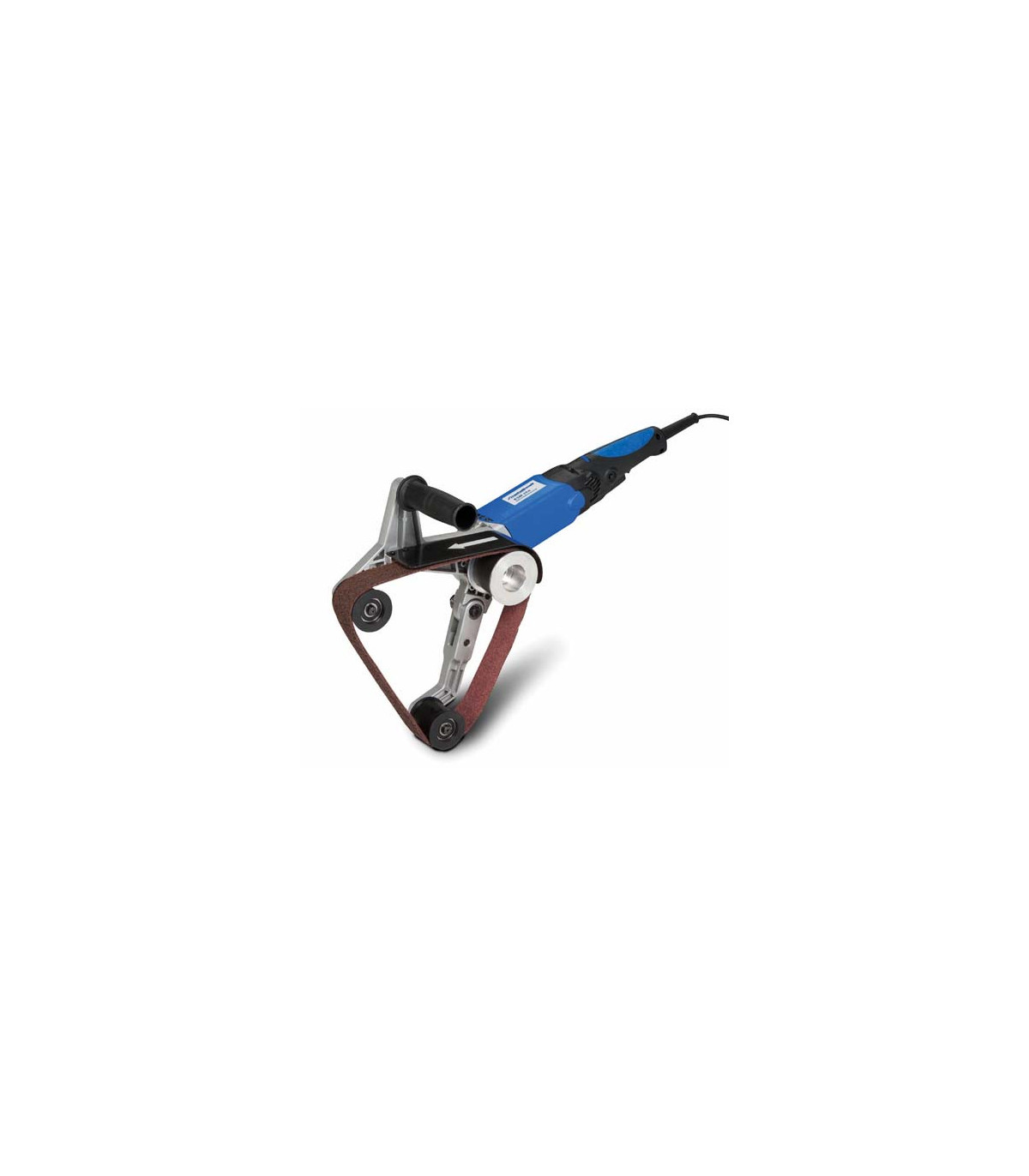

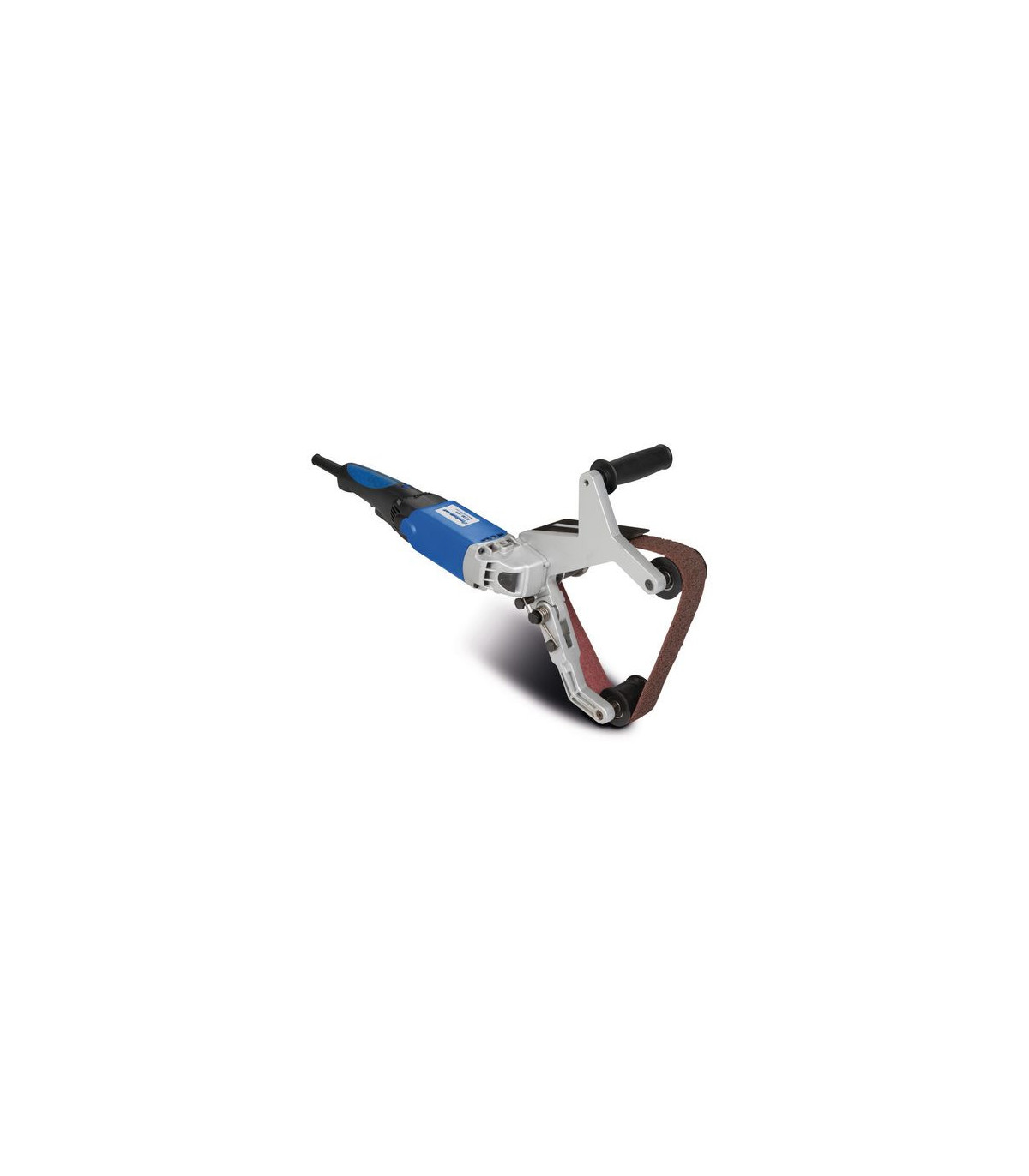

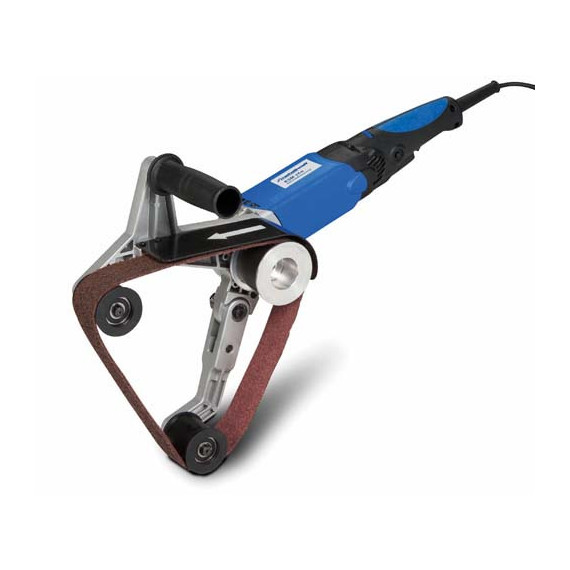

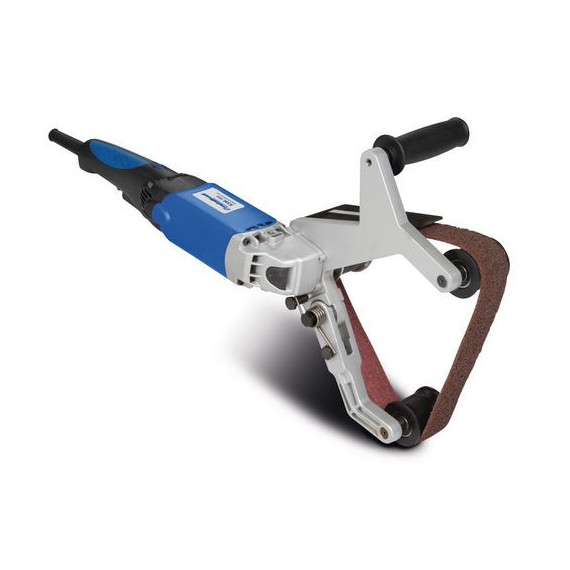

Disc sander RSM 760 METALLKRAFT

Disc sander RSM 760 METALLKRAFT. The RSM 760 METALLKRAFT disc sander is ideal for metallurgy and railings. With a 180° rotating handle, a durable motor, and constant electronics, it allows for effective sanding. Its belt change is easy, and the 360° grinding is achieved in two steps, optimizing handling.

FEATURES

• Practical and flexible tube sander for metallurgy, metal construction, and railings.

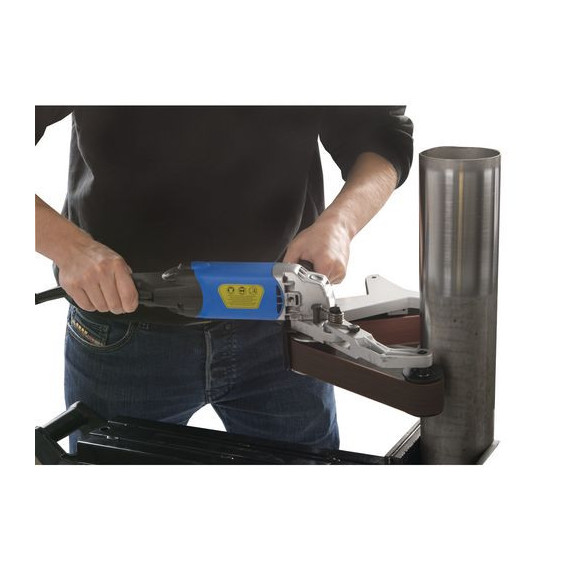

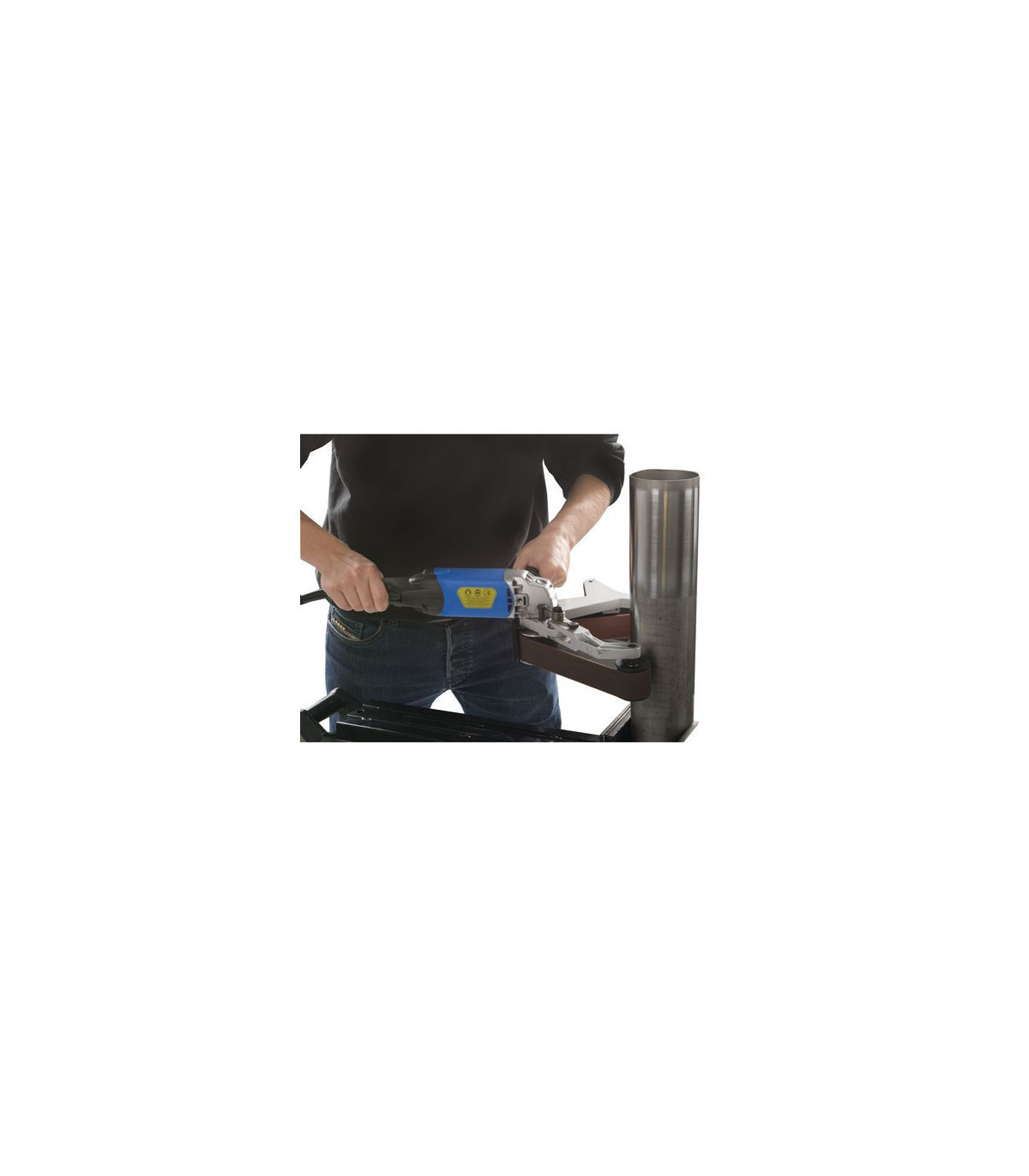

• Designed for grinding and polishing pipe structures.
• Especially suitable for sanding, satin finishing, and high-gloss polishing of already installed railings.
• Ideal for working in tight spaces as the handle can be rotated 180°.
• High-strength motor with soft start and overload protection.
• With constant electronics for a constant belt speed even under load.
• With continuous speed adjustment for optimal adaptation to different applications.
• The speed can be comfortably adjusted using the rotary wheel on the handle.
• Easy and tool-free sanding belt change.
• The 360° circumferential grinding is done in just two steps.
• High-quality 270° grinding arm made of lightweight metal with 2 pulleys.
• The handle can be screwed in three different positions, allowing for optimal handling.

TECHNICAL SPECIFICATIONS

Dimensions and weights

Approximate weight. 3.4 kilograms

Electrical data

Drive motor power 1.2 kW

Motor speed(s) 1600 – 3200 minutes

Supply voltage 230 V

Network frequency 50 Hz

Grinding unit

Sanding belt length 760 millimeters

Sanding belt width 40 millimeters

Belt rotation speed(s) 3 – 12 m/s

Workpiece

Minimum pipe diameter. 15 millimeters

Maximum pipe diameter. 180 millimeters

VPE 1

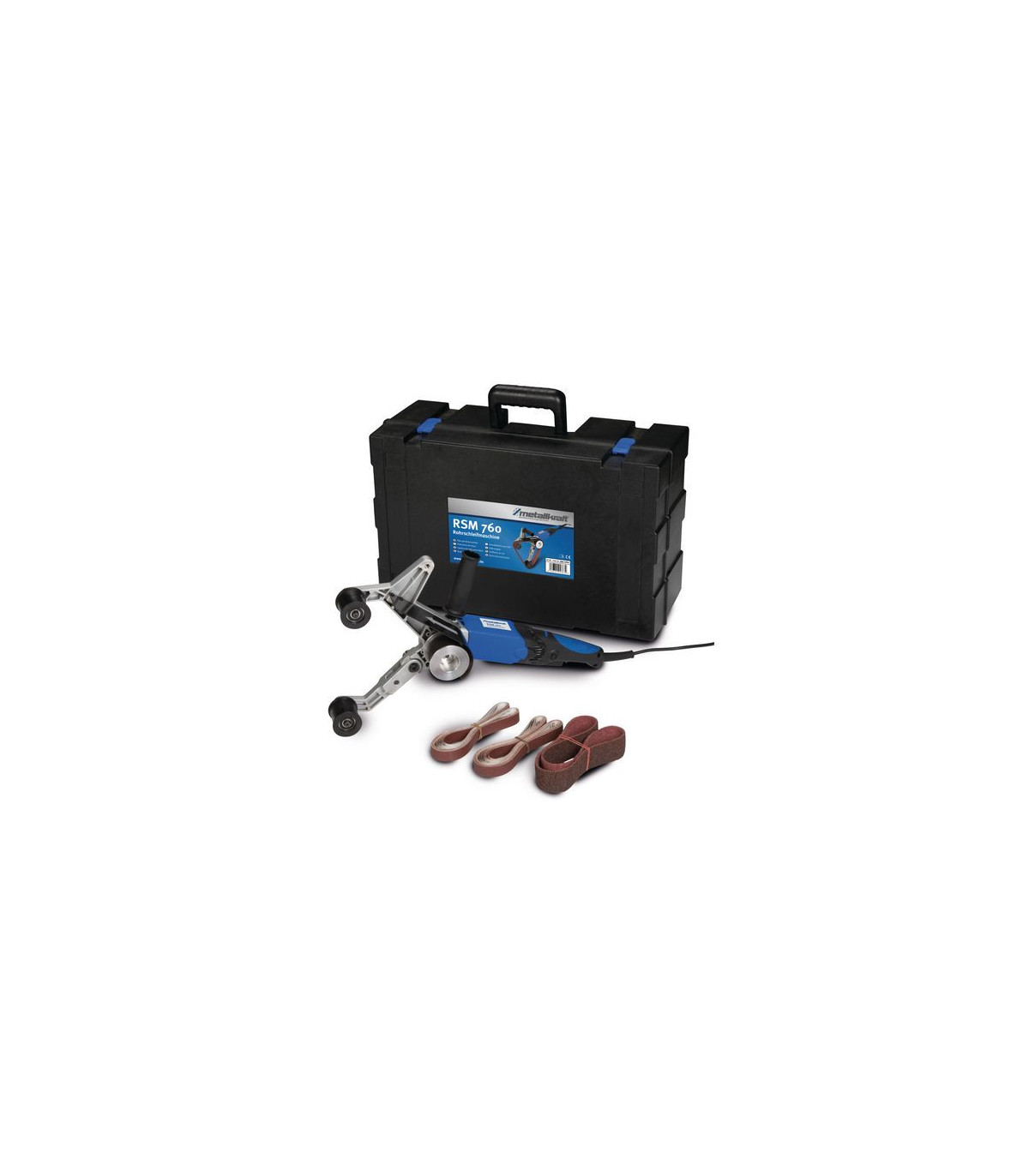

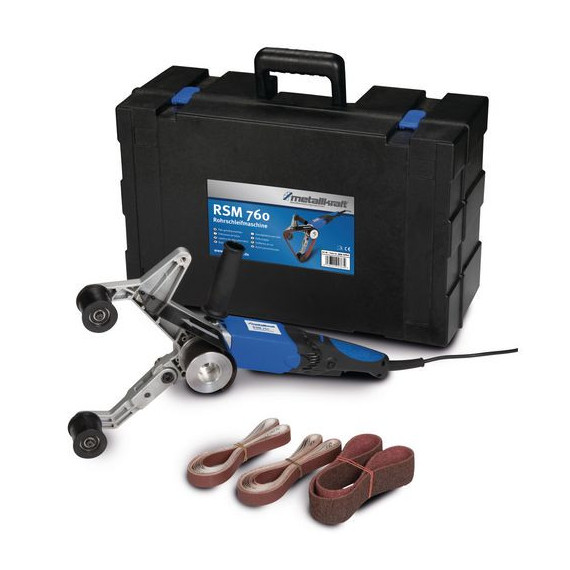

COMPONENTS/PACKAGING

Unit of measure: piece

Packaging unit: 1

plastic box

coarse sanding fleece (40 x 760 mm)

5 pieces of sanding belt K 120 (40 x 760 mm)

5 pieces of sanding belt K 220 (40 x 760 mm)

FOR WHAT TYPE OF WORK IS IT SUITABLE

The RSM 760 METALLKRAFT disc sander is suitable for:

• Metallurgy
• Metal construction
• Railings
