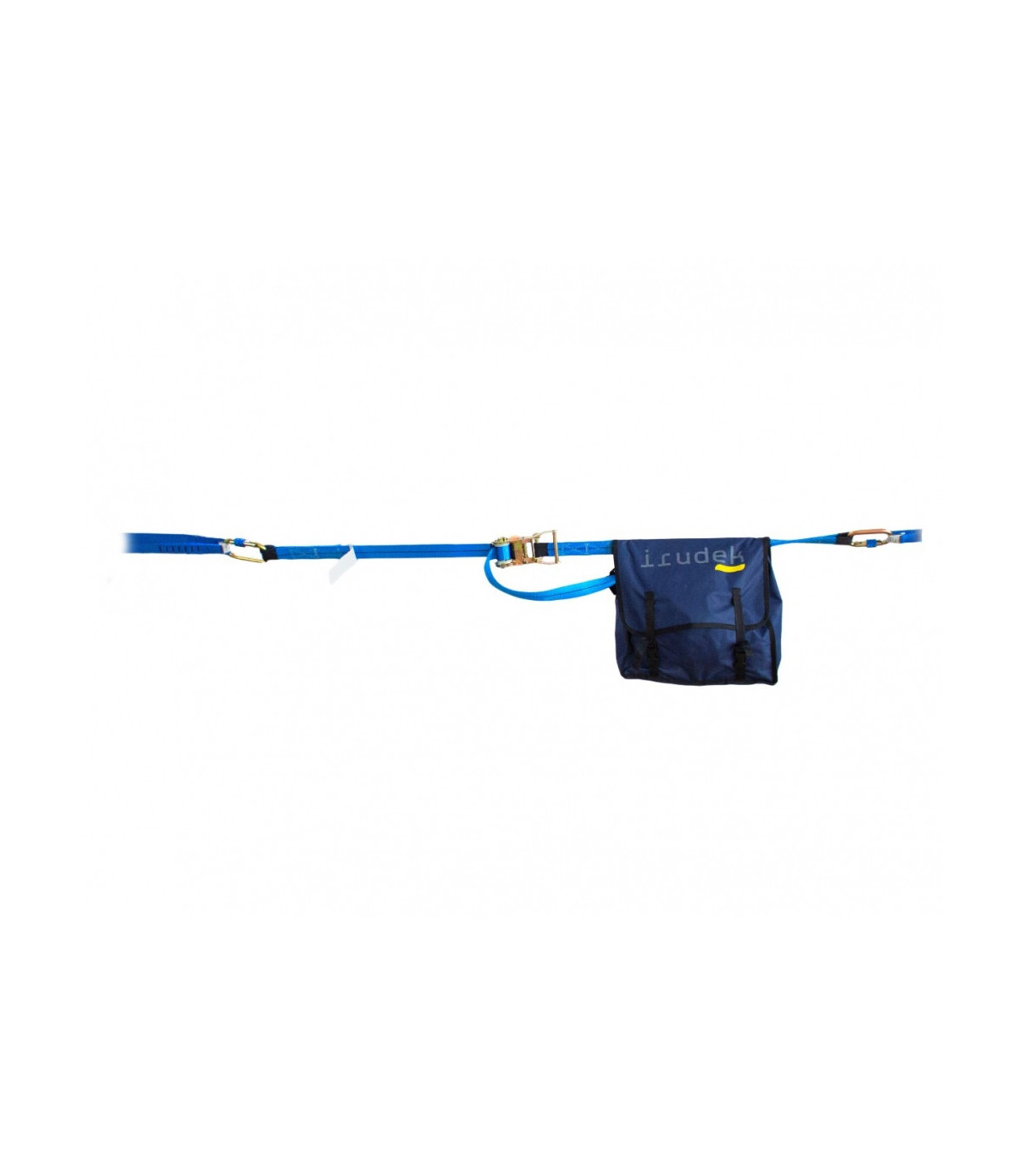

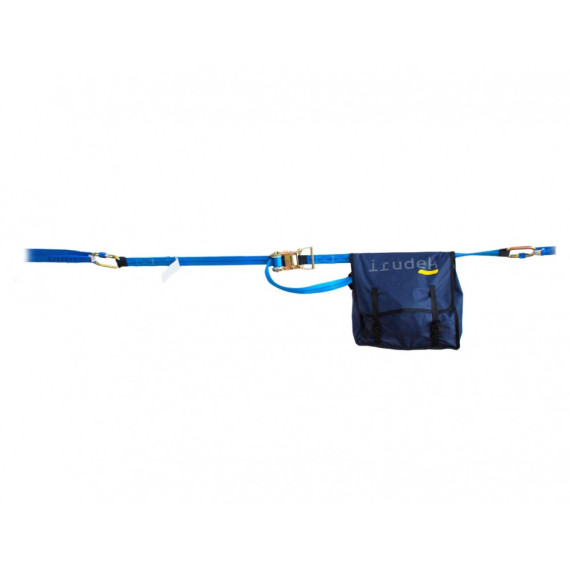

Horizontal lifeline tape IRUDEK X2 Pro

Portable lifeline equipped with a ratchet that allows adjusting the length from 5m to 20m and easily tensioning the strap.

FEATURES

• The lifeline can be used by 2 people simultaneously (according to regulations, a mass of 100 kg per person). Adjustable length in sections from 5 to 20 meters.
• Certified for 2 users
• Equipped with a ratchet tensioner to tension the line by rotary movement with a locking and unlocking mechanism.
• Provided with 2 CTA01 anchoring straps at each end to connect the anchoring points

TECHNICAL DATA

• Weight: 3.1 kg
• Carabiner opening: 18 mm
• Strap: 45 mm
• Resistance: 25 kN

MATERIALS

• Ratchet: Galvanized steel
• Strap: Polyester
• Carabiners: Steel
• Anchoring strap: Polyester

STANDARDS/REGULATIONS

• EN 795 B
• TS16415

APPLICATIONS

• To be used by two people simultaneously
• Horizontal work

CTA01 STRAP

Anchoring point made of 44mm polyester strap, total length of 1.20 meters + 1 small lightweight aluminum ring at one end + 1 large lightweight aluminum ring at the other end.

FEATURES

• Anchoring strap made from polyester strap and two steel rings
• Its lightness, versatility, and different sizes make them the most used and versatile anchors.

TECHNICAL DATA

• Length: 1.20 m
• Weight: 0.3 kg
• Resistance: 18 kN
• Width: 45 mm
• Service life: 10 years of use + 1 year of maintenance

SERVICE LIFE

The estimated service life of the equipment is 11 years from the date of manufacture (1 year of storage and 10 years of use). The following factors may reduce the product's service life: intensive use, contact with chemicals, especially aggressive environments, exposure to extreme temperatures, exposure to ultraviolet rays, abrasion, cuts, strong impacts, or improper use and maintenance. The mandatory annual inspection will validate the correct functioning of the equipment.

It is mandatory for the equipment to be examined by the manufacturer or an authorized person at least once a year. In case of a fall, the equipment must be removed from use.
