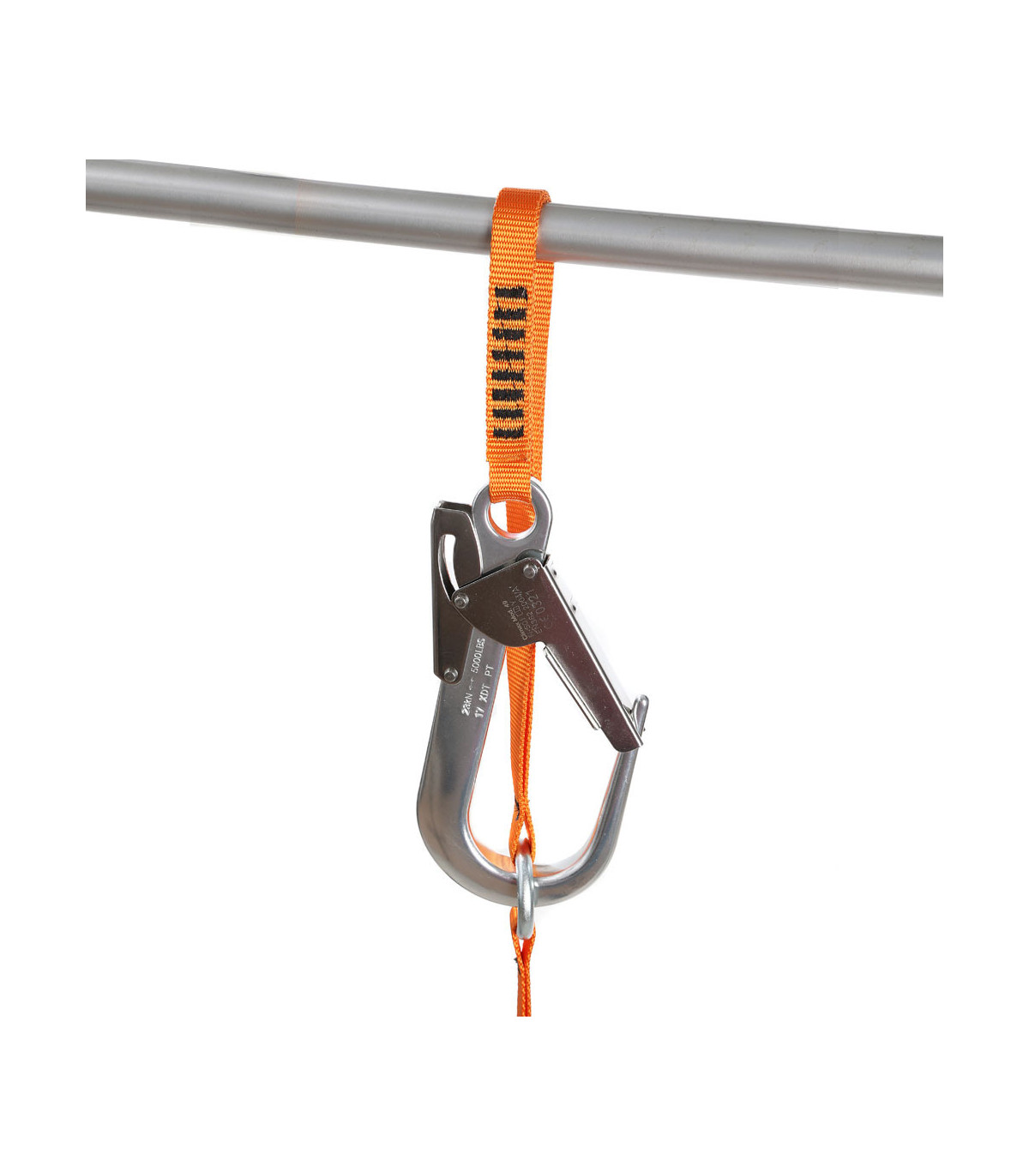

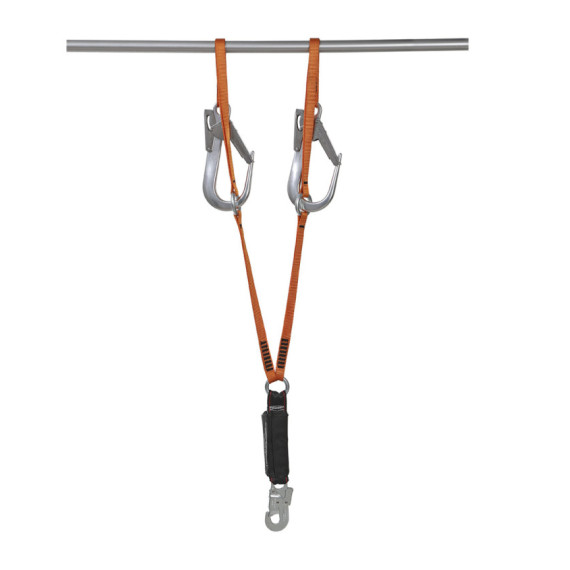

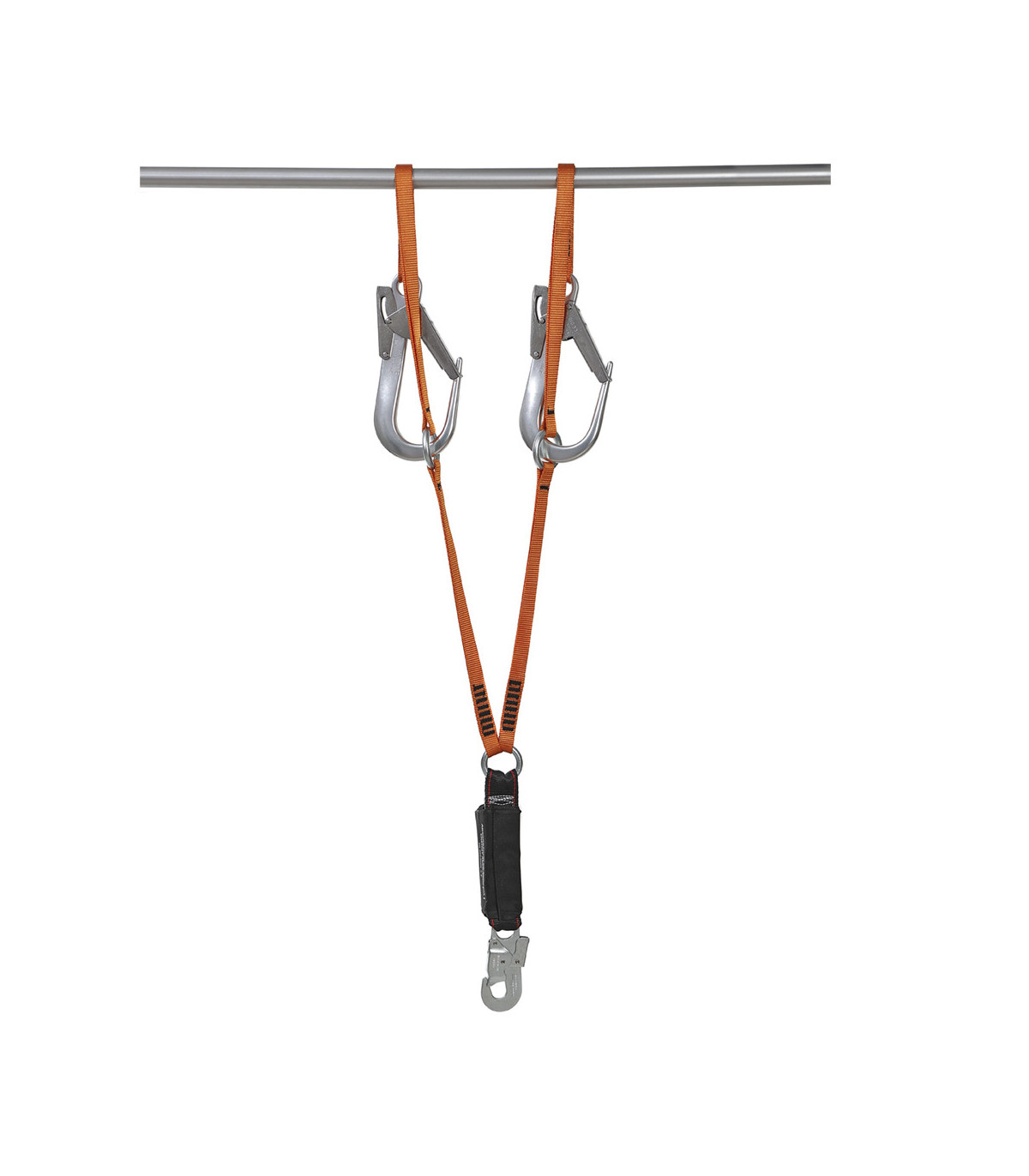

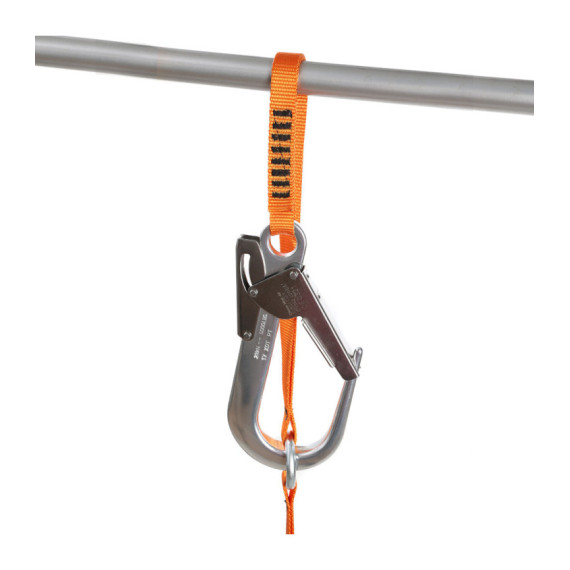

Energy Absorber Model 54-D 32/49 Climax

The energy absorber model 54-D is an essential component for forming a safe fall arrest system in working at height. It incorporates a Y-shaped anchorage element and a central loop that allows the structure to be embraced without strangulating it, whilst also acting as a certified anchor point. Made from high-strength synthetic fibre strap, integrated energy absorber and automatic steel and aluminium connectors, it offers reliable protection for users up to 140 kg in the most demanding working conditions.

FEATURES

• Synthetic fibre anchorage strap of 20 mm
• Textile damper by tearing installed in the Y
• 1 connector mod. 32 steel, opening 18 mm, minimum force 23 kN
• 2 connectors mod. 49 aluminium, opening 60 mm, minimum force 23 kN
• 2 central loops: anchor point EN 795 Class B and for second user

TECHNICAL DATA

• Weight: 1,710 kg
• Manufacture: Spain
• Length: 1,45 m
• Maximum load: 140 kg
• Service life: 15 years
• Standards: EN 355:2002 | EN 795:2012+CEN/TS 16415:2013

STANDARDS

Regulation (EU) 2016/425

Standards: EN 355:2002 EN 795:2012+CEN/TS 16415:2013

Notified body nº 1019
