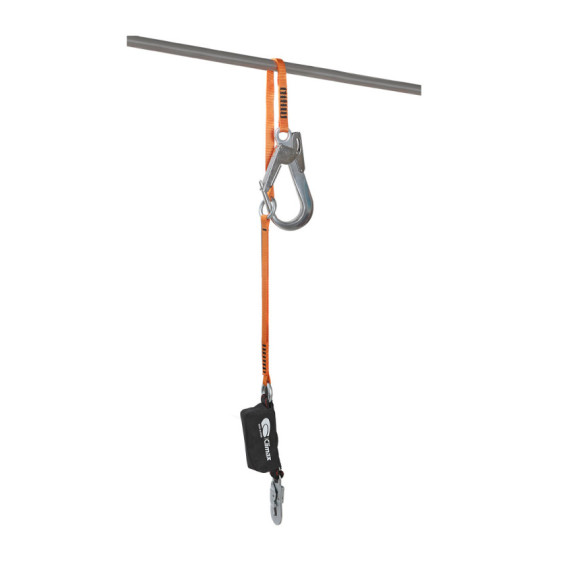

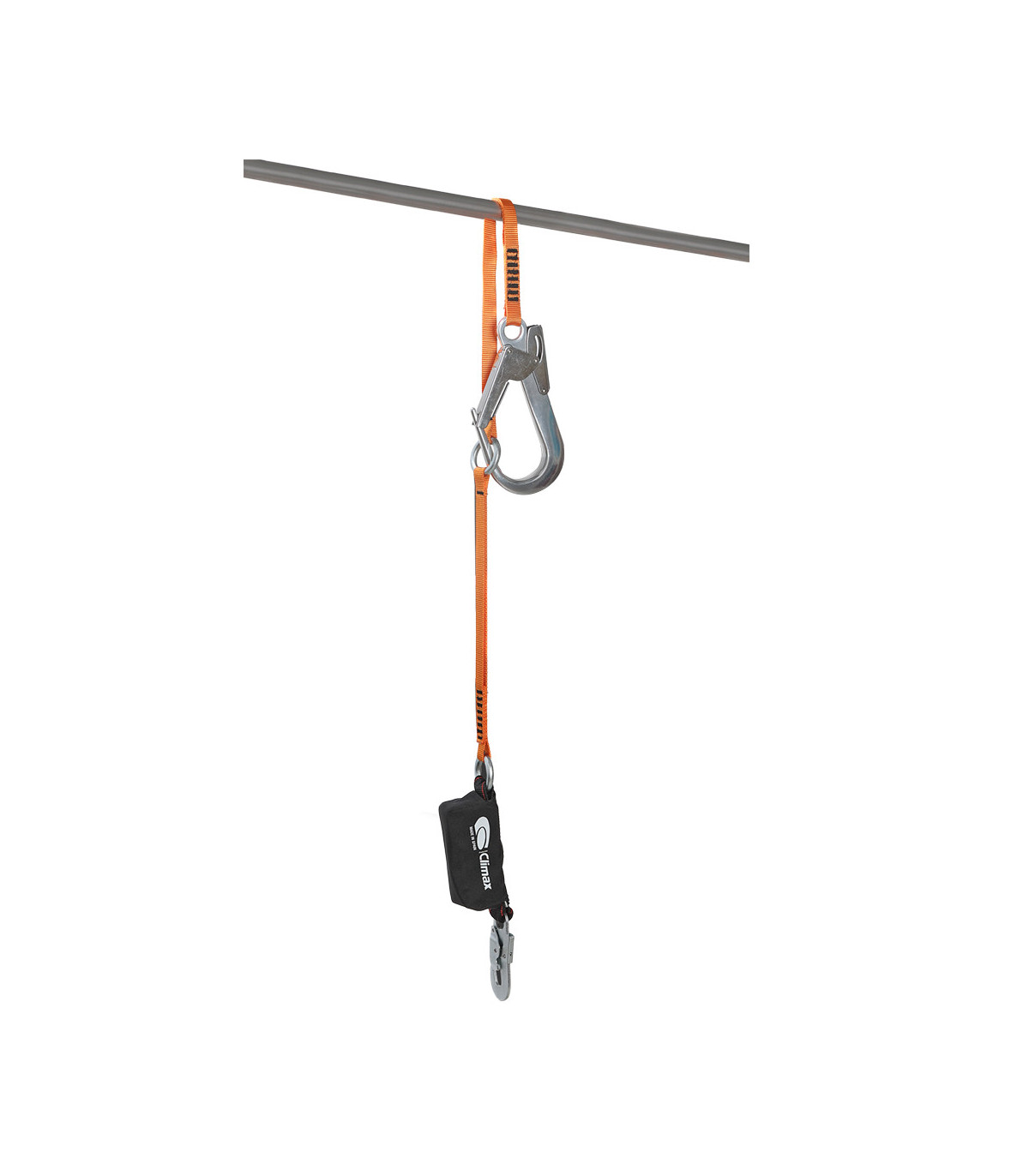

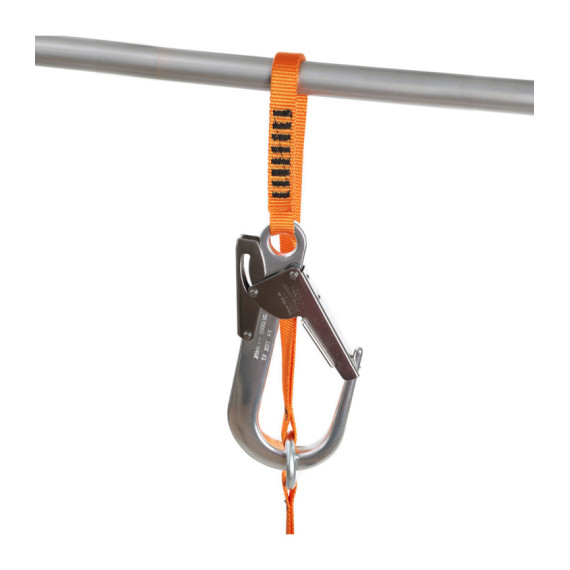

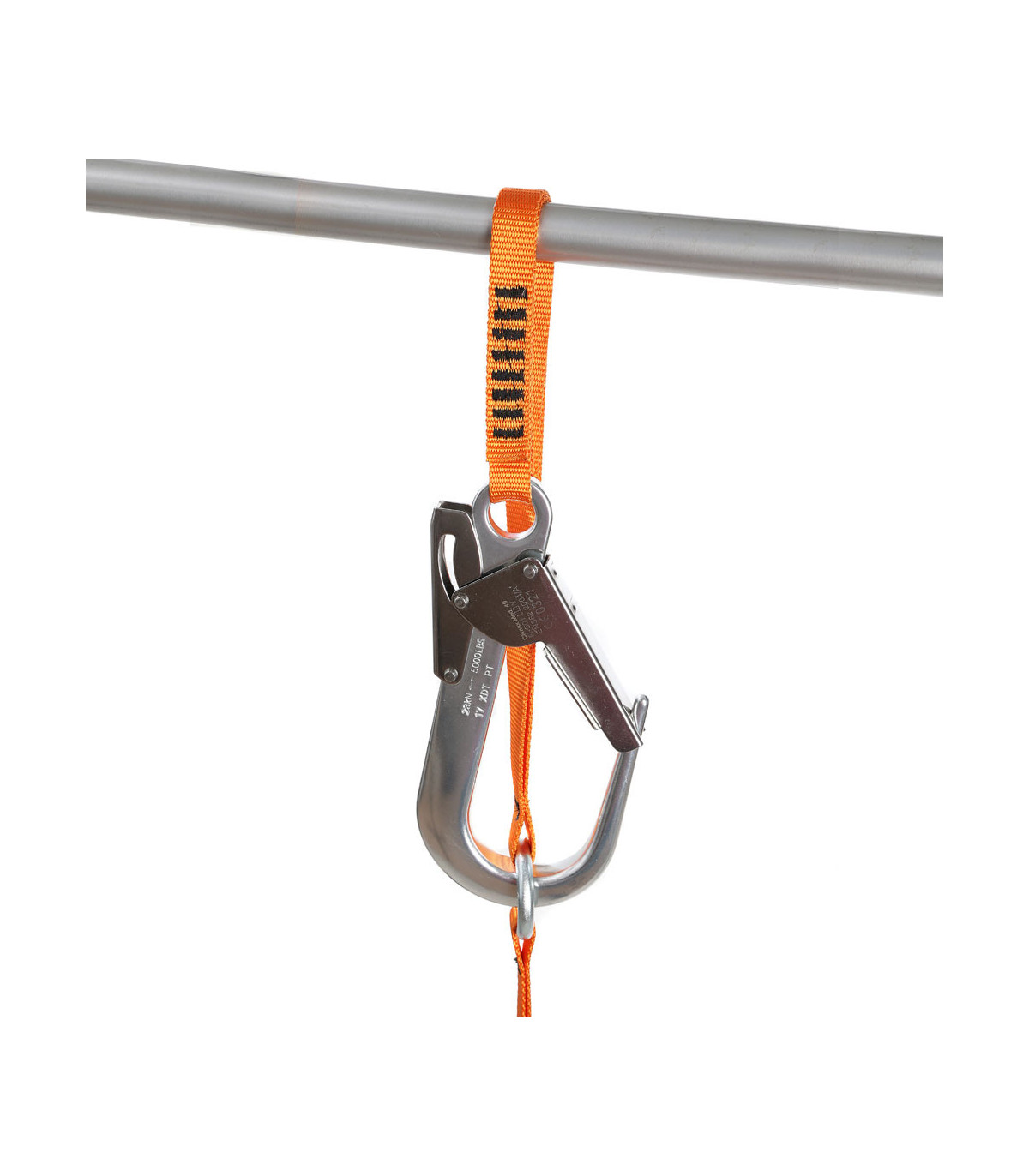

Energy Absorber model 54-S 32/49 Climax

The energy absorber model 54-S is an essential element for fall protection systems in work at height. Its central ring allows the webbing to embrace the structure without strangulating and to be used as an anchor point, permitting simultaneous use of up to two users and the connection of additional fall protection equipment. It incorporates an integrated energy absorber and a high-resistance synthetic fibre band for effective protection in the event of a fall. Its automatic steel and aluminium connectors guarantee secure anchoring. It is certified for users up to 140 kg.

CHARACTERISTICS

• Synthetic fibre lashing band of 20 mm
• Textile energy absorber by tearing
• 1 connector mod. 32 directional steel (ø 18 mm, 23 kN)
• 1 connector mod. 49 directional aluminium (ø 60 mm, 23 kN)
• Central ring functioning as an EN 795 Class B anchor point, as well as a point for a second user

TECHNICAL DATA

• Weight: 1,120 kg
• Manufacture: españa
• Maximum working load: 140 kg
• Length: 1,45 m
• Service life: 15 years
• Standards: EN 355:2002 | EN 795:2012+CEN/TS 16415:2013

STANDARDS

Regulation (EU) 2016/425

Standards: EN 355:2002 EN 795:2012+CEN/TS 16415:2013

Notified body No. 1019
