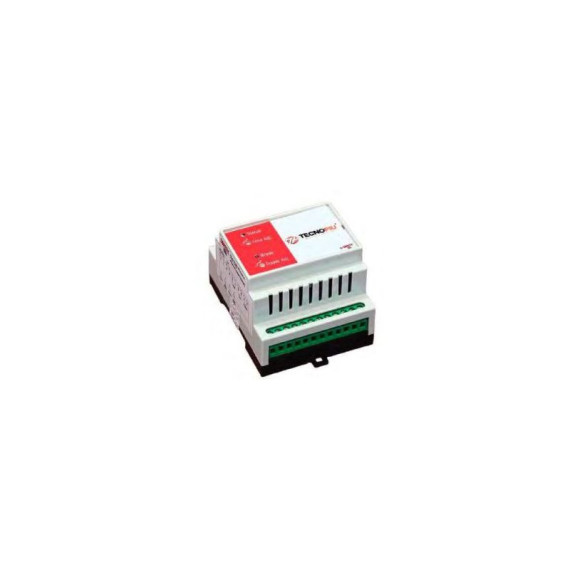

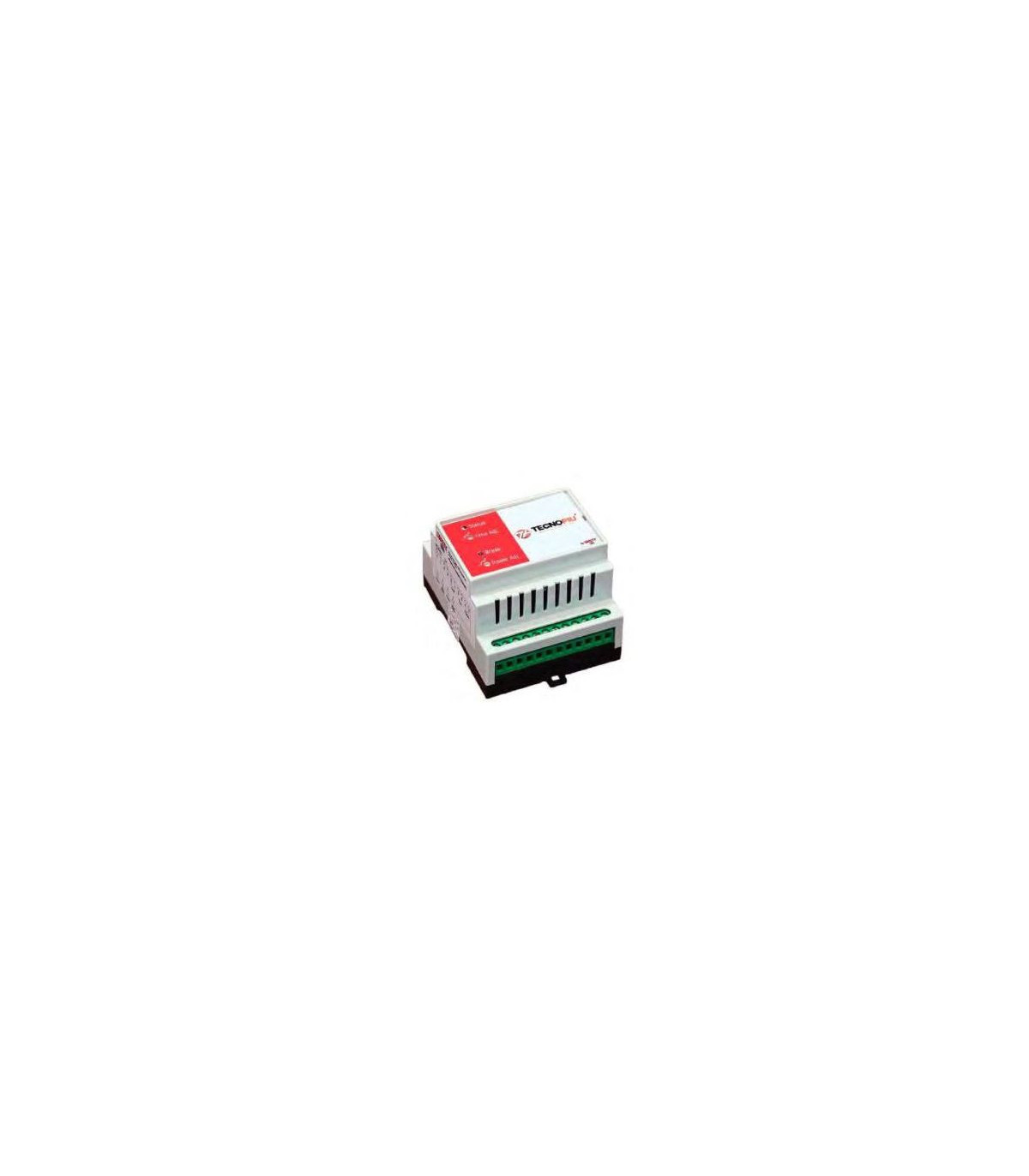

Electronic Braking Device MFS 035FX - 10 HP METALWORKS

The Electronic Braking Device MFS 035FX - 10 HP by Metalworks, code 3412035, is an innovative technological solution for braking motors with direct current (DC) injection. Its operation consists of braking the motor in an efficient and safe manner.

This device is designed to be connected directly to the motor requiring braking, taking into account its maximum power capacity of 10 HP. Its main function is to control the braking process, allowing regulation of both the braking time and intensity. This versatility of adjustment makes the device suitable for different applications and situations.

The Electronic Braking Device MFS 080FZ is available in three versions, which vary according to the motor power they are adapted to: 5 HP, 10 HP and 15 HP. This device corresponds to the MFS 035FX model for 10 HP.

For correct operation, it is necessary to integrate the device into the motor control circuit. This is achieved by installing an additional contactor, whose main function is to change the motor phases in the braking module during the stopping process. This configuration ensures safe and efficient motor braking operation.

Additional Features:

• Supply voltage: 24 Vdc / Vac at 5%.
• Nominal voltage: 220 VAC-440 VAC
• Max consumption: 3.0 W
• Frequency: 50 Hz/60 Hz
• Dimensions: 58 x 70 x 86 mm

FEATURES

• Dimensions (w x d x h): 58 x 70 x 86 mm
• Mains frequency: 50 Hz/60 Hz
