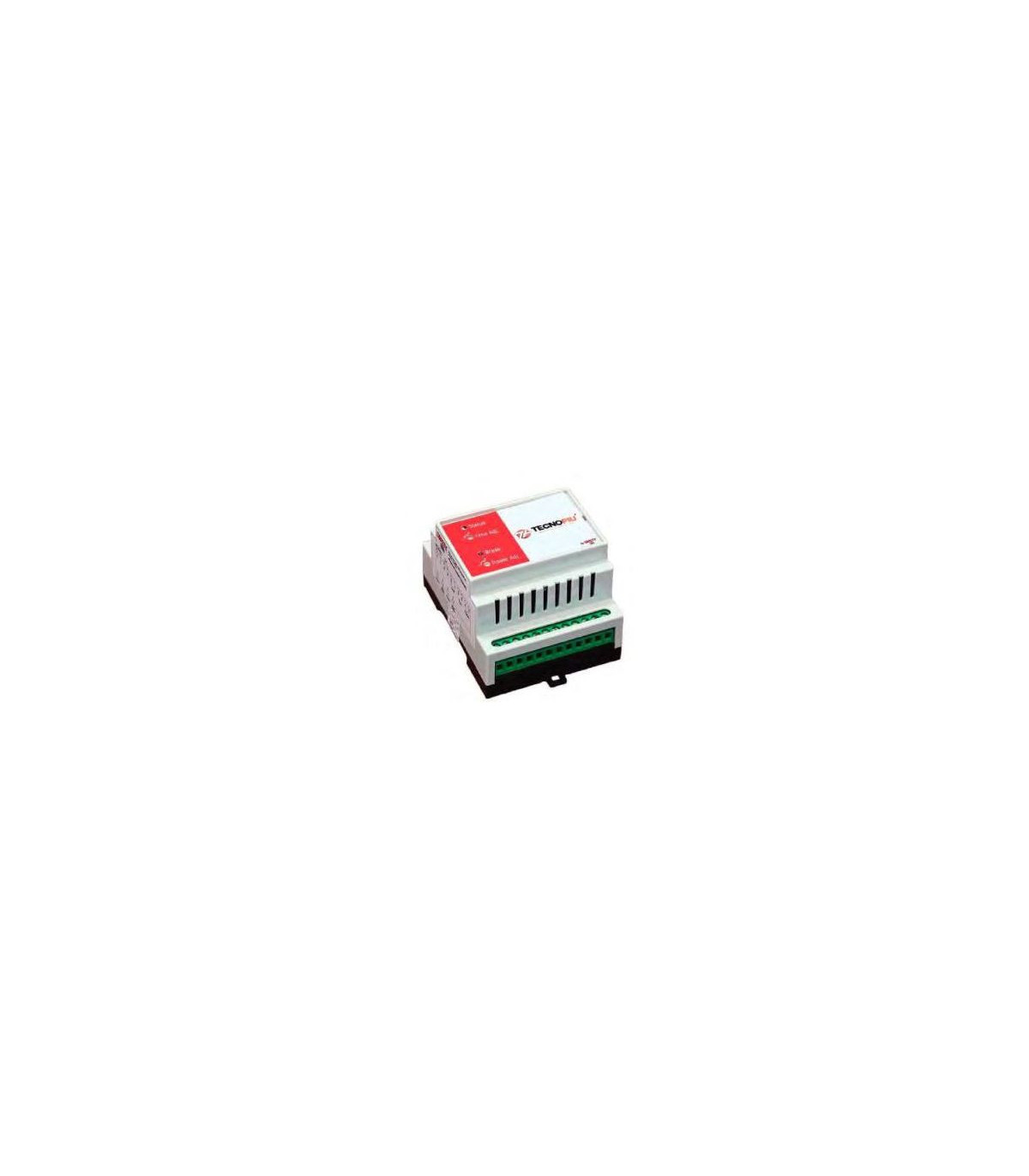

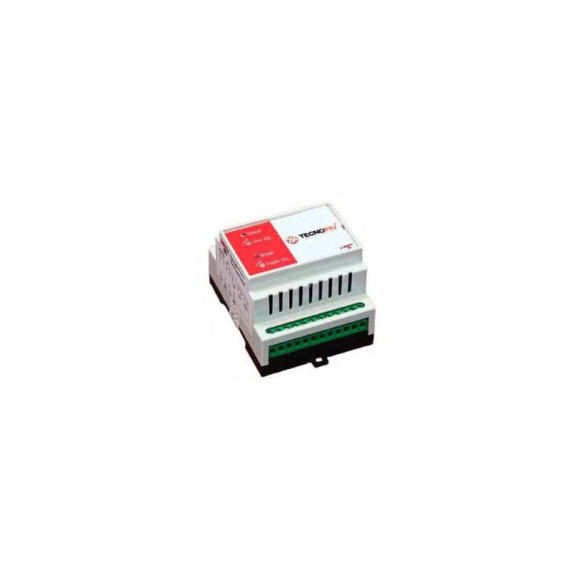

Electronic Motor Brake Device 15 CV MFS 080FZ METALWORKS

The 15 CV MFS 080FZ electronic motor brake device from Metalworks, code 3411080, is an innovative braking solution for motors with direct current (DC) injection. It brakes the motor efficiently and safely.

This device is designed to be connected directly to the motor that needs braking, bearing in mind that its maximum power capacity is 15 HP. Its main function is to control the braking process, allowing both the braking time and the braking intensity to be adjusted. This adjustment flexibility makes the device suitable for a variety of applications and situations.

The MFS 080FZ electronic motor brake device is available in three versions, which vary according to the motor power they are suited to: 5 HP, 10 HP and 15 HP. This device corresponds to the model MFS 080FZ for 15 HP.

For correct operation, the device must be integrated into the motor's control circuit. This is done by installing an additional contactor, whose main function is to switch the motor phases over to the brake module during the stopping process. This configuration ensures safe and efficient motor braking.

Additional features:

• Supply voltage: 24 Vdc / Vac at 5%.
• Rated voltage: 220 VAC-440 VAC
• Max. consumption: 3.0 W
• Frequency: 50 Hz/60 Hz
• Dimensions: 58 x 70 x 86 mm

FEATURES

• Dimensions (l x w x h): 58 x 70 x 86 mm
• Mains frequency: 50 Hz/60 Hz
