Accessory for Horizontal Lathe Chuck - Precision Clamping METALWORKS. Universal accessory for horizontal lathe chuck, designed to expand clamping possibilities and ensure a secure and precise fixation of irregular or large-sized parts.

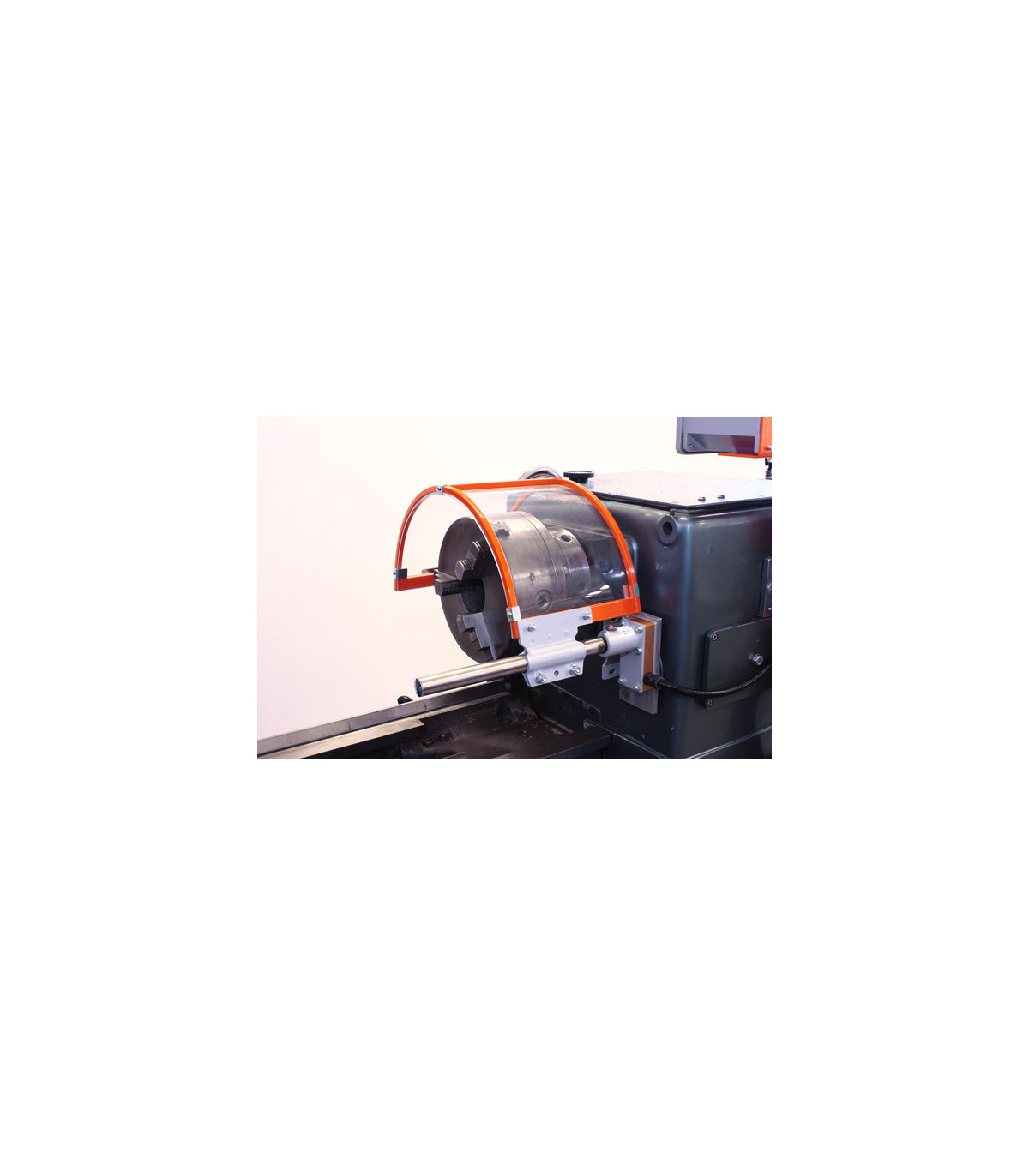

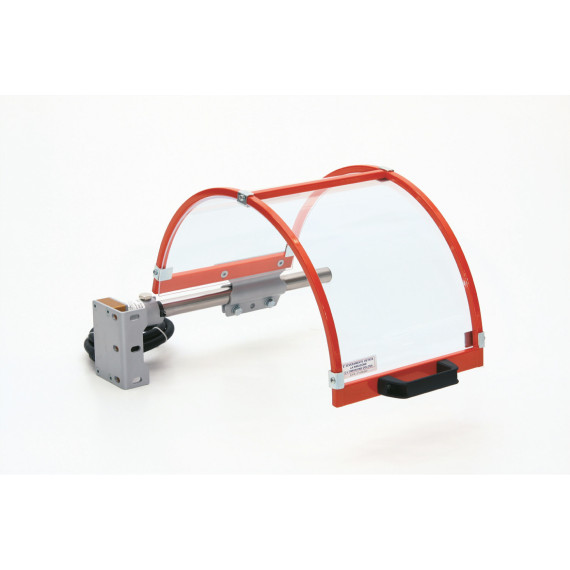

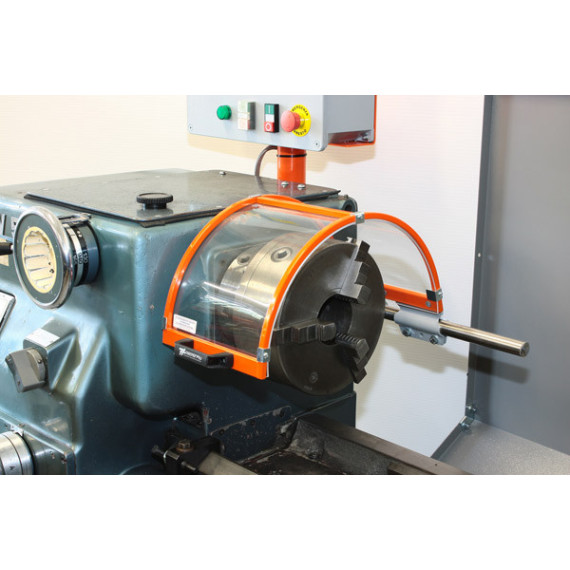

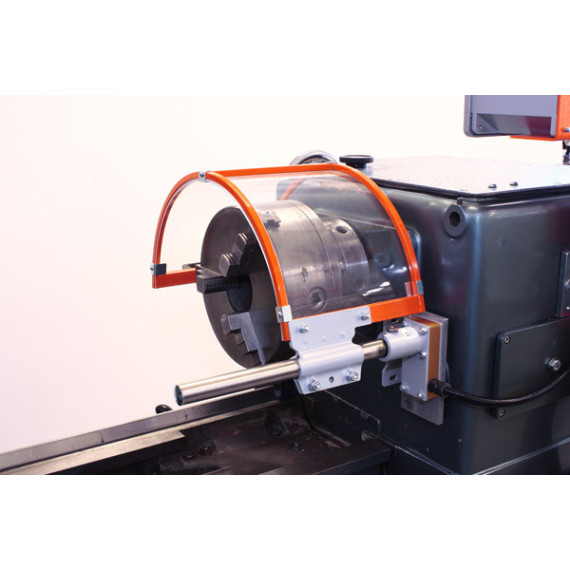

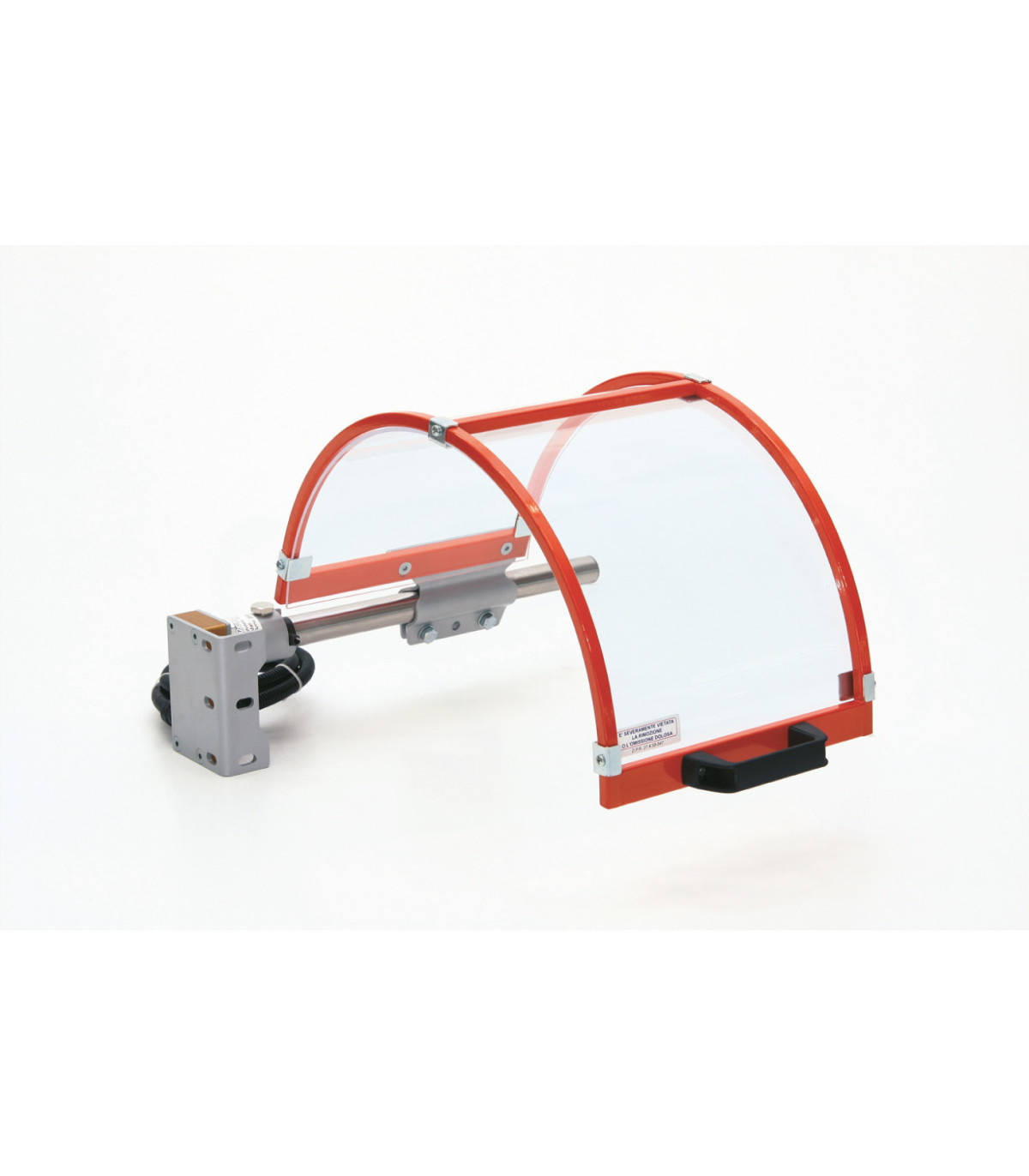

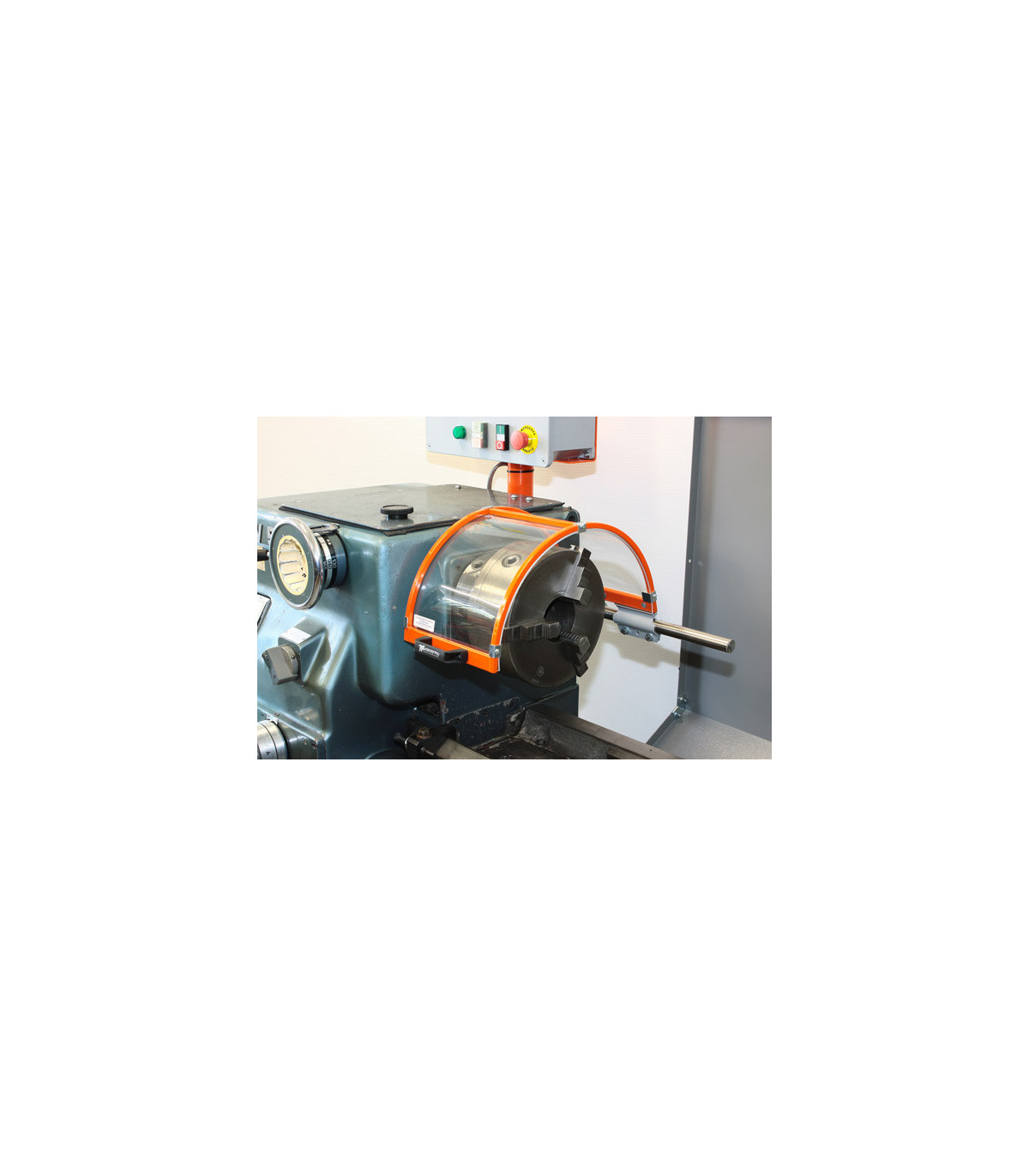

Classic safety protection equipped with a metal structure screen. The only one that can be positioned close to the machine's headstock.

· Protects the operator from direct contact with the top of the chuck and from the projection of cooling lubricants.
· Attaches to the front and side base. Equipped with an adjustable semicircular screen that can be positioned close to the machine's headstock.
· Complete with a safety micro-switch.

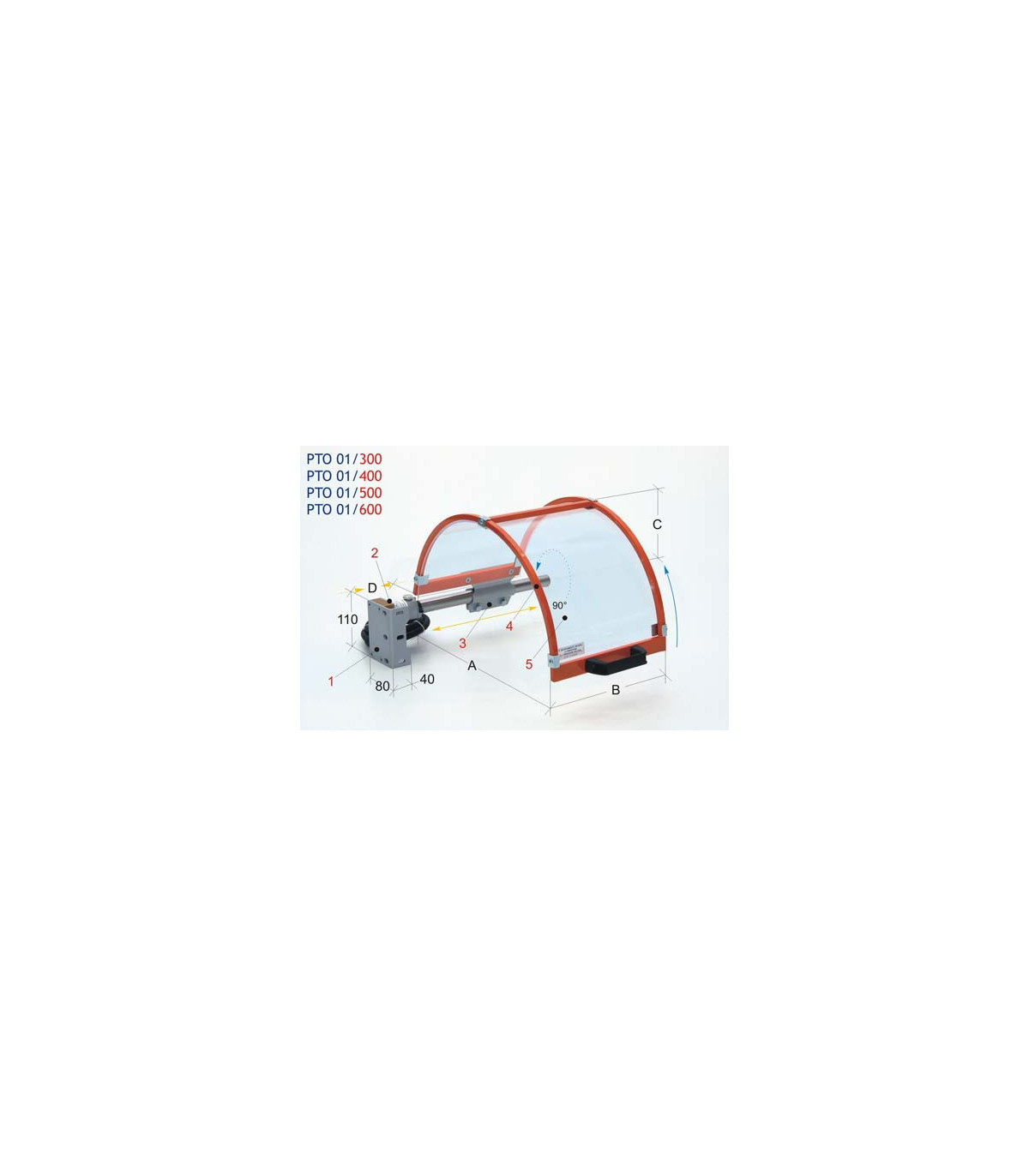

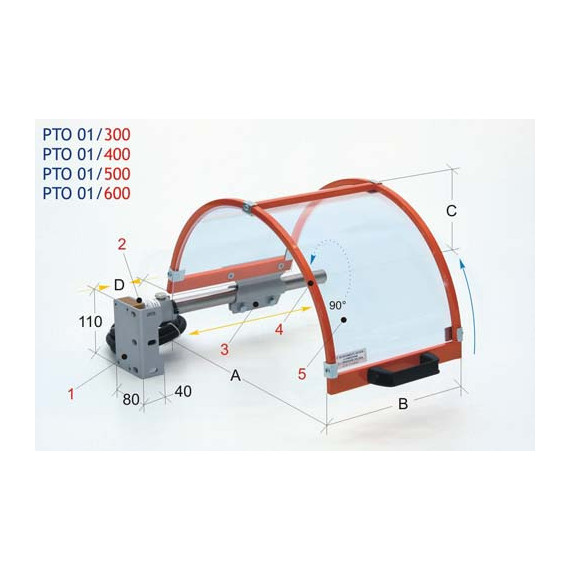

1 Front and side anchoring bracket.
2 Main safety switch box with 180° rotation. 2 NC contacts.
3 Screen connection clamp with support arm made of pressed steel.
4 Screen structure in tubular steel.
5 Thermoformed screen. Resistant to impacts and oil. Durable plastic material.

FEATURES

This accessory is designed to enhance the versatility of lathe chucks. It allows for a more secure clamping of parts that do not fit standard jaws, such as irregularly shaped or larger pieces. Its robust construction and modular design facilitate installation and adjustment, improving efficiency and safety on the lathe.

SPECIFICATIONS

• Type: Lathe chuck accessory

• Compatibility: Horizontal lathe chucks

• Material: High-strength steel

• Uses: To expand the clamping capacity of the lathe

• Design: Modular to adapt to different geometries of parts.

APPLICATIONS

• Turning workshops: To hold non-conventional shaped parts.

• Precision machining: For work on irregular parts.

• Tooling and hardware manufacturing: Tool adaptation.

• Industrial maintenance: Repair of large components.

• Technical education and training: To demonstrate different clamping techniques.
