For lathe car

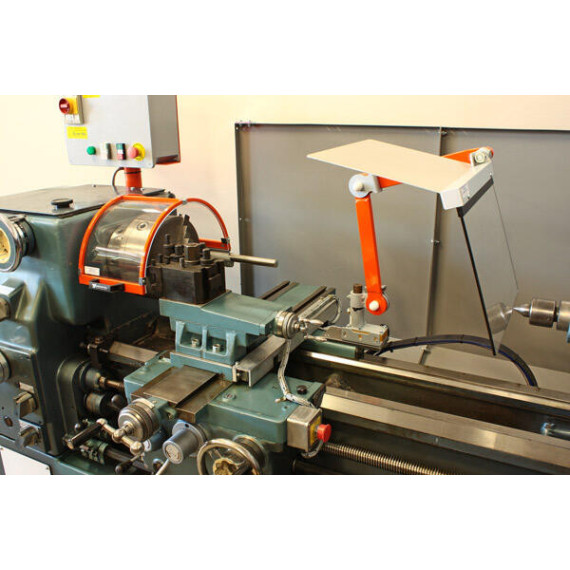

Specific multi-adjustable element for installation on the longitudinal carriage. Combined with the safety protection of the chuck. Offers great protection to the operator.

· Protects the operator from direct contact with the rotating elements of the chuck, from the projection of chips, and from lubricants-coolants.

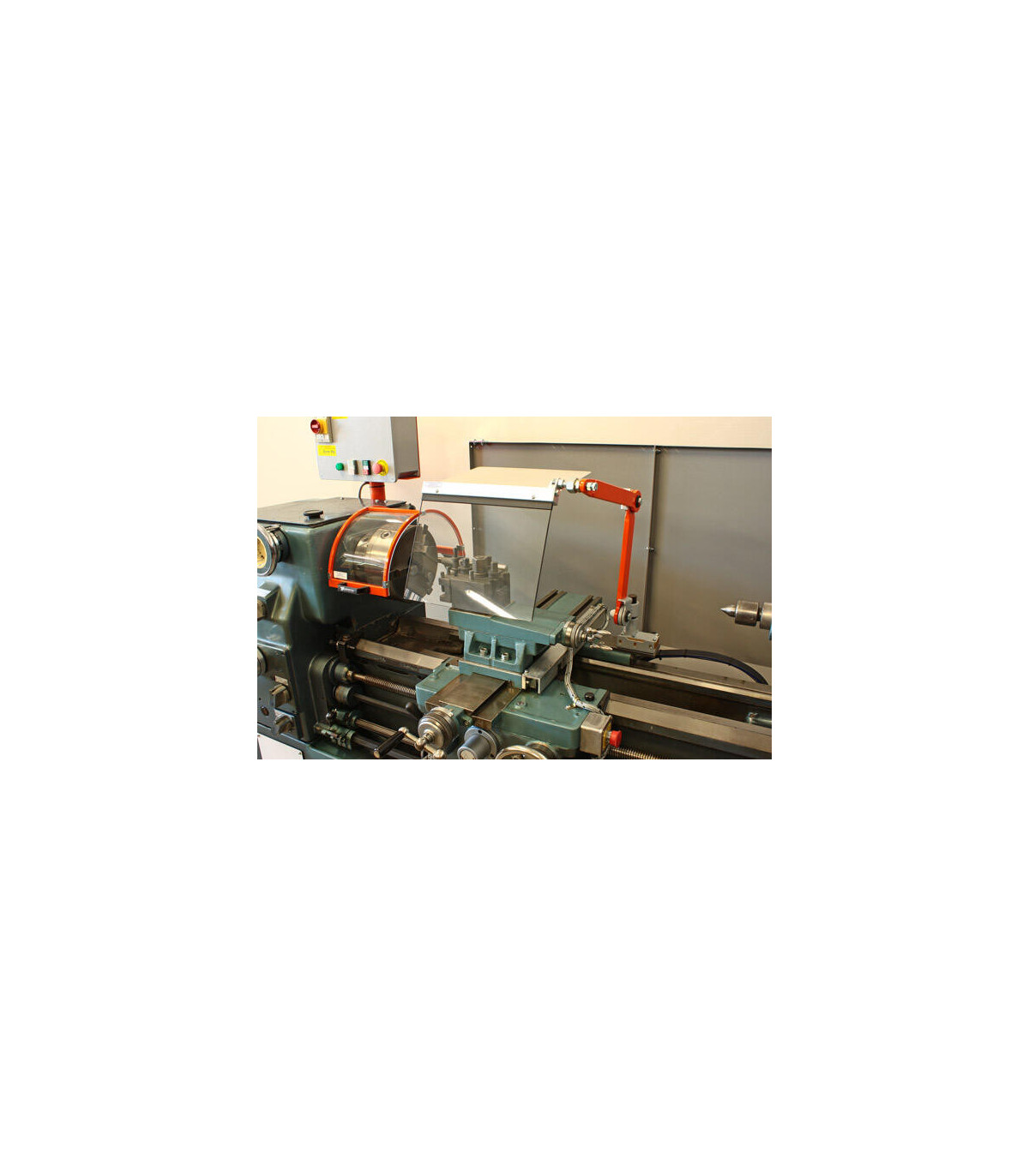

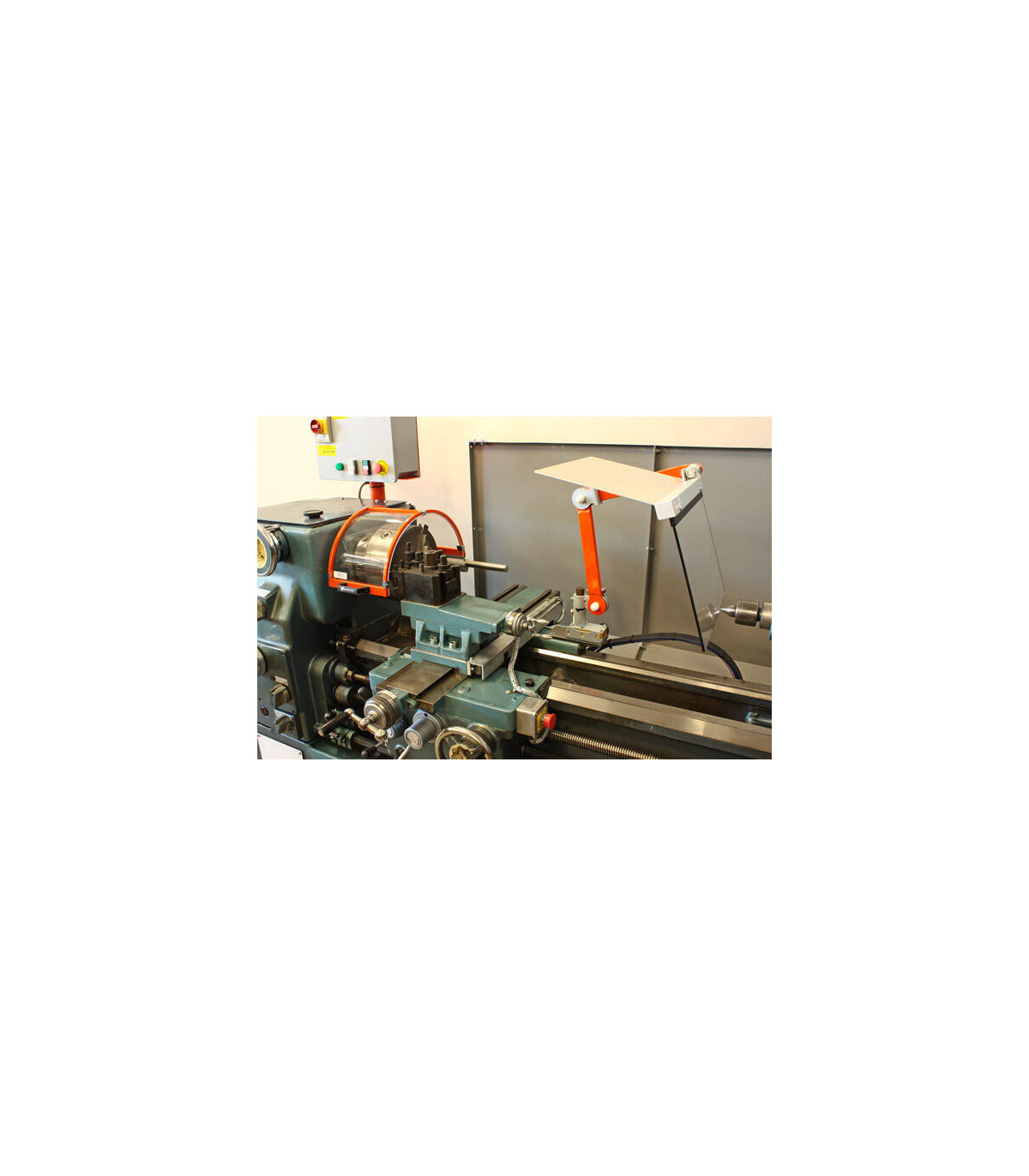

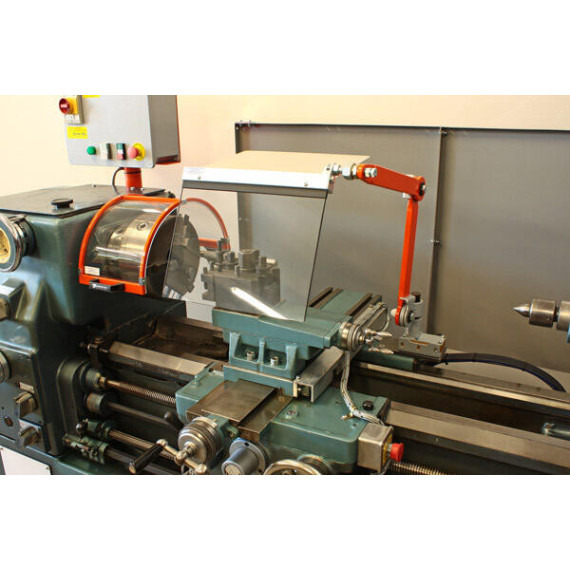

· Attaches behind the longitudinal carriage. The screen is supported by articulated arms thanks to the ball joint, is fully adjustable, and has an anti-chip separator.
· Complete with safety micro-switch.

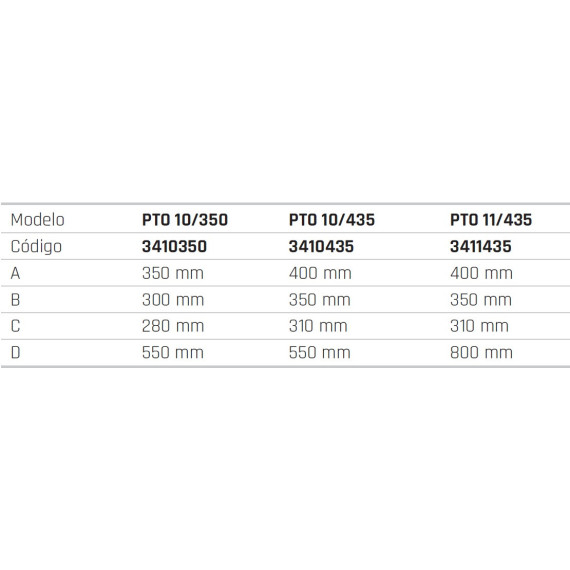

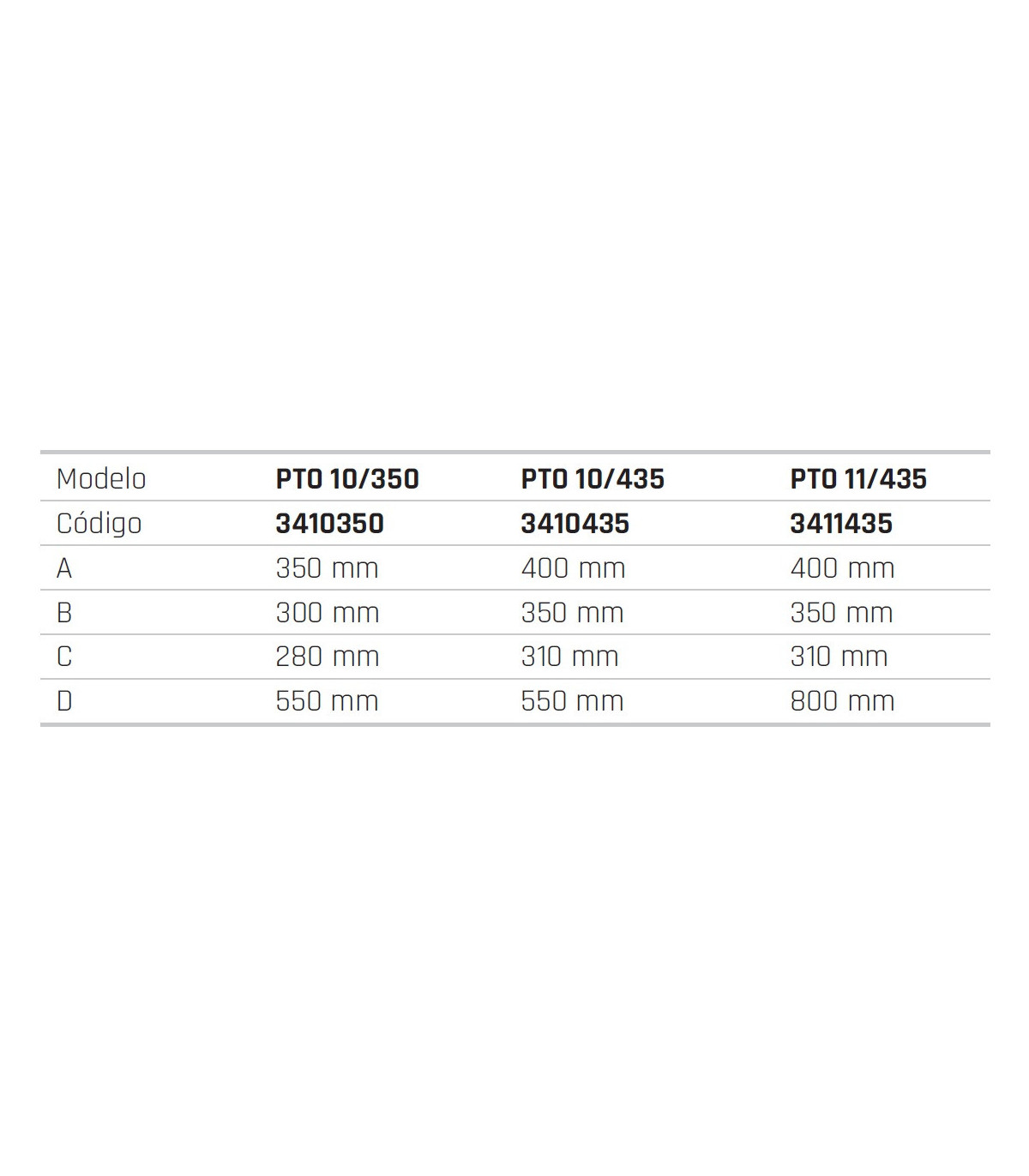

· PTO 11/435 is equipped with an articulated arm with three elements.

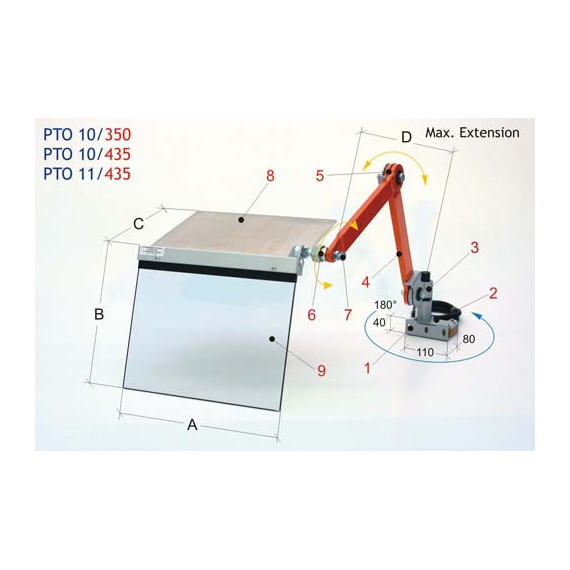

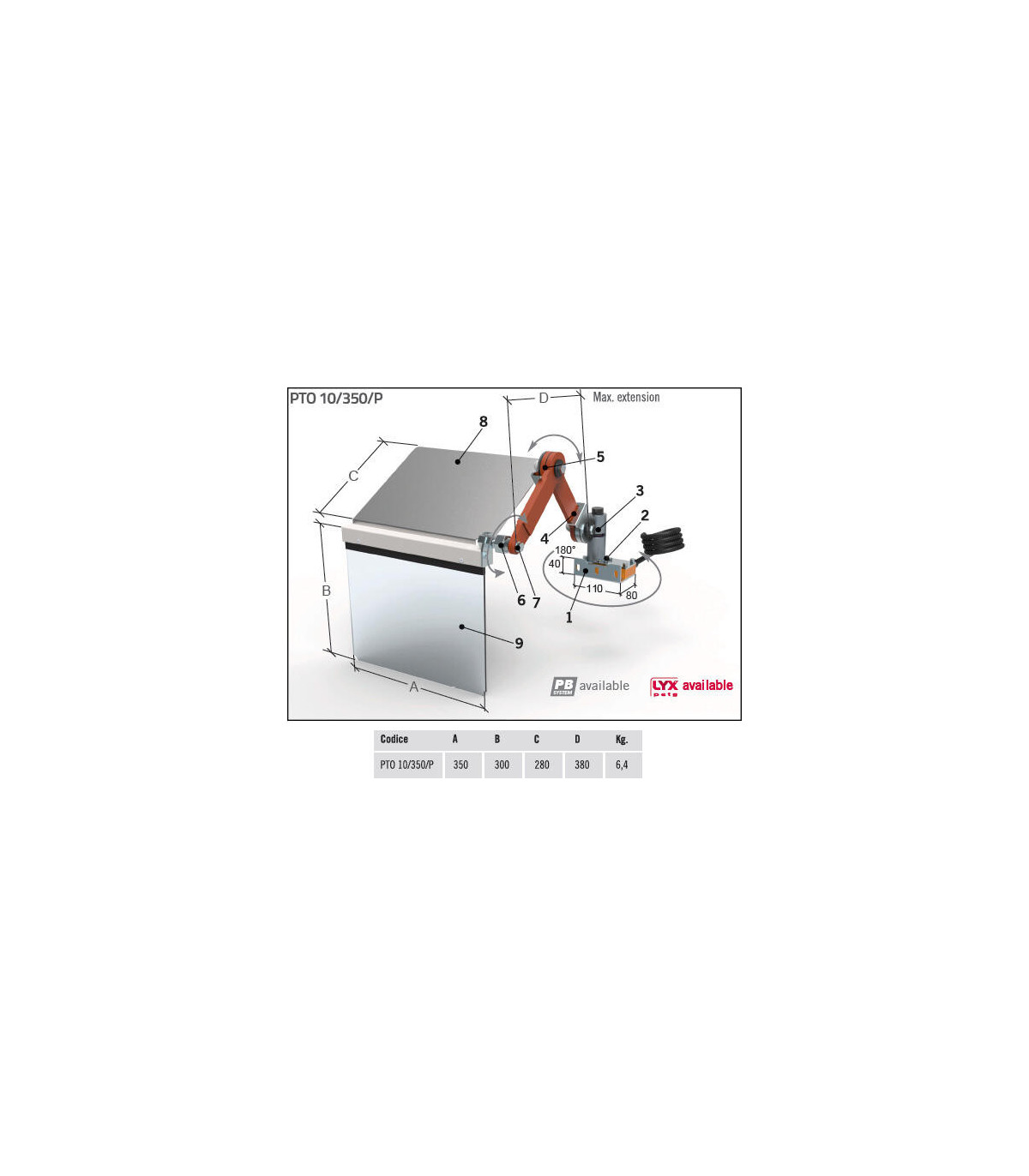

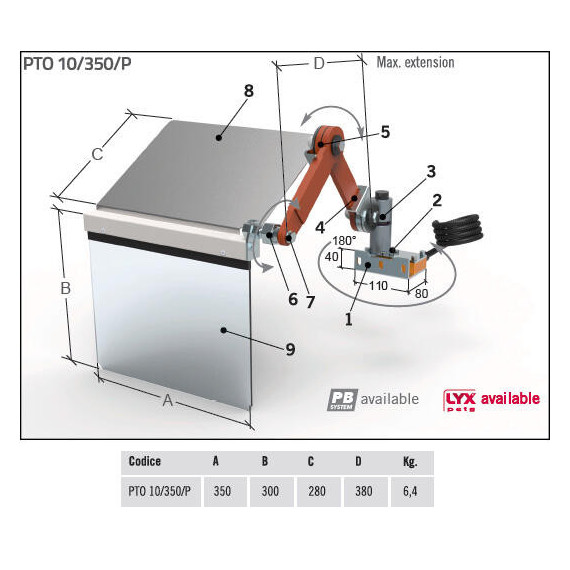

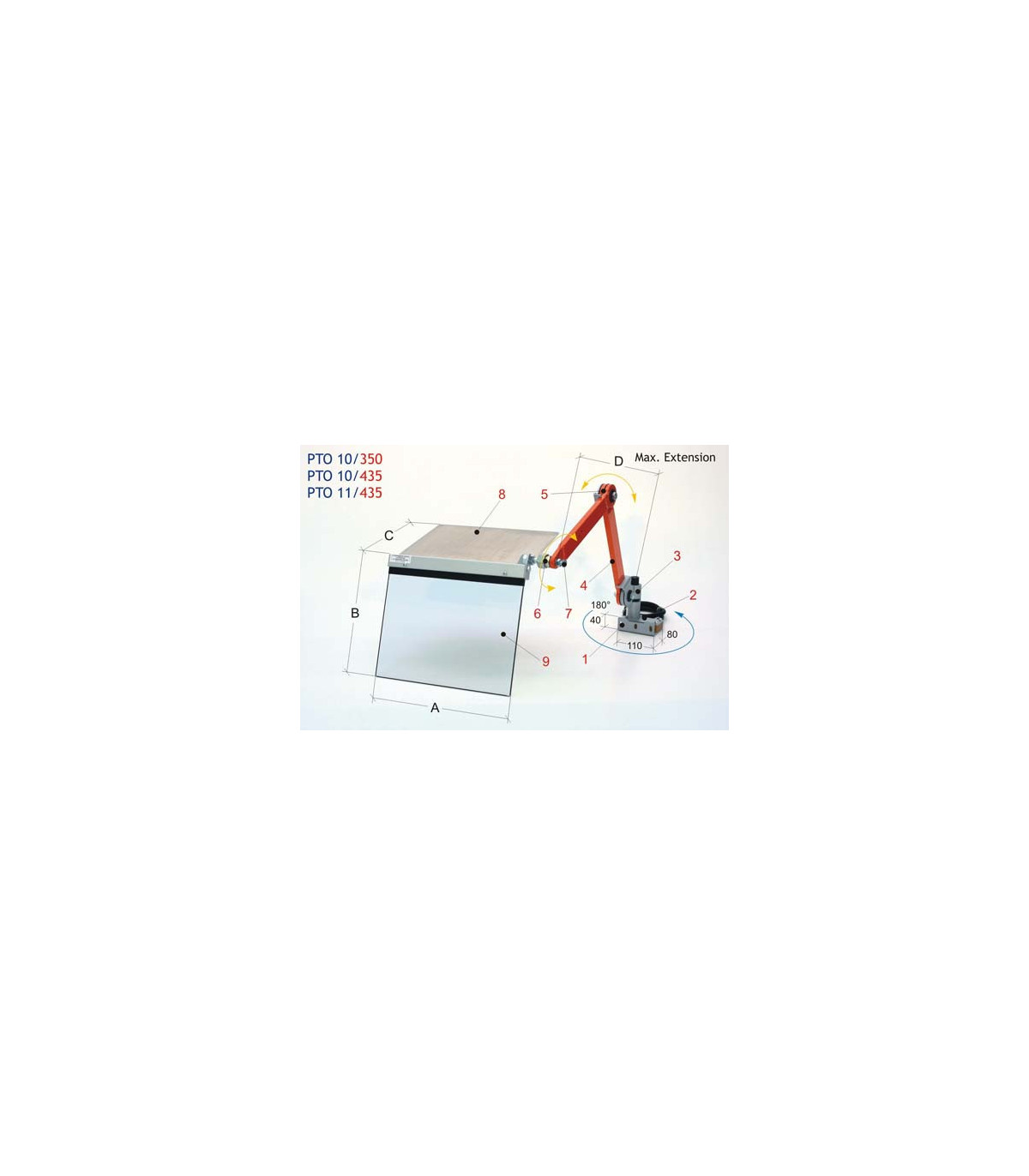

1 Front and lateral anchoring bracket.
2 Main safety switch box with 90° rotation. n. 2 NC contacts.
3 Horizontal adjustment clamp.
4 Articulated arms in tubular steel.
5 Friction joint with friction disc.
6 Ball joint for screen orientation.
7 Release screws for the ball joint.
8 Upper anti-chip separator.
