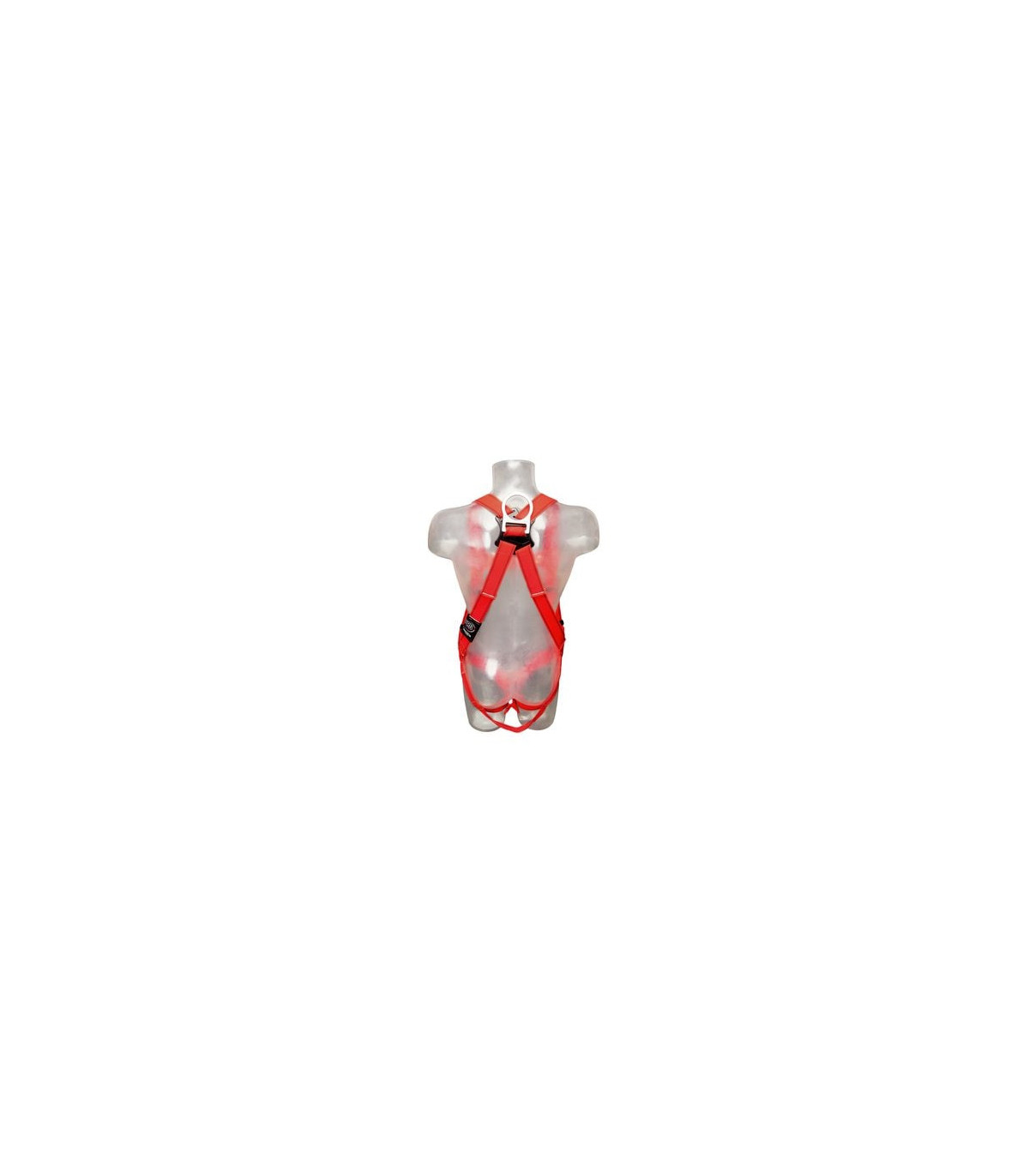

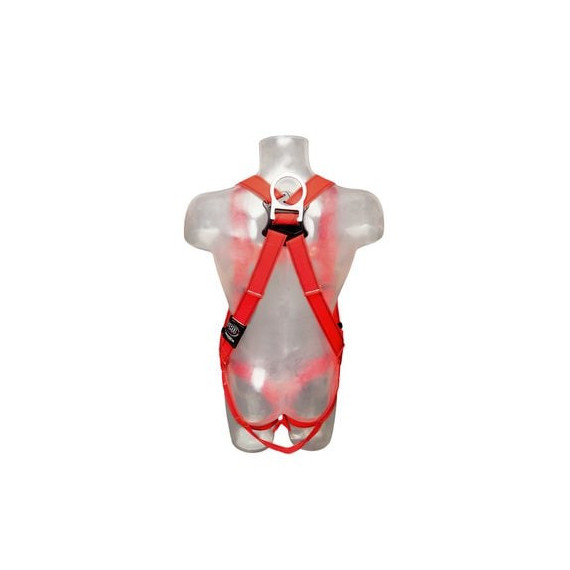

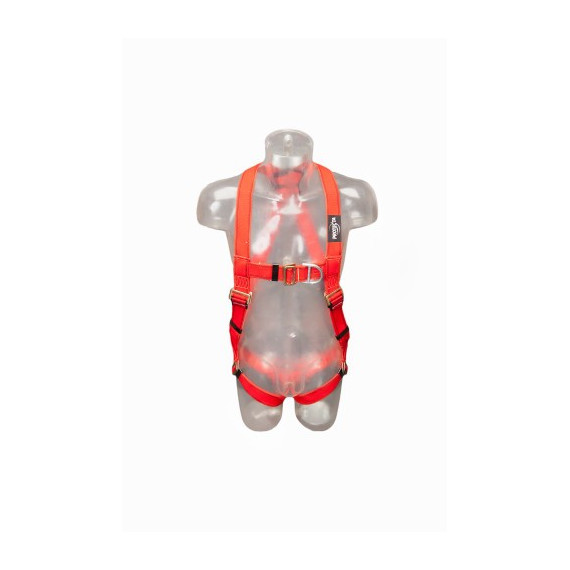

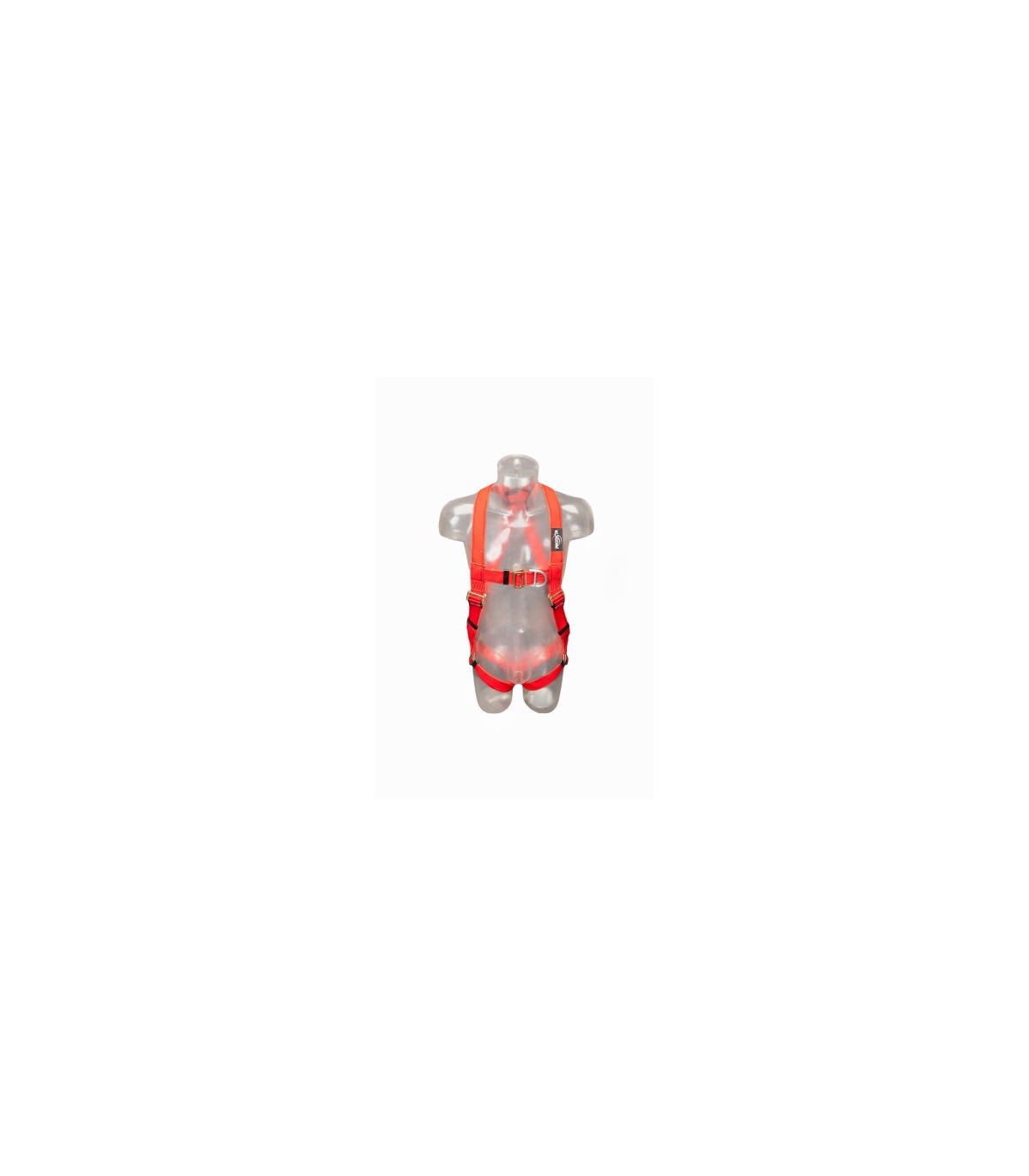

Welding harness with 5 adjustment points, with Kevlar strap with modacrylic 3M

Welding harness with 5 adjustment points, with Kevlar strap with modacrylic 3M. Kevlar strap with modacrylic. It has steel pass-through buckles, large D-ring at the back. Label bag. Torso adjusters. Fall indicators. Fall arrest D-rings: 1 dorsal, 1 sternal.

• Specifically designed for welders working at height exposed to heat and flames
• Large dorsal D-ring that facilitates connection
• Pectoral strap positioned to facilitate connection to slings and other systems
• Five adjustment points that allow for better fitting of the harness, offering greater comfort and safety

Delivery: 5 to 10 working days

FEATURES

• Large rear D-ring

  Being easier to connect and offering greater safety, it can be used for rescue
• Chest strap

  Optimal location for connection to slings and systems
• 5 adjustment points

  Fits the body perfectly for greater comfort and safety
• Tension adjustment

  Easier to adjust.
• Strap management

  The spare strap is stored in the hip belt.
• Contrast strap and chest strap

  Reduces assembly time.
• Fall indicator

  Clear indication that the harness must be removed.
• Covered identification labels

  Protects the labels during the harness's lifespan.
• 2-point harness

  Selection of connection points.

TECHNICAL DATA

Improved straps: Abrasion-resistant and water-repellent to reduce mold and dirt buildup.

Sling hook accommodations: Prevents having to carry the sling in hand when not in use.

Comfort pads: On the underside of the shoulder, hip, and leg straps. TM® Harness 3M DBI-SALA

Quick connection buckles: Lightweight buckles made of aluminum alloy for quick and easy connections. (There are also models with pass-through buckles).

Vertical dorsal D-ring: The vertical dorsal D-ring ensures quick, easy, and secure connections to your fall arrest system. Rigid belt: Allows carrying 27 kg of tools without breaking. Protected labels: Harness labels protected with hook and loop closure.

USAGE INSTRUCTIONS - ADJUSTING THE FALL ARREST HARNESS

Before starting. Empty your pockets, as during work or, more importantly, in the event of a fall, objects in your pockets can get caught between the harness straps and the user's body causing injury. Always refer to the usage instructions provided with the specific harness regarding proper installation and adjustment.

Step 1. Start. Hold the harness by the dorsal D-ring, which is often secured through a D-pad and ensure that the straps are not twisted.

Step 2. Shoulder straps. Slide the harness over your arms and place it on your shoulders. Ensure that no strap is tangled and that they hang freely.

Step 3. Leg straps. Place it between your legs and secure the leg strap on your left side. Raise the strap between your legs and connect it with the buckle on the left side. Connect the right leg strap using the same procedure.

Step 4. Pectoral straps. Attach the pectoral strap buckle to the corresponding opposite side buckle.

Step 5. Waist strap (if equipped). Attach the waist strap buckle to the corresponding opposite side buckle.

Step 6. Adjust the harness to fit snugly. Adjust the shoulder straps until they are tight with the adjusters. The left and right sides of the shoulder straps should be adjusted to the same length, and the pectoral strap should be centered at the bottom of the chest, about 15 cm below the shoulder. The pectoral D-ring of the vest-style harness moves up or down by adjusting the shoulder and leg straps. Center the dorsal D-ring between the shoulder blades. Note: In applicable models, the dorsal D-ring can be raised or lowered on the harness strap as needed for a proper fit. Readjust the leg straps to be tight. They should extend at least 8 cm beyond the buckle on the leg straps. Adjust the waist strap (if equipped).

You are all set! A properly fitted and adjusted full-body harness will effectively distribute impact forces across the body and provide the proper support during suspension and rescue after a fall.

REGULATIONS

EN 361: 2003 - Personal protective equipment against falls from height. Fall arrest harnesses

EN 365: 2005 - Personal protective equipment against falls from height. General requirements for instructions for use, maintenance, periodic inspection, repair, marking, and packaging.

RECOMMENDATIONS FOR THE USE OF PPE

Do not use this safety equipment unless you have received training from a competent person (this training may be repeated as often as necessary). Contact CAPITAL SAFETY for information on classes or if you have questions about using this equipment. Training should be conducted without exposing the user to a fall hazard and should be repeated periodically. (See the complete guide in the usage instructions).
