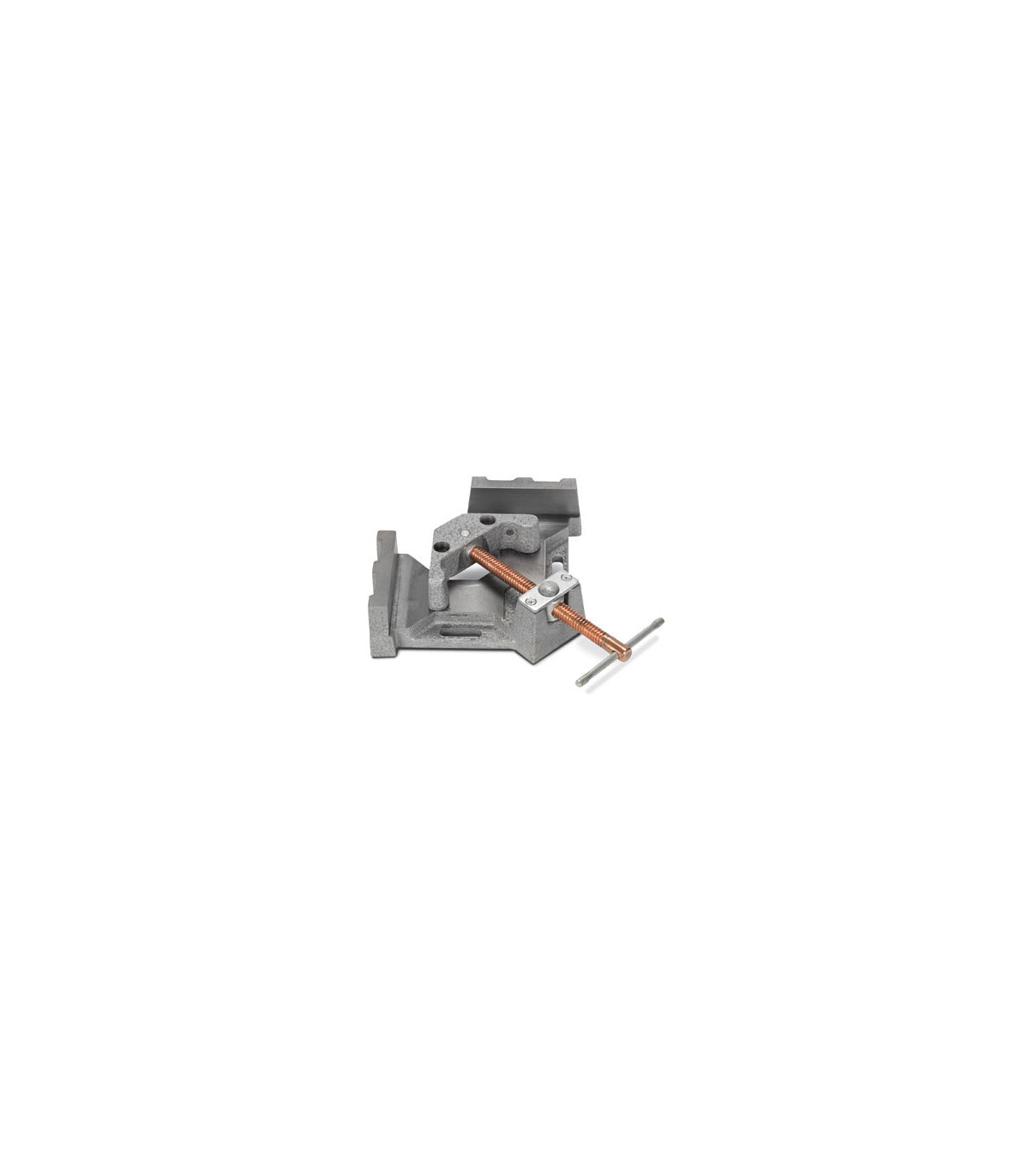

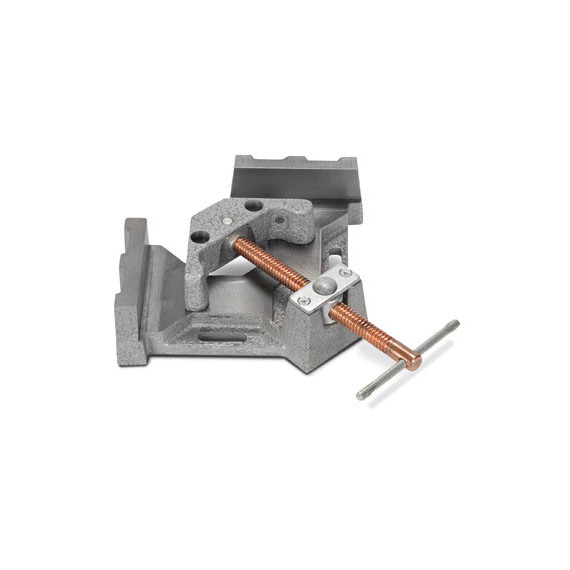

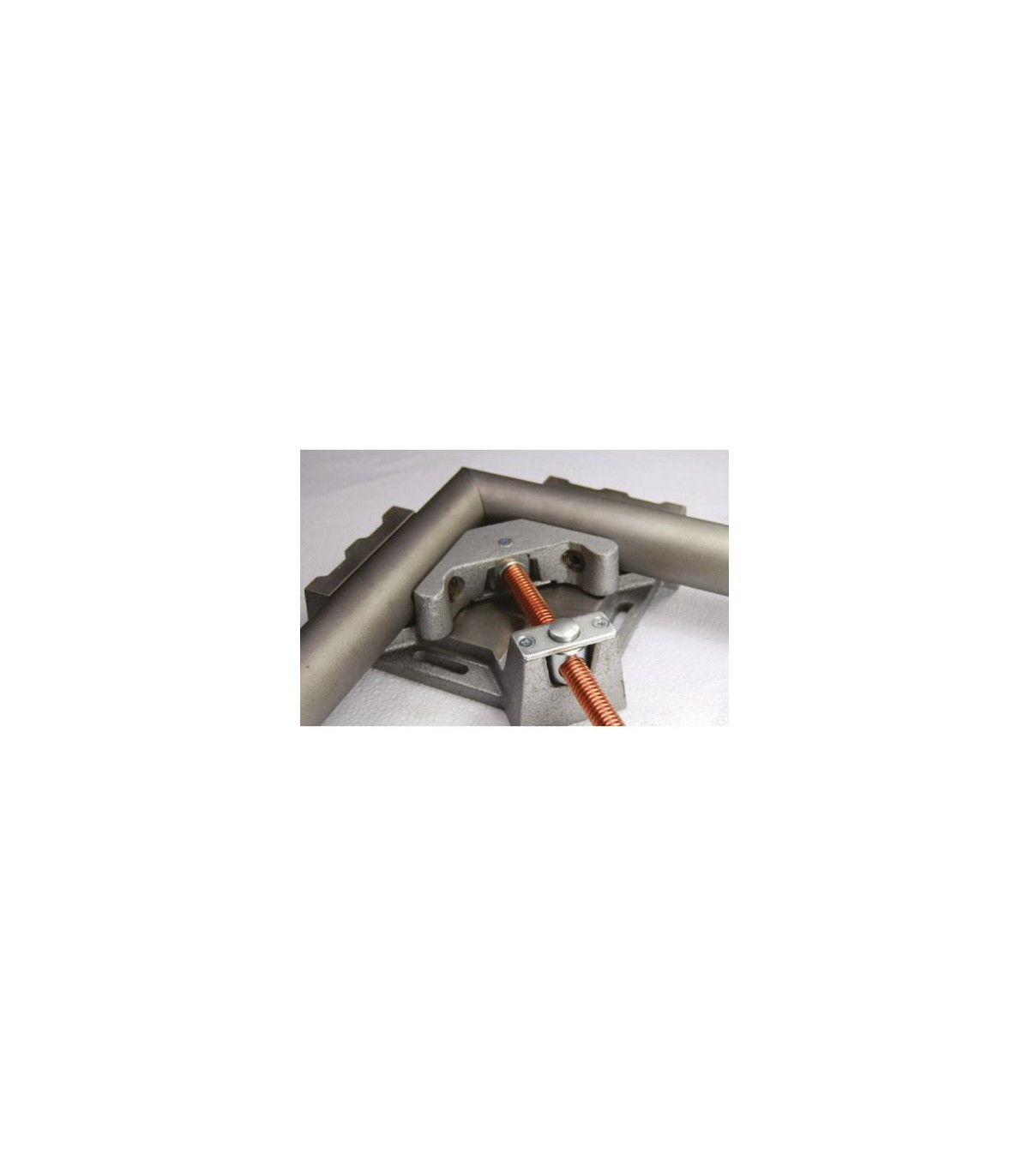

MWS-2 muzzle with an opening of 121 mm SCHWEISSKRAFT

MWS-2 jaw with a 121 mm opening SCHWEISSKRAFT. The MWS-2 jaw with a 121 mm opening from SCHWEISSKRAFT is perfect for welding and metalworking workshops. With a gray cast iron body and stable jaws, it allows for the clamping and alignment of pieces at an exact 90° angle. Its articulated spindle nut automatically adapts to different thicknesses, facilitating quick clamping. The open design allows for T-joint fixing and free access during welding work.

Additionally, its coated trapezoidal spindle prevents splashes from adhering. With milled sides for mounting angular clamps, it is also suitable for securing round material, making this jaw a versatile tool for prototypes and assemblies.

FEATURES

• For use in steel constructions, in welding workshops, and in metalworking shops.
• Stable jaws and gray cast iron body.
• For clamping, aligning, and securing workpieces of different thicknesses at an exact 90° angle.
• Automatic adaptation of the clamping jaw to workpieces of different thicknesses thanks to the articulated spindle nut with a button for quick clamping of the workpiece (except MWS-2 56).
• Welding splashes cannot adhere to the copper-coated trapezoidal spindle with T-handle.
• Easy to attach to welding or machine tables via side grooves.
• For workpieces with two axes.

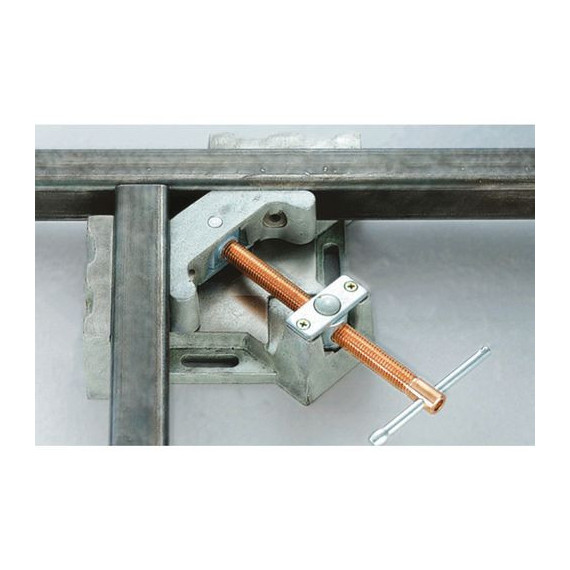

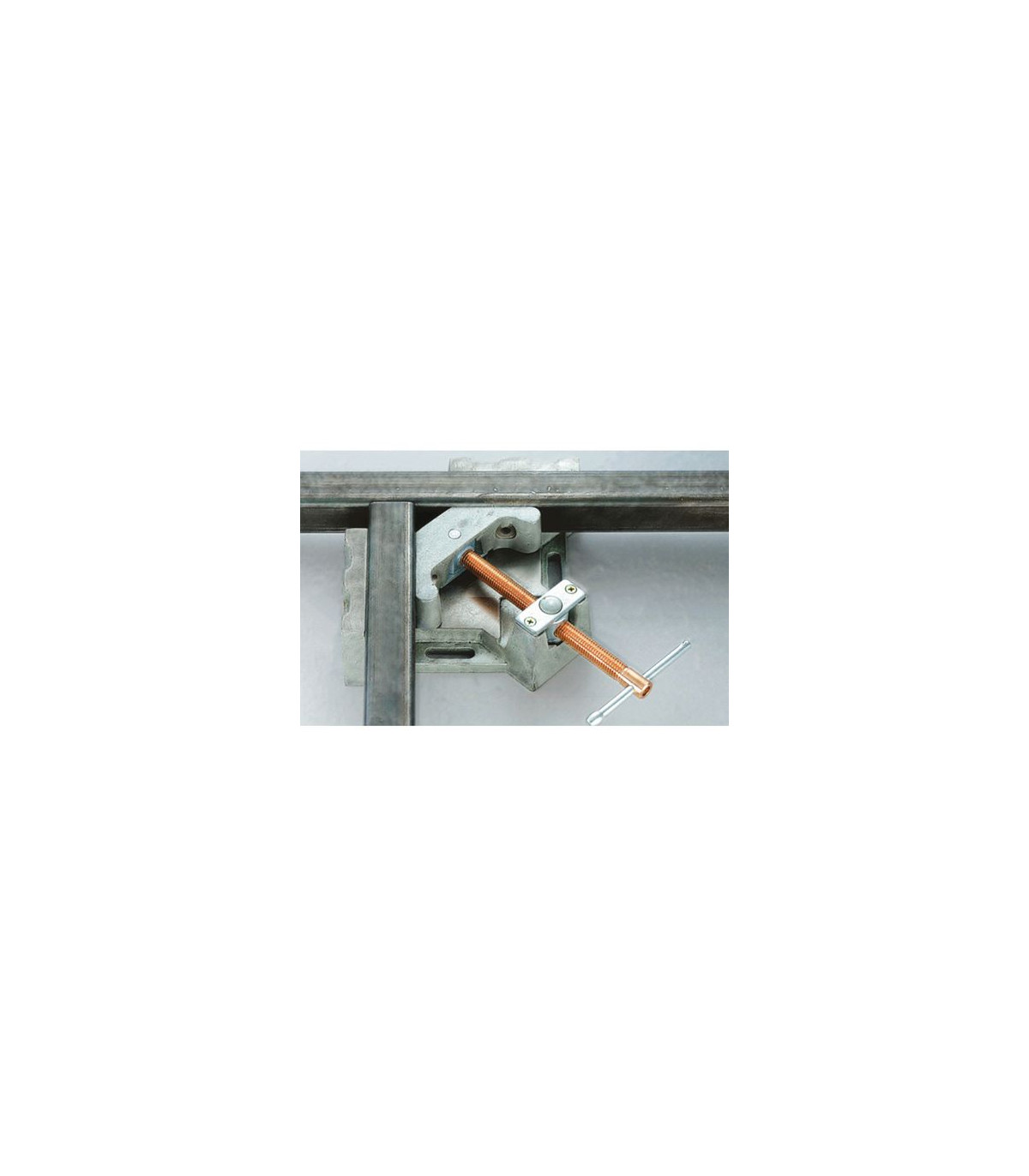

• Thanks to the open design, it is possible to fix T-joints and access the workpiece freely during welding and assembly work.
• Milled sides for mounting the metal angular clamp.

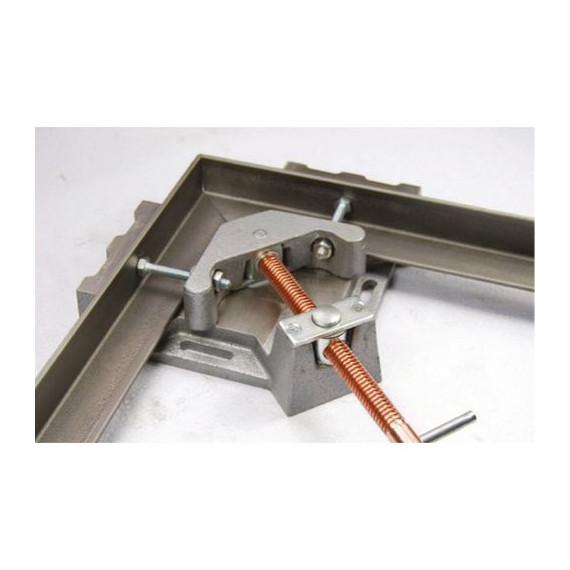

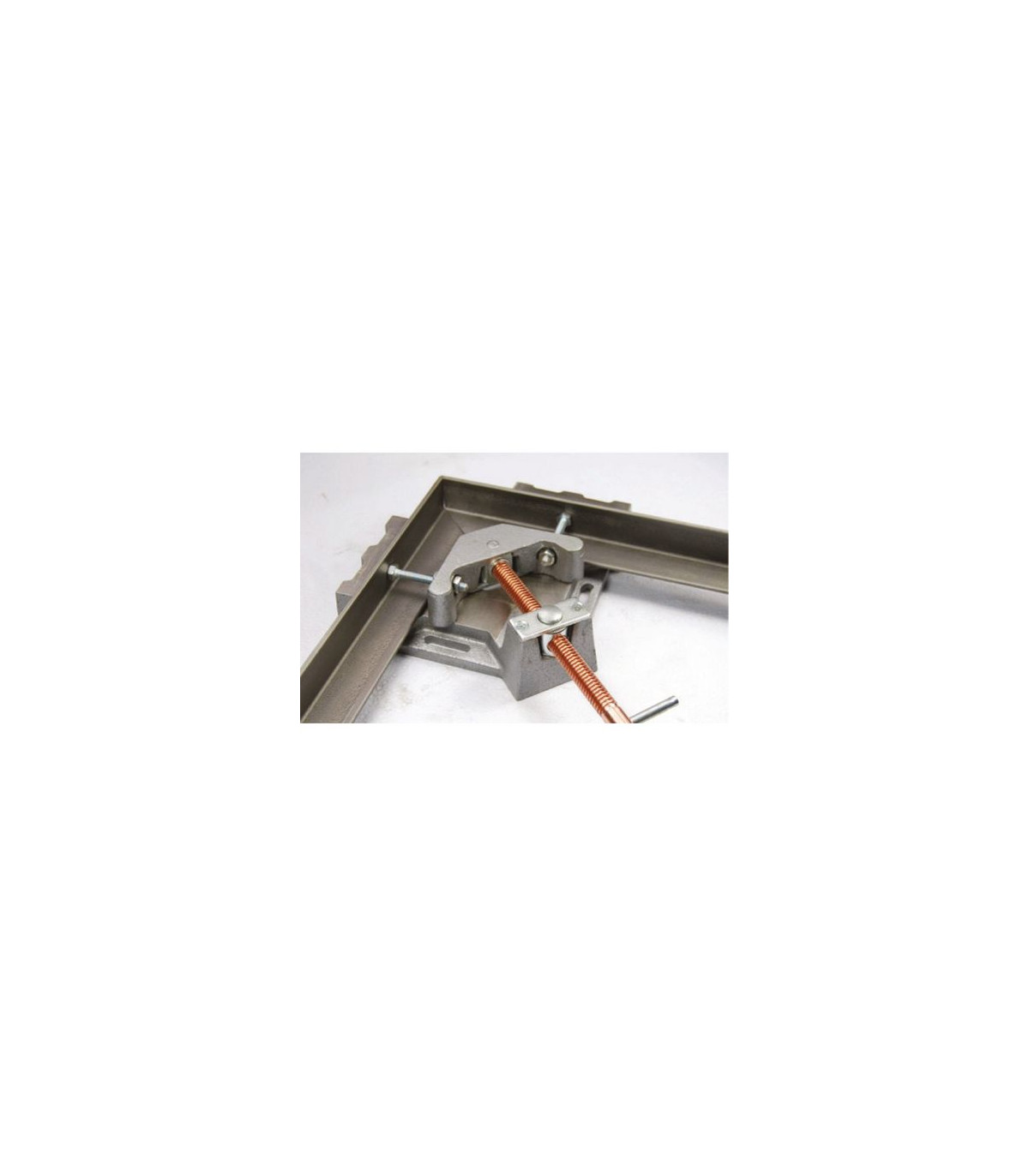

• With a device for better clamping of profiles.
• Possibility of fixing T-connections through open construction.

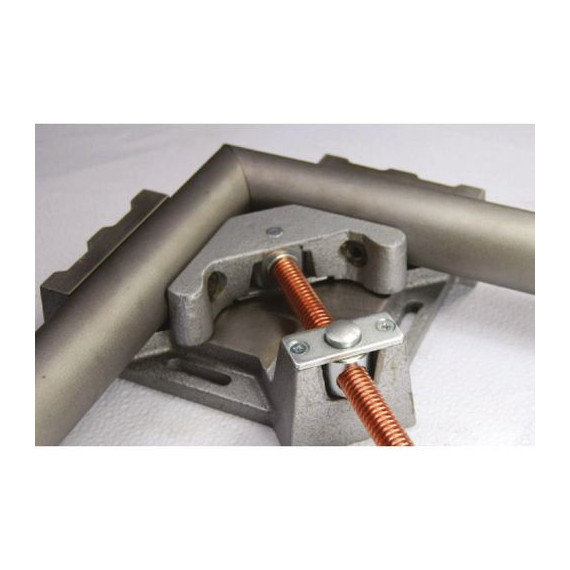

• Also suitable for securing round material.

TECHNICAL SPECIFICATIONS

Width of the section      125 millimeters

Jaw length 135 millimeters

Jaw height 64 millimeters

T clearance 103 millimeters

Mounting slot length 51 millimeters

Mounting slot width 11 millimeters

VPE 1

Dimensions and weights

Approximate weight. 10 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MWS-2 jaw with a 121 mm opening SCHWEISSKRAFT is suitable for:

• Machining workshops
• Welding
• Assembly and fitting
• Prototype creation
