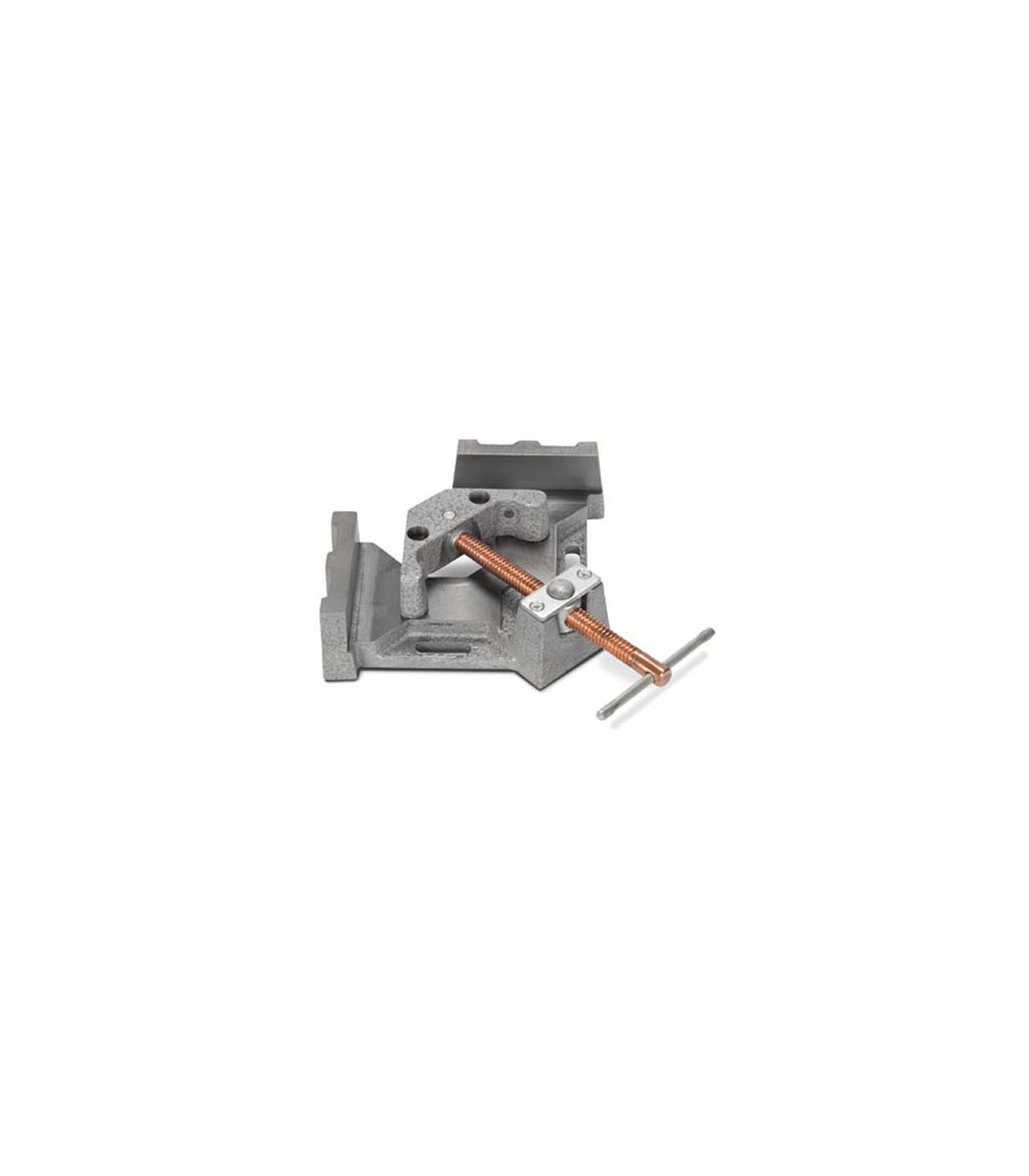

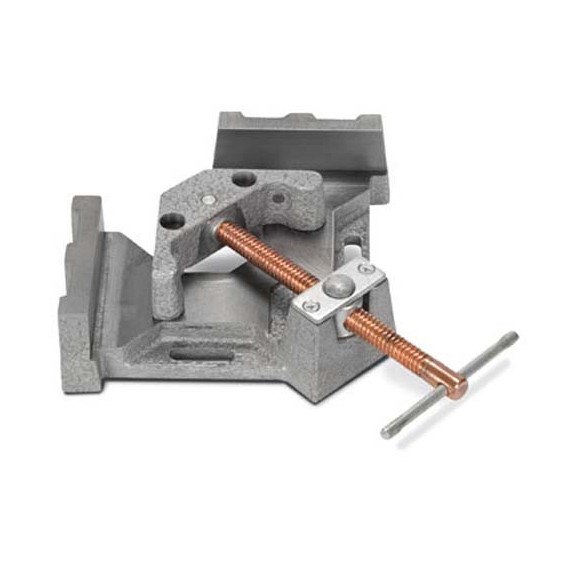

MWS-2 95 clamp with 2-axis metal angle SCHWEISSKRAFT

MWS-2 95 clamp with 2-axis metal angle SCHWEISSKRAFT. The MWS-2 95 clamp with 2-axis metal angle from SCHWEISSKRAFT is ideal for welding and metalworking workshops. With a gray cast iron body and stable jaws, it allows for holding pieces at an exact angle of 90°. Its articulated spindle nut automatically adapts to different thicknesses, facilitating quick clamping.

The open design is perfect for securing T-joints and easily accessing during work. Additionally, its coated trapezoidal spindle prevents splashes from adhering. With milled sides for mounting angular clamps, it is versatile for various applications and round materials.

FEATURES

• For use in steel constructions, in welding workshops, and in metalworking shops.
• Stable jaws and gray cast iron body.
• For clamping, aligning, and securing workpieces of different thicknesses at an exact angle of 90°
• Automatic adaptation of the pressure clamp to workpieces of different thicknesses thanks to the articulated spindle nut with button for quick clamping of the workpiece (except MWS-2 56)
• Welding splashes cannot adhere to the coated copper trapezoidal spindle with T-handle
• Easy to attach to welding or machine tables via side grooves.
• For workpieces with two axes
• Thanks to the open design, it is possible to secure T-joints and freely access the workpiece during welding and assembly work.
• Milled sides for mounting the metal angular clamp
• With device for better clamping of profiles
• Possibility of securing T-joints through open construction
• Also suitable for securing round material.

TECHNICAL SPECIFICATIONS

Width of the section   95 millimeters

Jaw length 107 millimeters

Jaw height 35 millimeters

T clearance 64 millimeters

Mounting slot length 40 millimeters

Mounting slot width 11 millimeters

VPE 1

Dimensions and weights

Approximate weight. 4.5 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MWS-2 95 clamp with 2-axis metal angle SCHWEISSKRAFT is suitable for:

• Machining workshops
• Welding
• Assembly and fitting
• Prototyping
