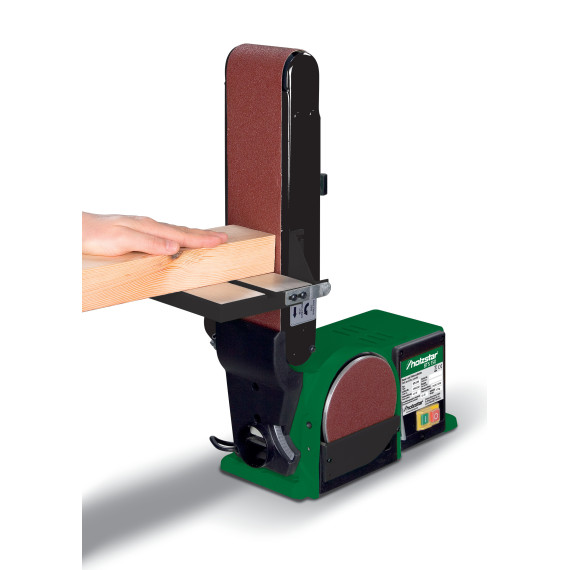

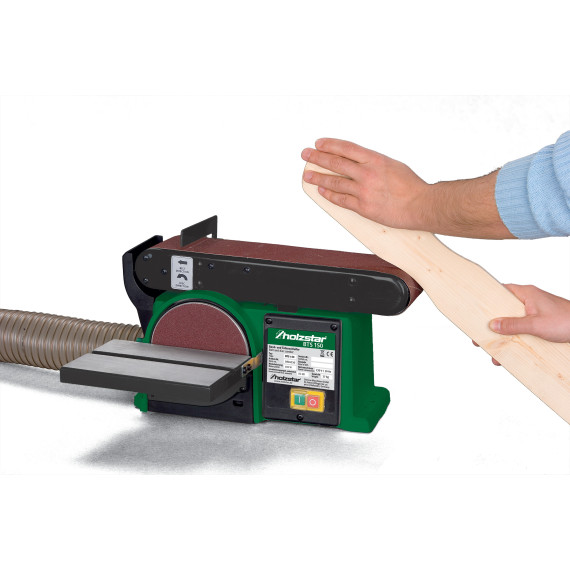

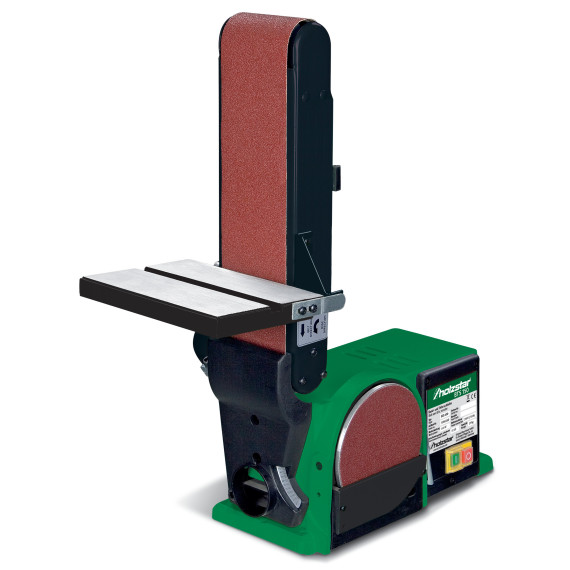

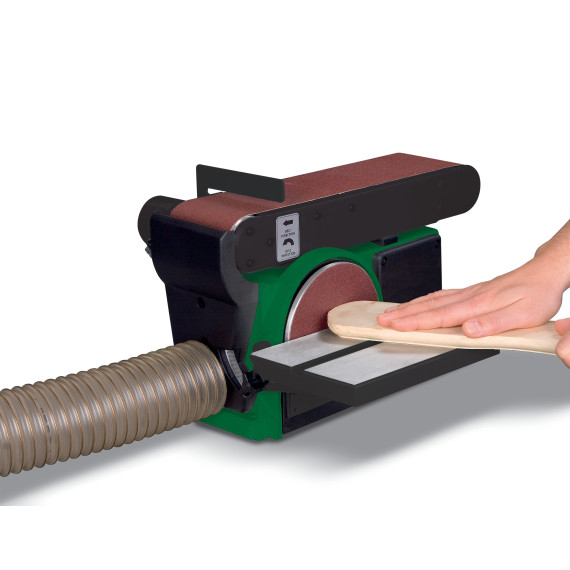

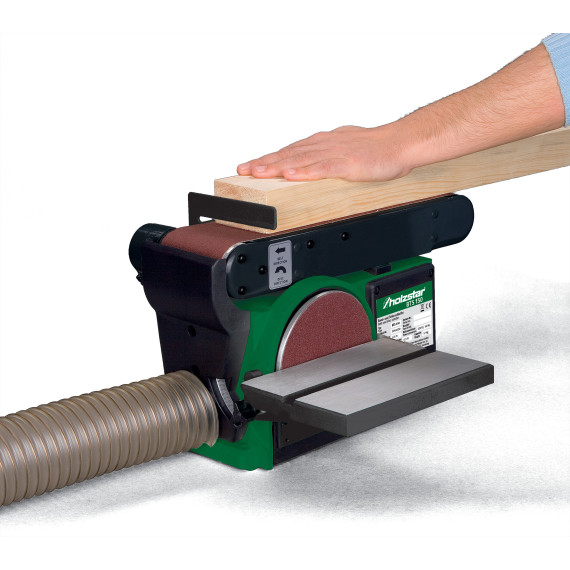

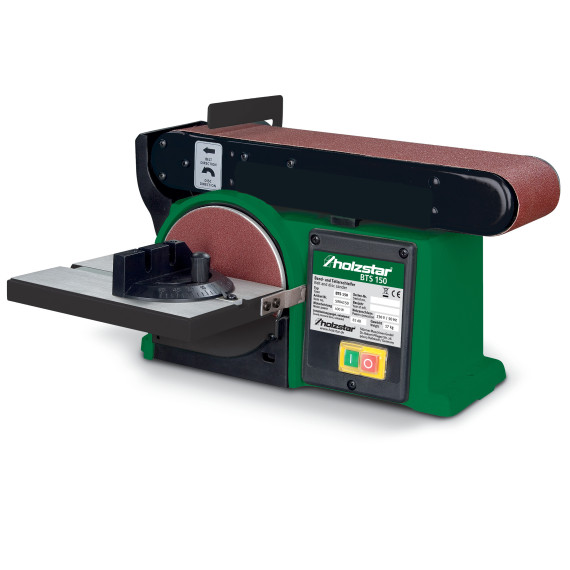

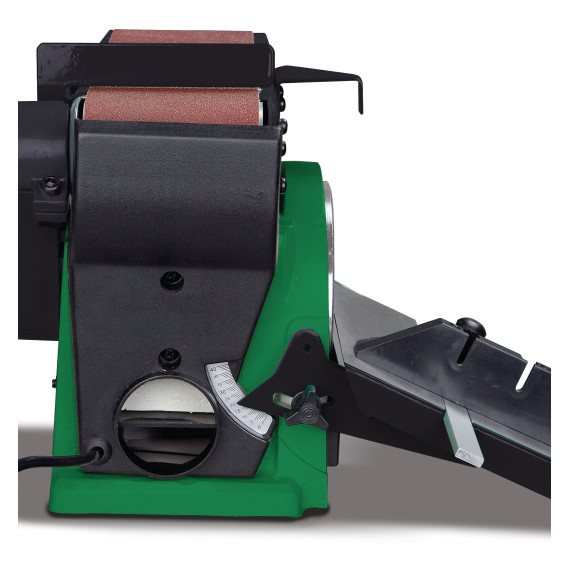

Belt and disc sander BTS 150 HOLZSTAR

Belt and disc sander BTS 150 HOLZSTAR. The BTS 150 HOLZSTAR belt and disc sander is versatile, suitable for various materials. Its cast steel housing ensures durability. With an adjustable angle from 0° to 90°, it allows for horizontal and vertical use. The swiveling table can be adjusted from 0° to 45°. Change the sanding belt easily without tools. It includes a nozzle for connecting a suction unit. With a motor of 0.4 kW and a weight of 17 kg, it is perfect for precise and efficient work.

FEATURES

• Suitable for many materials and shapes.
• Machine housing made of cast steel without torsion
• The sanding belt attachment with continuous rotation from 0° to 90° can be used both horizontally and vertically.
• Swiveling work table with double guide, continuously adjustable from 0° to 45°
• Quick and easy change of the sanding belt using a quick-release device without the need for tools
• Integrated extraction nozzle for connecting an external suction unit

TECHNICAL SPECIFICATIONS

Dimensions and weights

Approximate length: 450 millimeters

Approximate width/depth: 350 millimeters

Approximate height: 270 millimeters

Approximate weight: 17 kilograms

Electrical data

Drive motor absorbed power: 0.4 kW

Power supply voltage: 230 V

Network frequency: 50 Hz

Extraction port

Diameter of extraction port: 58 millimeters

Sander

Length of sanding belt: 915 millimeters

Width of sanding belt: 100 millimeters

Pivoting: 0 90°

Diameter of sanding disc: 150 millimeters

Table(s)

Pivoting: 0 – 45 °

Length of the table-mounted disc sander: 230 millimeters

Width of the table-mounted disc sander: 150 millimeters

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Mitre
• Sanding belt grain 60
• Sanding wheel grain 80 (adhesive)
• Velcro closure not included - Velcro fastening is also required for the sanding wheel from the accessory range

WHAT TYPE OF WORK IS IT SUITABLE FOR

The BTS 150 HOLZSTAR belt and disc sander is suitable for:

• Deburring and sharpening surfaces and contours
• Model making
• DIY
