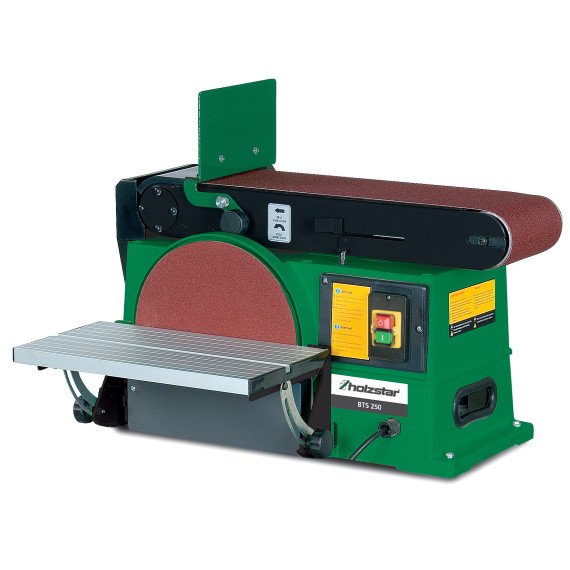

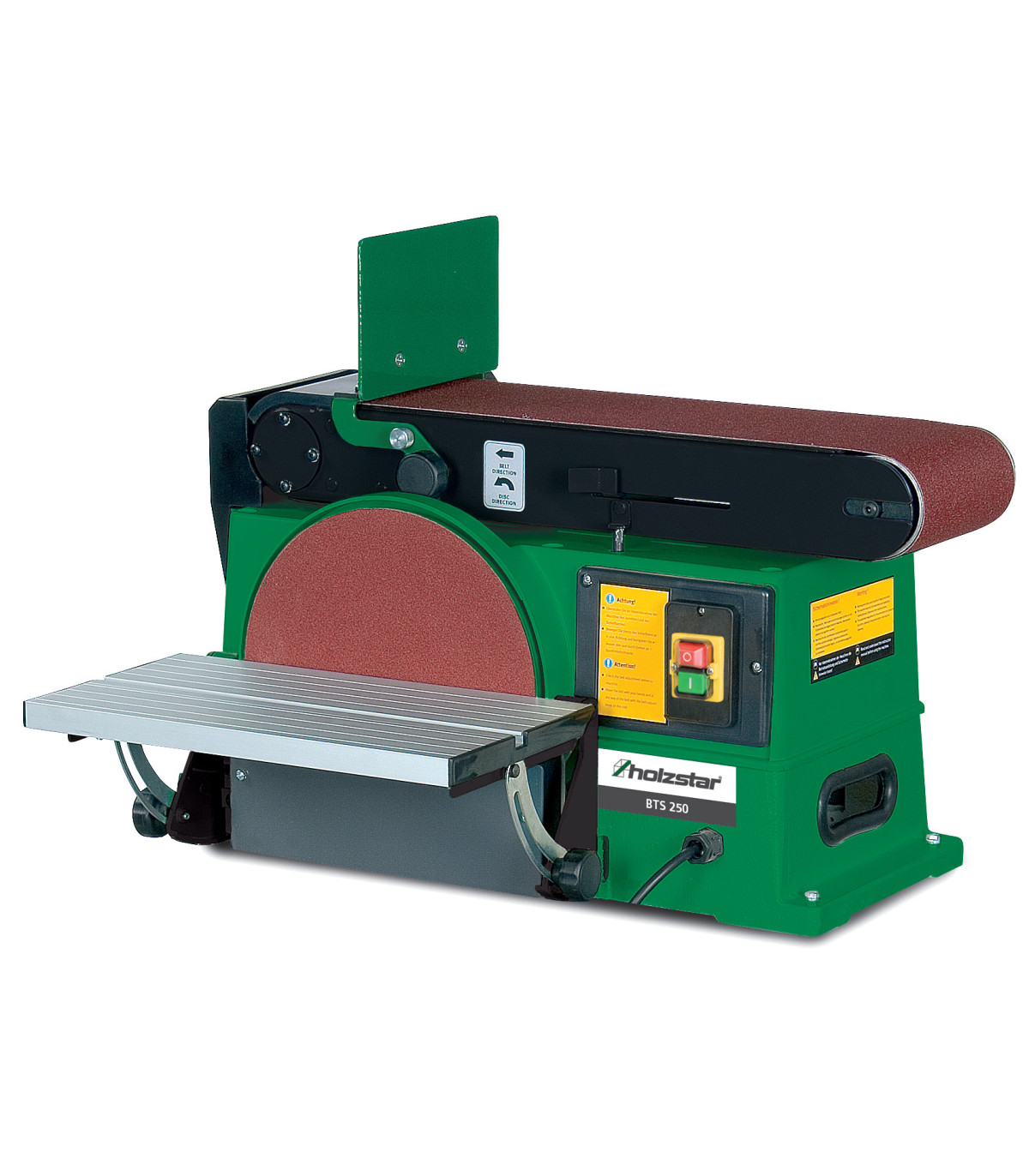

Belt and disc sander BTS 250 HOLZSTAR

Belt and disc sander BTS 250 HOLZSTAR. The BTS 250 HOLZSTAR belt and disc sander is versatile and suitable for various materials. Its robust cast steel housing ensures durability. With an adjustable angle from 0° to 90°, it allows for horizontal and vertical work. The swiveling table is adjustable from 0° to 45°, making it easy to use. Quick belt change without tools, and it features a dust extraction nozzle. With a 0.8 kW motor and compact dimensions, it is ideal for home or workshop use.

FEATURES

• Suitable for many materials and shapes.
• Machine housing made of cast steel without torsion
• The added sanding belt with continuous rotation from 0° to 90° can be used both horizontally and vertically.
• Swiveling work table with double guide, continuously adjustable from 0° to 45°
• Quick and easy sanding belt change using a quick-release device without the need for tools
• Integrated extraction nozzle for connecting an external suction unit

TECHNICAL SPECIFICATIONS

Dimensions and weights

Approximate length: 720 millimeters

Approximate width/depth: 410 millimeters

Approximate height: 440 millimeters

Approximate weight: 47 kilograms

Electrical data

Drive motor power consumption: 0.8 kW

Supply voltage: 230 V

Network frequency: 50 Hz

Extraction port

Diameter of extraction port: 120 millimeters

Sander

Length of sanding belt: 1220 millimeters

Width of sanding belt: 150 millimeters

Pivoting: 0 90°

Diameter of sanding disc: 250 millimeters

Table(s)

Pivoting: 0 – 45 °

Length of the disc sander work table: 360 millimeters

Width of the disc sander work table: 200 millimeters

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Sanding belt grit 60
• Sanding wheel grit 80 (adhesive)
• Suction adapter from 35 to 120 mm
• Velcro closure not included - Velcro fastening is also required for sanding wheel from the accessory range

FOR WHAT TYPE OF WORK IS IT SUITABLE

The BTS 250 HOLZSTAR belt and disc sander is suitable for:

• Deburring and sharpening surfaces and contours
• Model making
• DIY
