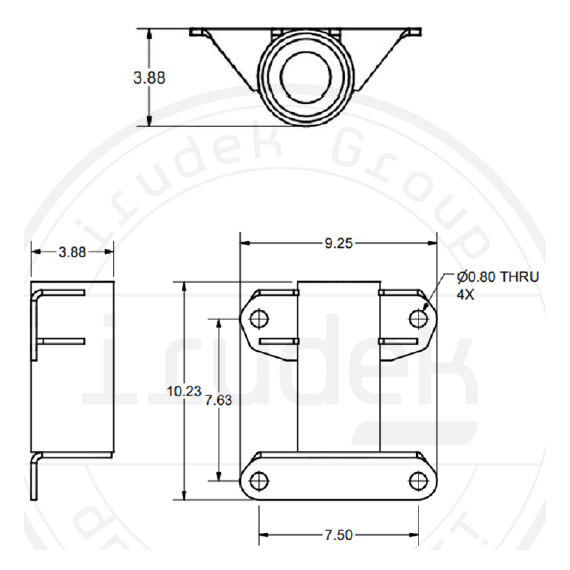

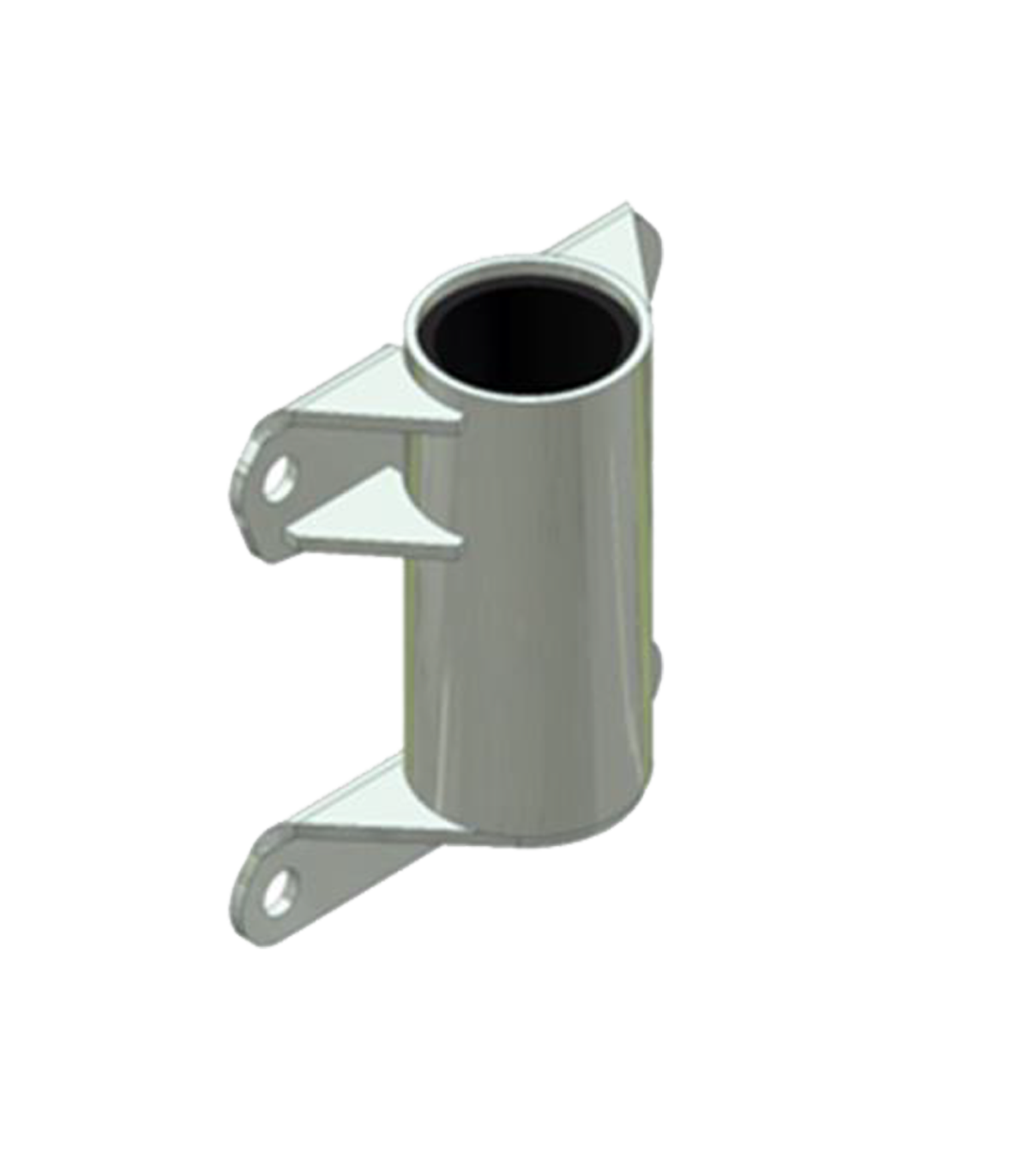

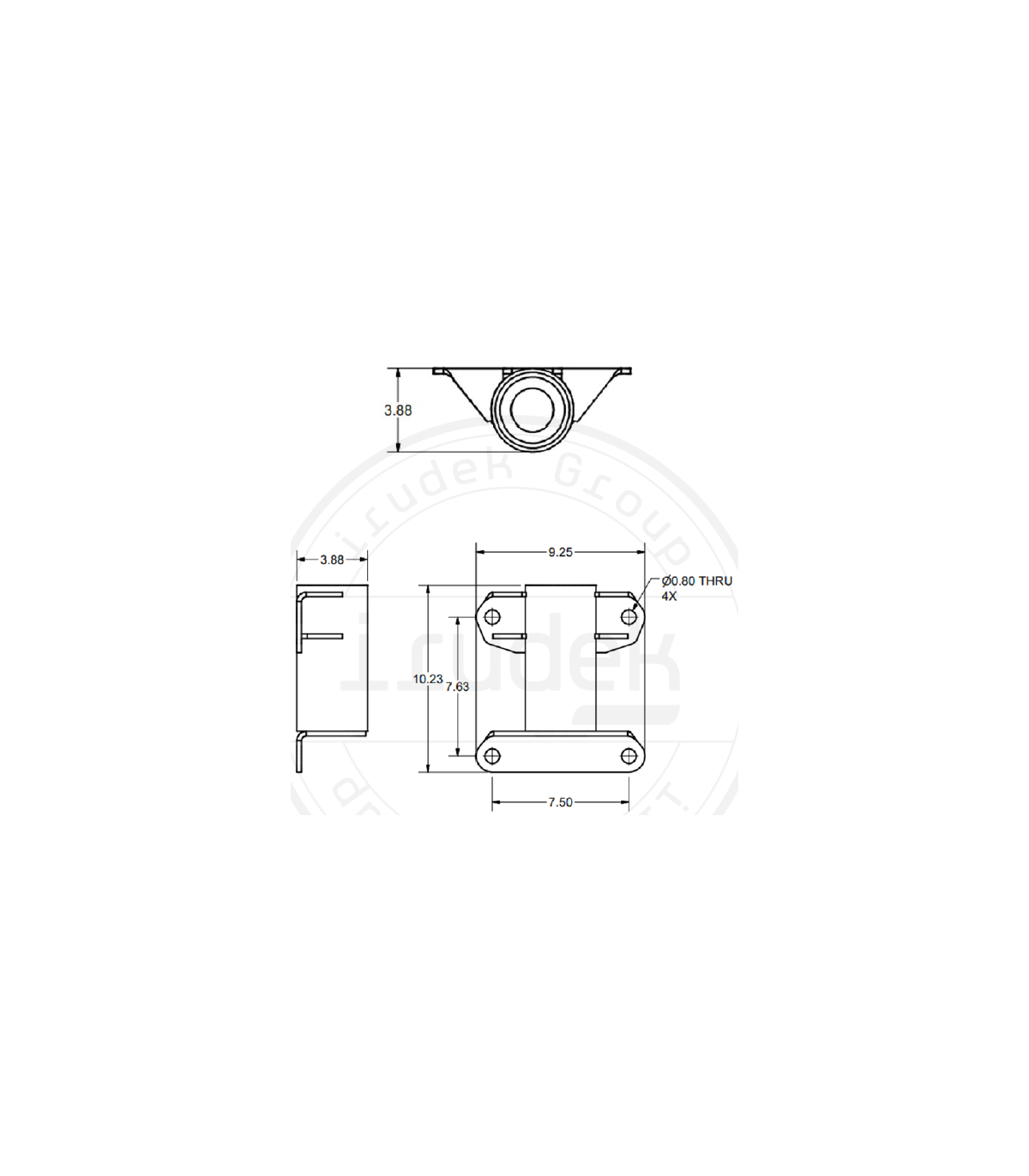

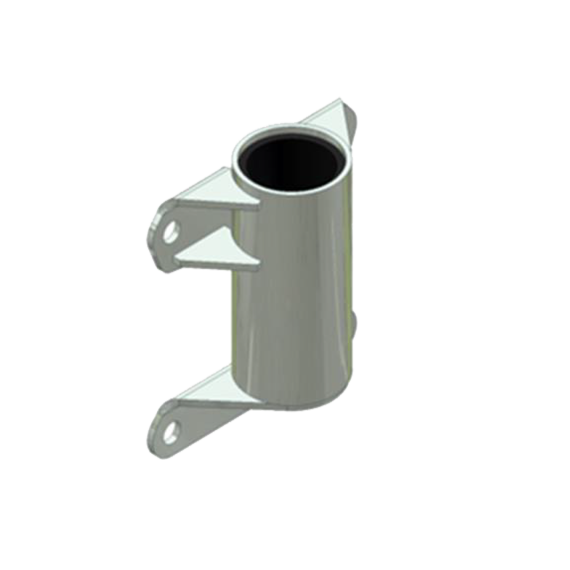

Wall base with 4 fixing points IRUDEK

Wall base for anchorage systems with arm and davit-type post, designed to create an installation point on a vertical surface when there is no space on the ground. Its fixation at 4 points improves load distribution and stability.

FEATURES

• Wall installation for mounting on vertical surfaces
• Fixation using 4 anchorage points
• Design aimed at installations with limited floor space
• Compatibility within modular systems for working at height
• Use as part of an anchorage set for access and rescue

BENEFITS OF THE 4-POINT WALL BASE

Allows the anchorage system to be located on a wall, freeing up the passage area and facilitating the organization of the work area. The 4-point fixation provides a more stable hold and a more uniform distribution of forces on the mounting surface. Fits into configurations where an anchorage is needed for work at height or confined spaces without resorting to a ground base.

USES AND APPLICATIONS: WHAT IT IS SUITABLE FOR

Suitable for access, positioning, and rescue operations with davit-type systems in industrial and maintenance environments: wells, manholes, tanks, pumping stations, technical galleries, and areas with vertical access. Useful when ground installation is not feasible due to lack of space or interference in the work area.

TECHNICAL DATA

• Type of installation: wall mounting (vertical surface)
• Fixation points: 4
