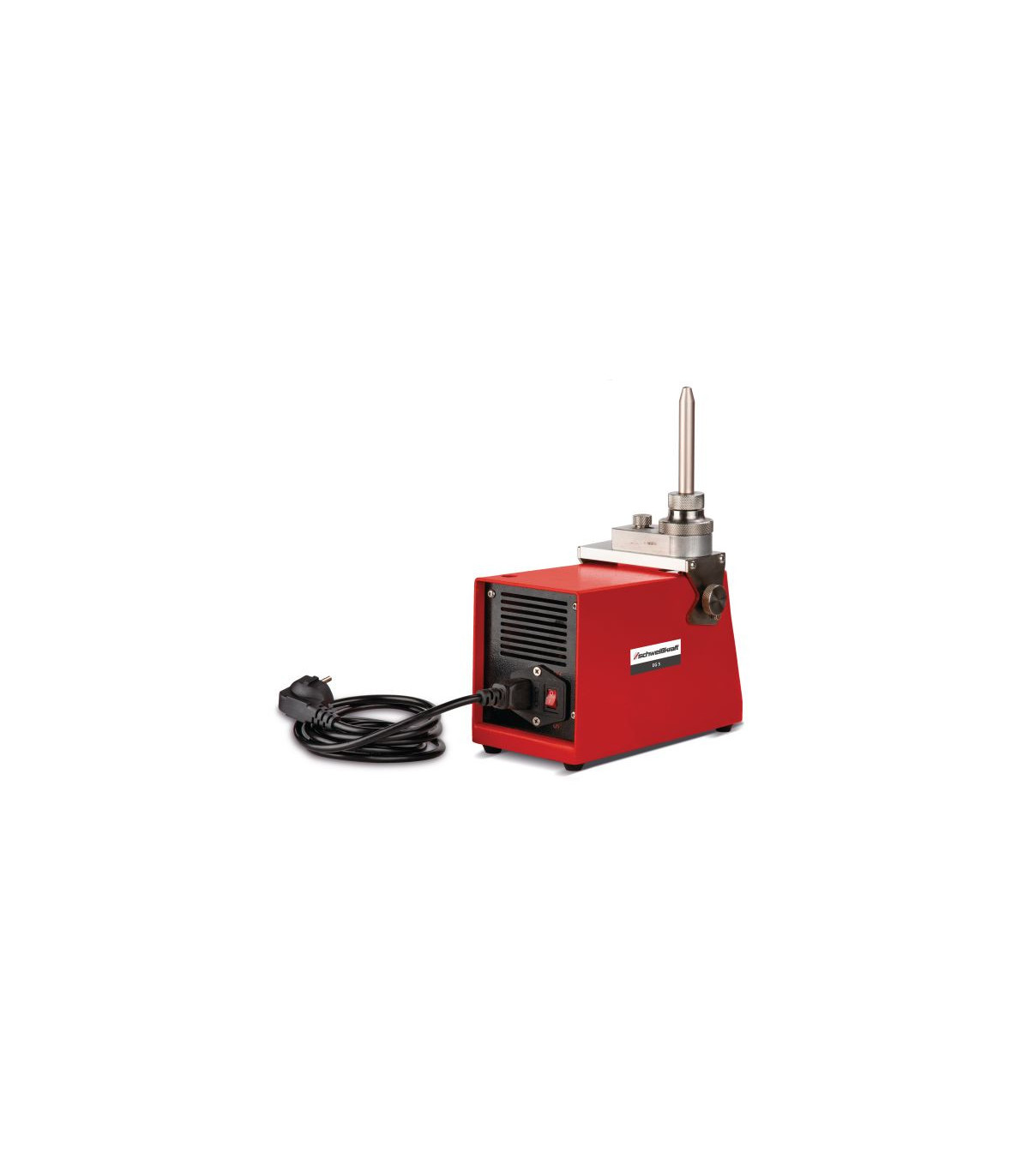

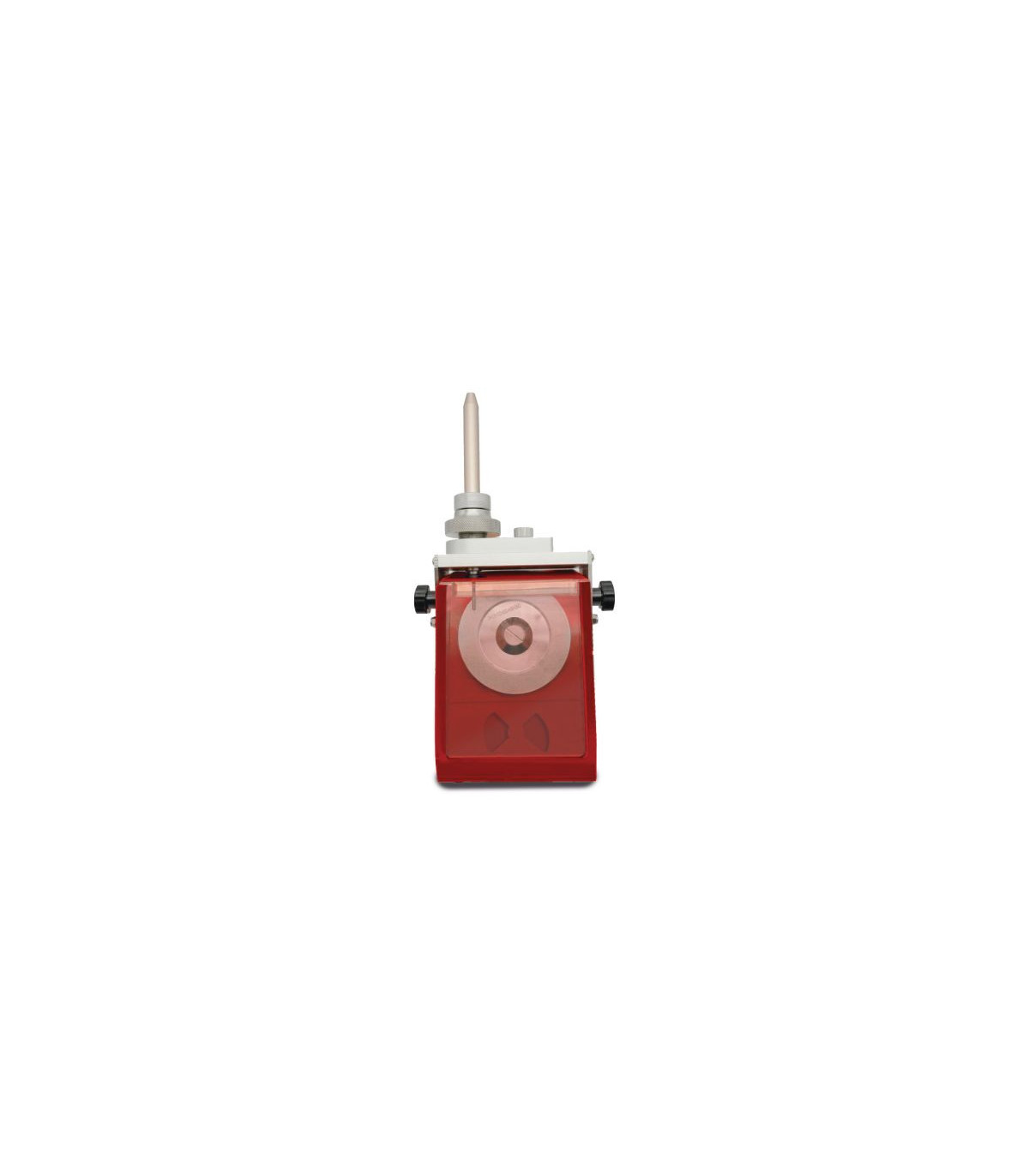

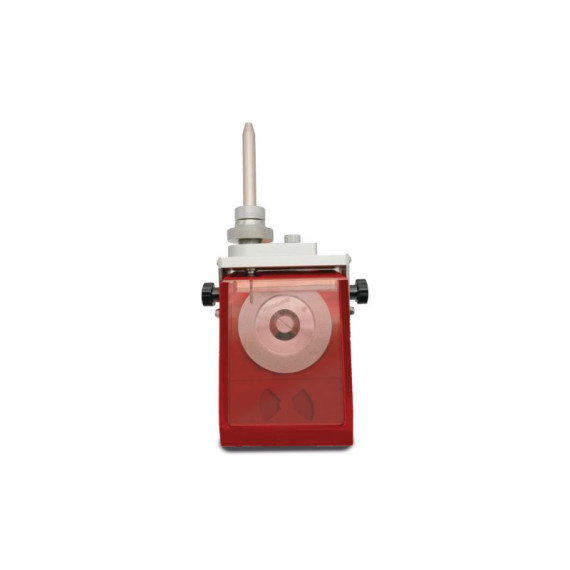

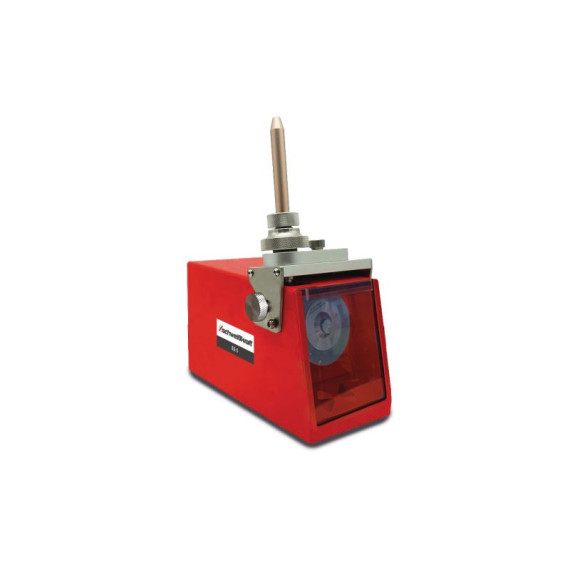

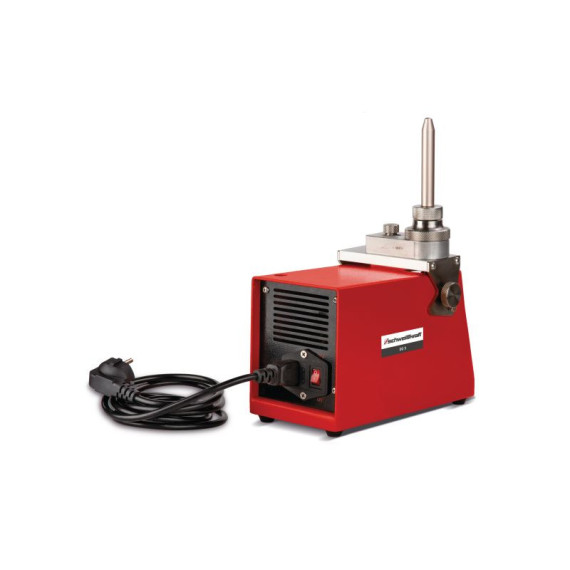

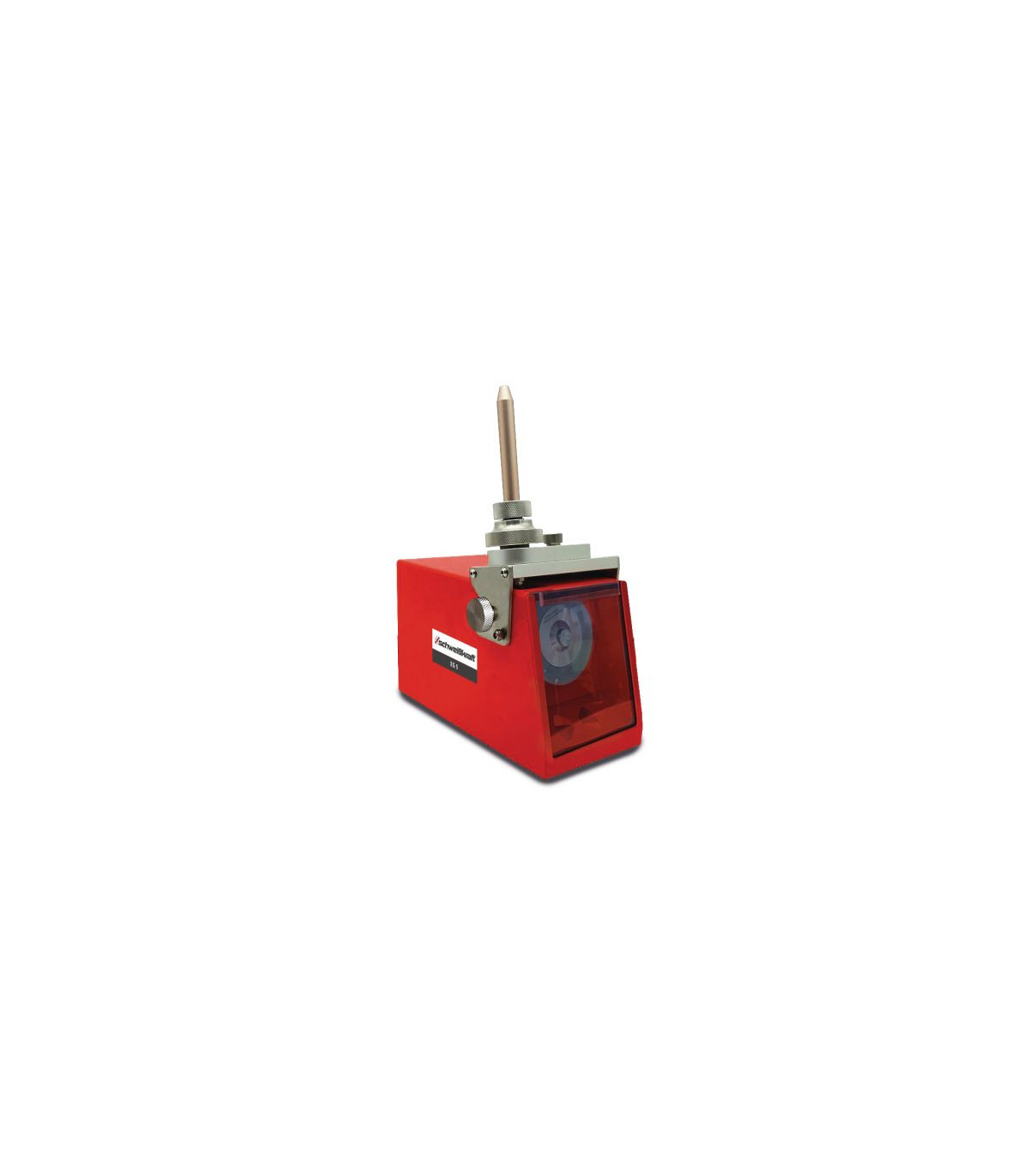

Tungsten Electrode Sharpener EG5 SCHWEISSKRAFT

The Tungsten Electrode Sharpener EG5 by Schweisskraft, code 1692005, features robust construction that makes it perfect for your workshop's demands. It is ideal for sharpening tungsten electrodes perfectly with a diameter of 1.6 to 5 mm and allows a continuously adjustable grinding angle of 15° to 60°.

The electrode sharpener EG5 is equipped with an integrated stop unit to adjust the correct grinding length. Additionally, it allows precise grinding in the longitudinal direction which produces better ignition performance, a stable arc and longer electrode life, increasing your workshop's profitability by achieving better utilisation of these consumables.

As for its use, this machine is simple to operate. On the other hand, grinding is easy, even with a length of only 35 mm, caps or metal droplets.

Another aspect that stands out about the tungsten electrode EG5 sharpener is the possibility of easily removing grinding dust thanks to the waste drawer, very useful for keeping your workspace clean.

CHARACTERISTICS

• Dimensions (W x D x H) : 225 x 150 x 195 mm
• Mains frequency : 50 Hz
• Min. electrode length : 35 mm
• Weight : 4.1 kg
• Main motor power : 0.07 kW
• Supply voltage : 230 V
• VPE : 1
• Speed : 6,500 r.p.m.
• Grinding angle : 15 - 60 °
• Ø diamond disc : 90 mm
• Ø electrode : 1.6 – 5.0 mm
