Industrial turret milling machine MF 2 V OPTIMUM

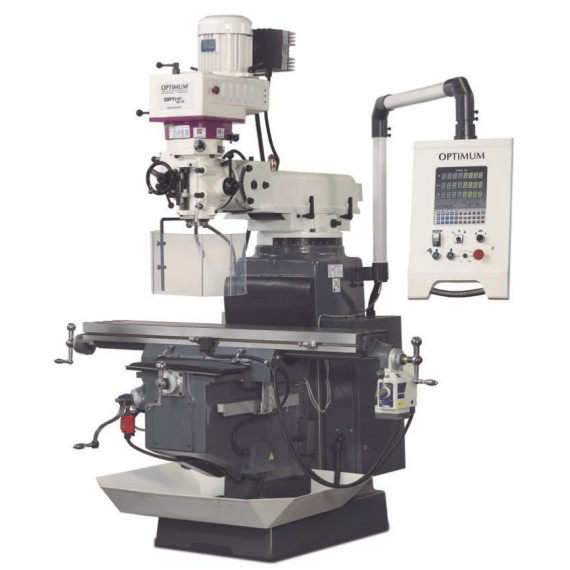

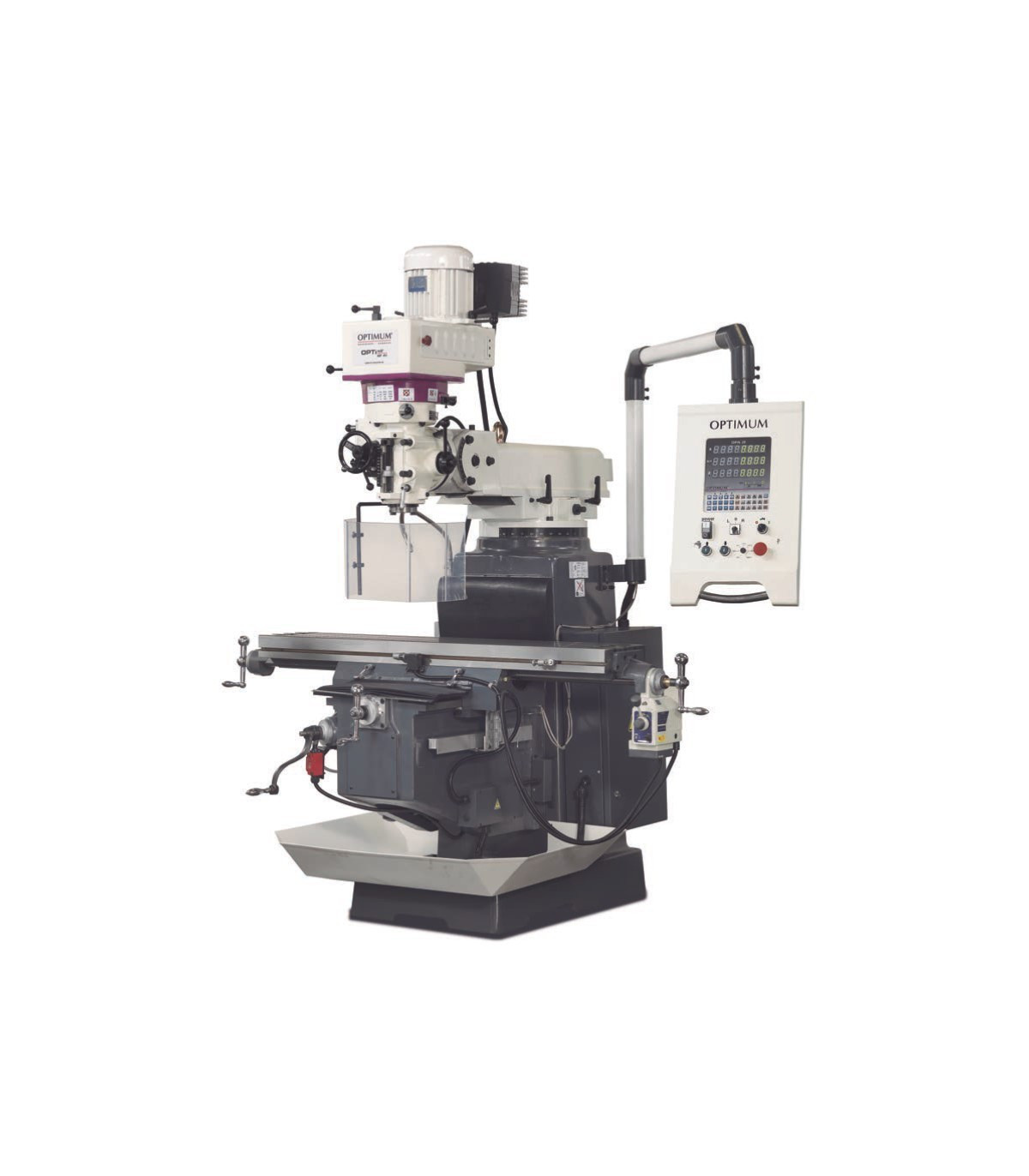

Industrial turret milling machine MF 2 V OPTIMUM. The industrial milling machine MF 2 V OPTIMUM combines a robust design in cast iron with high concentricity. Its head tilts ± 45° and rotates ± 90°, ideal for precise work. It includes a solid table, cooling system, and a digital indicator, ensuring safety and efficiency in high-performance steel machining. Weighing 950 kg and with generous dimensions, it is perfect for demanding tasks.

FEATURES

• Heavy and solid design made from high-quality Meehanite cast iron
• High concentricity thanks to the tapered roller bearing, ≤ 0.01 mm measured at the sleeve
• X and Z axes with adjustable dovetail guide
• Y axis with adjustable dovetail guide
• Cooling device
• Digital position indicator
• Solid cross table with generous dimensions, precisely machined on the surface and with adjustable end stops.
• Spindle head: up/down tilt ± 45° and left/right rotation ± 90°
• Automatic feed for spindle sleeves
• Adjustable drilling depth stop with millimeter scale, readable from the front
• Right/left rotation for thread cutting
• Central lubrication
• Adjustable height protective screen with micro switch, against chip and part projection, for maximum user protection.

TECHNICAL SPECIFICATIONS

Cooling lubricant system

Power of the coolant pump(s) 100 watts

Dimensions and weights

Approximate length 1400 millimeters

Approximate width/depth 1450 millimeters

Approximate height 2150 millimeters

Approximate weight 950 kilograms

Drilling/milling head

Tilting range of the milling-drilling head ± 45°

Rotation range of the milling head ± 90°

Drilling/milling output

Maximum milling head size 76 millimeters

Maximum size of spindle cutter 18 millimeters

High-performance steel for drilling (S235JR) 24 millimeters

High-performance steel for continuous drilling (S235JR) 20 millimeters

Electrical data

Total nominal value 2.2 kW

Supply voltage 400 volts

Network frequency 50 Hz

Horizontal milling table

Table length 1244 millimeters

Table width 230 millimeters

Minimum clearance of vertical spindle - milling table 57 millimeters

Maximum clearance between vertical spindle and milling table 463 millimeters

T-slot size 16 millimeters

Number of T-slots 3

Spacing of T-slots 63 millimeters

Maximum load capacity 230 kilograms

Standards and certifications

Standard DIN EN 55011

EMC level C2

Axis

Manual X axis 800 millimeters

Manual Y axis 305 millimeters

Manual Z axis 406 millimeters

Automatic X axis 730 millimeters

Y axis milling head 320 millimeters

Vertical spindle

Reach from to 213 – 533 millimeters

Spindle chuck ISO 40 DIN 2080

Speed range 10 – 5100 min¯¹

Number of gears 6

Speed control electronically adjustable

Normal operation of vertical spindle 1.5 kW

Stroke of quill 127 millimeters

Spindle sleeve feed 0.04 / 0.08 / 0.15 mm/rev

VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Chip tray
• Operating tool

EQUIPMENT

Digital position indicator DPA 21

FOR WHAT TYPE OF WORK IS IT SUITABLE

The industrial turret milling machine MF 2 V OPTIMUM is suitable for:

• Metal machining industry
• Manufacturing of precision parts
• Prototype workshops
• Production of industrial components
• Manufacturing of custom parts
• Machining of steel and other materials
• Projects requiring high concentricity and precision

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 standard refers to the limits and measurement methods for the emission of electromagnetic interference from industrial, scientific, and medical equipment. This standard establishes criteria to ensure that devices do not generate interference that could affect other electronic equipment and also defines the permitted levels of electromagnetic radiation. It is essential to ensure compliance in the design and use of equipment operating in environments where electromagnetic compatibility is crucial.

- EMC Level C2: The EMC level C2 refers to a standard of electromagnetic compatibility (EMC) that applies to electrical and electronic equipment and systems. Specifically, level C2 indicates requirements for the emission of interference and immunity to electromagnetic disturbances in industrial environments. Devices that meet this level are designed to operate without causing significant interference to other equipment and to withstand external disturbances, which is crucial in environments where various electronic devices coexist.
