Drilling milling machine for complex jobs MF 4-B OPTIMUM

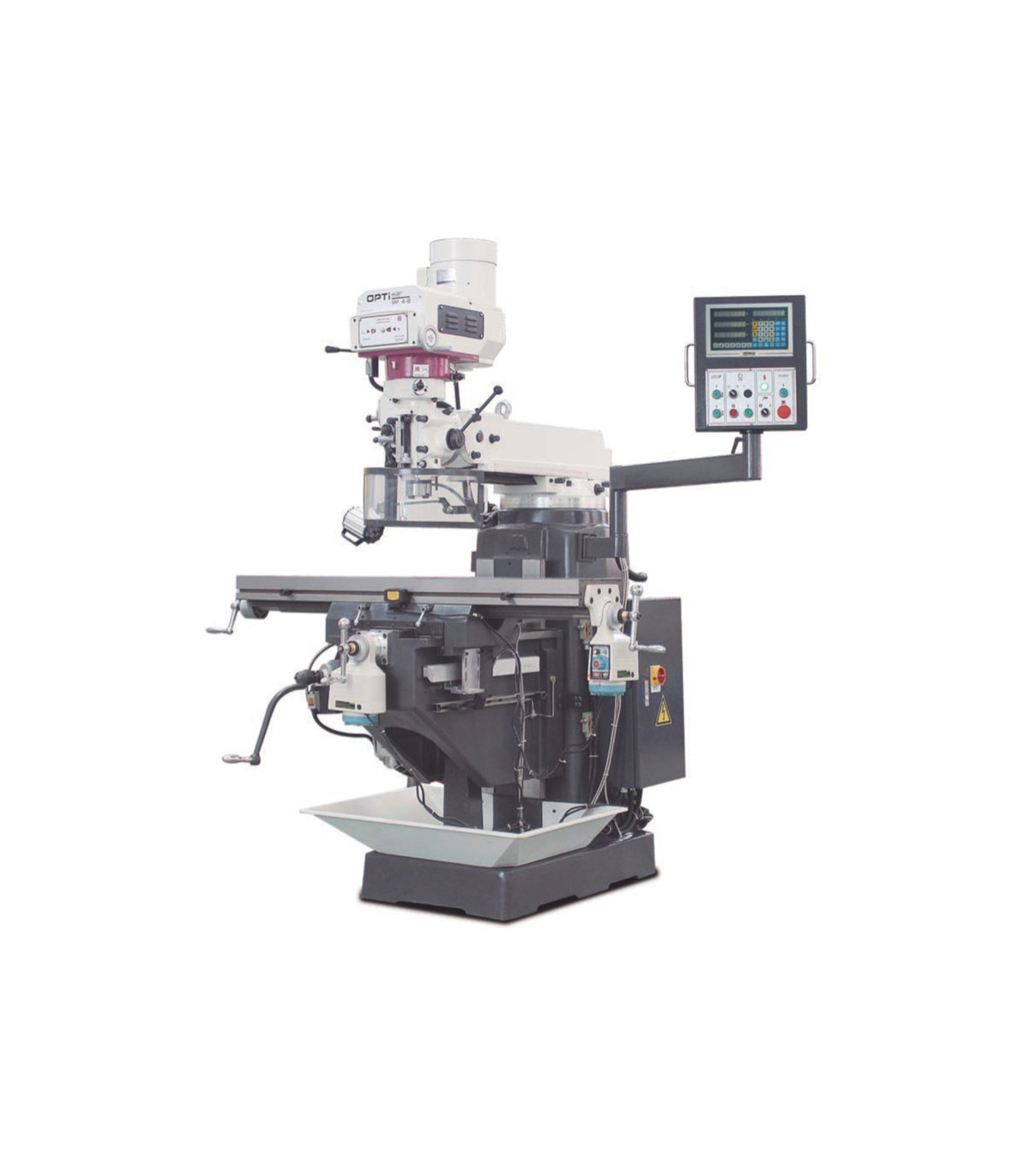

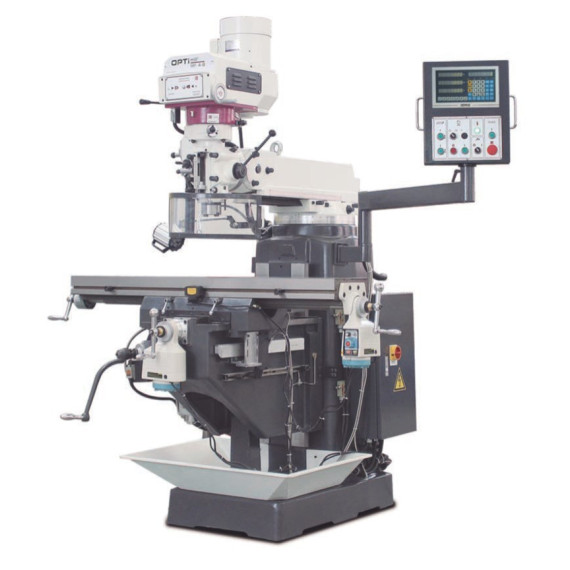

Drilling milling machine for complex work MF 4-B OPTIMUM. The MF 4-B OPTIMUM drilling milling machine is ideal for complex tasks. Its robust cast iron design ensures high concentricity, with a head tilt range of ± 45°. It includes a solid table, cooling devices, and variable speed control, offering precision and safety to the user. With a weight of 1260 kg and generous dimensions, it is perfect for demanding tasks in high-performance steel.

FEATURES

• Solid design made of high-quality Meehanite cast iron.
• High concentricity thanks to the tapered roller bearing, ≤ 0.01 mm measured at the sleeve
• X and Z axes with adjustable dovetail guide of 55°
• Y axis with adjustable flat guide
• Cooling device
• Solid cross table with generous dimensions, precise surface finish, and adjustable end stops
• The drilling/milling head can be tilted ± 45°
• Automatic quill feed, 3 stages 0.04 - 0.15 mm/rev
• Precision micro feed
• Adjustable drilling depth stop with millimeter scale, readable from the front
• Right/left rotation
• Infinitely variable speed control
• Milling spindle with precision bearing
• Mechanical spindle brake
• Height-adjustable protective screen with micro switch, against chip and part projection, for maximum user protection.

TECHNICAL SPECIFICATIONS

Cooling lubricant system

Power of the coolant pump(s) 90 watts

Dimensions and weights

Approximate length 2400 millimeters

Approximate width/depth 2160 millimeters

Approximate height 2300 millimeters

Approximate weight. 1260 kilograms

Drilling/milling head

Head tilt range of the vertical drilling-milling machine ± 45°

Head rotation range of the horizontal mill ± 90°

Drilling/milling output

Maximum milling head size 76 millimeters

Maximum size of spindle cutter 25 millimeters

High-performance steel for drilling (S235JR) 24 millimeters

High-performance steel for continuous drilling (S235JR) 20 millimeters

Electrical data

Total nominal value 3 kW

Supply voltage 400 volts

Network frequency 50 Hz

Horizontal milling table

Table length 254 millimeters

Table width 1370 millimeters

Maximum clearance between the vertical spindle and the milling table 405 millimeters

T-slot size 16 millimeters

Number of T-slots 3

T-slot spacing 63 millimeters

Maximum load capacity 300 kilograms

Standards and certifications

Standard DIN EN 55011

Axes

Manual X axis 820 millimeters

Manual Y axis 410 millimeters

Manual Z axis 400 millimeters

Automatic X axis 740 millimeters

Automatic Y axis 330 millimeters

Automatic Z axis 320 millimeters

Vertical spindle

Reach from up to 0 – 420 millimeters

Spindle chuck ISO 40 DIN 2080

Speed range 60 – 4200 min¯¹

Number of gears 2

Speed control mechanically continuous

Normal operation of the vertical spindle 2.2 kW

Quill diameter 86 millimeters

Quill stroke 127 millimeters

Spindle quill feed 0.04 / 0.08 / 0.15 mm/rev

Travel of the milling head on the Y axis 470 millimeters

VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

Operating tool

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MF 4-B OPTIMUM drilling milling machine is suitable for:

• Metal machining industry
• Manufacturing of precision parts
• Prototype workshops
• Production of industrial components
• Manufacturing of custom parts
• Machining of steel and other materials
• Projects that require high concentricity and precision

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 standard refers to the limits and measurement methods for the emission of electromagnetic interference from industrial, scientific, and medical equipment. This standard establishes criteria to ensure that devices do not generate interference that could affect other electronic equipment and also defines the permitted levels of electromagnetic radiation. It is essential to ensure compliance in the design and use of equipment operating in environments where electromagnetic compatibility is crucial.
