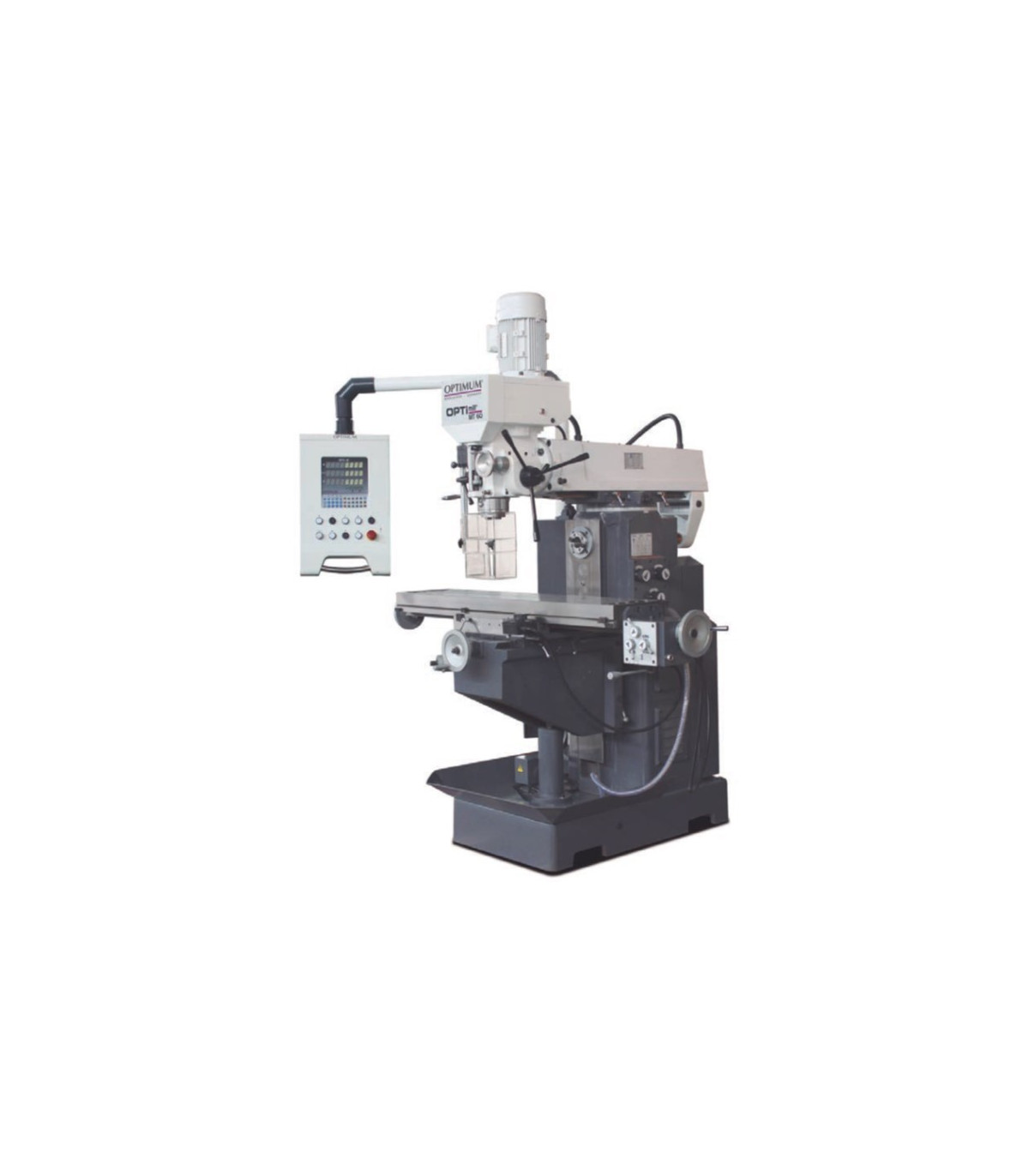

MT 60 OPTIMUM metal tooling milling and drilling machine

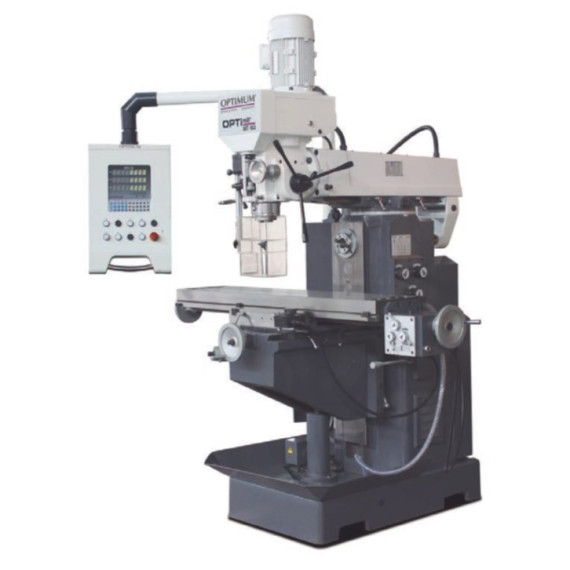

MT 60 OPTIMUM metalworking milling and drilling machine. The MT 60 OPTIMUM milling and drilling machine stands out for its robust cast iron design that reduces vibrations. It features a solid table with T-slots and automatic feed for drilling. Its head tilts ± 45° and includes cooling, as well as an adjustable protective screen for user safety. Weighing 1300 kg and with ample dimensions, it is ideal for precise work on high-performance steel, combining efficiency and durability.

FEATURES

• Heavy and solid design made of high-quality gray cast iron that absorbs vibrations.
• Solid cross table with generous dimensions, featuring precise surface finish with T-slots and adjustable keyways.
• Automatic feed of the quill (drilling) activated via the quill feed lever or manual quill feed with the fine feed handwheel.
• Right/left rotation.
• Cooling device.
• The X-axis moves with the handwheel or via the table feed device.
• Height-adjustable protective screen with micro-switch, against chip and part projection, for maximum user protection.

TECHNICAL SPECIFICATIONS

Cooling lubricant system

Power of the coolant pump(s) 40 watts

Dimensions and weights

Approximate length 1650 millimeters

Approximate width/depth 1310 millimeters

Approximate height 2160 millimeters

Approximate weight 1300 kilograms

Drilling/milling head

Head tilt range of the milling-drilling machine ± 45°

Drilling/milling output

Maximum milling head size 100 millimeters

Maximum spindle cutter size 25 millimeters

High-performance steel for drilling (S235JR) 30 millimeters

High-performance steel for continuous drilling (S235JR) 25 millimeters

Electrical data

Total nominal value 5 kW

Supply voltage 400 volts

Network frequency 50 Hz

Horizontal spindle

Drive motor output 2.2 kW

Reach 35 – 370 millimeters

Spindle chuck ISO 40 DIN 2080

Speed range 40 – 1300 min¯¹

Number of gears 9

Horizontal milling table

Table length 1270 millimeters

Table width 280 millimeters

Minimum vertical spindle clearance - milling table 60 millimeters

Maximum clearance between vertical spindle and milling table 420 millimeters

T-slot size 14 millimeters

Number of T-slots 4

T-slot spacing 50 millimeters

Maximum load capacity 150 kilograms

Axis

X-axis manual 750 millimeters

Y-axis manual 230 millimeters

Z-axis manual 360 millimeters

X-axis automatic 680 millimeters

Vertical spindle

Reach from to 220 – 550 millimeters

Spindle chuck ISO 40 DIN 2080

Speed range 90 – 2000 min¯¹

Number of gears 8

Clamping bar M16

Normal operation of the vertical spindle 2.2 kW

Type of quill feed automatic

Quill diameter 90 millimeters

Quill stroke 120 millimeters

Spindle sleeve feed 0.008 – 0.25 (3 levels) mm/rev

VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Gear chuck Ø 1 - 16 mm / B16
• Drill chuck ISO40 / B16
• Adapter ISO40 / MK3
• Adapter ISO40 / MK2
• Milling spindle Horizontal milling Ø 22 mm
• Milling spindle Horizontal milling Ø 27 mm
• Vertical and horizontal pull bar
• Operating tool

EQUIPMENT

Digital position indicator DPA 31 Plus

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MT 60 OPTIMUM metalworking milling and drilling machine is suitable for:

• Metal machining industry
• Manufacturing of precision parts
• Prototype workshops
• Production of industrial components
• Fabrication of custom parts
• Machining of steel and other materials
• Projects requiring high concentricity and precision

CERTIFICATION

The ISO 40 cone is part of a series of taper cones used to secure tools in the machine spindle. This standard establishes the dimensions and tolerances to ensure interchangeability and precision in tool clamping.
