Universal milling machine for workshops MT 230 S OPTIMUM

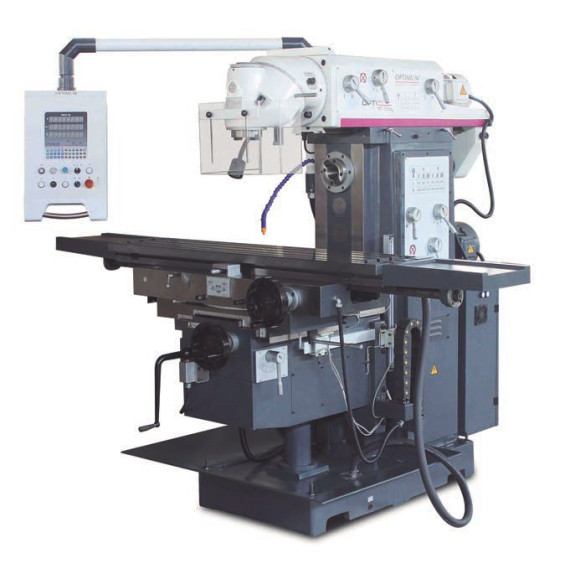

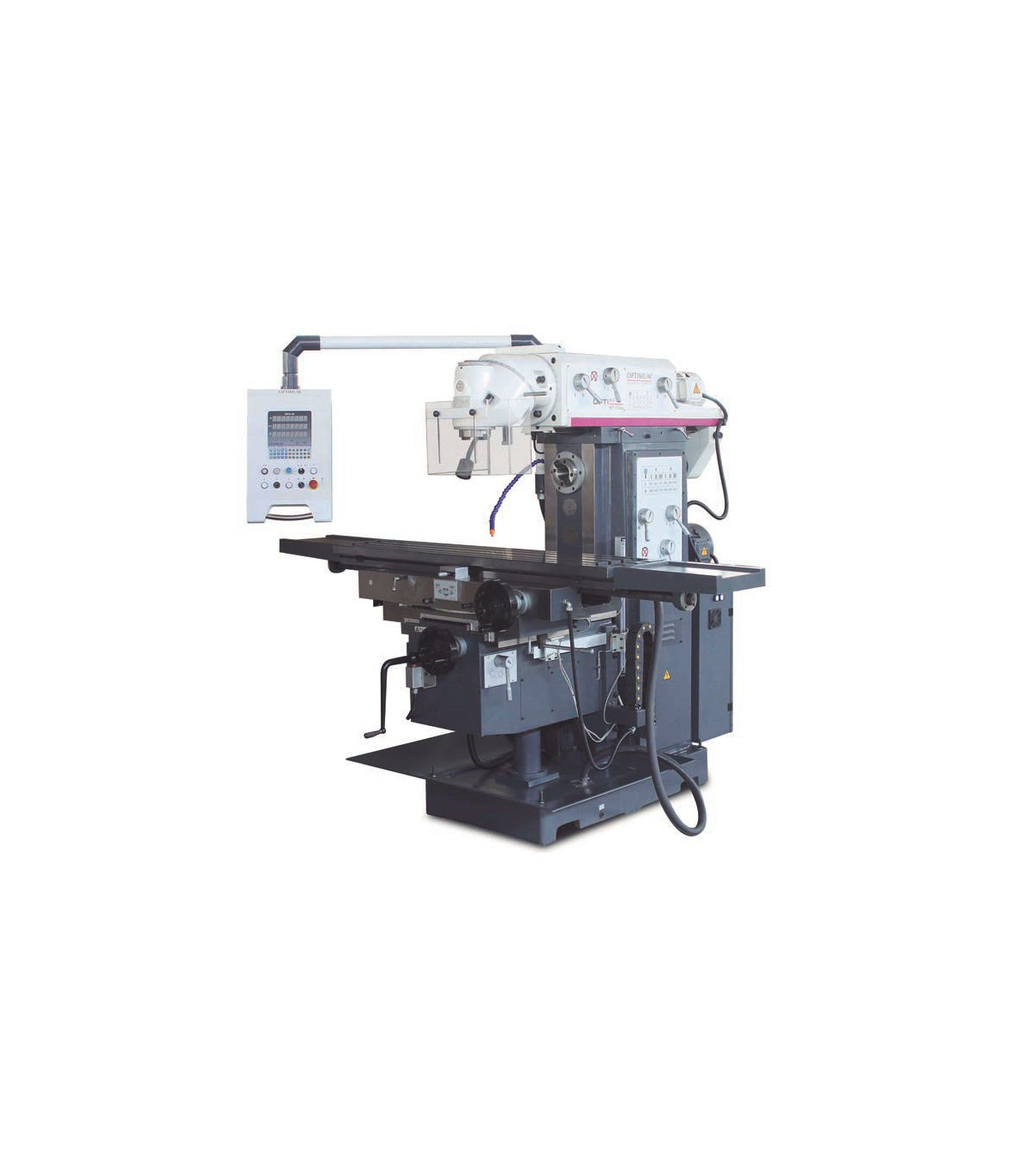

Universal milling machine for workshops MT 230 S OPTIMUM. The MT 230 S OPTIMUM universal milling machine stands out for its versatility and robustness. Its cast iron design ensures stability and precision, while the lubrication and cooling system ensures smooth operation. With large handwheels and an intuitive control panel, it allows for easy handling. Ideal for workshops, its mobile milling head and massive XY table offer flexibility in work.

FEATURES

• Versatile application
• Robust machine construction
• Smooth operation thanks to polished gears that rotate in an oil bath.
• Heavy and solid design made of high-quality Meehanite cast iron
• All guides are tempered and adjustable using wedges.
• Central lubrication
• Large handwheels with scale
• LED machine lamp
• Cooling system
• Easy handling of switching elements
• Stable flat bed guide on the Y and Z axes
• Automatic table feed on the X, Y, and Z axes
• Digital position indicator DPA 21
• The feed system can be controlled in fixed stages using a servomotor.
• Decoupled handwheels
• Massive and large XY table, with precise surface finish with adjustable wedges and adjustable end stops
• Horizontal milling position
• Ready-to-use counterweight horizontal milling machine fixed to the rear of the machine
• Milling head with two axes of rotation, allowing it to pivot and rotate at any angle in space.

OPTI Control Panel:

• Integrated control panel
• Integrated digital position indicator
• Rotates on its own axis

TECHNICAL SPECIFICATIONS

Cooling lubricant system

Power of the coolant pump(s) 90 watts

Dimensions and weights

Approximate length. 2520 millimeters

Approximate width/depth. 2160 millimeters

Approximate height. 2005 millimeters

Approximate weight. 2800 kilograms

Drilling/milling output

Maximum milling head size 160 millimeters

Maximum spindle cutter size 25 millimeters

Electrical data

Total nominal value 12 kW

Supply voltage 400 volts

Network frequency 50 Hz

Rapid movement speed

X axis 1200 mm/min

Y axis 800 mm/min

Z axis 600 mm/min

Feed

X axis infinitely variable

Y axis infinitely variable

Z axis infinitely variable

Feed speed

X axis 30 – 750 mm/min

Y axis 20 – 500 mm/min

Z axis 15 – 375 mm/min

Horizontal spindle

Drive motor output 5.5 kW

Spindle chuck ISO 50 DIN 2080

Speed range 60 – 1800 min¯¹

Number of gears 12 steps

Horizontal milling table

Table length 1600 millimeters

Table width 360 millimeters

Minimum clearance of vertical spindle - milling table 190 millimeters

Maximum clearance between vertical spindle and milling table 590 millimeters

T-slot size 18 millimeters

Number of T-slots 3

T-slot spacing 80 millimeters

Rotation 35°

Maximum load capacity 400 kilograms

Minimum clearance between horizontal spindle and milling table 10 millimeters

Maximum horizontal clearance between spindle and milling table 410 millimeters

Axis

X axis manual 1300 millimeters

Y axis manual 300 millimeters

Z axis manual 400 millimeters

X axis automatic 1220 millimeters

Y axis automatic 220 millimeters

Z axis automatic 320 millimeters

Vertical spindle

Reach from 260 – 810 millimeters

Spindle chuck ISO 50 DIN 2080

Speed range 60 – 1750 min¯¹

Number of gears 12

Clamping bar M 24

Normal operation of vertical spindle 4 kW

Milling head with rotation range in the X-Y plane 360°

Milling head with rotation range in the Z-X plane 360°

VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Horizontal milling spindle with thrust bearing, cutter mounting disc Ø 32 mm, Ø 27 mm
• ISO 50 adapter (7:24) / MK4
• Horizontal and vertical clamping rod M24
• Operating tool

EQUIPMENT

Digital position indicator DPA 31 Plus

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MT 230 S OPTIMUM universal milling machine is suitable for:

• Metal machining industry
• Manufacturing of precision parts
• Prototype workshops
• Production of industrial components
• Manufacturing of custom parts
• Machining of steel and other materials
• Projects requiring high concentricity and precision

CERTIFICATION

The ISO 50 and DIN 2080 standards focus on the ISO 50 taper, which is another type of clamping taper used in machine tools. Like the ISO 40, this standard establishes the necessary dimensions and tolerances to ensure compatibility and precision in the clamping of tools in the machine spindle.

The ISO 50 taper is larger and is generally used for applications that require greater cutting forces, thus ensuring efficient and safe performance in industrial environments.
