Multi-functional tooling milling machine MT 50 OPTIMUM

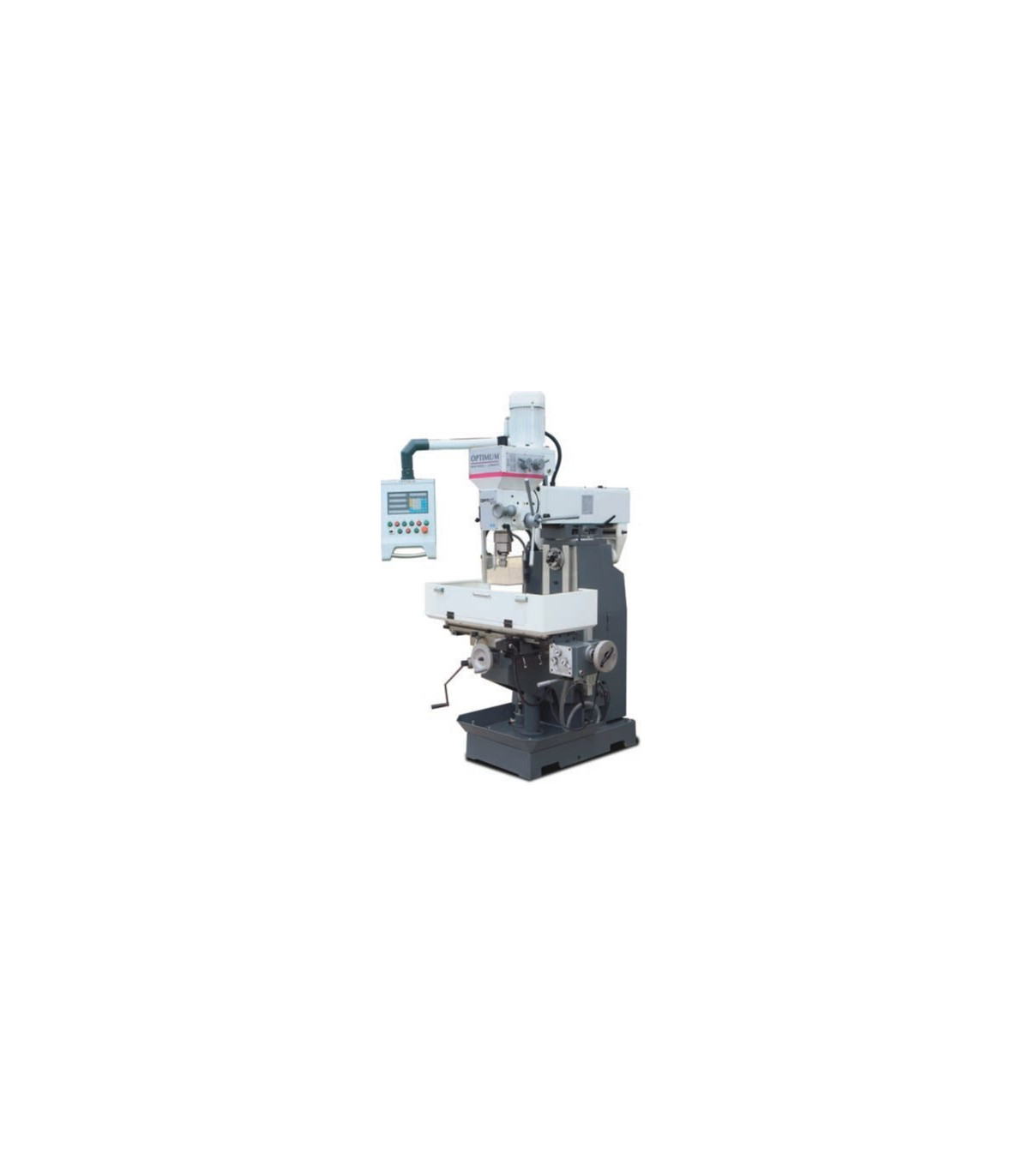

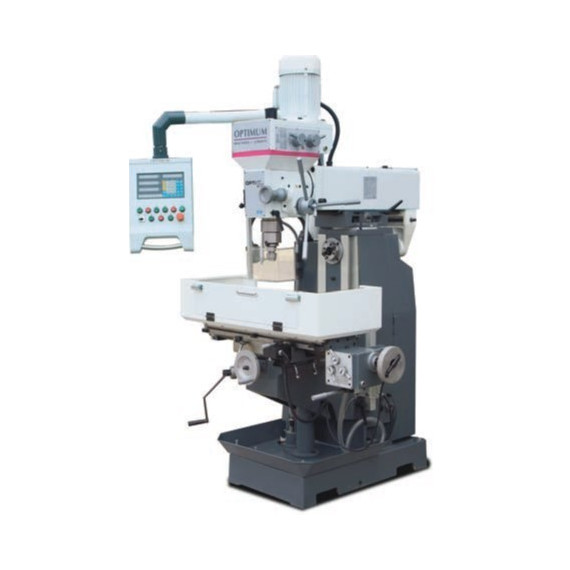

Multi-functional tooling milling machine MT 50 OPTIMUM. The MT 50 OPTIMUM multi-functional milling machine features a robust cast iron design that minimizes vibrations. It has an oil bath gearbox, a solid table with T-slots, and a tilting head ± 45°. It includes cooling, a halogen lamp, and an adjustable protective screen to ensure safety. Weighing 820 kg and with generous dimensions, it is ideal for drilling and milling high-performance steel, offering precision and ease of use.

FEATURES

• Heavy and solid design made of high-quality gray cast iron that absorbs vibrations.
• Oil bath gearbox with ground and tempered gears
• Cooling device
• Halogen lamp for the machine with focused beam
• Solid and generously sized cross table, precisely machined on the surface with T-slots and adjustable guides.
• The milling head can be tilted ± 45º
• Right/left rotation
• The X-axis moves with the handwheel or via the table feed device.
• Automatic stop of the X-axis
• Height-adjustable protective screen with micro-switch, against chip and part projection, for maximum user protection.

TECHNICAL SPECIFICATIONS

Cooling lubricant system

Power of the coolant pump(s) 40 watts

Dimensions and weights

Approximate length 1290 millimeters

Approximate width/depth 1090 millimeters

Approximate height 2170 millimeters

Approximate weight 820 kilograms

Drilling/milling head

Head rotation range ± 45°

Drilling/milling output

Maximum milling head size 100 millimeters

Maximum spindle cutter size 25 millimeters

High-performance steel for drilling (S235JR) 30 millimeters

High-performance steel for continuous drilling (S235JR) 25 millimeters

Electrical data

Total nominal value 4.5 kW

Supply voltage 400 volts

Network frequency 50 Hz

Feed speed

X-axis 24 – 720 mm/min

Horizontal spindle

Drive motor output 1.5 kW

Reach 0 – 185 millimeters

Spindle chuck ISO 40 DIN 2080

Speed range 60 – 1350 min¯¹

Number of gears 9

Horizontal milling table

Table length 1000 millimeters

Table width 240 millimeters

T-slot size 14 millimeters

Number of T-slots 4

Maximum load capacity 160 kilograms

Axis

Manual X-axis 580 millimeters

Manual Y-axis 200 millimeters

Manual Z-axis 340 millimeters

Automatic X-axis 500 millimeters

Vertical spindle

Reach from to 240 – 650 millimeters

Spindle chuck ISO 40 DIN 2080

Speed range 115 – 1750 min¯¹

Number of gears 8

Normal operation of the vertical spindle 1.1 / 2.2 kW

Stroke of the quill 120 millimeters

VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Chuck holder for crown teeth 1 - 16 mm / B 18
• ISO40 chuck holder / B18
• Horizontal milling spindle with counter bearing, housing for side cutter Ø 22 mm, Ø 27 mm
• ISO 40/MK3 adapter
• ISO 40/MK2 adapter
• Vertical and horizontal clamping rod
• T-nuts
• Ejector
• Operating tool

EQUIPMENT

Digital position indicator DPA 31 Plus

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MT 50 OPTIMUM multi-functional milling machine is suitable for:

• Metal machining industry
• Precision parts manufacturing
• Prototype workshops
• Production of industrial components
• Manufacturing of custom parts
• Machining of steel and other materials
• Projects requiring high concentricity and precision

CERTIFICATION

- ISO 40: The ISO 40 cone is part of a series of taper cones used to secure tools in the machine spindle. This standard specifies the dimensions and tolerances to ensure interchangeability and precision in tool clamping.
