Tool milling machine with two-speed motor MT 50 E OPTIMUM

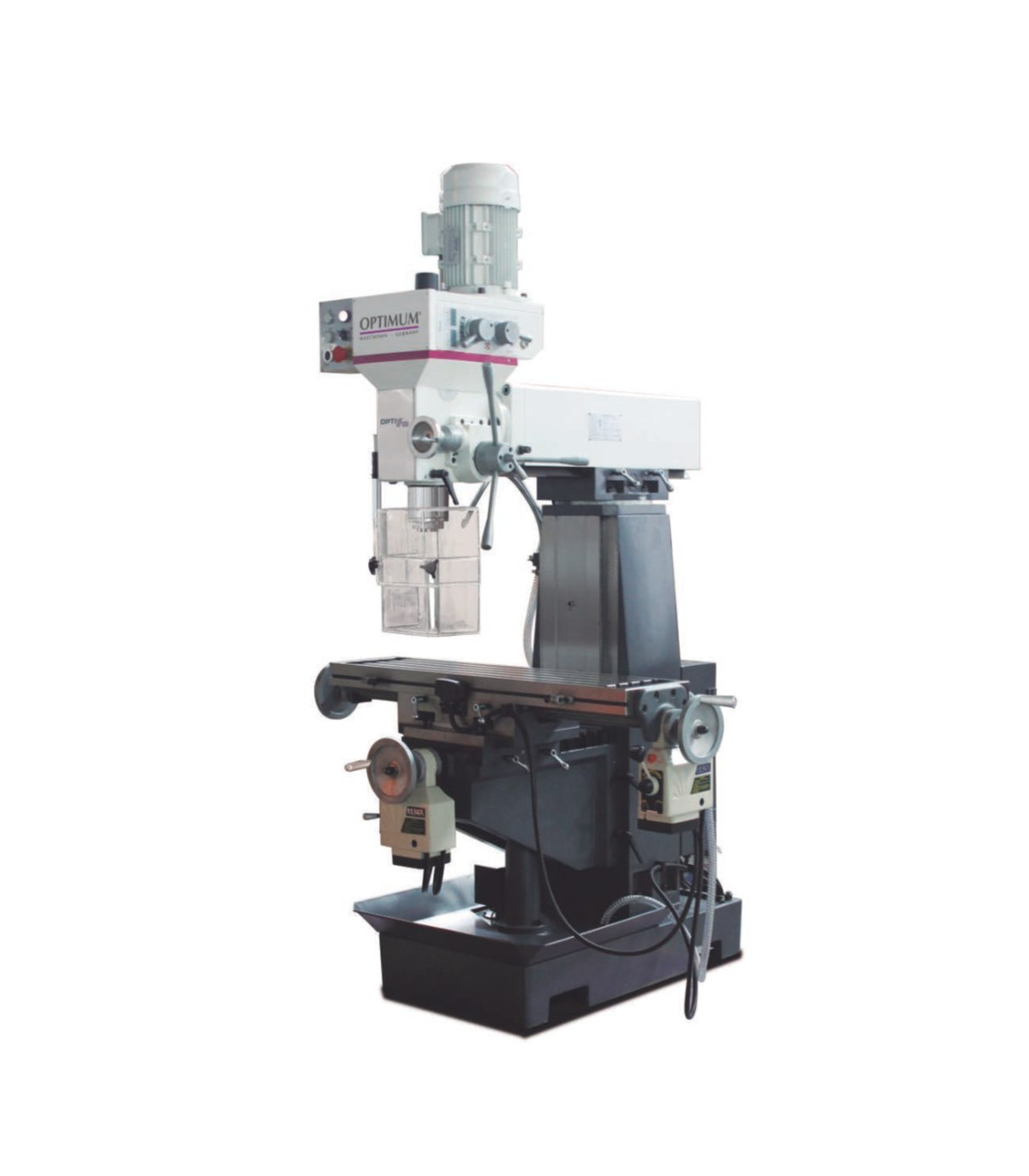

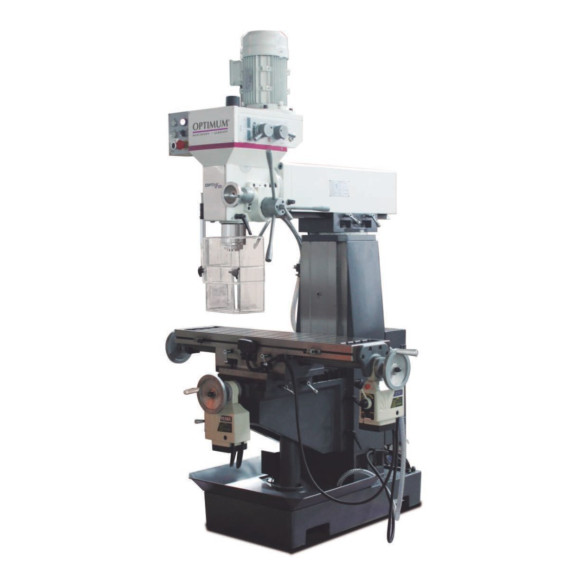

Tool milling machine with a two-speed motor MT 50 E OPTIMUM. The MT 50 E OPTIMUM milling machine combines a cast design that reduces vibrations and an oil bath gearbox. With a solid table, adjustable stop, and intuitive control panel, it is ideal for drilling and milling. Its head tilts ± 45°, and it features cooling, an LED lamp, and chip protection, ensuring user safety. Weighing 760 kg, it is perfect for precise work in high-performance steel.

FEATURES

• Cast design that absorbs vibrations
• Oil bath gearbox with ground and tempered gears
• Cooling device
• LED lamp
• Solid cross table with generous dimensions, precisely machined surface with T-slots and adjustable guides.
• Adjustable guide rails
• Adjustable end stop for the X axis
• Mechanical adjustment of the quill for drilling via quill lever
• Right/left rotation
• Clutch to switch from coarse manual feed to fine manual feed
• User-friendly control panel
• Height-adjustable protective screen with micro switch, against chip and part projection, for maximum user protection.

TECHNICAL SPECIFICATIONS

Cooling lubricant system

Power of the coolant pump(s) 40 watts

Dimensions and weights

Approximate length 1360 millimeters

Approximate width/depth 1150 millimeters

Approximate height 2080 millimeters

Approximate weight 760 kilograms

Drilling/milling head

Tilting range of the milling-drilling head ± 45°

Drilling/milling output

Maximum milling head size 63 millimeters

Maximum spindle cutter size 25 millimeters

High-performance steel for drilling (S235JR) 30 millimeters

High-performance steel for continuous drilling (S235JR) 25 millimeters

Electrical data

Drive motor output 0.75 / 1.5 kW

Supply voltage 400 volts

Network frequency 50 Hz

Horizontal milling table

Table length 1000 millimeters

Table width 240 millimeters

Minimum vertical spindle clearance - milling table 60 millimeters

Maximum clearance between vertical spindle and milling table 360 millimeters

T-slot size 14 millimeters

Number of T-slots 4

Rotation 45°

Maximum load capacity 150 kilograms

Axis

X axis manual 580 millimeters

Y axis manual 230 millimeters

Z axis manual 320 millimeters

X axis automatic 500 millimeters

Y axis automatic 150 millimeters

Vertical spindle

Reach from to 250 – 650 millimeters

Spindle chuck SK 40 DIN 2080

Speed range 115 – 1750 min¯¹

Number of gears 8

Clamping bar M16

Normal operation of the vertical spindle 0.85 / 1.5 kW

Stroke of the quill 120 millimeters

VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• 3-16 mm chuck holder / B 18
• ISO40 chuck holder / B18
• T-nuts
• Extractor
• ISO40-MK 3 adapter
• MK 3-MK 2 adapter
• Operating tool

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MT 50 E OPTIMUM two-speed motor tool milling machine is suitable for:

• Metal machining industry
• Manufacturing of precision parts
• Prototype workshops
• Production of industrial components
• Creation of custom parts
• Machining of steel and other materials
• Projects requiring high concentricity and precision

CERTIFICATION

- ISO 40: The ISO 40 cone is part of a series of conical cones used to secure tools in the machine spindle. This standard establishes the dimensions and tolerances to ensure interchangeability and precision in tool clamping.
