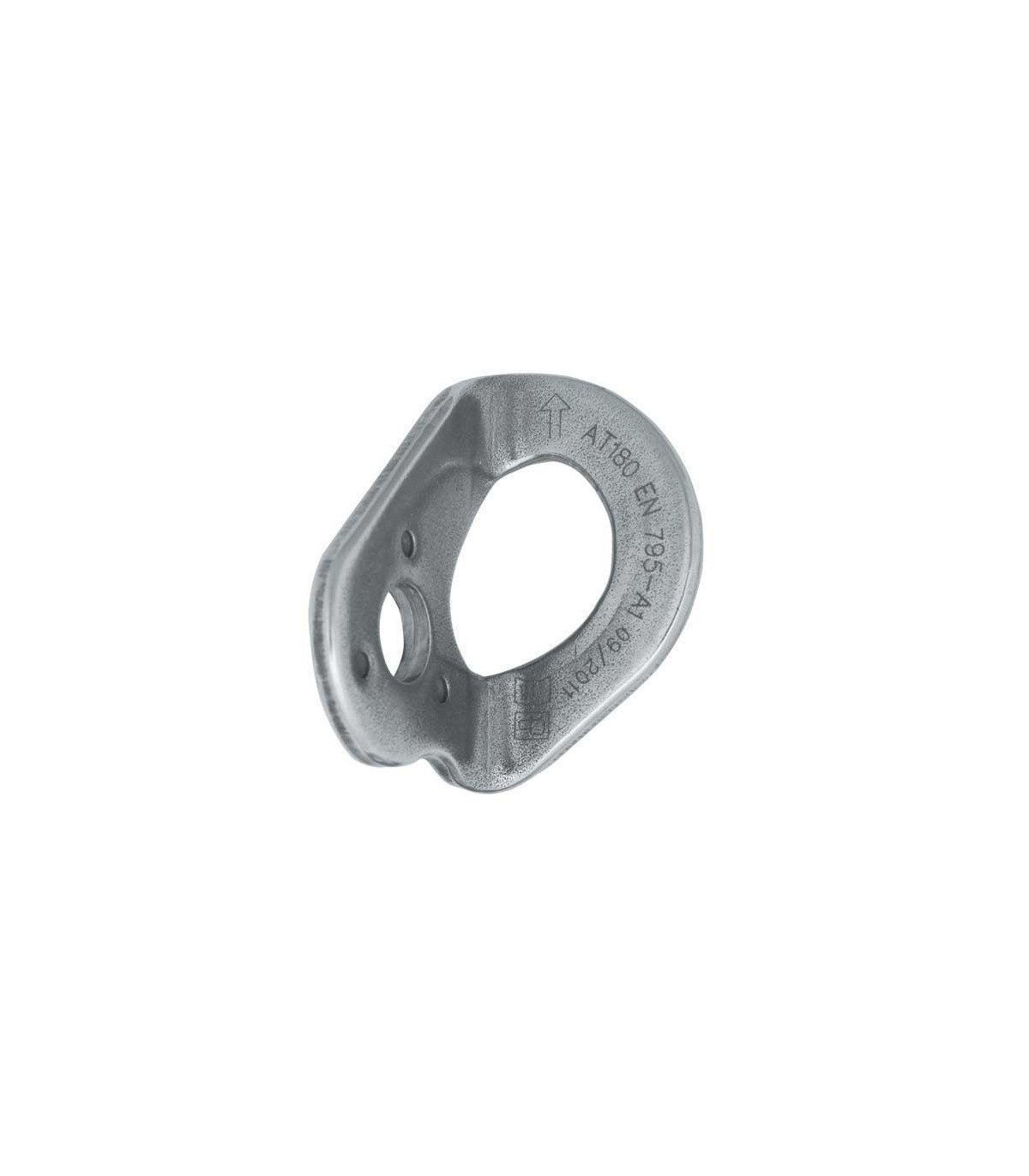

Permanent mechanical anchor plate EN 795 class A ref. AT180

FEATURES

• Anchor / Permanent mechanical anchor plate for M12 bolt made of stainless steel ANSI 316.
• Valid for 1 person.
• Static resistance: min. 12 kN.

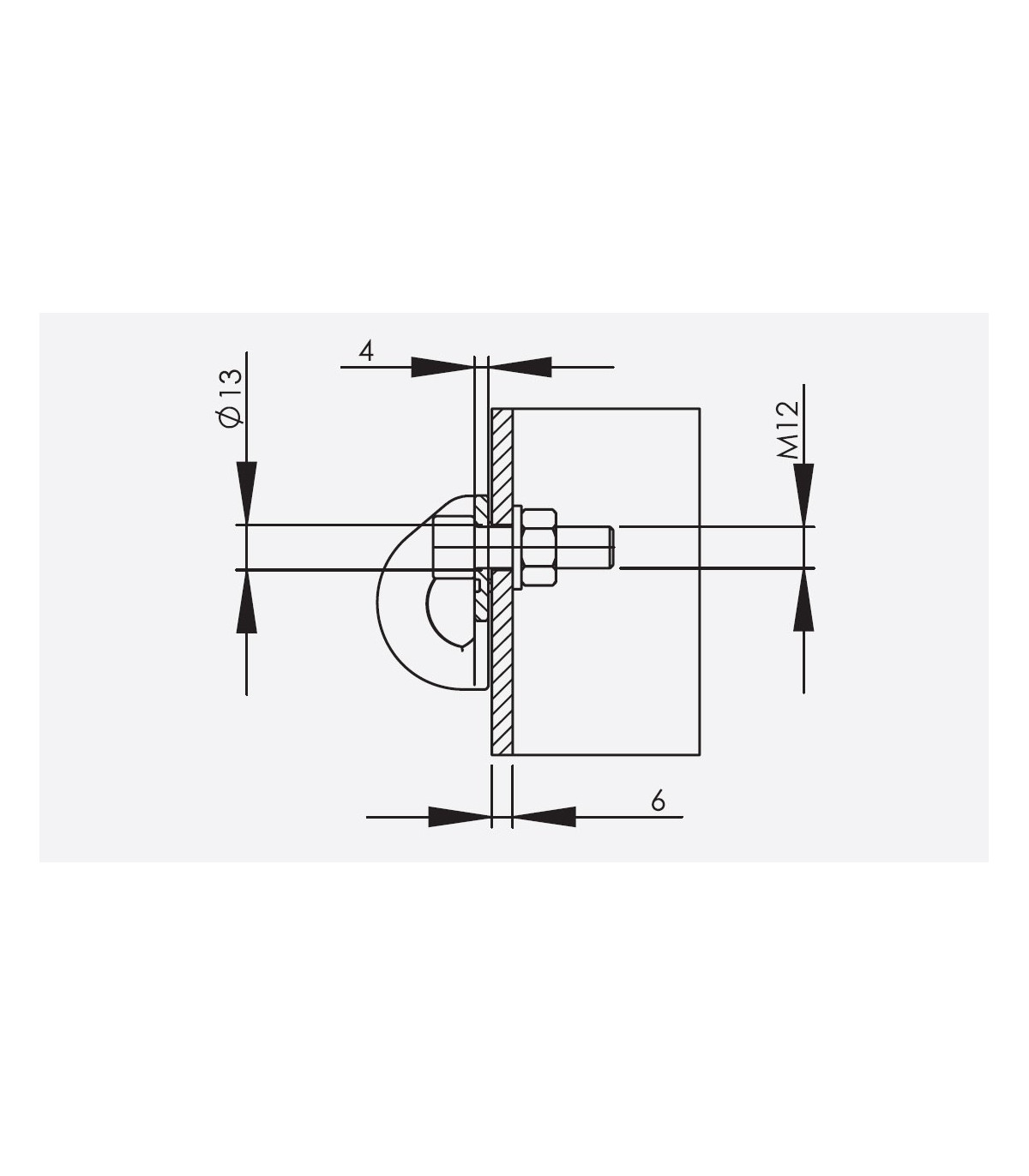

• Dimensions: 56x56x50 mm.
• Hole diameter 12.5 mm.
• Anchor length 120 mm.
• EN795 Class A.

TECHNICAL DATA

• HSA-R M12x120 / 25/4
• anchor length - 120mm
• Type of anchor - mechanical anchor
• Material: Stainless steel
• Standard embedding depth - 70 mm
• Thread diameter - M12

------------------------------------------------------

Working at height involves a significant amount of risks and dangers to the integrity and health of professionals, who must have the appropriate Personal Protective Equipment to perform their tasks with the highest possible degree of safety. Work at height is not only considered for those tasks carried out at a height greater than two meters above the surface, but also for those conducted in excavations, trenches, wells..., making it very important that in addition to the equipment each professional must wear, all necessary elements are available to form an effective fall protection system. One of these important elements in many height work situations is the anchor points, such as the Permanent mechanical anchor plate EN 795 class A ref. AT180.

The Permanent mechanical anchor plate EN 795 class A ref. AT180 is an anchor point for M21 bolt made of stainless steel and designed for one person, with a minimum static resistance of 12 kN. Its dimensions are 56 x 56 x 50 mm, with a hole diameter of 12.5 mm and an anchor length of 120 mm.

This type of anchoring device is designed to be part of the system that must be used in all these work environments to be able to stop falls, serving as a connection point between harnesses, ropes, retractable fall protection... and the structure to which it is fixed. This type of anchor is permanent, making it a solution intended to be installed in all buildings where maintenance or periodic work is carried out. In any case, these types of elements must be inspected according to the manufacturer's instructions to ensure they are always in perfect condition for use by workers without endangering them.

Anchoring devices are subject to a series of fall tests conducted in all intended directions of use and must be installed by qualified personnel to ensure their effectiveness. This anchor point complies with the EN 795 standard, being one of the best options available on the market.
