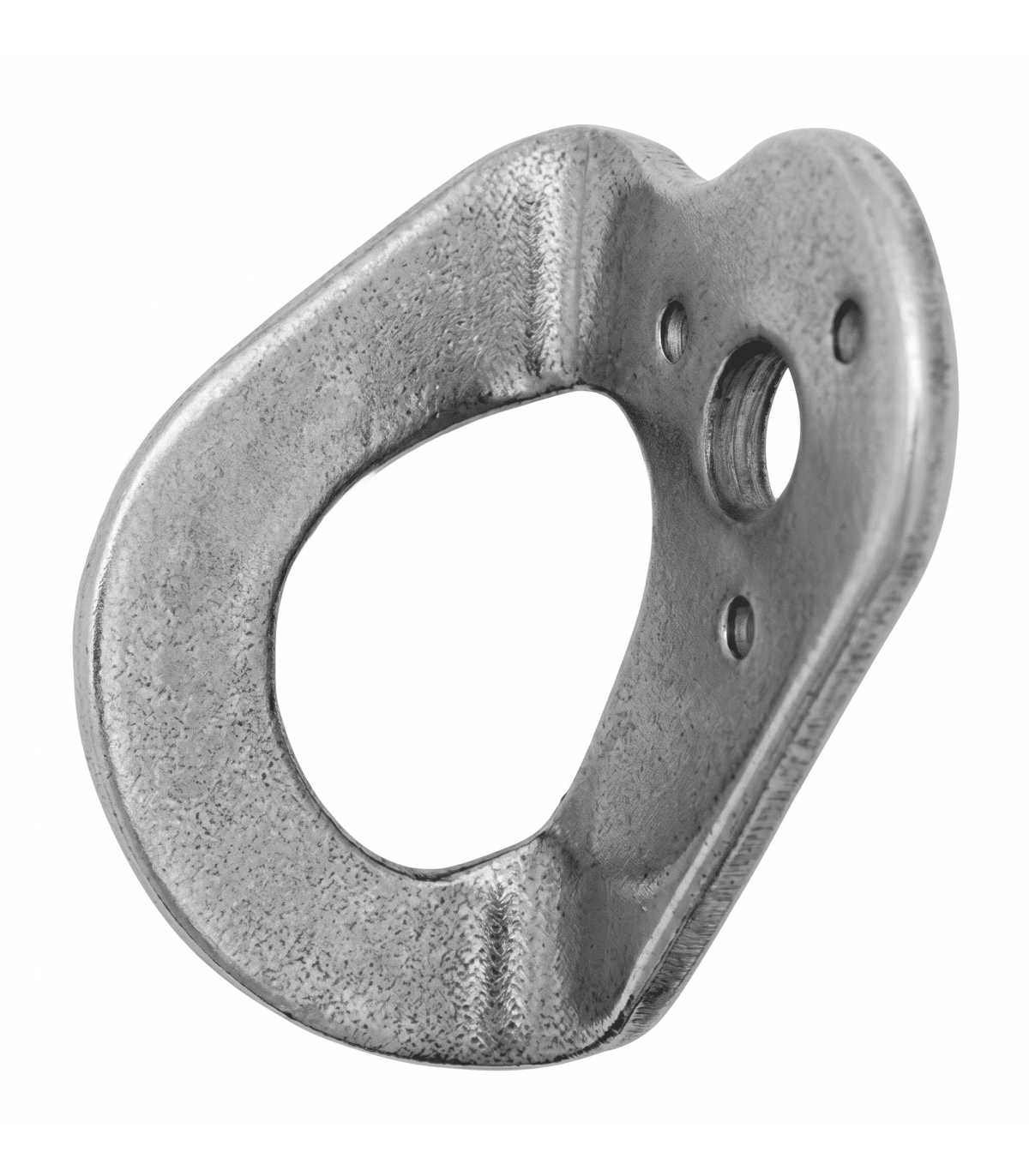

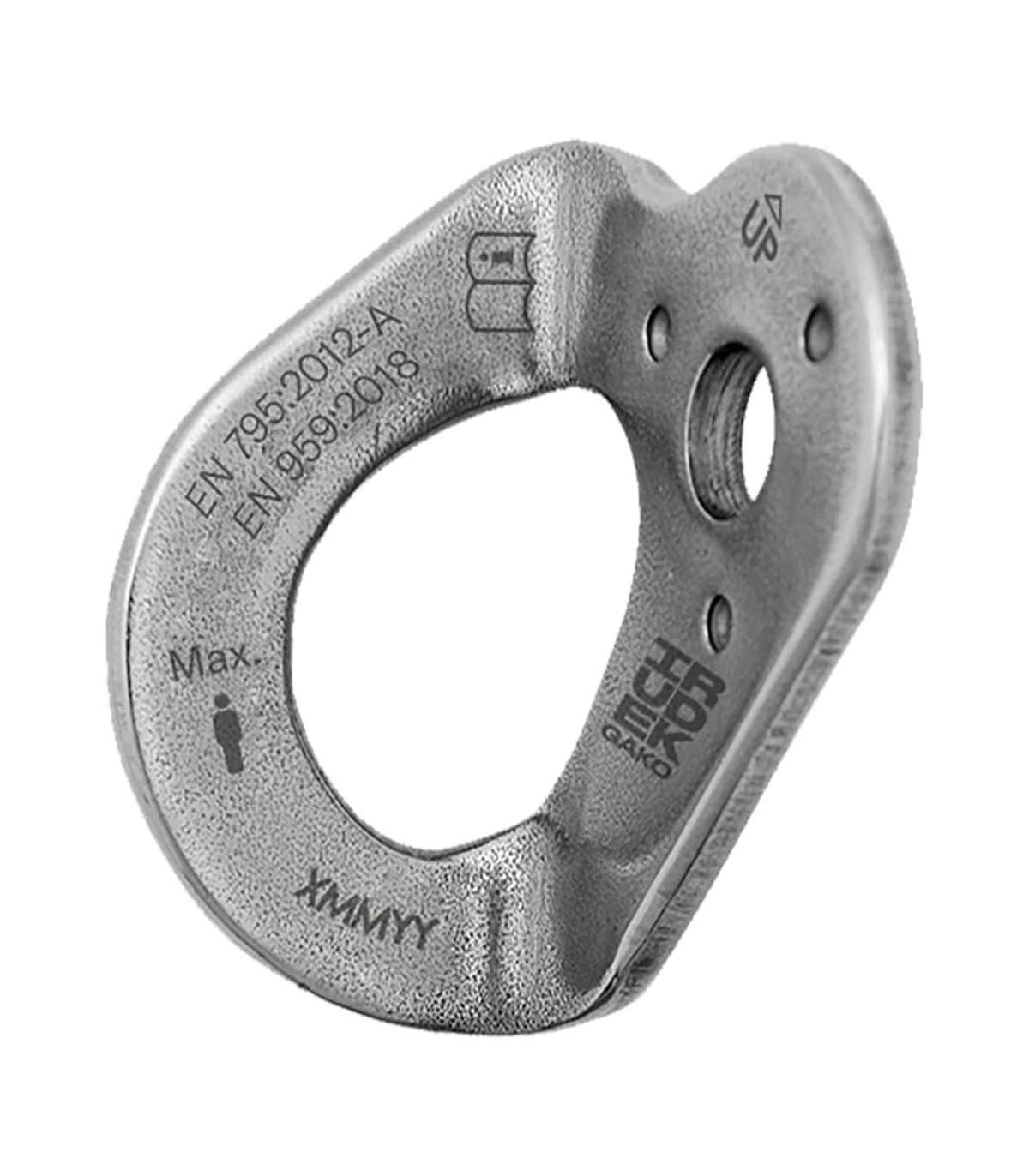

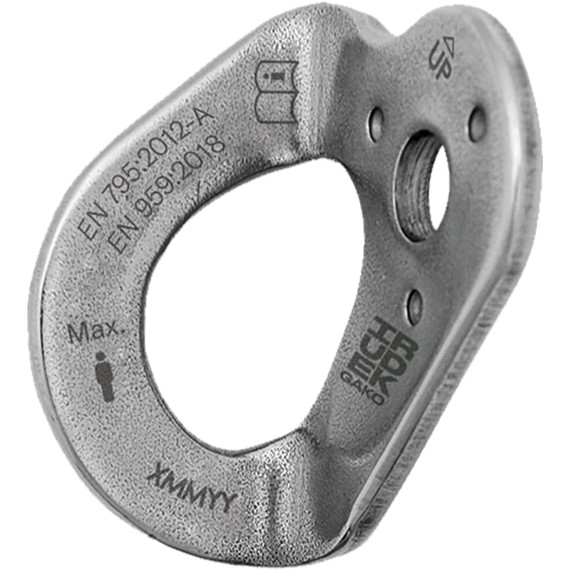

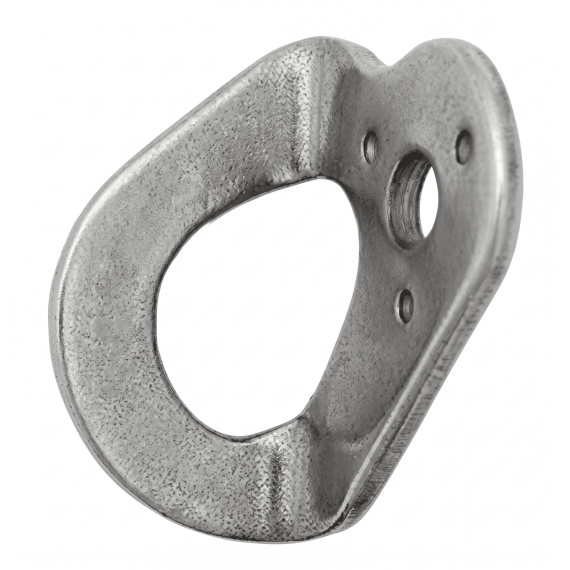

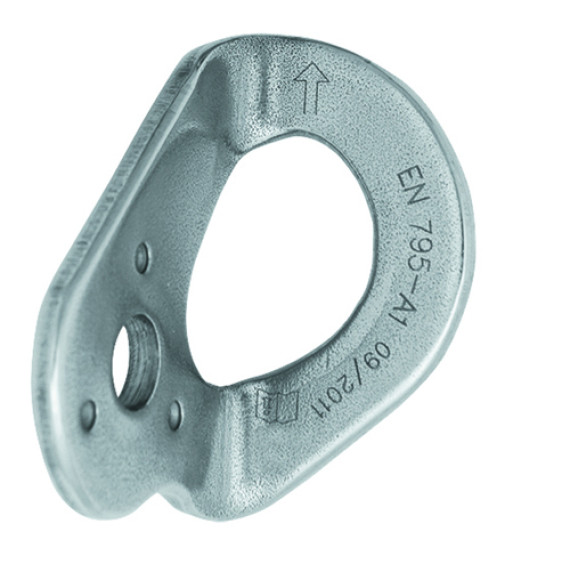

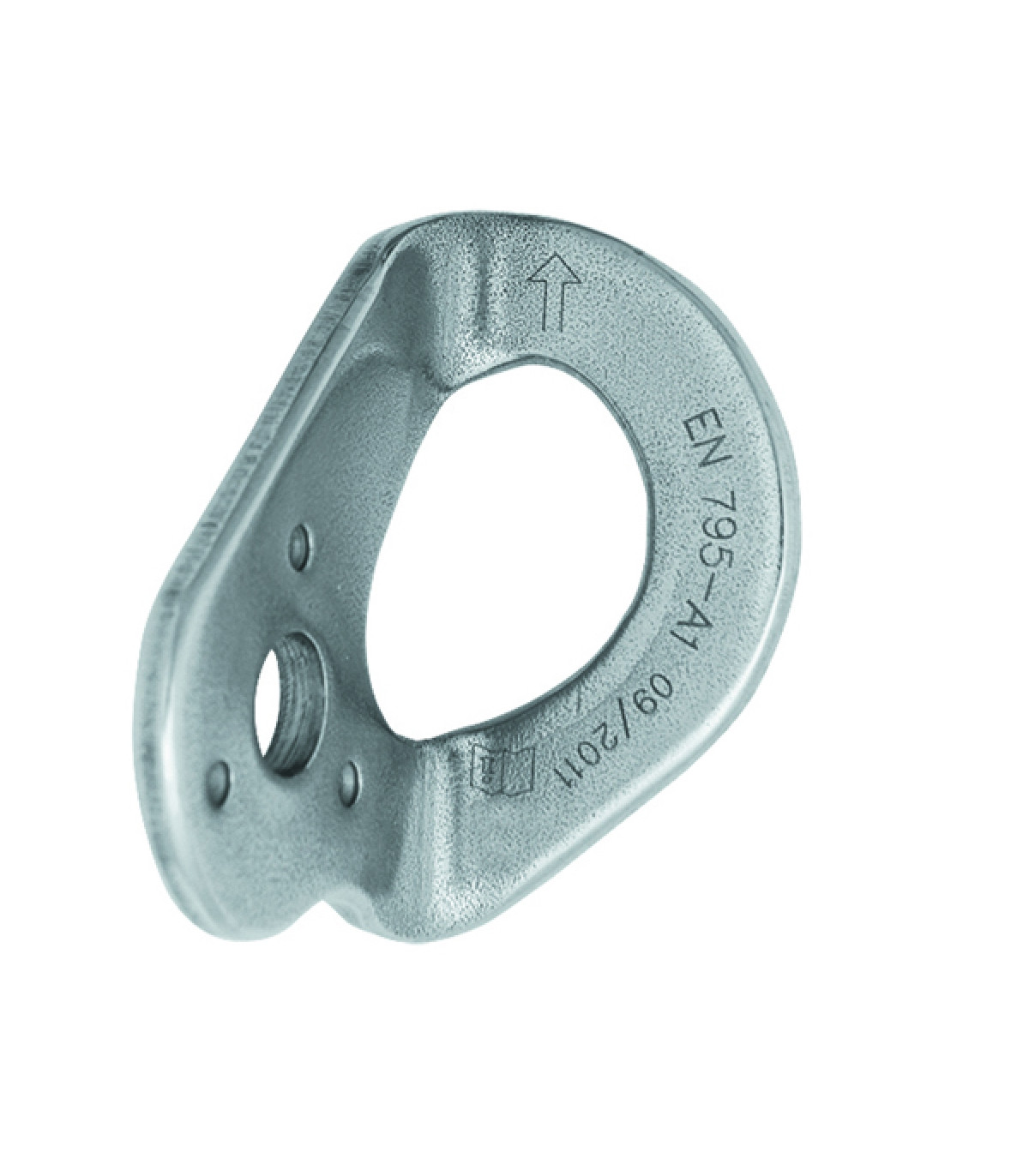

Stainless steel anchor ring for fall protection use IRUDEK GAKO 12 - Pro 9

Stainless steel AISI 304 fall protection anchorage device to create a connection point in structures (e.g., wall or pillar). Designed for fastening with metric screws 12 and use by a single user. Declared strength up to 23 kN.

FEATURES

• Body made of stainless steel AISI 304, suitable for outdoor exposure
• Three anti-rotation pins to reduce twisting during installation
• Rounded inner edge to decrease wear on the connector (carabiner)
• Fastening intended with metric screw 12
• Designed to be installed on vertical surfaces (walls, columns, or lintels)
• Usage capacity: 1 user
• Declared strength: 23 kN

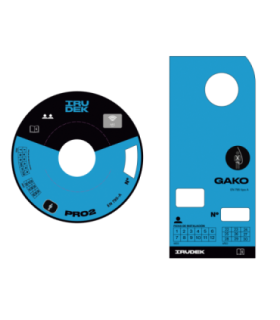

• Information plate option for inspections and reviews

BENEFITS OF THE Stainless Steel Anchorage Ring for Fall Protection IRUDEK GAKO 12 - Pro 9

Provides a permanent anchorage point for work at height when you need to connect a fall protection system to a fixed structure. The stainless steel AISI 304 helps maintain the integrity of the assembly in outdoor use, and the anti-rotation pins facilitate a more stable installation. The rounded inner edge is designed for repeated use with connectors, reducing wear from contact.

USES AND APPLICATIONS: WHAT IT IS SUITABLE FOR

Suitable for work where a fall protection connection point is required on a fixed structure, such as industrial maintenance, installations and inspections at height, or tasks on facades and metal/concrete structures (depending on the chosen fastening system and the strength of the support). It integrates into fall protection systems with compatible components (harness, connectors, and lanyard/fall protection elements).

TECHNICAL DATA

• Material: stainless steel AISI 304
• Usage capacity: 1 user
• Declared strength: 23 kN
• Dimensions: 70 x 90 x 110 mm
• Service life: unlimited
• Usage recommendation: installation above head height when possible
• Support requirement: minimum static strength 12 kN

REGULATIONS AND CERTIFICATIONS

• EN 795 A: standard for anchorage devices; indicates that the point is designed to integrate into fall protection systems connected to a structure.
• EN 959-2: standard associated with anchors for use in specific applications; provides an additional framework of requirements for anchoring based on its intended use.

FREQUENTLY ASKED QUESTIONS ABOUT THE Stainless Steel Anchorage Ring for Fall Protection IRUDEK GAKO 12 - Pro 9

How many people can use this anchorage point?

It is intended for the simultaneous use of a single person.

Can it be used outdoors?

It is made of stainless steel AISI 304 and is suitable for both indoor and outdoor use, provided that the installation is appropriate for the support and environment.

What type of fastening does it require?

It is designed for installation with metric screws 12; the specific anchoring system (e.g., for concrete or metal structure) should be chosen according to the support where it will be installed.
