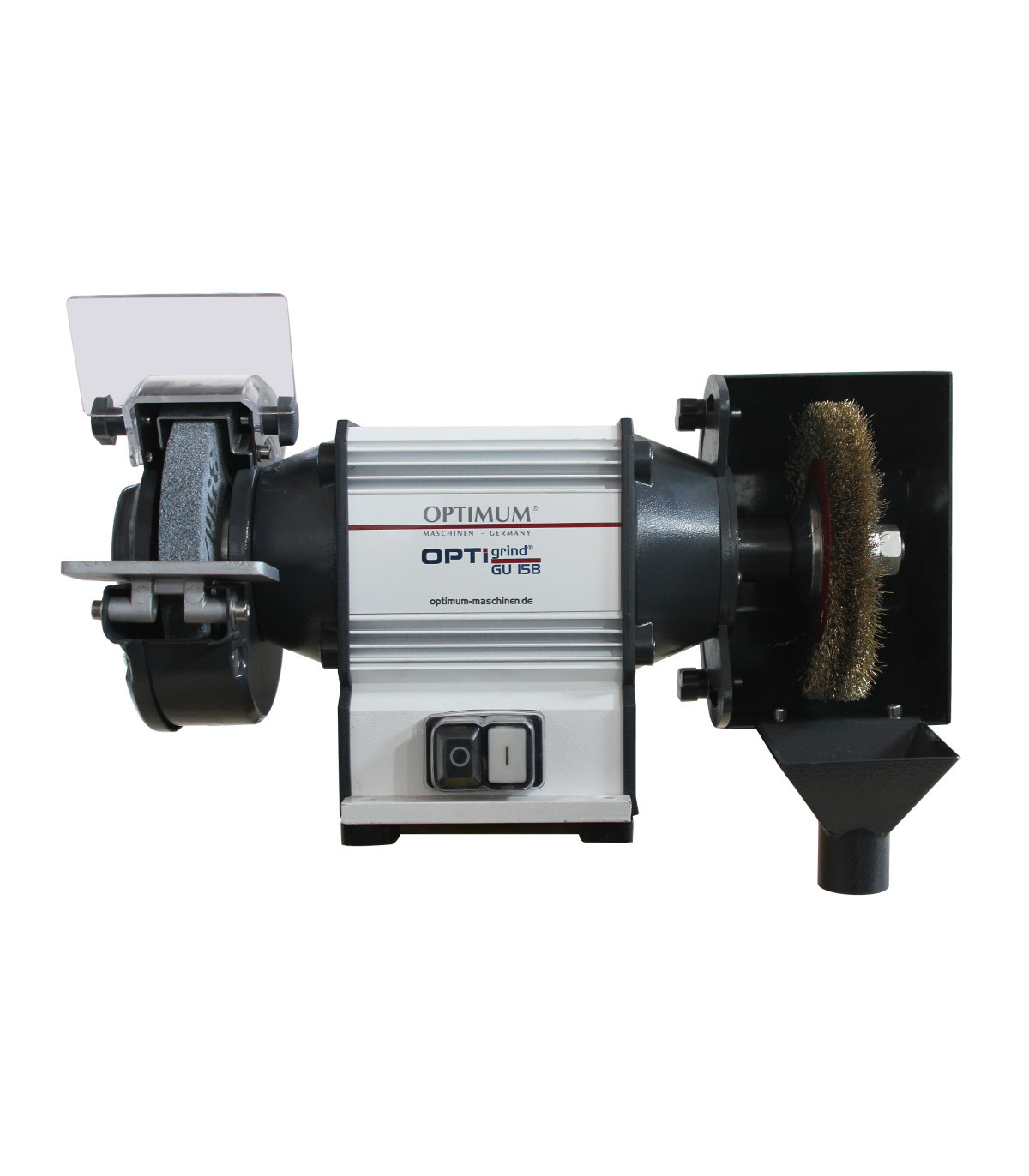

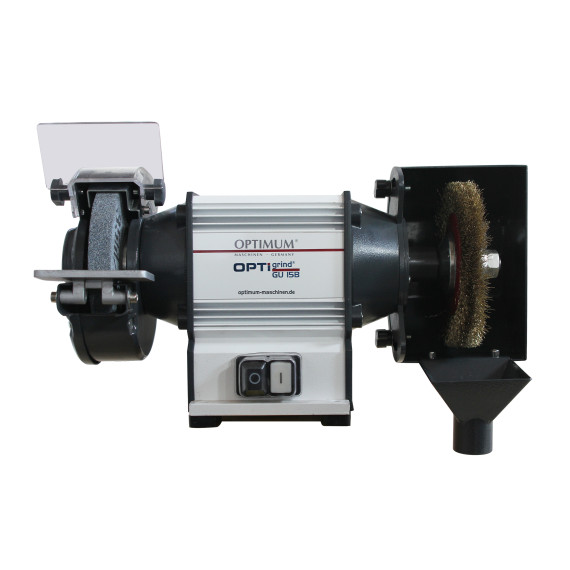

Combined grinder 15B OPTIMUM

Combined grinder 15B OPTIMUM. The combined grinder 15B OPTIMUM features a durable design and maintenance-free motor. Its aluminum housing, heavy flanges, and polishing accessories prevent friction. Ideal for metallurgy, maintenance, woodworking, DIY, and technical education. With steel wire brushes and various specifications, it offers high concentricity and efficiency in work.

FEATURES

• Durable design with a maintenance-free motor.
• Extruded aluminum housing
• Large and heavy mounting flanges, thus high concentricity of the disc
• Polishing accessory with graphite coating; prevents friction and heat
• The stop allows for quick and easy sanding of workpieces

Brush housing

• Rotatable
• Extraction nozzle to connect a suction device

Multi-purpose wire brush

• High-strength steel wire
• Available as accessories in different thicknesses.

TECHNICAL SPECIFICATIONS

Brushes

• Outer diameter of the multi-purpose wire brush 150 millimeters
• Width of the multi-purpose wire brush 20 millimeters

Dimensions and weights

• Approximate length 428 millimeters
• Approximate width/depth 305 millimeters
• Approximate height 230 millimeters
• Approximate weight. 10.7 kilograms

Electrical data

• Drive motor output 0.45 kW
• Supply voltage 230 V / 450 V
• Network frequency 50 Hz

Abrasive wheel(s)

• Outer diameter 150 millimeters
• Width 20 millimeters
• Hole drill 16 millimeters
• Speed 2850 min¯¹
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Coarse normal corundum abrasive wheel K36
• Round wire brush with a thickness of 0.3 mm.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Combined Grinder 15B OPTIMUM is suitable for:

• Metallurgy
• Industrial maintenance
• Woodworking
• Home and DIY
• Technical education
