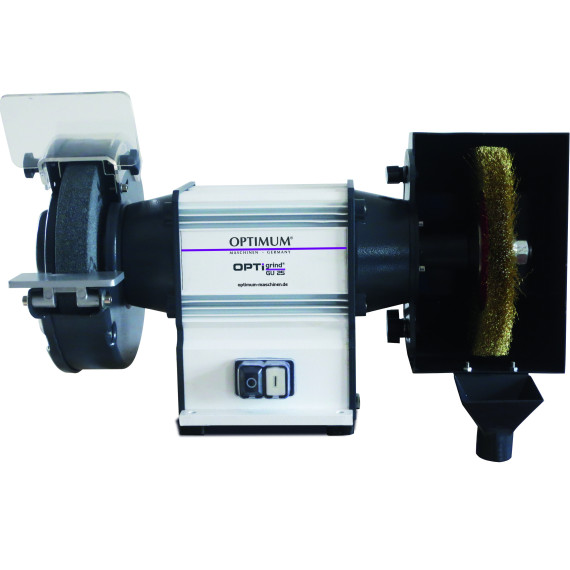

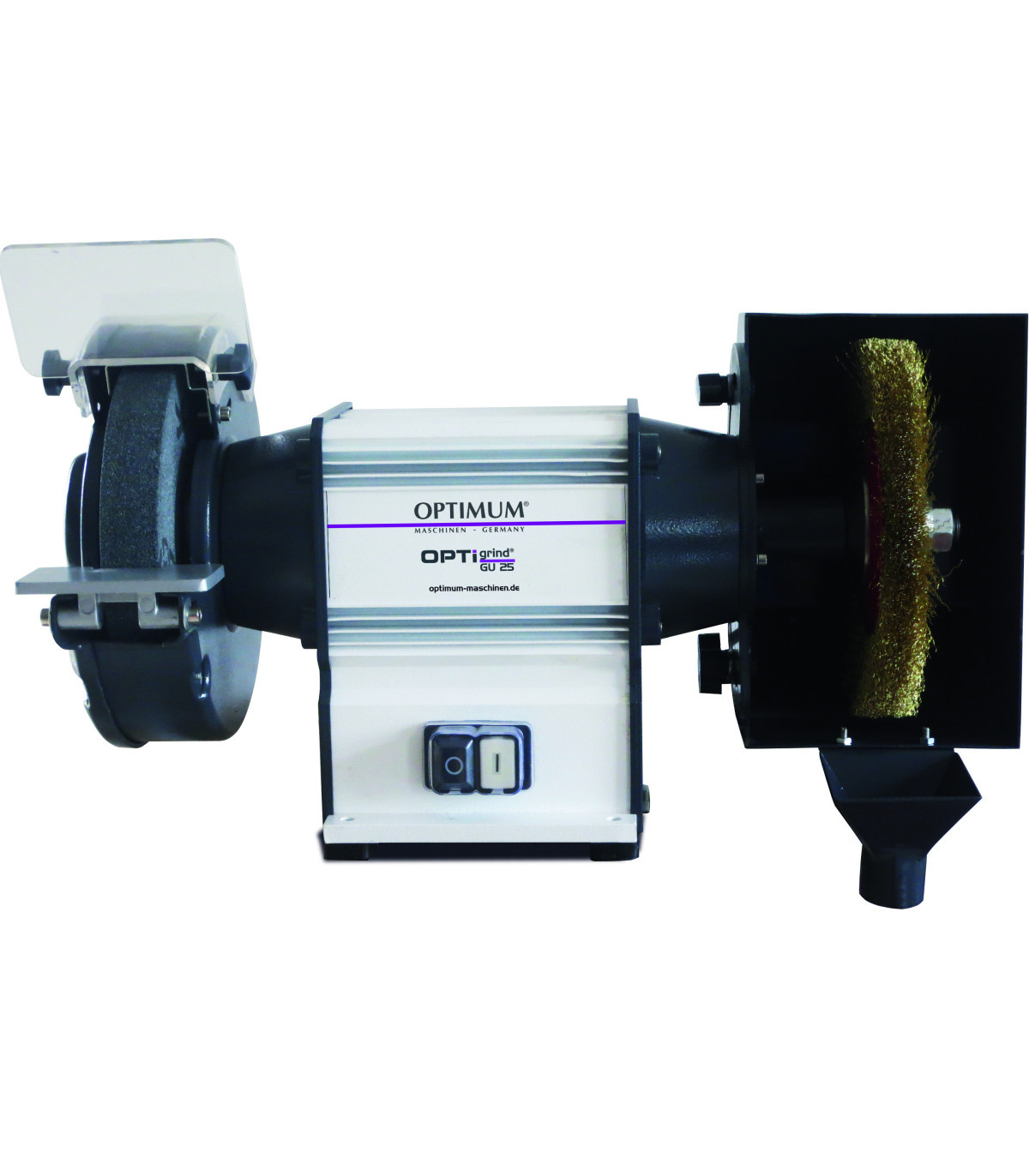

Combined grinder for metallurgy 18B OPTIMUM

Combined grinder for metallurgy 18B OPTIMUM. The 18B OPTIMUM combined grinder features a durable design and maintenance-free motor. Its aluminum housing and heavy flanges ensure high concentricity. Ideal for metallurgy, maintenance, carpentry, DIY, and technical education, it includes polishing accessories and high-strength steel wire brushes for efficient work.

FEATURES

• Durable design with a maintenance-free motor.
• Extruded aluminum housing
• Large, heavy mounting flanges for high disk concentricity
• Polishing accessory with graphite coating; prevents friction and heat
• The stop allows for quick and easy sanding of workpieces

Brush housing

• Rotatable
• Extraction nozzle for connecting a suction device

Multi-purpose wire brush

• High-strength steel wire
• Available as accessories in different thicknesses.

TECHNICAL SPECIFICATIONS

Brushes

• Outer diameter of the multi-purpose wire brush 175 millimeters
• Width of the multi-purpose wire brush 25 millimeters

Dimensions and weights

• Approximate length 428 millimeters
• Approximate width/depth 305 millimeters
• Approximate height 244 millimeters
• Approximate weight 12.3 kilograms

Electrical data

• Drive motor output 0.45 kW
• Power supply voltage 230 V / 450 V
• Network frequency 50 Hz

Abrasive wheel(s)

• Outer diameter 175 millimeters
• Width 25 millimeters
• Hole drill 32 millimeters
• Speed 2850 min¯¹
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Coarse normal corundum abrasive wheel K36
• Round wire brush with a thickness of 0.3 mm.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The 18B OPTIMUM combined grinder for metallurgy is suitable for:

• Metallurgy
• Industrial maintenance
• Carpentry
• Home and DIY
• Technical education
