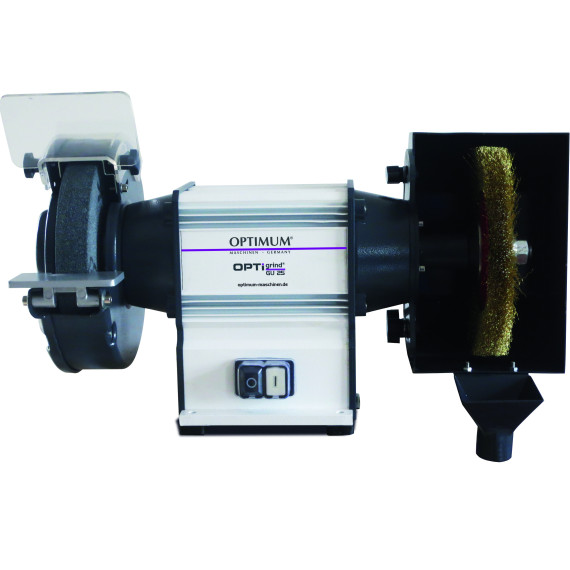

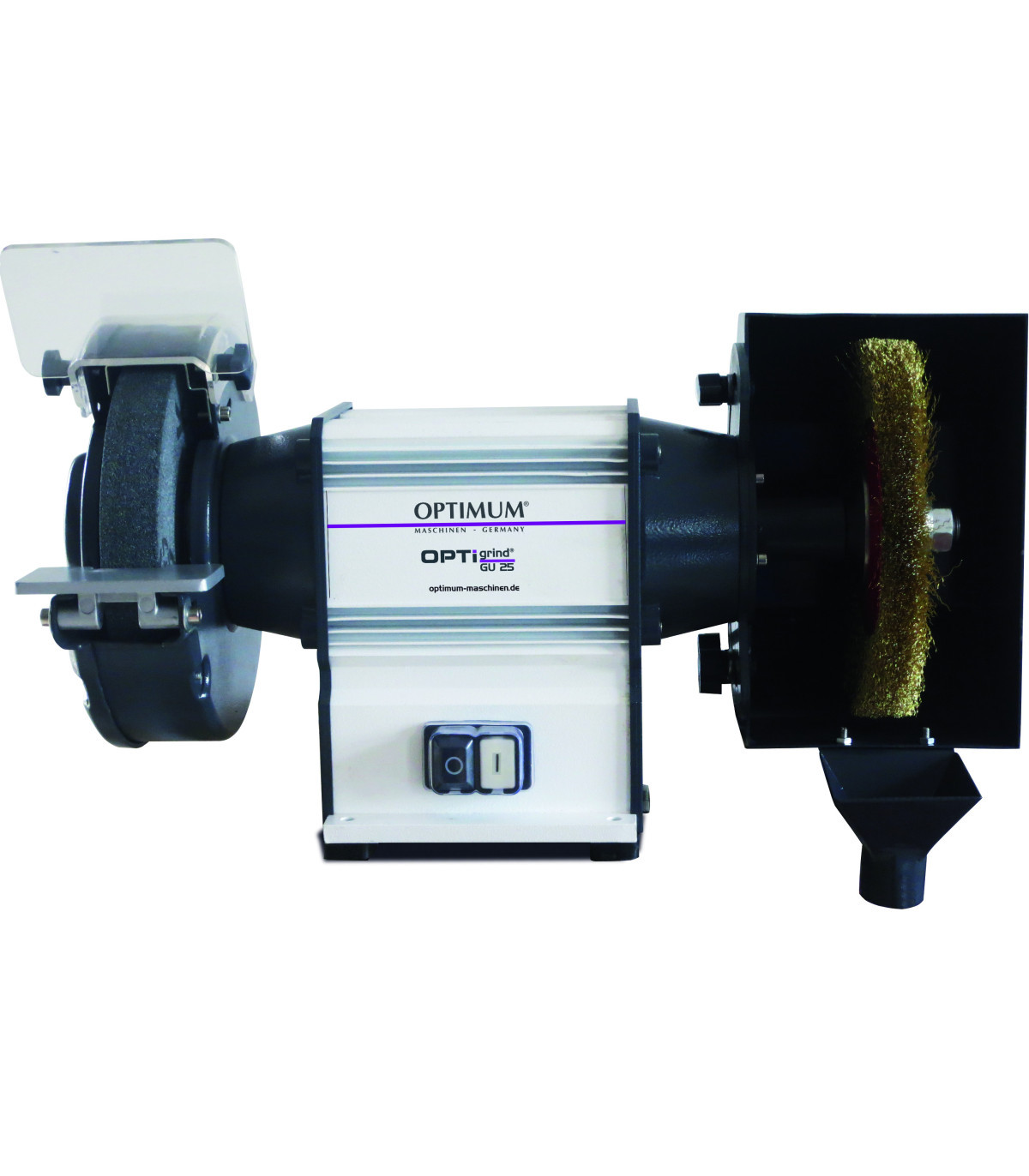

Combined grinder for metallurgy 25B OPTIMUM

Combined grinder for metallurgy 25B OPTIMUM. The 25B OPTIMUM combined grinder stands out for its durable design and maintenance-free motor. With an aluminum housing and heavy flanges, it offers high concentricity. Ideal for metallurgy, industrial maintenance, and DIY, it includes polishing accessories and steel wire brushes. Its efficiency allows for quick and easy sanding of workpieces, making it an essential tool for technical education and home use.

FEATURES

• Durable design with a maintenance-free motor.
• Extruded aluminum housing
• Large, heavy mounting flanges for high disk concentricity
• Polishing accessory with graphite coating; prevents friction and heat
• The stop allows for quick and easy sanding of workpieces

Brush housing

• Rotatable
• Extraction nozzle to connect a suction device

Multi-purpose wire brush

• High-strength steel wire
• Available as accessories in different thicknesses.

TECHNICAL SPECIFICATIONS

Brushes

• Outer diameter of the multi-purpose wire brush 250 millimeters
• Width of multi-purpose wire brush 30 millimeters

Dimensions and weights

• Approximate length 526 millimeters
• Approximate width/depth 380 millimeters
• Approximate height 319 millimeters
• Approximate weight. 32.5 kilograms

Electrical data

• Drive motor output 1.5 kW
• Power supply voltage 400 volts
• Network frequency 50 Hz

Abrasive wheel(s)

• Outer diameter 250 millimeters
• Width 40 millimeters
• Hole drill 32 millimeters
• Speed 2850 min¯¹
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Coarse normal corundum abrasive wheel K36
• Round wire brush with a thickness of 0.3 mm.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The 25B OPTIMUM combined grinder for metallurgy is suitable for:

• Metallurgy
• Industrial maintenance
• Carpentry
• Home and DIY
• Technical education

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
