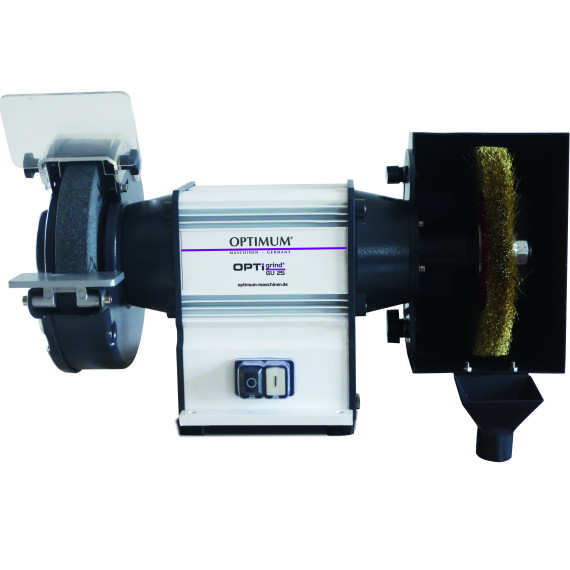

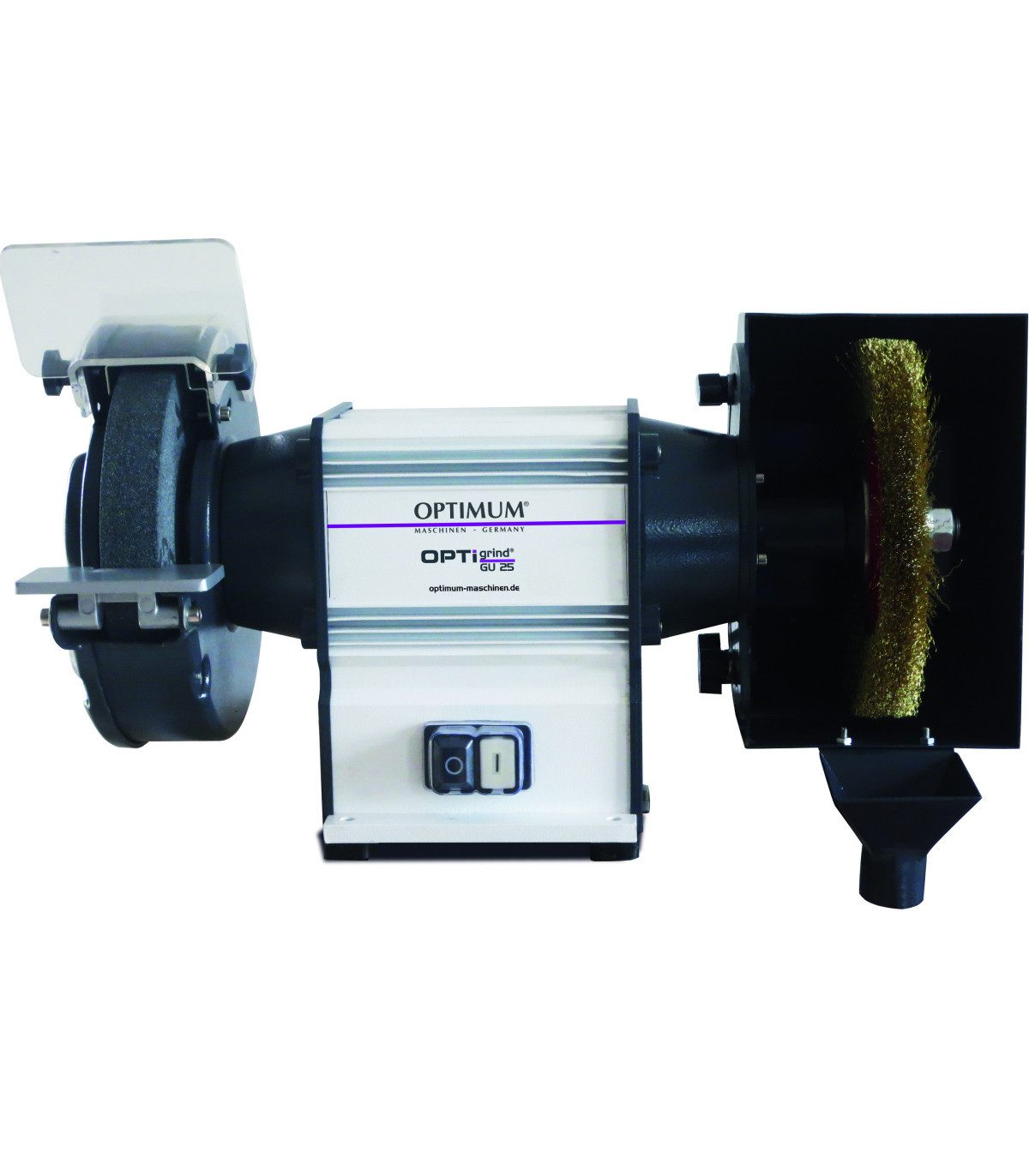

Combined grinder for maintenance 20B OPTIMUM

Combined grinder for maintenance 20B OPTIMUM. The 20B OPTIMUM combined grinder is ideal for maintenance, featuring a durable design and maintenance-free motor. Its aluminum housing and heavy flanges ensure high concentricity. With polishing accessories and steel wire brushes, it facilitates tasks in metallurgy, carpentry, and DIY, offering efficiency and speed in work.

FEATURES

• Durable design with a maintenance-free motor.
• Extruded aluminum housing
• Large, heavy mounting flanges for high disc concentricity
• Polishing accessory with graphite coating; prevents friction and heat
• The stop allows for quick and easy sanding of workpieces

Brush housing

• Rotatable
• Extraction nozzle to connect a suction device

Multi-purpose wire brush

• High-strength steel wire
• Available as accessories in different thicknesses.

TECHNICAL SPECIFICATIONS

Brushes

• Outer diameter of the multi-purpose wire brush 200 millimeters
• Width of the multi-purpose wire brush 25 millimeters

Dimensions and weights

• Approximate length 517 millimeters
• Approximate width/depth 345 millimeters
• Approximate height 282 millimeters
• Approximate weight. 18.5 kilograms

Electrical data

• Drive motor output 0.6 kW
• Power supply voltage 230 V
• Network frequency 50 Hz

Abrasive wheel(s)

• Outer diameter 200 millimeters
• Width 30 millimeters
• Hole drill 32 millimeters
• Speed 2850 min¯¹
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Coarse normal corundum abrasive wheel K36
• Round wire brush with a thickness of 0.3 mm.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The 20B OPTIMUM combined grinder for maintenance is suitable for:

• Metallurgy
• Industrial maintenance
• Carpentry
• Home and DIY
• Technical education
