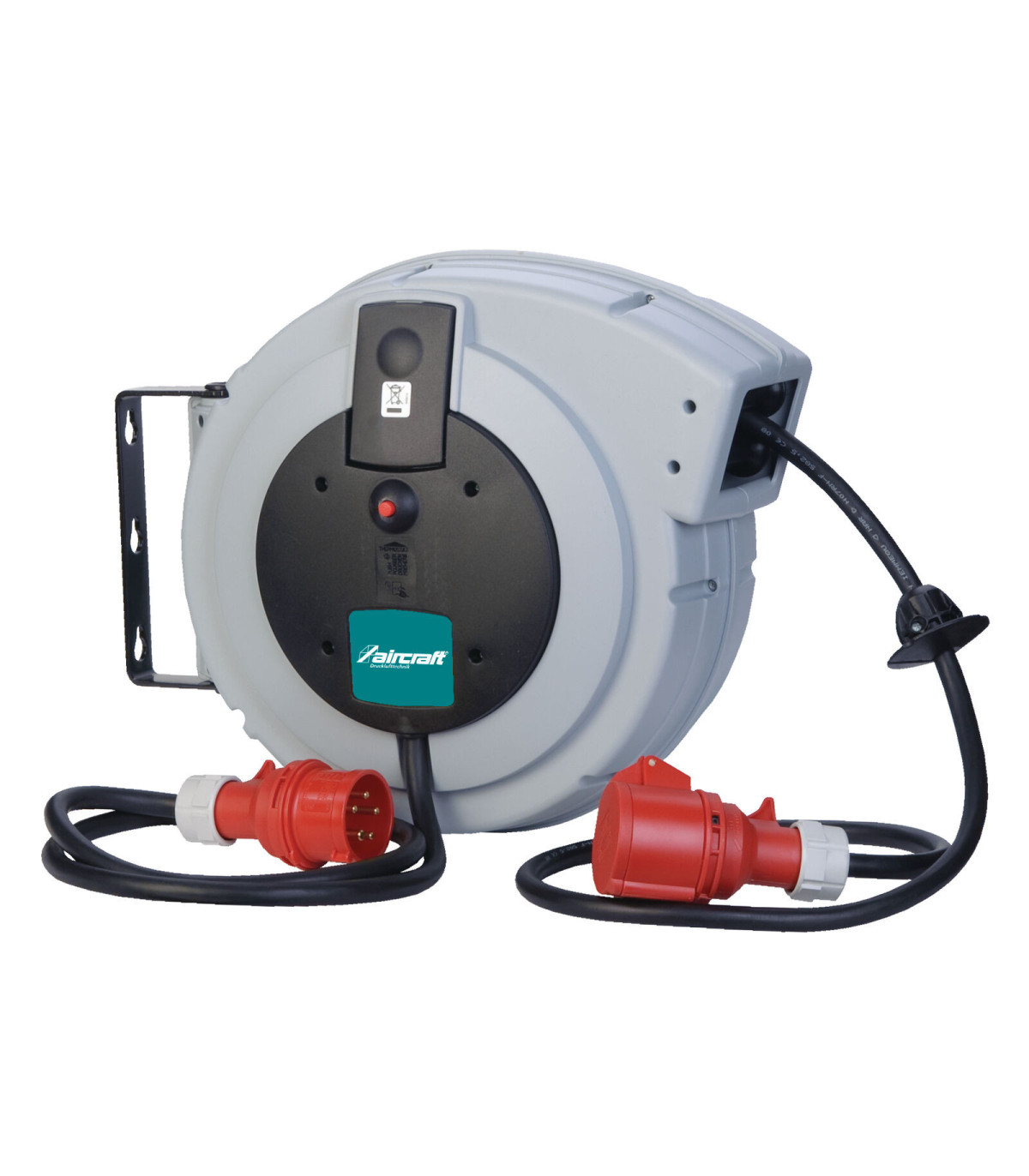

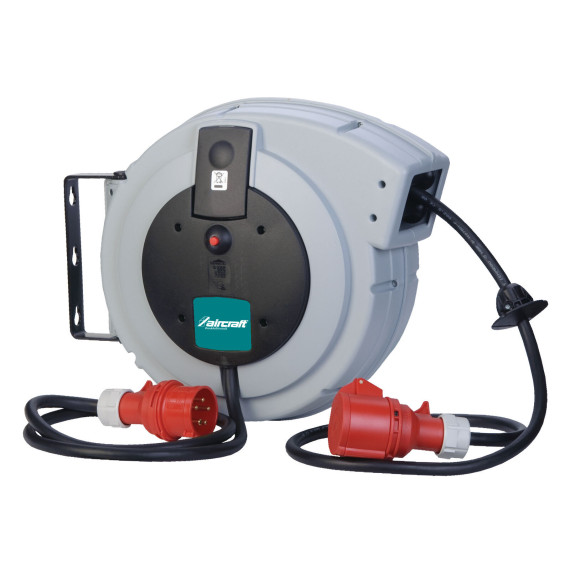

KAR PRO 20-5 electric winders with AIRCRAFT plastic housing.

KAR PRO 20-5 electric reels with AIRCRAFT plastic housing. Impact-resistant plastic housing. The locking device can be turned off. With strong special steel return springs. Particularly smooth and complete retraction of the electric cable. Model with ground connection and plug box.

FEATURES

• For orders in all workshops
• Stable wall or ceiling swivel suspension.
• With just a pull of the cable, it can be locked or automatically retracted as desired.
• Standard with thermal overload protection.

Particularities of the KAR PRO series

• Impact-resistant plastic housing.
• The locking device can be deactivated
• With strong return springs made of special steel
• Especially smooth and complete retraction of the electric cable.

TECHNICAL SPECIFICATIONS

Cable quality H05VV-F

Number of cables 5

Cable cross-section 1.5 mm²

Cable length 20 meters

Plug 5 x 16 A European standard

Sockets 5 x 16 A European standard

VPE 1

Dimensions and weights

Approximate length 420 millimeters

Approximate width/depth 260 millimeters

Approximate height 390 millimeters

Approximate weight 9.8 kilograms

Electrical data

Nominal load cable unwound 3.0 kW

Nominal load cable wound 1.0 kW

Protection class IP24

Power supply voltage 400 volts

FOR WHAT TYPE OF WORK IS IT SUITABLE

The KAR PRO 20-5 electric reels with AIRCRAFT plastic housing are suitable for:

• Workshops
• Installations

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
