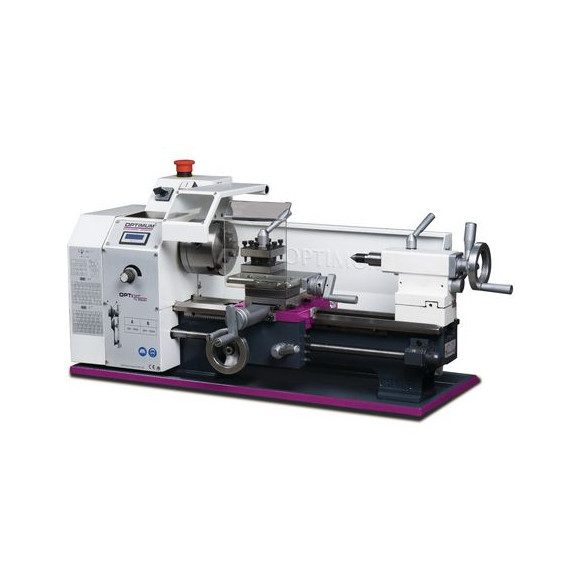

Adjustable speed modeling lathe digital screen TU 2304 OPTIMUM

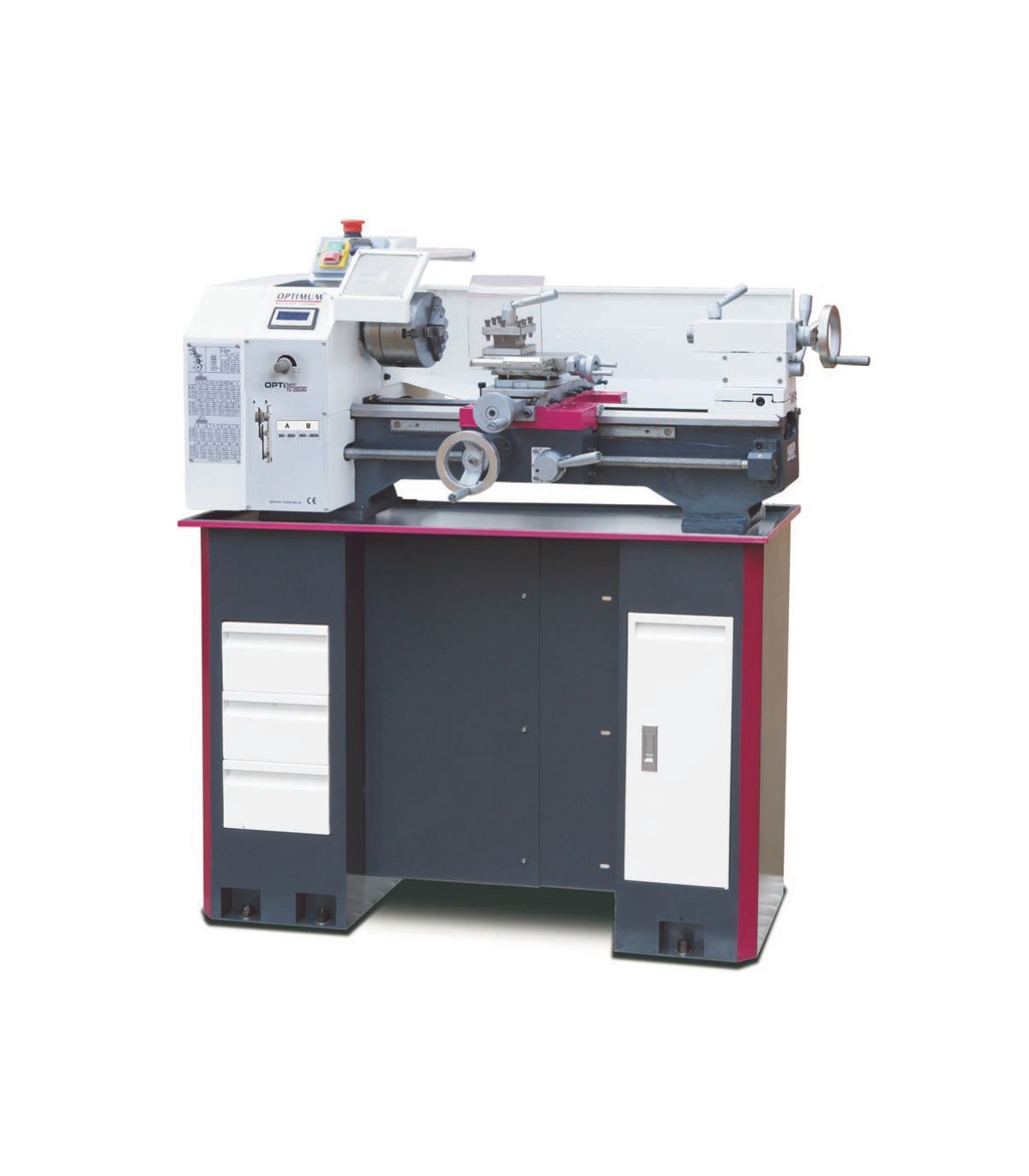

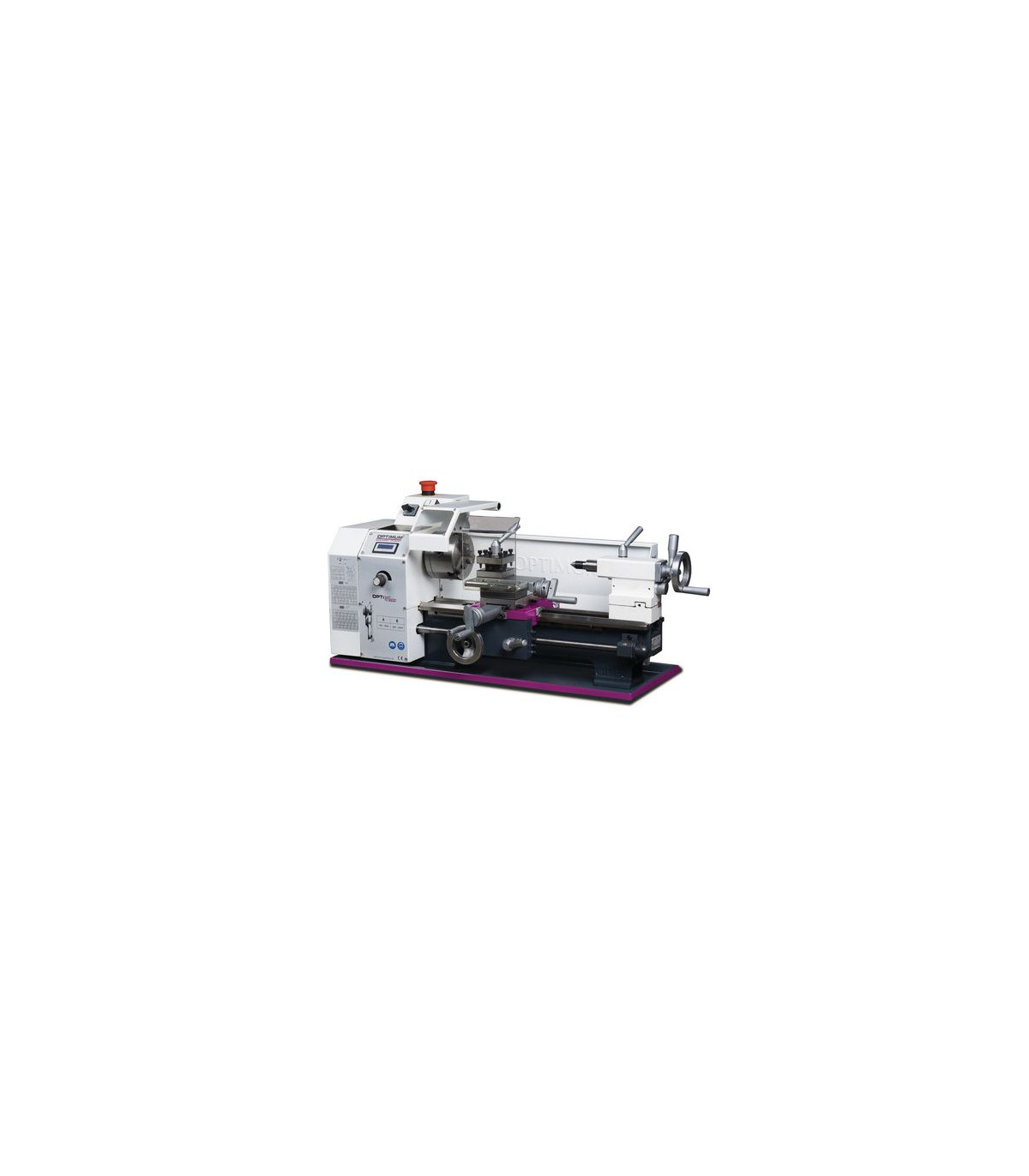

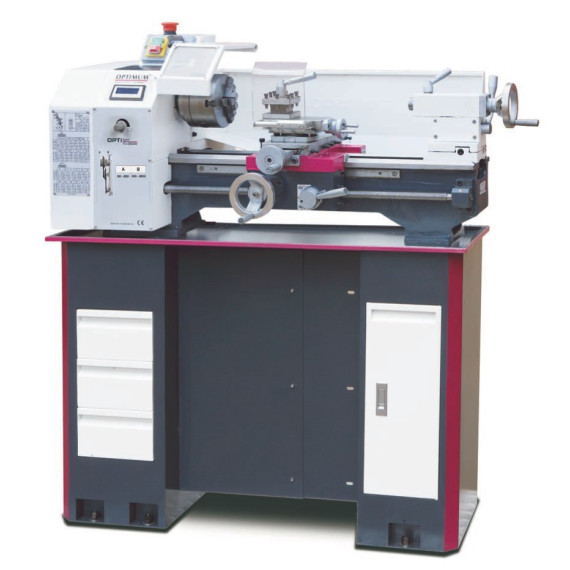

Fully equipped lathe TU 2304 OPTIMUM. The TU 2304 OPTIMUM lathe is a complete machine that guarantees precise processing with concentricity ≤ 0.009 mm. It offers right/left rotation, trapezoidal screws, and quick tool-free adjustment. Its adjustable tailstock allows for tapered turning and features fine scale handwheels. With dimensions of 1090x585x510 mm and a weight of 111 kg, it has a powerful 0.75 kW motor and a wide range of accessories, maintaining its value over time.

FEATURES

• Precise processing
• Tempered and ground Z-axis guide
• Guaranteed concentricity of the spindle tip ≤ 0.009 mm
• Concentricity in the lathe chuck ≤ 0.05 mm
• Feed spindle for thread cutting or automatic longitudinal turning
• Right/left rotation switchable on the control panel
• Rolled trapezoidal screws
• Thrust bearing
• Precision machined slide
• Feed spindle mounted on two sintered bearings
• All guides can be adjusted using wedge strips.
• Handwheels with adjustable fine scale 0.04 / 0.01 mm
• Adjustable tailstock for tapered turning ± 5 mm
• Tailstock and handwheel with adjustable fine scale of 0.02 mm
• Emergency stop switch
• Quick, simple, tool-free adjustment of the tailstock using a clamping lever
• Quadruple steel support
• Main spindle bearing with tolerance class P5
• Hardened spindle nose
• Interchangeable gear set for thread cutting included as standard
• Wide range of accessories
• Maintains its value

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Approximate length 1090 millimeters
• Approximate width/depth 585 millimeters
• Approximate height 510 millimeters
• Approximate weight. 111 kilograms

Electrical data

• Drive motor output 0.75 kW
• Power supply voltage 230 V
• Network frequency 50 Hz

Threads

• Metric pitch 0.4 – 3.5 mm/revolution
• Number of metric threads 14
• Imperial pitch 44 – 8 Gg/1"
• Number of imperial threads 14

Speed range

• Number of gears 6
• Speed range 125 – 2000 min¯¹

Spindle

• Spindle chuck cylindrical Ø 72 mm
• Spindle hole diameter/rod passage diameter 20 millimeters
• Maximum tool holder height 14 millimeters
• Spindle cone MK 3

Tailstock

• Throw MK 2
• Quill stroke 70 millimeters

Axes

• Upper slide travel 75 millimeters
• Cross slide travel 120 millimeters
• Carriage travel 360 millimeters

Working areas

• Maximum height 115 millimeters
• Maximum width 450 millimeters
• Turning diameter over the bed of the machine 230 millimeters
• Swing diameter over the cross slide 128 millimeters
• Bed width 135 millimeters
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Three-jaw chuck Ø 100 mm, central excitation
• Fixed centering point MK 2 and MK 3
• Guard
• Frying pan
• Quadruple tool holder
• Gear change set
• Operational tool

FOR WHAT TYPE OF WORK IS IT SUITABLE

The fully equipped lathe TU 2304 OPTIMUM is suitable for:

• Machining parts
• Prototyping
• Hobby and DIY
• Education
• Craft industry

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 standard refers to the limits and measurement methods for the emission of electromagnetic interference from industrial, scientific, and medical equipment. This standard establishes criteria to ensure that devices do not generate interference that could affect other electronic equipment and also defines the permissible levels of electromagnetic radiation. It is essential to ensure compliance in the design and use of equipment operating in environments where electromagnetic compatibility is crucial.
