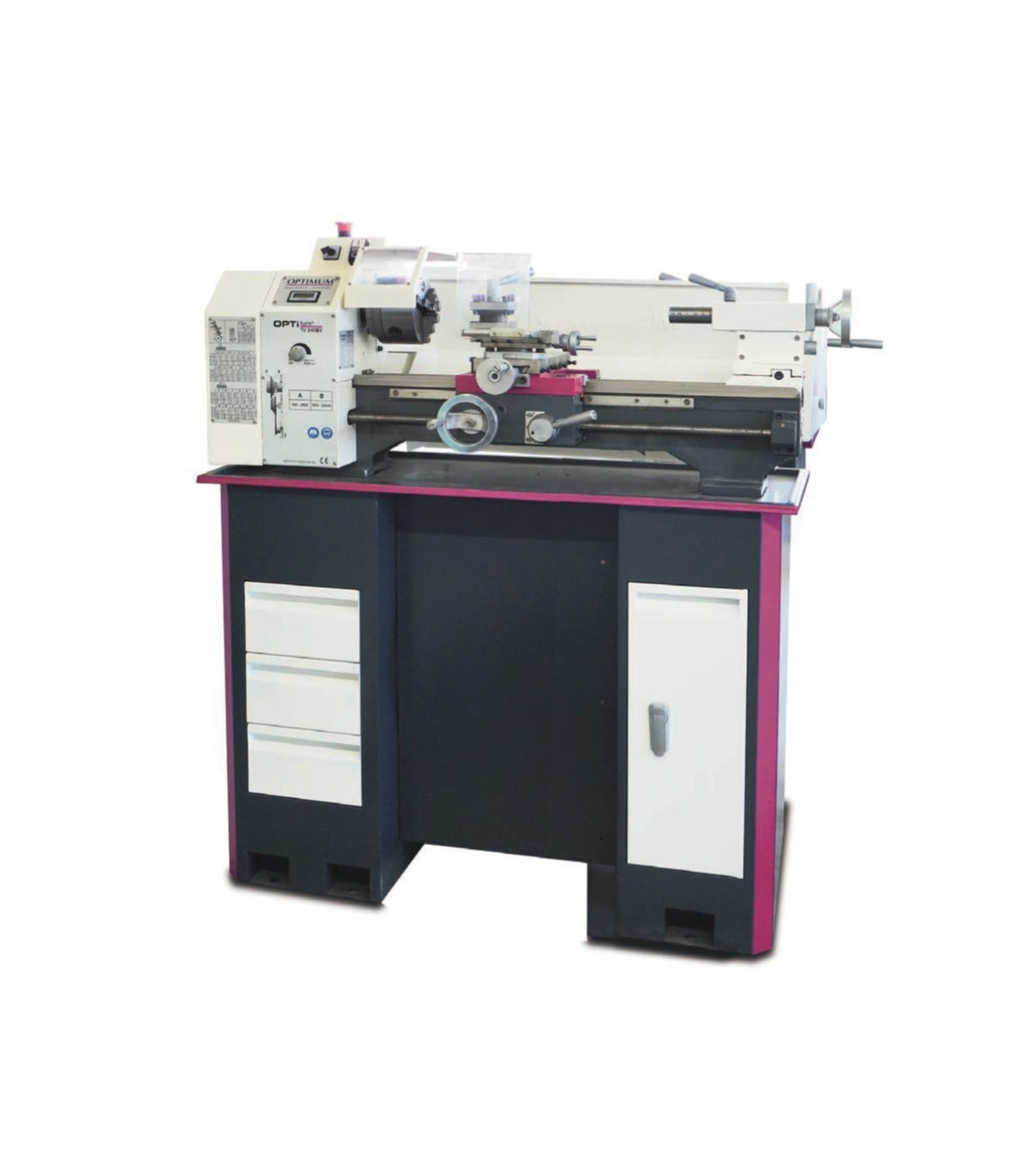

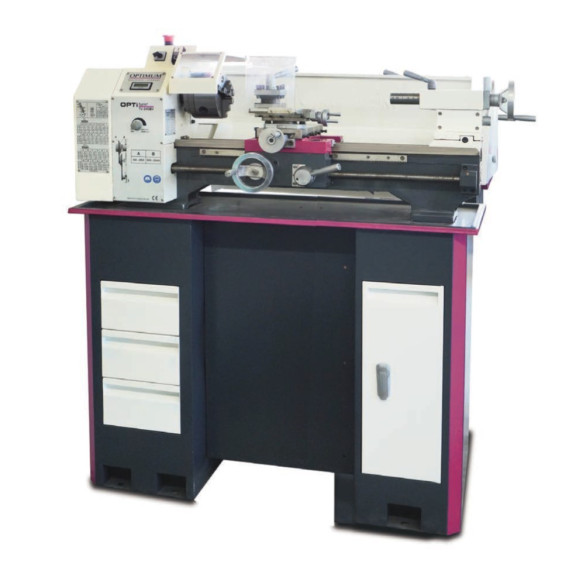

Precision lathe for the most demanding users TU 2406 OPTIMUM

Precision lathe for the most demanding users TU 2406 OPTIMUM. The TU 2406 OPTIMUM precision lathe is ideal for demanding users. Manufactured with precision, it guarantees a concentricity superior to 0.009 mm, features trapezoidal screws and P5 bearings. Its design includes fine adjustments and a quadruple tool holder, as well as an intuitive control panel. With quick adjustment and emergency stop, it offers stability and extensive accessories. Its dimensions are 1250x594x484 mm and it weighs 127 kg, with a motor power of 0.75 kW at 230 V.

FEATURES

• Manufactured with precision
• Tempered and ground Z-axis guide
• Guaranteed concentricity of the spindle tip better than 0.009 mm
• Rolled trapezoidal screws
• Spindle supported in two sintered bearings
• Two conical roller bearings in P5 quality
• Precision-crafted carriage
• Handwheels with adjustable fine scale 0.04 / 0.01 mm
• Quadruple tool holder
• All guides can be adjusted using wedge strips.
• Concentricity - chuck better than 0.05 mm
• Feed spindle for thread cutting or automatic longitudinal turning
• Right/left rotation switchable on the control panel
• Adjustable tailstock for taper turning ± 5 mm
• Tailstock and handwheel with adjustable fine scale of 0.02 mm
• Quick, simple, and tool-free adjustment via clamping lever.
• Impact switch for emergency stop
• Thrust bearing
• Extensive accessories
• 3-jaw lathe chuck included in the standard supply
• Stable value

TU 2406V

• Speed change easily adjustable via potentiometer
• Digital speed display
• EMC filter class C1

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Approximate length 1250 millimeters
• Approximate width/depth 594 millimeters
• Approximate height 484 millimeters
• Approximate weight. 127 kilograms

Electrical data

• Drive motor output 0.75 kW
• Supply voltage 230 V
• Network frequency 50 Hz

Threads

• Metric pitch 0.4 – 3.5 mm/revolution
• Number of metric threads 14
• Imperial pitch 44 – 10 Gg/1"
• Number of imperial threads 12

Speed range

• Number of gears 6
• Speed range 125 – 2000 min¯¹

Spindle

• Spindle chuck cylindrical Ø 52 mm
• Spindle hole diameter/rod passage diameter 21 millimeters
• Maximum tool holder height 12 millimeters
• Spindle cone MK 3

Tailstock

• Throw MK 2
• Quill stroke 60 millimeters

Axes

• Upper slide travel 75 millimeters
• Cross carriage travel 120 millimeters
• Carriage saddle travel 550 millimeters

Working areas

• Maximum height 125 millimeters
• Maximum width 550 millimeters
• Turning diameter over the bed of the machine 250 millimeters
• Swing diameter over the cross slide 148 millimeters
• Bed width 133 millimeters
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Lathe chuck with three jaws Ø 125 mm, central excitation
• Fixed centering point MK 2 and MK 3
• Guard
• Frying pan
• Quadruple tool holder
• Gear change set
• Operational tool

FOR WHAT TYPE OF WORK IS IT SUITABLE

The TU 2406 OPTIMUM precision lathe for the most demanding users is suitable for:

• Machining parts
• Prototyping
• Hobby and DIY
• Education
• Craft industry

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 standard refers to the limits and measurement methods for the emission of electromagnetic interference from industrial, scientific, and medical equipment. This standard establishes criteria to ensure that devices do not generate interference that could affect other electronic equipment and also defines the permissible levels of electromagnetic radiation. It is essential to ensure compliance in the design and use of equipment operating in environments where electromagnetic compatibility is crucial.
