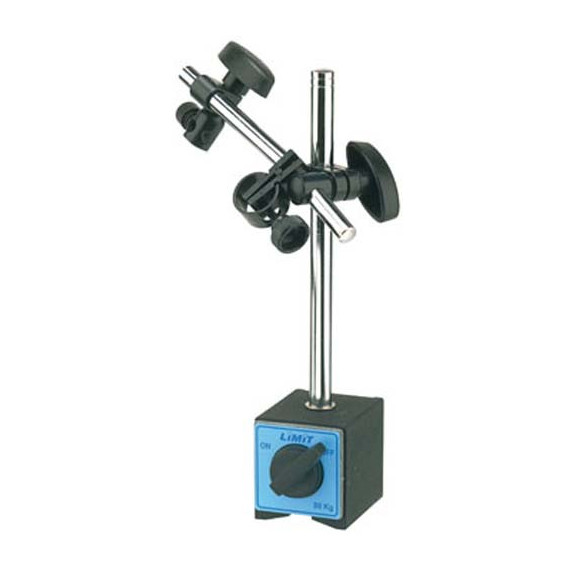

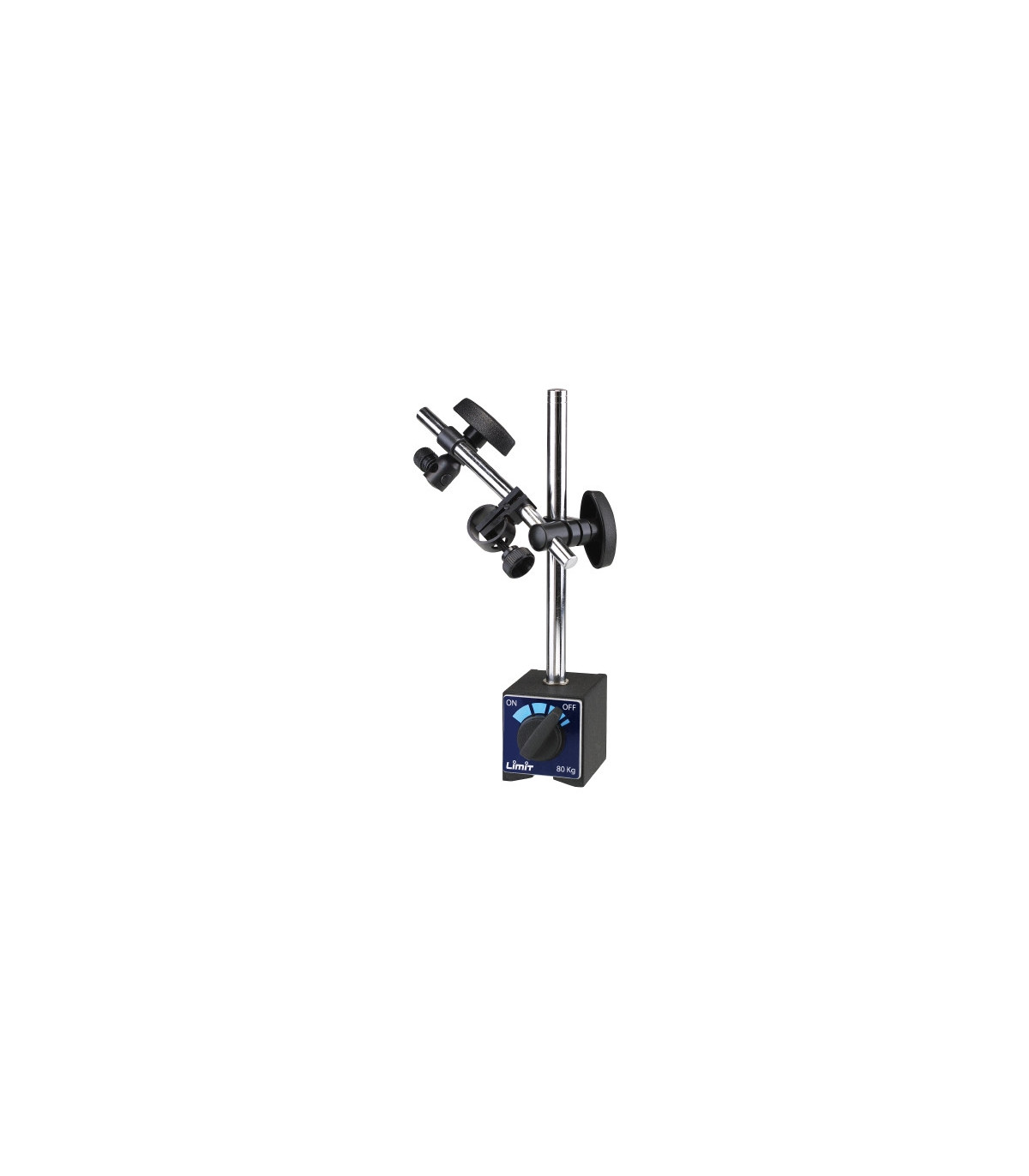

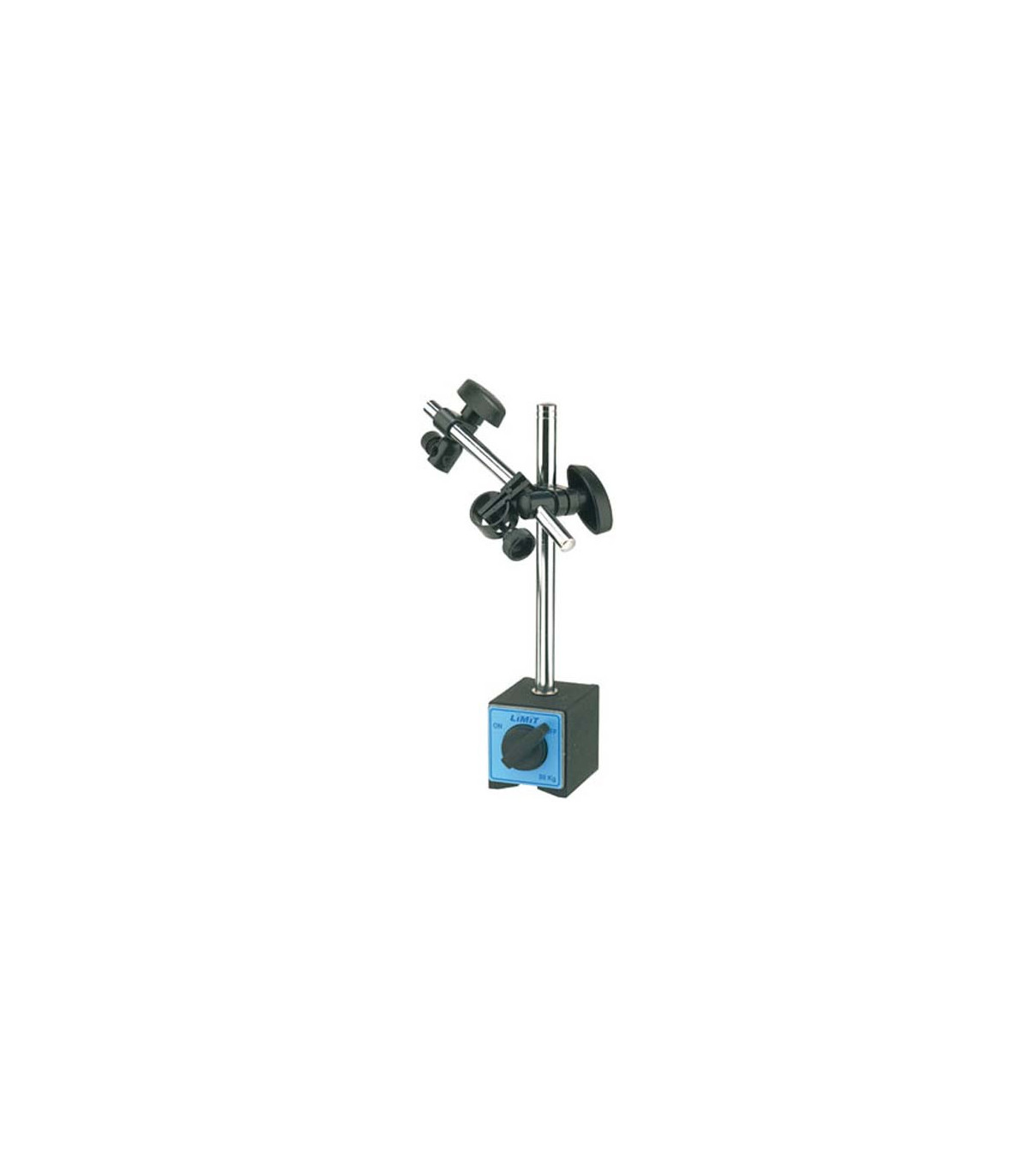

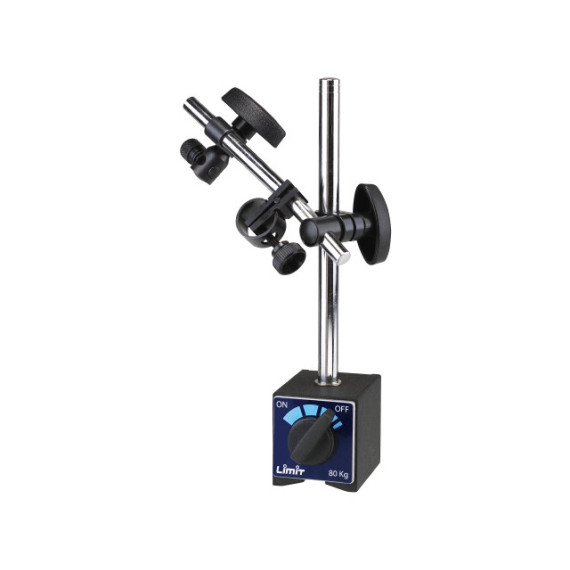

250 mm magnetic supports with fine adjustment LIMIT

250 mm magnetic stands with fine adjustment LIMIT. The 250 mm magnetic stands with fine adjustment LIMIT feature a button-activated magnetic base and vertical and horizontal adjustment. Weighing 1.5 kg and with a pulling force of 75 kg, they are ideal for securing instruments in various applications.

FEATURES

• With fine adjustment.
• With magnetic base.
• The bottom and back are magnetic.
• Magnetism is activated and deactivated with a button.
• Vertical and horizontal adjustment.
• Includes upper and lower support, but no comparator.

TECHNICAL DATA

Net weight: 1.5 kg

Width of magnetic base: 50 mm

Maximum height: 250 mm

Height of magnetic base: 58 mm

Length of magnetic base: 55 mm

Magnet pulling force: 75 kg

Diameter of fixing hole: 8 mm

ETIM class code: EC001195

FOR WHAT TYPE OF WORK IS IT SUITABLE

The 250 mm magnetic stands with fine adjustment LIMIT are suitable for:

• Quality control
• Mechanical engineering
• Manufacturing
• Industrial maintenance
• Tool adjustment
