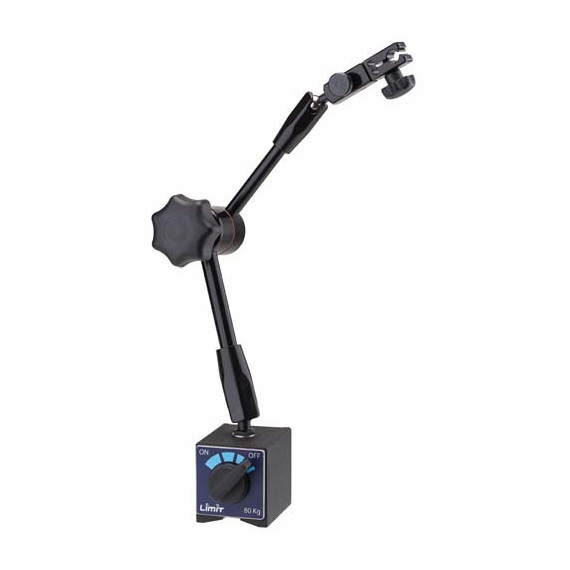

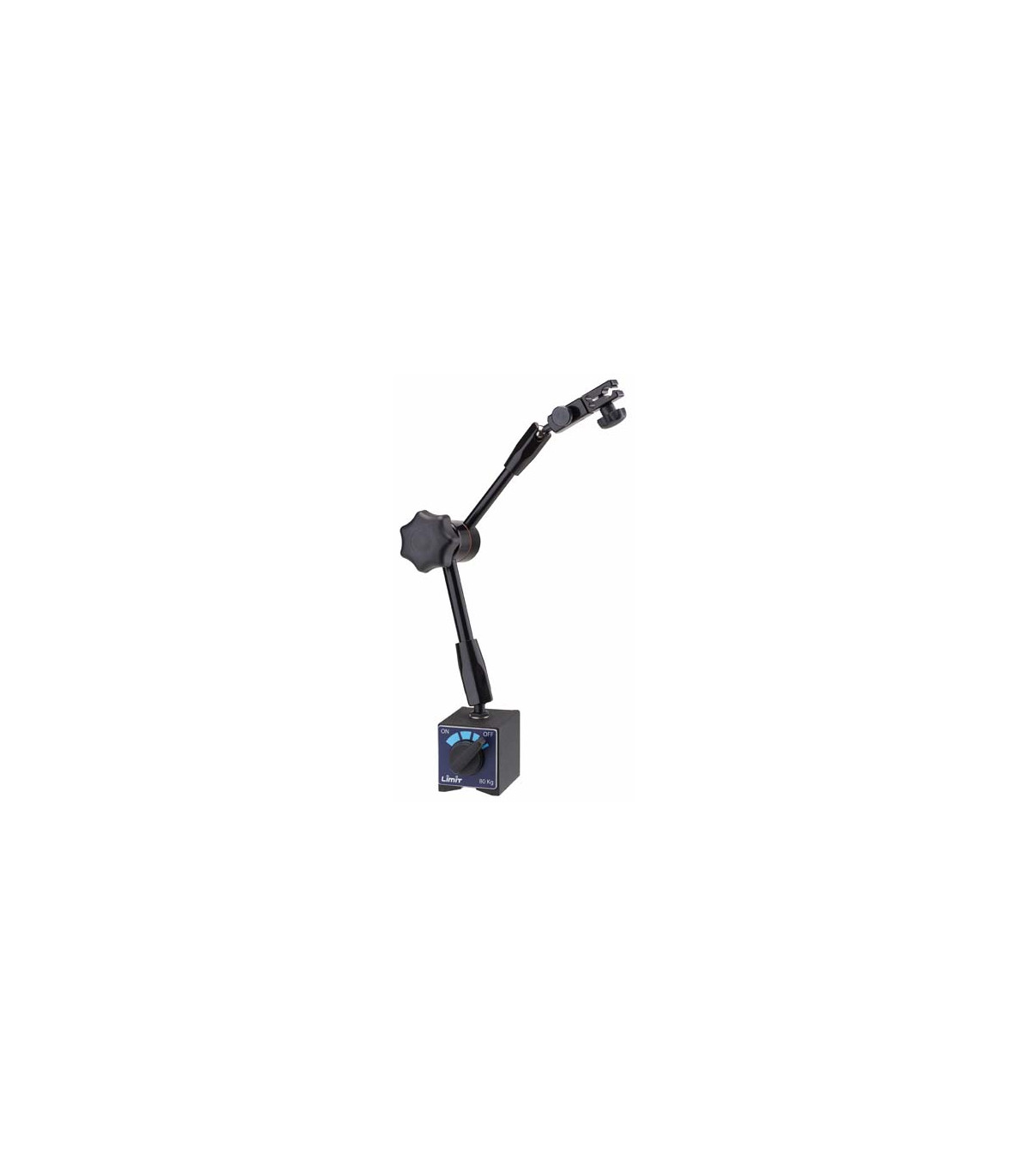

Magnetic support 330 mm for LIMIT engineering

Magnetic holders 330 mm for engineering LIMIT. The 330 mm Magnetic Holders for engineering LIMIT offer fine adjustment on the upper support and feature holes for indicators. Their magnetic base includes a V-slot and a pulling force of 80 kg. Weighing 1.9 kg, they are ideal for precise applications in the field of engineering.

FEATURES

• With fine adjustment on the upper support.
• Support with holes for the indicator and dovetail slot for the tilting indicator.
• Centralized locking with a single knob for the lower, central, and upper joints.
• Magnetic base with V-slot on the bottom.
• Supplied without indicator. 11908-0257.
• With fine adjustment on the magnetic base.

TECHNICAL DATA

Net weight: 1.9 kg

Width of the magnetic base: 50 mm

Maximum height: 330 mm

Length of the magnetic base: 55 mm

Magnet pulling force: 80 kg

Diameter of the fixing hole: 8 mm

Dimension A: 70 mm

Dimension B: 115 mm

Dimension D: 55 mm

ETIM class code: EC001195

FOR WHAT TYPE OF WORK IS IT SUITABLE

The 330 mm Magnetic Holders for engineering LIMIT are suitable for:

• Quality control
• Mechanical engineering
• Manufacturing
• Industrial maintenance
• Tool adjustment
