Electric chain hoist EKZT 5-2 load up to 500kg UNICRAFT

Electric chain hoist EKZT 5-2 load up to 500kg UNICRAFT. The EKZT 5-2 electric chain hoist from UNICRAFT supports up to 500 kg and is ideal for handling heavy loads in industrial maintenance, mechanical workshops, and warehouses. With hook suspension, overload protection, and a lifting speed of 7.7/2.2 m/min, it offers safety and efficiency.

FEATURES

• Chain hoist suspension using transport hooks
• Overload protection via friction clutch
• Integrated limit switch
• Safe chain storage using standard chain memory

BENEFITS

The FEM/ISO 2m/M5 motor group corresponds to 1,600 hours of life at full load

G80 load chains according to DIN EN-818-7

Siemens Electrics

Two lifting speeds

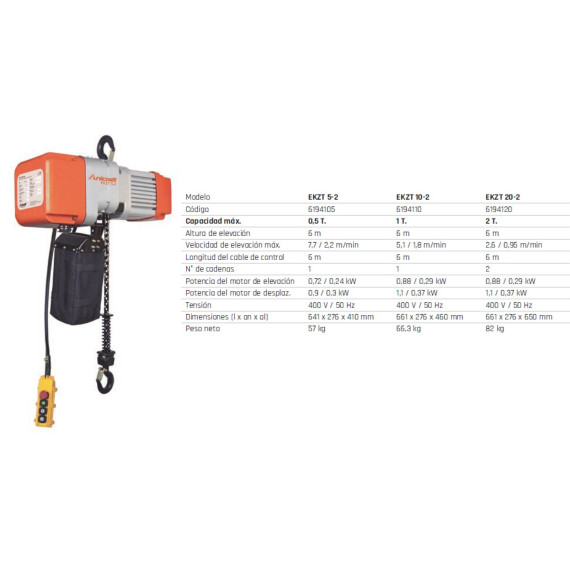

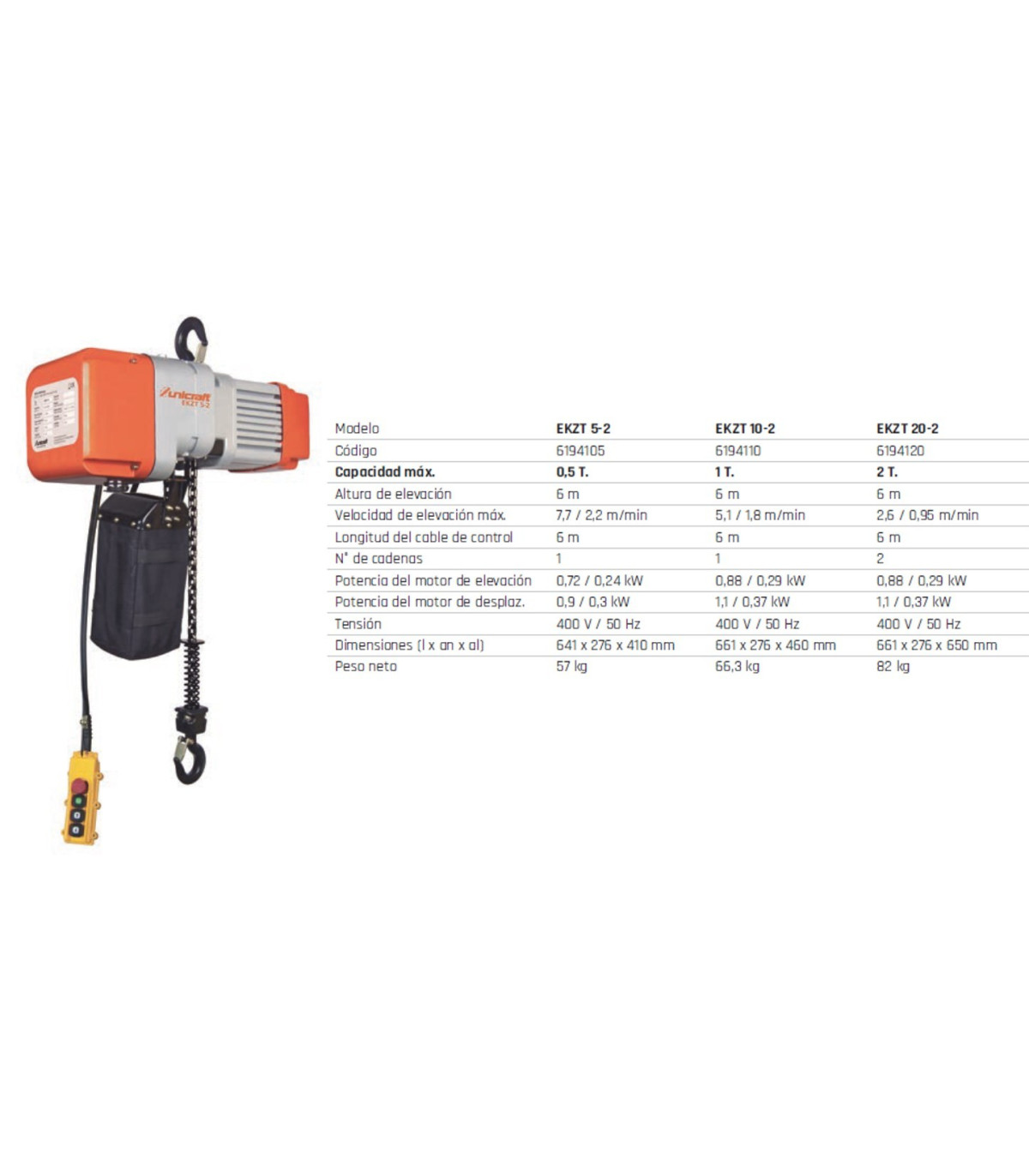

TECHNICAL SPECIFICATIONS

Load capacity 0.5 tons

Lift height 6 meters

Lifting speed(s) 7.7 / 2.2 m/min

Control unit cable length 6 meters

Number of chain strands 1

VPE 1

Dimensions and weights

Approximate length 641 millimeters

Approximate width/depth 276 millimeters

Approximate height 410 millimeters

Approximate weight. 57 kilograms

Electrical data

Protection class IP54

Drive motor absorbed power 1.2 / 0.4 kW

Supply voltage 400 volts

Network frequency 50 Hz

COMPONENTS/PACKAGING

Unit: pce(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The EKZT 5-2 electric chain hoist load up to 500kg UNICRAFT is suitable for:

• Handling heavy loads
• Industrial maintenance
• Mechanical workshops
• Warehouses

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
