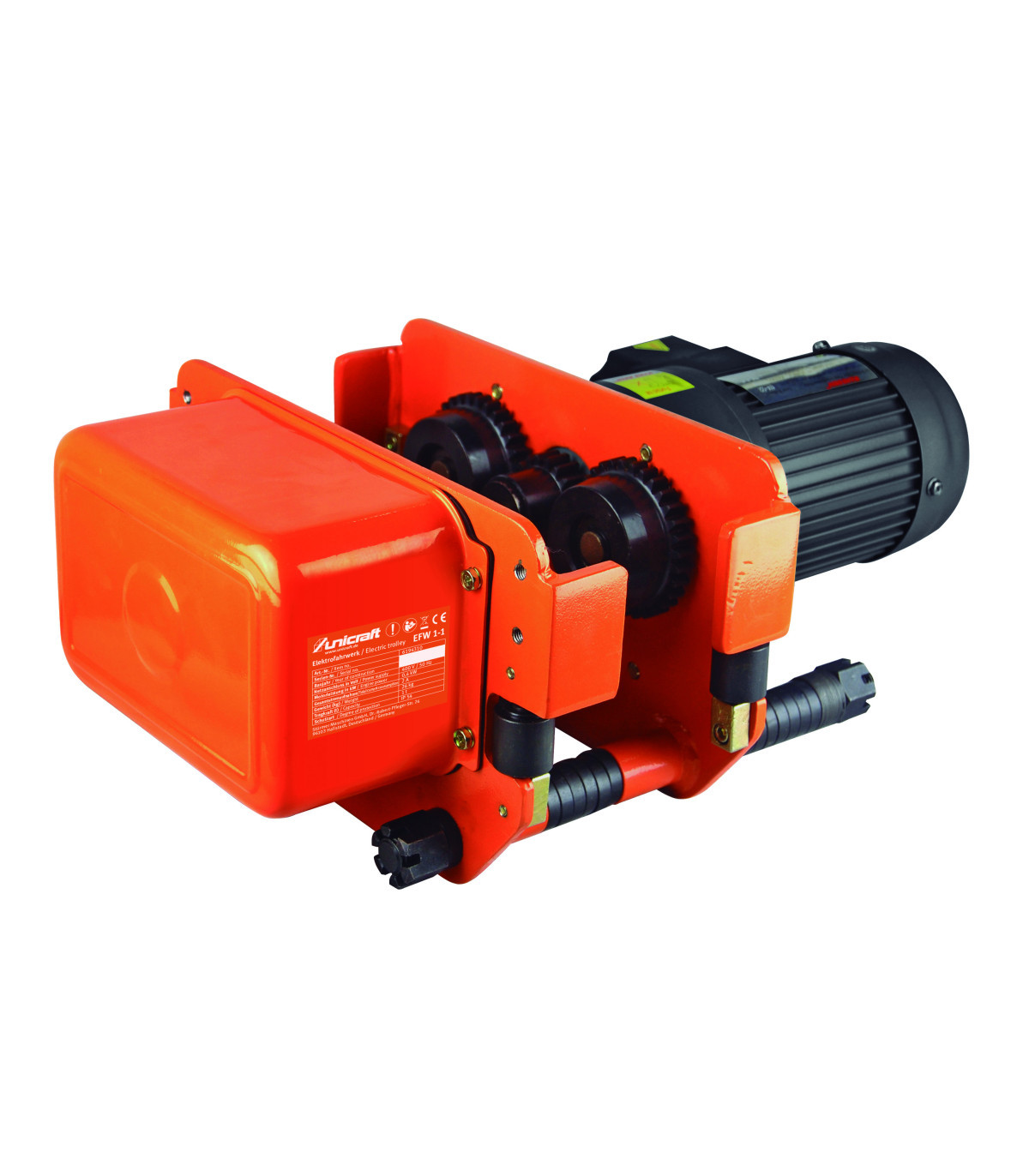

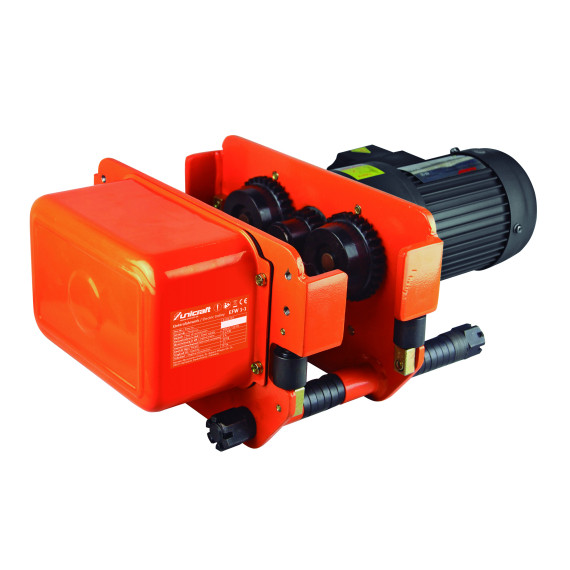

Electric car EFW 1-2 with a load capacity of up to 1 ton UNICRAFT

Electric cart EFW 1-2 with a load capacity of up to 1 ton UNICRAFT. The UNICRAFT EFW 1-2 electric cart, with a load capacity of 1 ton, is perfect for storage, logistics, construction, manufacturing, agriculture, and events. Controlled by an electric hoist, it is compatible with I-beams and IPE beams.

FEATURES

• Electrical connection and chassis control via the control bottle of the associated electric chain hoist
• Suitable for beams with I, IPB, IPBl, IPBv, and IPE profile types and specified support flange width
• Accessory for EKZT 5-2 (Art. No.: 6194105) and EKZT 10-2 (Art. No.: 6194110) electric chain hoists

TECHNICAL SPECIFICATIONS

Load capacity 1 ton

Travel speed 6.7 / 20 m/min

Carrier flange width 74 – 140 millimeters

Max. curve radius 4500 millimeters

VPE 1

Dimensions and weights

Maintaining eye width 24 millimeters

Mounting plate thickness 14 millimeters

Distance between the fastening eye and the support surface 145 millimeters

Wheel diameter 68 millimeters

Motor extension 336 millimeters

Control cabinet extension 135 millimeters

Approx. length 741 millimeters

Approx. width/depth 340 millimeters

Approx. height 260 millimeters

Approx. weight 33 kilograms

Electrical data

Drive motor absorbed power 0.4/0.167 kW

Protection class IP54

Supply voltage 400 volts

Network frequency 50 Hz

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

FOR WHAT TYPE OF WORK IT IS SUITABLE

The UNICRAFT EFW 1-2 electric cart with a load capacity of up to 1 ton is suitable for:

• Storage
• Logistics
• Construction
• Manufacturing industry
• Agriculture
• Events
