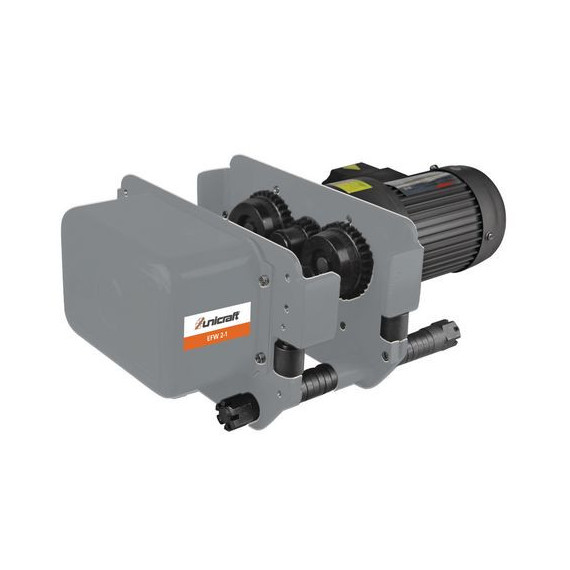

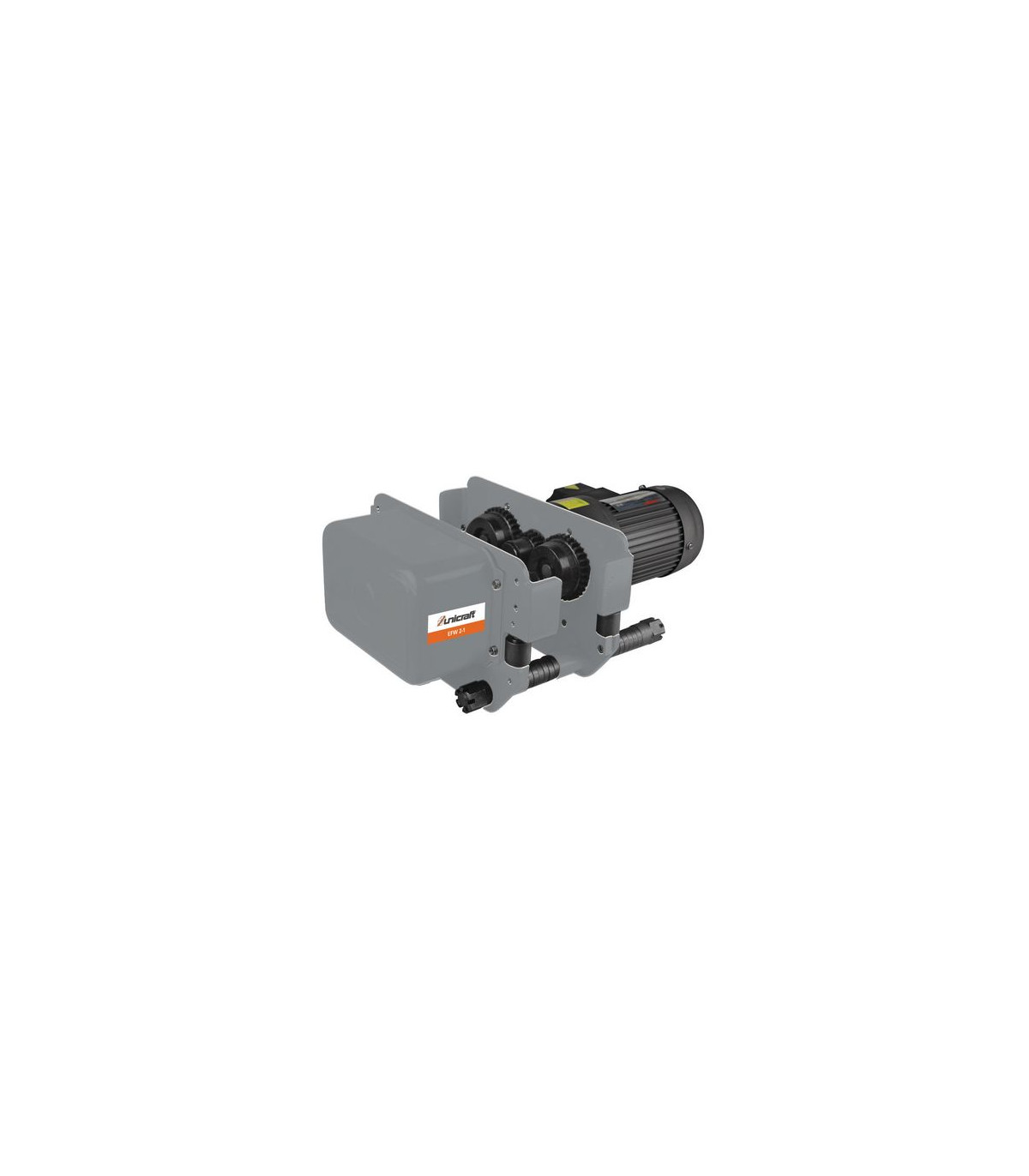

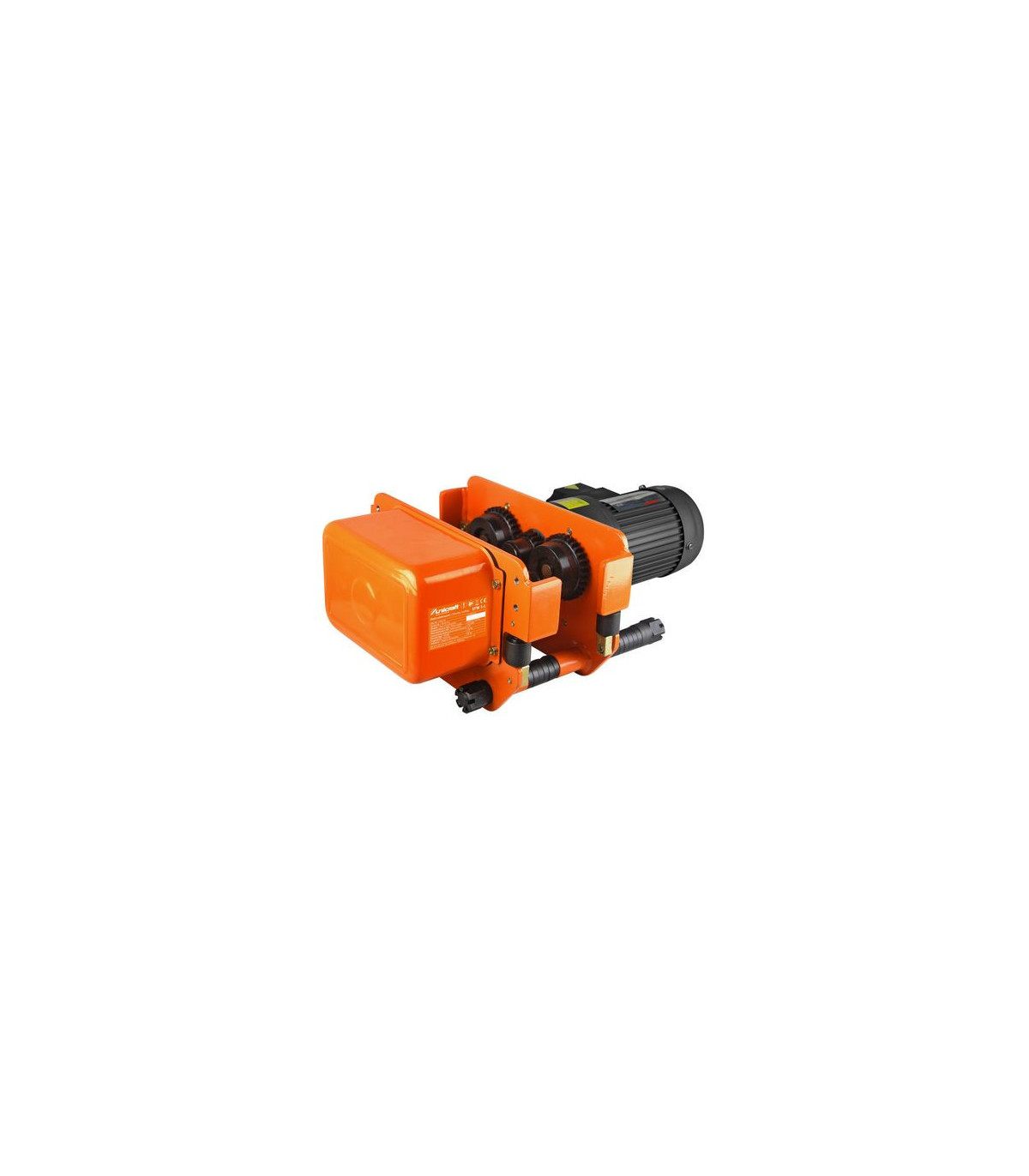

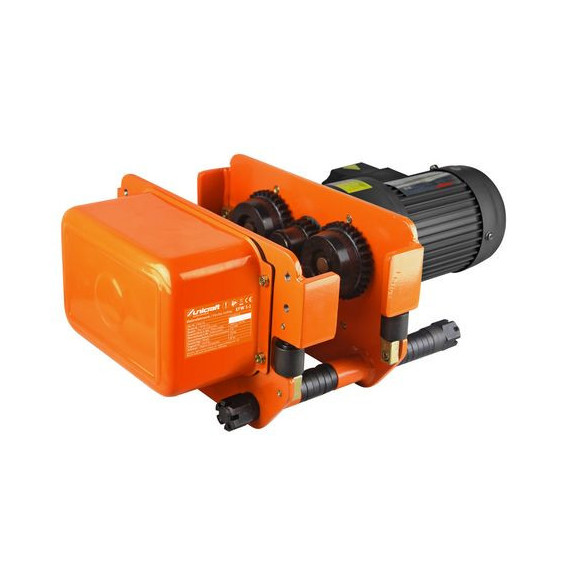

Electric car EFW 2-1 load up to 2 tons UNICRAFT

Electric cart EFW 2-1 loads up to 2 tons UNICRAFT. The EFW 2-1 electric cart from UNICRAFT, with a load capacity of 2 tons, is ideal for storage, logistics, construction, manufacturing industry, agriculture, and events. It offers control through an electric hoist and is compatible with I-beams, IPB, and IPE beams.

FEATURES

• Electrical connection and chassis control through the control bottle of the associated electric chain hoist
• Suitable for beams with I, IPB, IPBl, IPBv, and IPE profile types and specified support flange width
• Accessory for electric chain hoist EKZT 20-1 (Art. No.: 6194020)

TECHNICAL SPECIFICATIONS

Load capacity 2 tons

Travel speed 13.5 m/min

Carrier flange width 74 – 140 millimeters

Max. curve radius 4500 millimeters

VPE 1

Dimensions and weights

Maintaining eye width 30 millimeters

Mounting plate thickness 14 millimeters

Distance between the fastening eye and the support surface 140 millimeters

Wheel diameter 75 millimeters

Motor extension 312 millimeters

Control cabinet extension 135 millimeters

Approx. length 722 millimeters

Approx. width/depth 340 millimeters

Approx. height 280 millimeters

Approx. weight 36 kilograms

Electrical data

Drive motor absorbed power 0.6 kW

Protection class IP54

Supply voltage 400 volts

Network frequency 50 Hz

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

FOR WHAT TYPE OF WORK IT IS SUITABLE

The EFW 2-1 electric cart loads up to 2 tons UNICRAFT is suitable for:

• Storage
• Logistics
• Construction
• Manufacturing industry
• Agriculture
• Events
