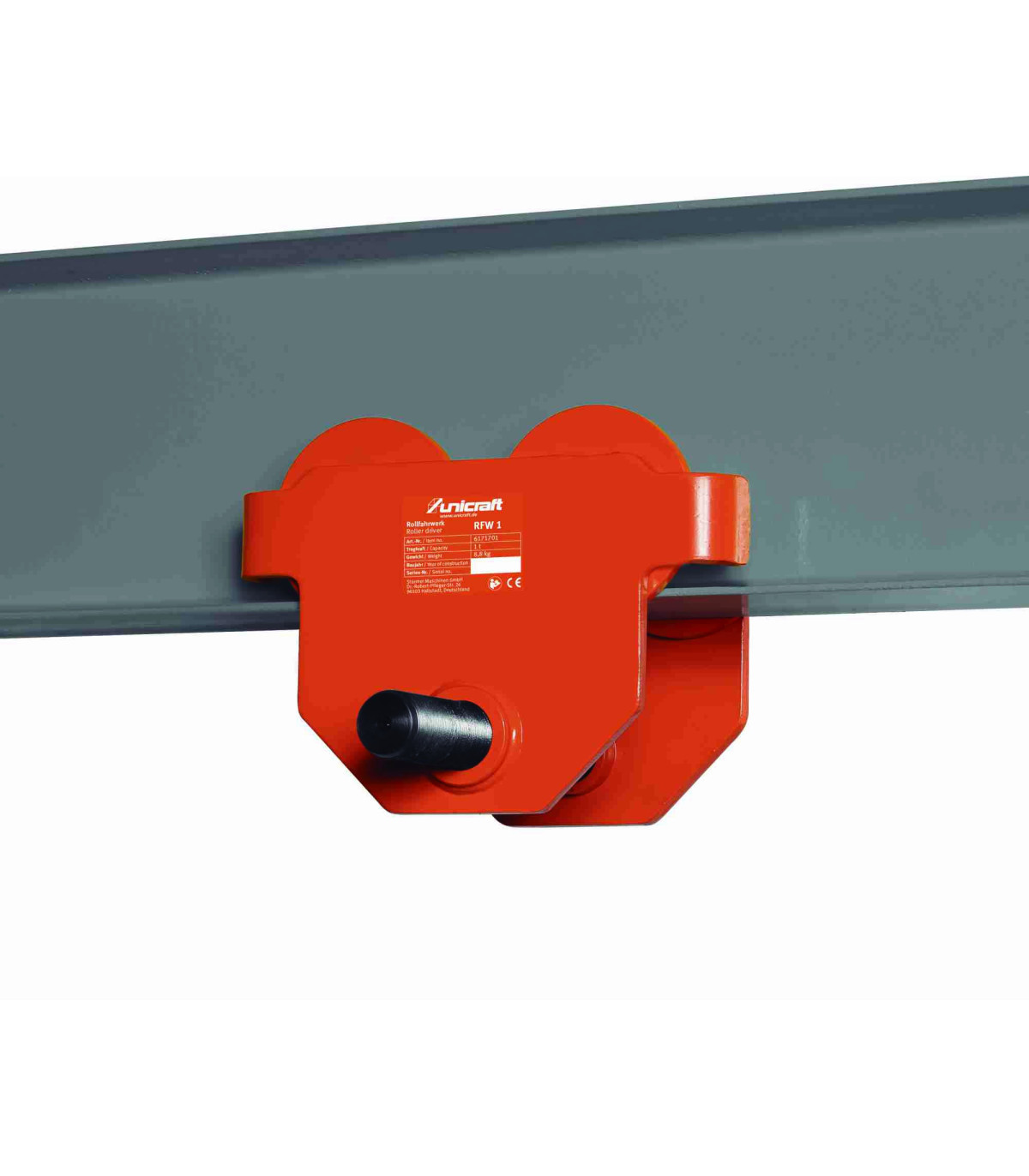

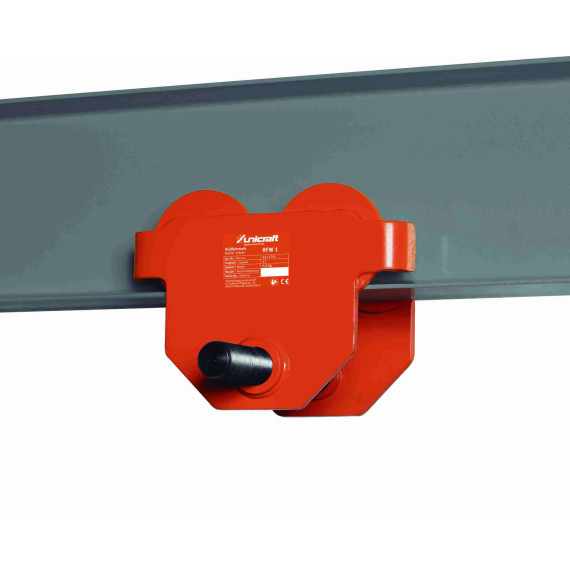

RFW hoist trolley with a capacity of 1 ton UNICRAFT

RFW hoist trolley with a capacity of 1 ton UNICRAFT. The RFW hoist trolley UNICRAFT has a maximum capacity of 1 ton and a compact design that prevents lateral movement thanks to the centering of the pulley. Its minimum curve radius is 0.7 meters and it adapts to I-beams. With silent operation due to ball bearings, it measures 300 mm in length, 238 mm in width, and 183 mm in height, weighing approximately 8.8 kilos. Ideal for lifting heavy materials, installing structures, and maintenance in factories and workshops.

FEATURES

• With a maximum capacity of 1 T
• No lateral movement thanks to the centering of the pulley
• Adjustment via the fork bar
• Anti-tilt standard
• Low height and compact design.
• For use on I-beams (DIN 1025-1)
• Silent operation feature through ball bearings

TECHNICAL SPECIFICATIONS

Load capacity 1 ton

Minimum curve radius 0.7 meters

Flange width of the carrier 58 – 220 millimeters

Suitable for carrier type I 120 – I 600

VPE 1

Dimensions and weights

Approximate length 300 millimeters

Approximate width/depth 238 millimeters

Approximate height 183 millimeters

Approximate weight. 8.8 kilos

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The RFW hoist trolley with a capacity of 1 ton UNICRAFT is suitable for:

• Lifting heavy materials
• Installing structures
• Maintenance
• Factories
• Workshops

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
