RFW 0.5 hoist trolley UNICRAFT

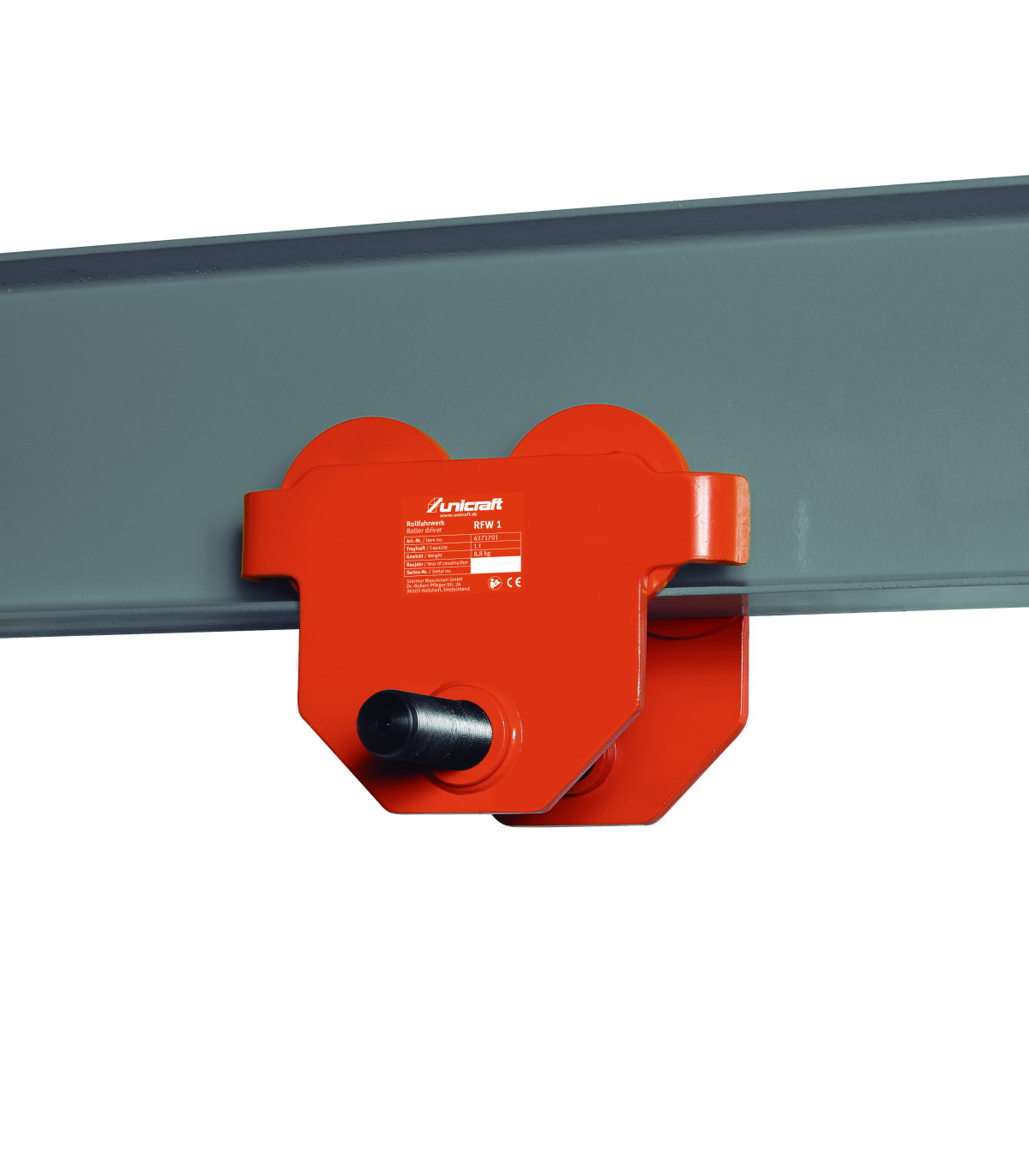

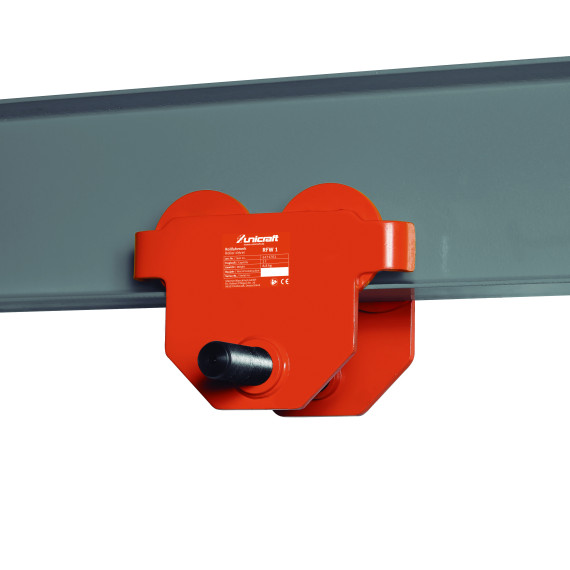

RFW 0.5 UNICRAFT hoist trolley. The RFW 0.5 UNICRAFT hoist trolley has a load capacity of 0.5 tons and a minimum curve radius of 0.5 meters. With a flange width of the carrier between 55 and 220 mm, its dimensions are 285 mm long, 198 mm wide, and 158 mm high. It weighs approximately 5 kilograms. It is ideal for lifting heavy materials, installing structures, and maintenance in factories and workshops.

FEATURES

• It has a compact and quiet design with an anti-tipping system, allowing it to fit different types of beams (IPN, IPE, and PB).
• No lateral displacement thanks to the centering of the pulley.
• Low height and compact design.
• For use on I beams (DIN 1025-1)
• Quiet operation feature through ball bearing

TECHNICAL SPECIFICATIONS

Load capacity 0.5 tons

Minimum curve radius 0.5 meters

Flange width of the carrier 55 – 220 millimeters

Suitable for carrier type Yo 120 – Yo 600

VPE 1

Dimensions and weights

Approximate length 285 millimeters

Approximate width/depth 198 millimeters

Approximate height 158 millimeters

Approximate weight 5 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The RFW 0.5 UNICRAFT hoist trolley is suitable for:

• Lifting heavy materials
• Installing structures
• Maintenance
• Factories
• Workshops
