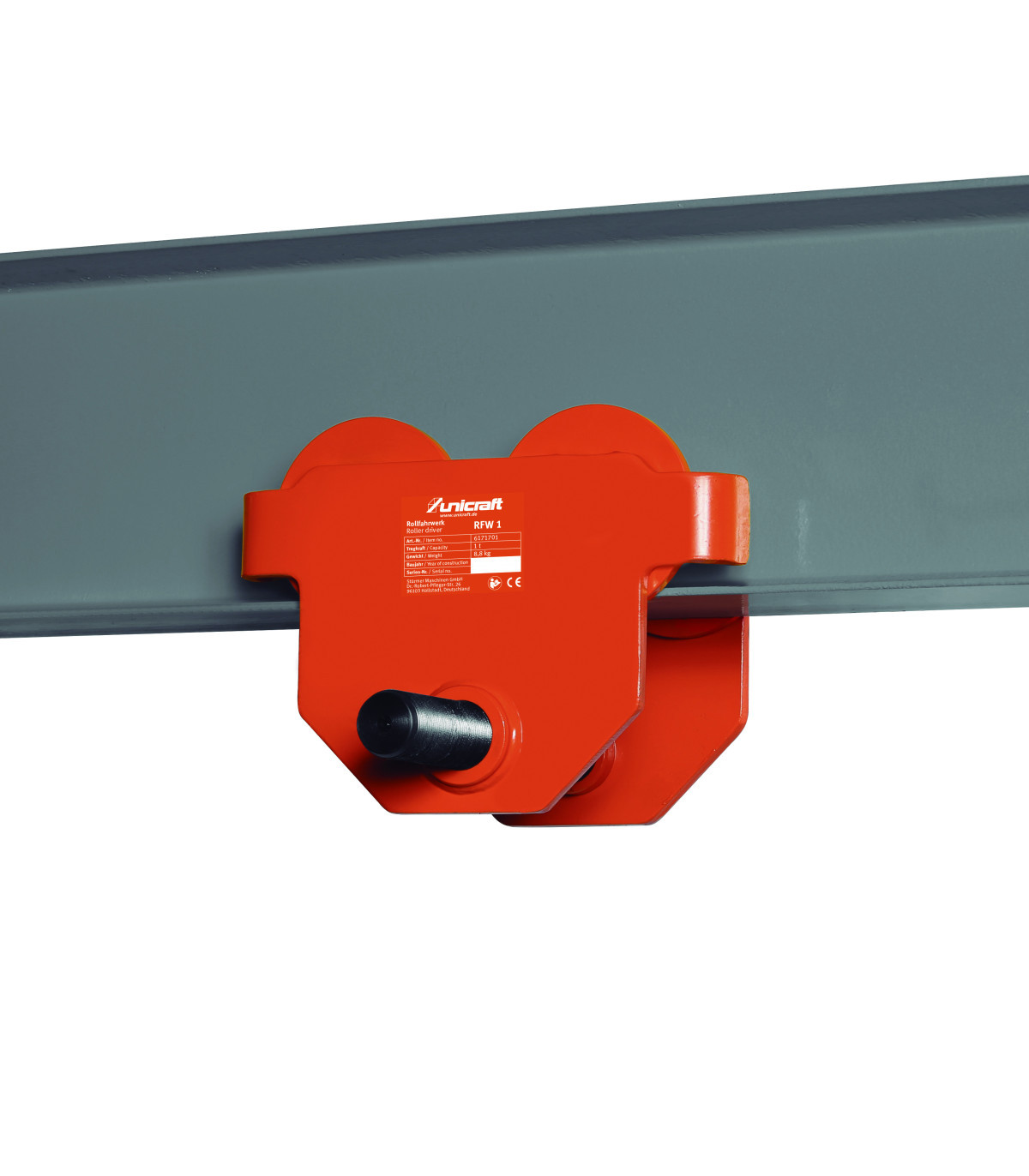

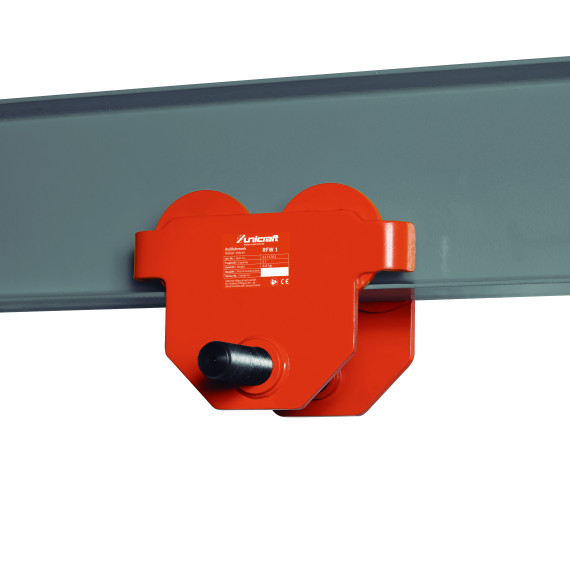

RFW hoist trolley with a capacity of 3 tons UNICRAFT

RFW hoist trolley with a capacity of 3 tons UNICRAFT. The RFW hoist trolley UNICRAFT has a maximum capacity of 3 tons and a compact design that prevents lateral movement thanks to the centering of the pulley. It measures 328 mm in length, 324 mm in width, and 249 mm in height, with a weight of 23 kilos. Ideal for lifting heavy materials, installing structures, and maintenance in factories and workshops.

FEATURES

• With a maximum capacity of 3 T
• No lateral movement thanks to the centering of the pulley
• Adjustment via the fork bar
• Anti-tipping standard
• Low height and compact design.
• For use on I-beams (DIN 1025-1)
• Quiet operation feature through ball bearing

TECHNICAL SPECIFICATIONS

Load capacity 3 tons

Minimum curve radius 1.2 meters

Flange width of the carrier 74 – 220 millimeters

Suitable for the type of carrier I 160 – I 600

VPE 1

Dimensions and weights

Approximate length 328 millimeters

Approximate width/depth 324 millimeters

Approximate height 249 millimeters

Approximate weight 23 kilos

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The RFW hoist trolley with a capacity of 3 tons UNICRAFT is suitable for:

• Lifting heavy materials
• Installing structures
• Maintenance
• Factories
• Workshops

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
