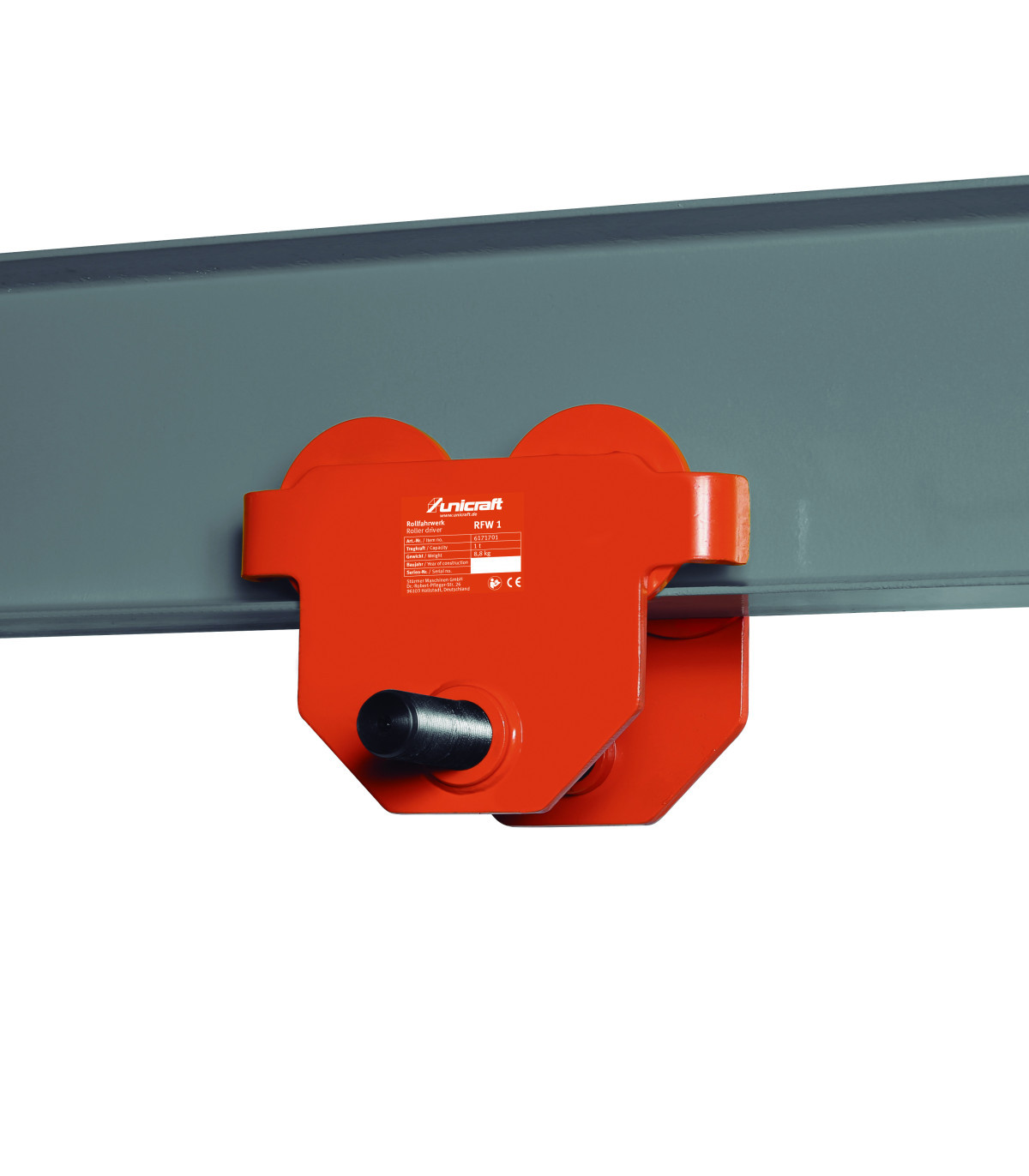

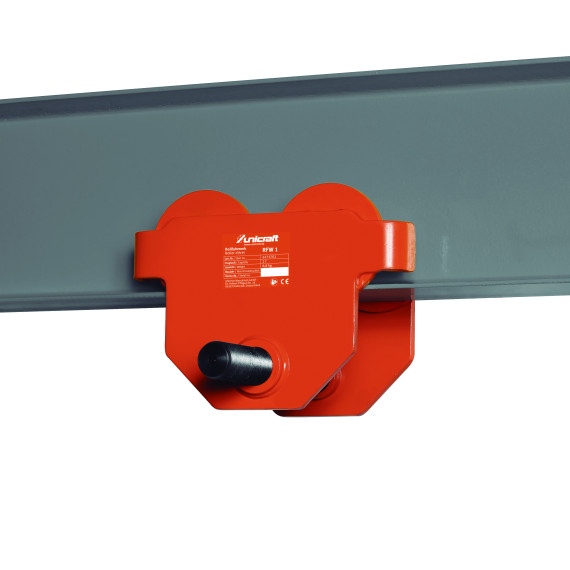

RFW hoist trolley with a capacity of 5 tons UNICRAFT

RFW hoist trolley with a capacity of 5 tons UNICRAFT. The RFW hoist trolley UNICRAFT has a maximum capacity of 5 tons and a compact design that prevents lateral movement thanks to the centering of the pulley. Its minimum curve radius is 1 meter, ideal for I-beams. It operates quietly with ball bearings, making it perfect for lifting heavy materials, installing structures, and maintenance in factories and workshops.

FEATURES

• With a maximum capacity of 5 tons
• No lateral movement thanks to the centering of the pulley
• Adjustment via the fork bar
• Anti-tilt standard
• Low height and compact design.
• For use on I-beams (DIN 1025-1)
• Quiet operation feature with ball bearings

TECHNICAL SPECIFICATIONS

Load capacity 5 tons

Minimum curve radius 1 meter

Flange width of the carrier 90 – 220 millimeters

Suitable for carrier type I 200 – I 600

VPE 1

Dimensions and weights

Approximate length 354 millimeters

Approximate width/depth 373 millimeters

Approximate height 296.5 millimeters

Approximate weight. 40 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The RFW hoist trolley with a capacity of 5 tons UNICRAFT is suitable for:

• Lifting heavy materials
• Installing structures
• Maintenance
• Factories
• Workshops

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
